Hanwha - PNM-9031RV - 15MP Panoramic Camera with 4.3mm Lens

Product Overview

The Hanwha PNM-9031RV is a 15MP outdoor panoramic multi-sensor camera using four 5MP sensors to create a stitched 6720×2240 image at up to 20 fps. It provides a wide 192° horizontal field of view, making it ideal for large-area surveillance. Includes 120dB WDR and 20 m WiseIR illumination with four independent IR zones for improved nighttime coverage. Video compression supports H.265/H.264/MJPEG with WiseStream II for optimized bandwidth and storage efficiency.

Key Configuration

• 15MP (6720x2240) panoramic stitched resolution at 20fps (H.265/H.264); MJPEG limited to 15fps
• Four 1/2.8" 5MP CMOS sensors, 4.3mm fixed lens per sensor, F1.6 aperture, 192°(H) x 65°(V) FOV
• PoE+ (IEEE802.3at, Class4) or 12VDC input; PoE+: max 23.5W / typical 18.0W; 12VDC: max 20.5W / typical 16.0W
• Dual micro SD/SDHC/SDXC slots supporting up to 512GB (256GB x2) with SD card encryption

Key Features

15MP panoramic camera with four 5MP CMOS sensors, 120dB WDR, and 20 m WiseIR with four independent IR zones. It supports analytics, including motion, tampering, virtual line, audio detection, and heatmap features. Includes WiseStream II compression, USB setup output, audio/alarm I/O, TPM 2.0 security, and ONVIF/SUNAPI support. Certified IP66, IK10, and NEMA4X for harsh outdoor environments.

Technical Context

Combines four 5MP sensors into a stitched panoramic channel for seamless 192° coverage without blind spots or external dewarping software. Its four IR zones can be adjusted independently for balanced illumination across the scene. Security features include TPM 2.0 with FIPS 140-2 Level 2 for hardware-based encryption and secure boot. Dual SD cards support redundant or extended edge recording, while the system includes 8GB RAM and 4GB flash memory.

Installation Notes

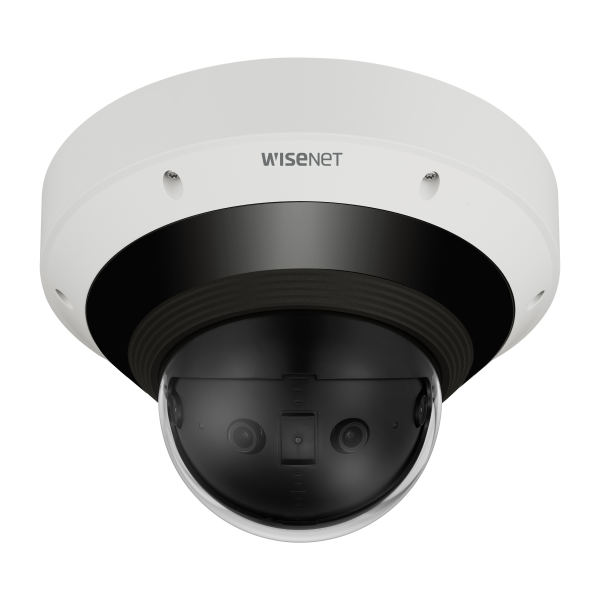

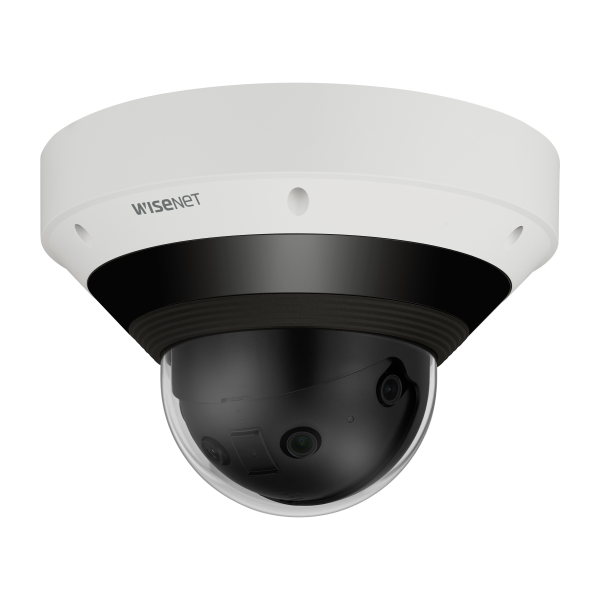

Multi-sensor panoramic dome camera with aluminum housing and hard-coated dome bubble, measuring Ø253 × 170 mm and weighing 2.6 kg. It supports pan adjustment from 0° to 360° and tilt from 0° to 60° for flexible coverage positioning. Designed for harsh outdoor environments, it operates from −40°C to +55°C with intermittent operation up to +60°C for 8 hours (startup above −30°C) and humidity below 95% RH. Power options include PoE+ (IEEE 802.3at Class 4) or 12V DC. A built-in USB port allows on-site installation and focus verification.
