Hanwha - PNM-C12083RVD -6MP x 2CH AI Multi-Directional Dome IR Camera, 3.54~6.69mm

Product Overview

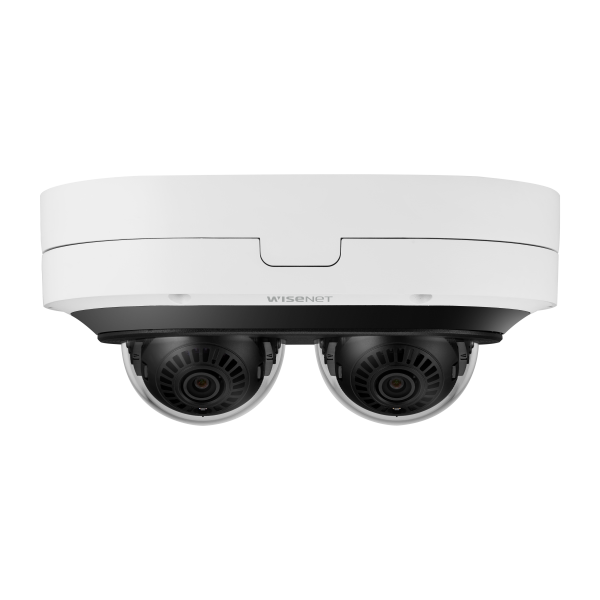

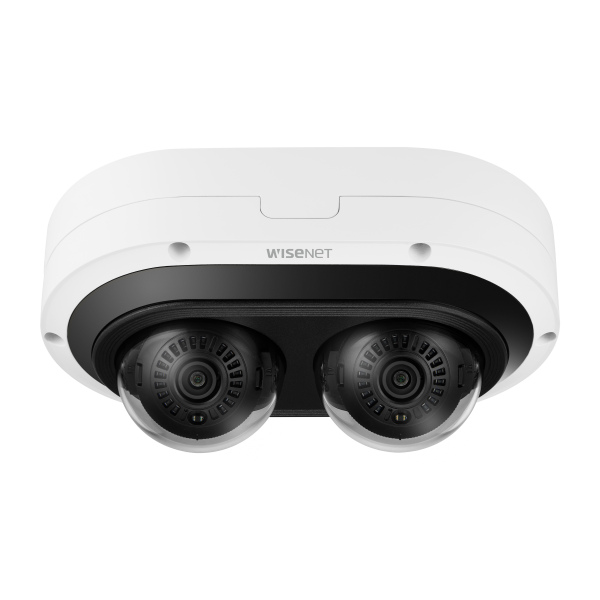

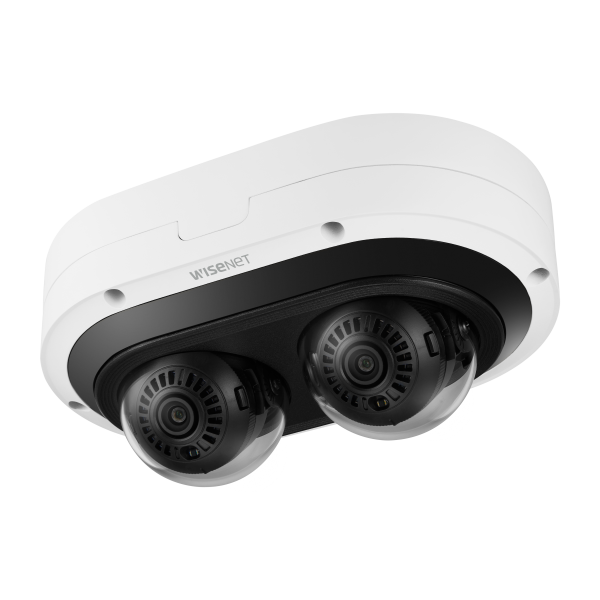

The PNM-C12083RVD is an IP66/NEMA4X/IK10 vandal-rated outdoor multi-directional dome camera featuring dual 1/2.8" CMOS sensors that deliver 6MP per channel (12MP total) at 15 fps. Each channel is equipped with a 3.54–6.69mm motorized varifocal lens and built-in IR up to 25m (82 ft), enhanced by extremeWDR (120dB), WiseNRⅡ, and WiseStreamⅢ technologies. This high-security unit includes an onboard TPM 2.0 cryptographic chip (FIPS 140-2 certified) and advanced AI-based edge analytics capable of precise object classification (Person/Face/Vehicle/License plate) and deep vehicle attribute extraction.

Key Configuration

• • Imaging device: 1/2.8" CMOS × 2CH; resolution: up to 3328×1872 (6MP per sensor) at 15 fps
• • Lens: 3.54~6.69mm motorized varifocal ×2, F1.67(W)–F2.64(T); horizontal FOV: 95.08°(W)–47.64°(T)
• • IR viewable length: 25m (82 ft); minimum illumination: color 0.16 lux, B/W 0.016 lux, 0 lux with IR
• • Video compression: H.265/H.264/MJPEG; smart codec: WiseStreamⅡ, WiseStreamⅢ (AI-based)
• • Power: PoE+ (IEEE 802.3at, Class 4); max 21W, typical 16.5W

Key Features

Key features include a hard-coated dome bubble with a 3-axis adjustment mechanism and a micro-USB port for easy 720p installation viewing. It includes extreme WDR (120dB), AI-driven WiseNRⅡ noise reduction, auto-prefer shutter control, onboard TPM 2.0 security, and up to 512GB of microSD edge storage. Along with native video analytics (defocus, motion, tampering, appear/disappear), it supports advanced audio detection and sound classification when paired with the optional SPM-4210 I/O box.

Technical Context

Constructed from rugged white aluminum (RAL9003) with a hard-coated dome bubble, this IP66/IK10/NEMA4X-rated camera features a 1.5m minimum object distance, 6-zone privacy masking, and an electronic shutter (1/5 to 1/12,000 sec) driven by AI-based auto-prefer control. Backed by 4GB RAM and 512MB Flash, it enforces multi-layered cybersecurity, including secure boot/storage, firmware forgery verification, HTTPS/802.1X authentication, and IP address filtering.

Installation Notes

Measuring 215 × 135 × 93.2 mm and weighing 1330g, this rugged IP66/IK10/NEMA4X-rated housing features dual-sensor capabilities with independent lens adjustment. It operates reliably from -40°C to 55°C (under 95% RH) via PoE+ (Class 4) power, includes a micro-USB port for installation viewing, and requires the optional SPM-4210 I/O box for audio functions. Designed for versatile installation, it offers a 3/4" (M25) conduit hole and natively mounts to single, double, 4" octagon, and 4" square gang boxes.
