Hanwha - PNM-C16013RVQ - 4CH x 4MP Network Vandal Outdoor Mini Wisenet P Series Camera, 3.19mm Lens

Product Overview

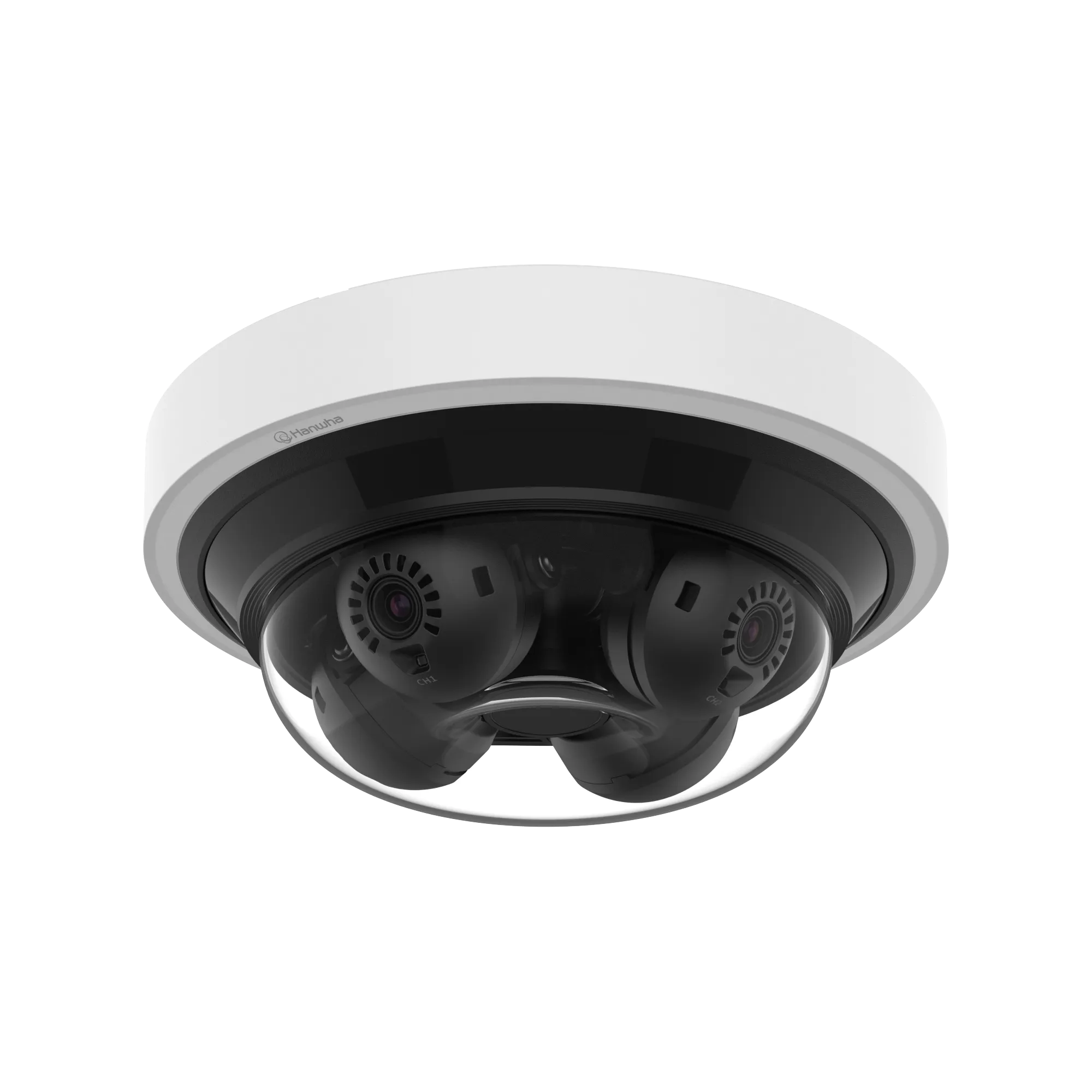

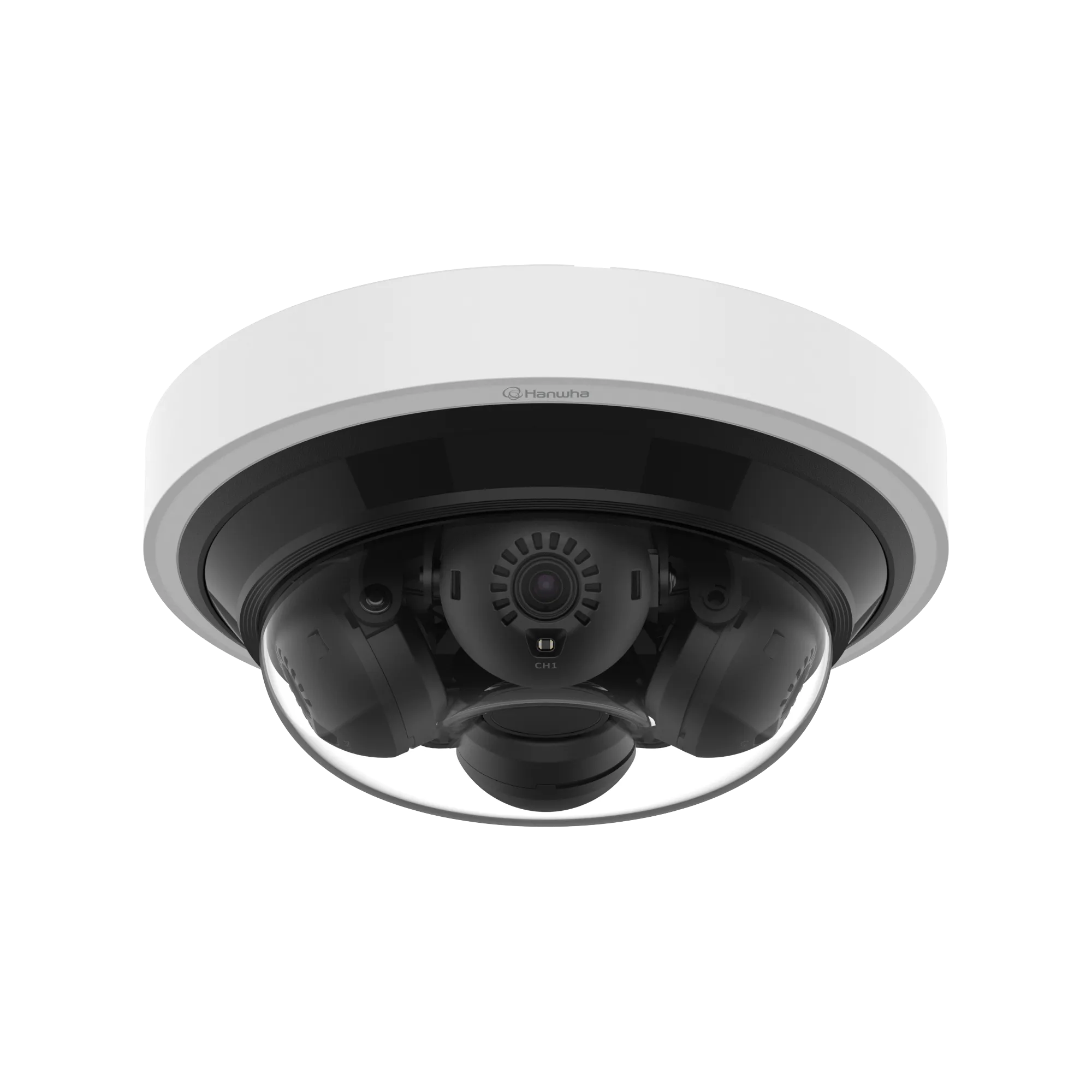

The Hanwha PNM-C16013RVQ is a Wisenet P series mini multi-directional outdoor vandal dome camera equipped with four 1/2.8" CMOS sensors delivering a 4MP resolution per channel (16MP total). Each sensor is paired with a 3.19mm fixed focal length lens (F1.2), providing a wide 97° horizontal field of view. The unit processes multi-channel streams at up to 15 fps per channel, utilizing a triple H.265/H.264/MJPEG codec array for optimal storage and bandwidth management.

Key Configuration

• • Imaging device: 1/2.8" CMOS × 4CH; resolution: 2592×1520 (4MP per channel) at 15 fps
• • Lens: 3.19mm fixed focal, F1.2, M12 mount; horizontal FOV: 97°, vertical: 54°, diagonal: 116°
• • IR viewable length: 20m (65.6 ft); minimum illumination: color 0.05 lux, B/W 0.005 lux, 0 lux with IR
• • Power: PoE+ (IEEE 802.3at Type 2, Class 4); max 23.5W, typical 13W
• • Dimensions: Ø200 × 80 mm (Ø7.87" × 3.15"); weight: 1380g (3.04 lb)

Key Features

Backed by 4GB RAM, 512MB Flash, and a FIPS 140-2 Level 2 certified TPM, this ONVIF Profiles S/T/M conformant camera features 120dB WDR, WiseNRⅡ AI noise reduction, LDC, and per-channel Hallway View. Its deep-learning analytics detect People, Faces, Vehicles (classified by type), and License Plates to power virtual line crossing, loitering, intrusion, entry/exit, motion, tampering, and appear/disappear alerts. Onsite setup and local backup are supported via a micro USB installation port (2592×1520 output) and 2× microSD slots (up to 1TB total).

Technical Context

Featuring a manual focus mechanism with a 2m (6.56 ft) minimum object distance, this camera utilizes an electronic shutter speed of 1/5 to 1/12,000 sec with AI-based auto prefer shutter control. It supports up to 4 streaming profiles for 10 concurrent unicast or multicast users across a full protocol suite that includes SRTP and MQTT. Per-channel configurations allow for 6 rectangular privacy zones (gray, black, or white) and 8 polygonal motion detection zones. The system is housed in a rugged chassis certified IP66 weatherproof, NEMA4X corrosion-resistant, and IK09 impact-rated.

Installation Notes

Measuring Ø200 × 80 mm (Ø7.87" × 3.15") and weighing 1380g (3.04 lb), this white (RAL9003) aluminum camera features 4 independent adjustable sensors, 0–360° pan, 0–75° tilt, 0–90° rotate, protected by a hard-coated dome bubble. It operates from -40°C to +55°C (-40°F to 131°F) with a start-up threshold above -35°C, using an integrated AIR vent for 0–95% non-condensing humidity control. Powered via PoE+ (IEEE 802.3at), the unit includes 2× microSD slots, a micro USB installation port, and native compatibility with single, double, 4" octagon, and 4" square gang boxes, plus various optional mounting brackets and the SBP-060BA conduit accessory.
