Hanwha - PNM-C16083RVQ - 4MP x 4 AI IR Multi-Directional Dome Camera
Product Overview

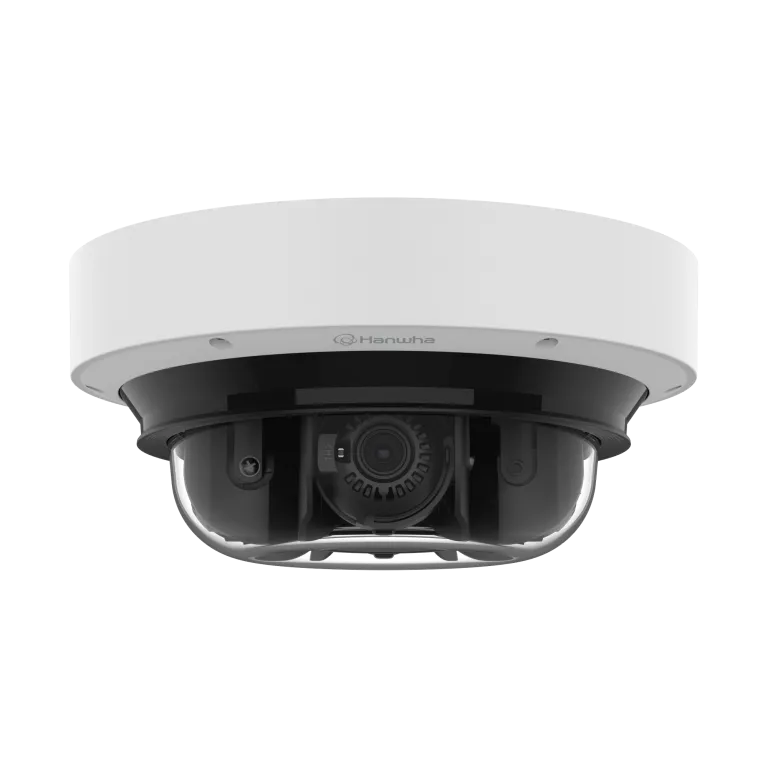

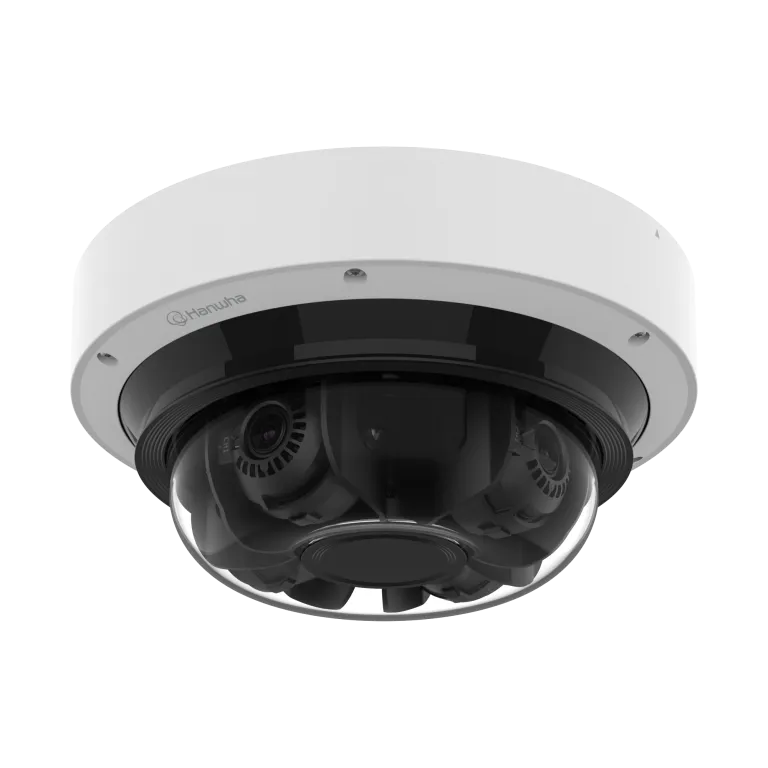

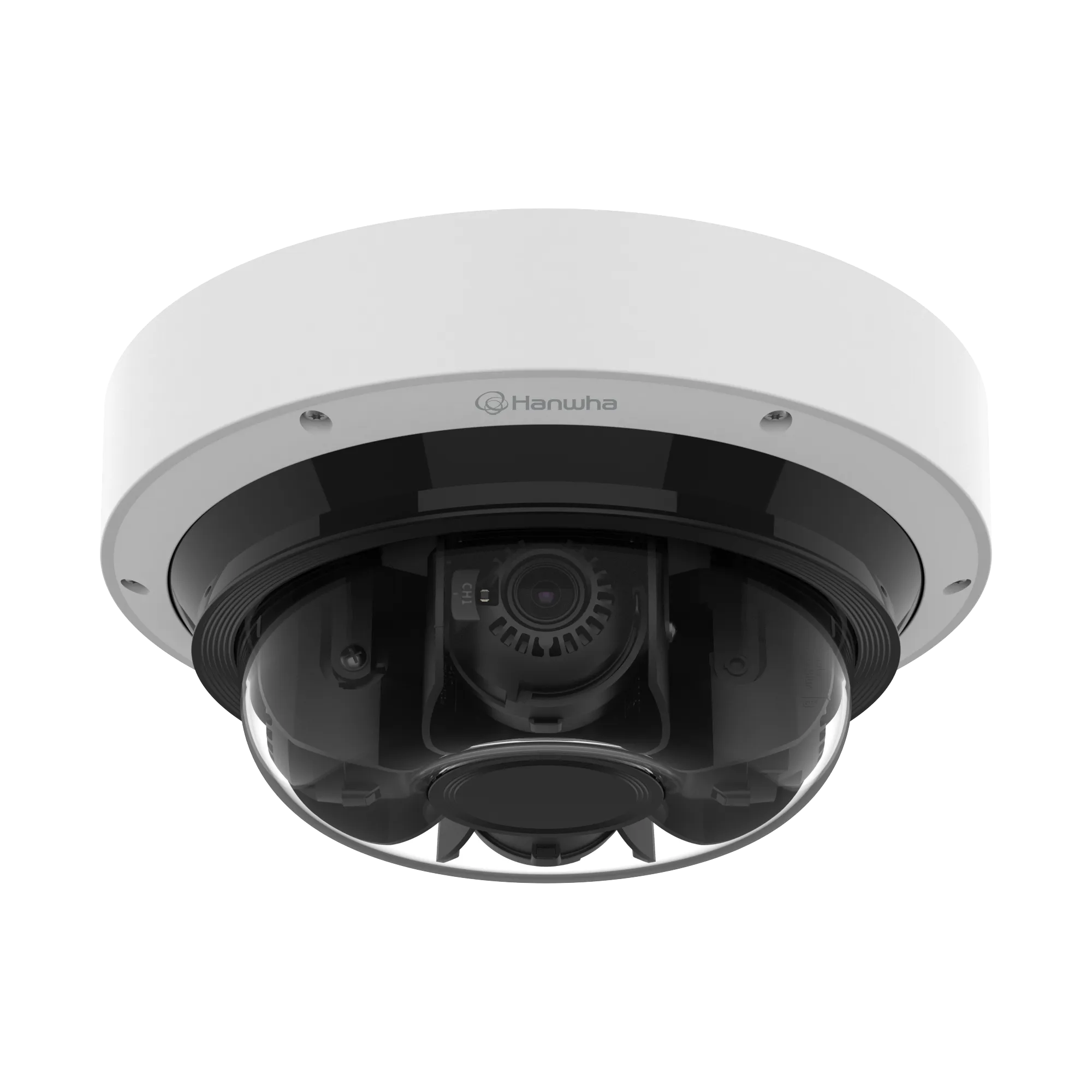

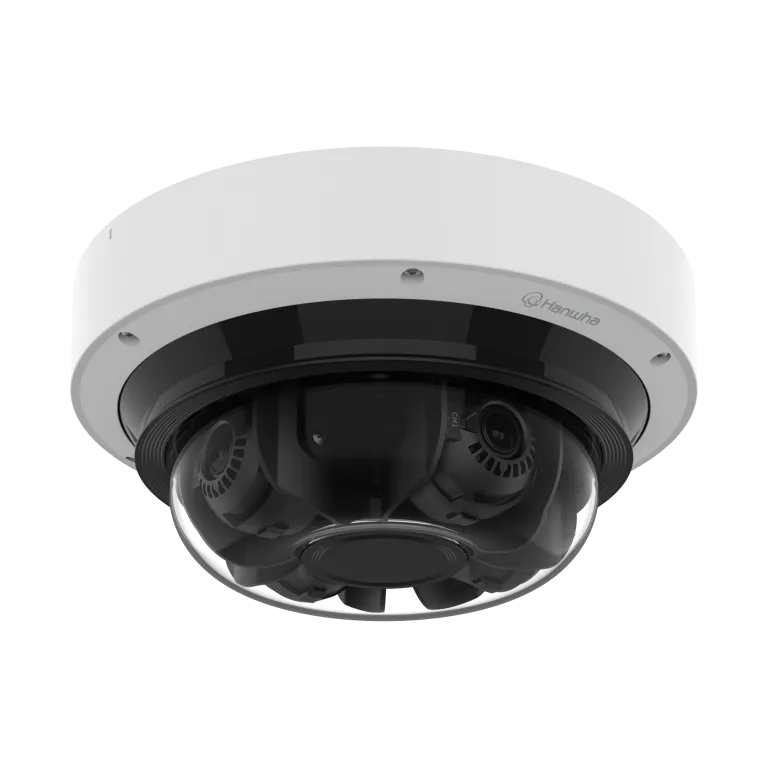

The Hanwha PNM-C16083RVQ is a 16MP multi-directional outdoor dome camera that delivers four independent 4MP channels over a single IP address using 1/2.8" CMOS sensors. It records each channel at up to 30 fps using H.265, H.264, or MJPEG compression. Each sensor is paired with a 3.3 to 5.7mm motorized varifocal lens that features an F1.5–F1.9 aperture and provides a 100° to 53° horizontal field of view.
Key Configuration
- • Imaging device: 1/2.8" CMOS × 4CH; resolution: 2592×1520 (4MP) at up to 30 fps (H.265/H.264)
- • Lens: 3.3~5.7mm motorized varifocal (1.7x), fixed iris, F1.5(W)–F1.9(T); horizontal FOV: 100°(W)–53°(T)
- • IR: WiseIR integrated (rotates with camera head); viewable length: 15m (49 ft)
- • Power: PoE+ (IEEE 802.3at Type 2, Class 4); max 25.5W, typical 22.0W
- • Dimensions: Ø250 × 114.2 mm (Ø9.84" × 4.50"); weight: 2730g (6.02 lb)
Key Features
Featuring independent 3-axis adjustments and integrated 15m WiseIR for each camera head, this IP66/NEMA4X/IK10 dome runs on an 8GB RAM platform with FIPS 140-2 Level 2 TPM security. It delivers 120dB WDR, WiseNRⅡ, WiseStreamⅢ, LDC, and independent hallway views. The onboard AI engine enables BestShot capture and advanced object classification (people, license plates, vehicle types) across virtual boundaries, alongside audio detection and standard tampering alerts. The ONVIF Profile S/T compliant unit includes a micro USB installation port, dual microSD slots (1TB total), and a simplified gangbox mounting chassis.
Technical Context
Offering a 1.3m minimum object distance with simple focus and AI-preferred shutter control (2 to 1/12,000 sec), this camera supports per-channel masking with 6 privacy and 8 motion detection zones. It accommodates multi-profile unicast or multicast streaming across standard network and MQTT protocols. The ruggedized assembly is backed by IP66, NEMA4X, and IK10 environmental and vandal-resistance certifications.
Installation Notes
Measuring Ø250 × 114.2 mm and weighing 2730g, this IP66, NEMA4X, and IK10 rated unit features a hard-coated dome bubble and an air vent for non-condensing humidity control (0–95% RH). It operates from -40°C to 55°C (start-up above -35°C) with a white aluminum (RAL9003) chassis, a 3/4" (M25) conduit hole, and multi-gangbox compatibility (single, double, 4" octagon, square). Powered via PoE+ (IEEE 802.3at Type 2, Class 4), it includes dual 512GB microSD slots, a micro USB installation video port, integrated audio/alarm I/O, and supports SBP-250HMW and SBP-276HMW hanging mounts.
| Video | |
| Imaging Device | 1/2.8" CMOS x 4CH |
| Resolution | 2592x1520, 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 |
| Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(@4MP Max. 5fps) |
| Min. Illumination | Color: 0.075Lux(F1.5, 1/30sec, 30IRE) BW: 0.0075Lux(F1.5, 1/30sec, 30IRE), 0Lux(IR LED on) |
| Video Out | USB: Micro USB Type B, 1280x720 for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 3.3~5.7mm(1.7x) motorized varifocal |
| Max. Aperture Ratio | F1.5(Wide)~F1.9(Tele) |
| Angular Field of View | H: 100°(Wide)~53°(Tele) V: 54°(Wide)~30°(Tele) D: 125°(Wide)~61°(Tele) |
| Min. Object Distance | 1.3m(4.27ft) |
| Focus Control | Simple focus |
| Lens Type | Fixed iris |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 0°~360° / 0°~65° / 0°~90° |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNRⅤ, WiseNRⅡ(Based on AI engine) |
| Motion Detection | 8ea, 8point Polygonal zones |
| Privacy Masking | 6ea, rectangular zones - Color: Grey/Black/White |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker(2~1/12,000sec) Prefer shutter control(Based on AI engine) |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) - Each channel separately |
| Analytics | Classified object type: Person/Face/Vehicle/License plate Attributes: Vehicle(Type: car/bus/truck/motorcycle/bicycle) Support BestShot Analytics events based on AI engine - Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit) Analytics events - Defocus detection, Motion detection, Tampering, Audio detection, Sound classification, Virtualarea(Appear/Disappear) |
| Alarm Triggers | Analytics, Network disconnect, Alarm input, App event, Time schedule, MQTT subscription |
| Alarm Events | When alarm trigger occurred - File upload(image): e-mail/FTP - Notification: e-mail - Recording: SD/SDHC/SDXC or NAS recording at event triggers- Alarm output - Handover: PTZ preset, send message by HTTP/HTTPS/TCP - Audio clip playback - MQTT: publication |
| Audio In | Selectable(mic in/line in) |
| Audio Out | Line out |
| IR Viewable Length | WiseIR 15m(49.21ft) |
| Network | |
| Ethernet | Metal shielded RJ-45(10/100/1000BASE-T) |
| Video Compression | H.265/H.264: Main/High, MJPEG |
| Audio Compression | G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz |
| Smart Codec | Manual(5ea area), WiseStreamⅡ, WiseStreamⅢ(Based on AI engine) |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(10 users) / Multicast Multiple streaming(Up to 3 profiles per channel) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast), MQTT |
| Application Programming Interface | ONVIF Profile S/T SUNAPI(HTTP API) Wisenet open platform |
| Security | |
| OS / Firmware Protect | Secure boot, Signed firmware, Firmware encryption |
| User authentication | Digest Authentication |
| Network authentication | 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2) |
| Secure Communication | HTTPS, SRTP |
| Access Control | IP address filtering |
| Data Protect | Authentication information encryption, ZIP compression encryption |
| Audit | User Access/System/Event log |
| Device ID | Device Certificate(Hanwha Private Root CA) |
| Secure Storage | TPM(Trusted platform module) |
| Security Certificate | TPM with FIPS 140-2 level 2 |
| General | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Edge Storage | Micro SD/SDHC/SDXC 2slot Max. 1TB(512GBx2) |
| Memory | 8GB RAM, 1GB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -40°C~+55°C(-40°F~+131°F) * Start up should be done at above -35°C 0~95% RH(non-condensing) Humidity control /w Air vent |
| Storage Temperature / Humidity | -50°C~+60°C(-58°F~+140°F) / 0~90% RH |
| Certification | IP66, NEMA4X, IK10 |
| Input Voltage | PoE+(IEEE802.3at Type2, Class4) |
| Power Consumption | PoE+: Max 25.5W, typical 22.0W |
| Mechanical | |
| Color / Material | Body: White / Aluminum Bubble: Hard-coated dome |
| RAL Code | RAL9003 |
| Product Dimensions / Weight | ø250x114.2mm(ø9.84x4.50"), 2730g(6.02 lb) |
| Compatible Conduit hole / Gangbox | Conduit hole: 19.1mm(3/4")(M25) Gangbox: Single, Double, 4" Octagon, Square |
| Hanging Mount (Dome) | SBP-250HMW, SBP-276HMW |
