Hanwha - PNM-C32083RVQ - 4K x 4 AI IR Multi-Directional Dome Camera with 3.3~5.7mm Lens

Product Overview

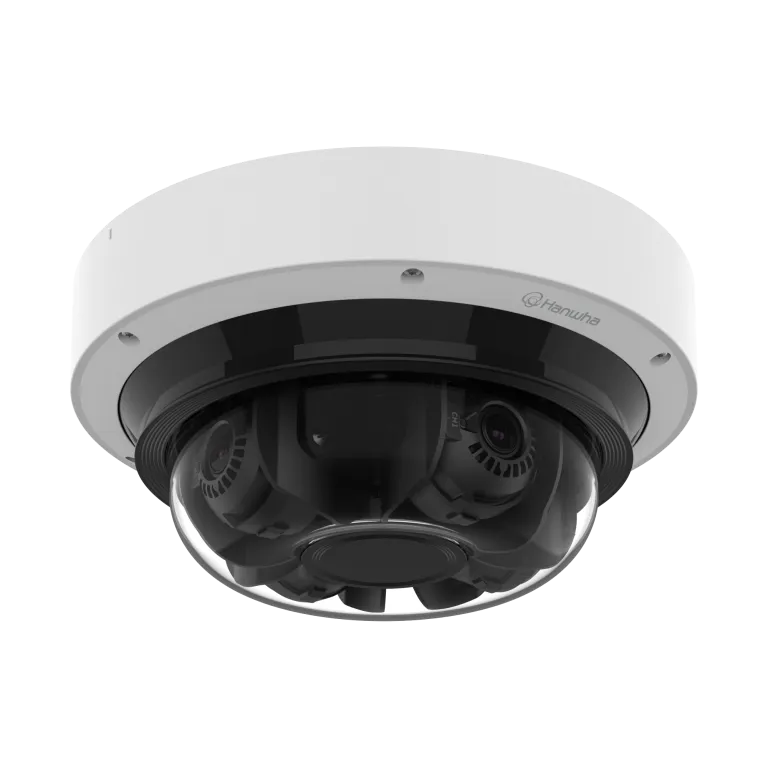

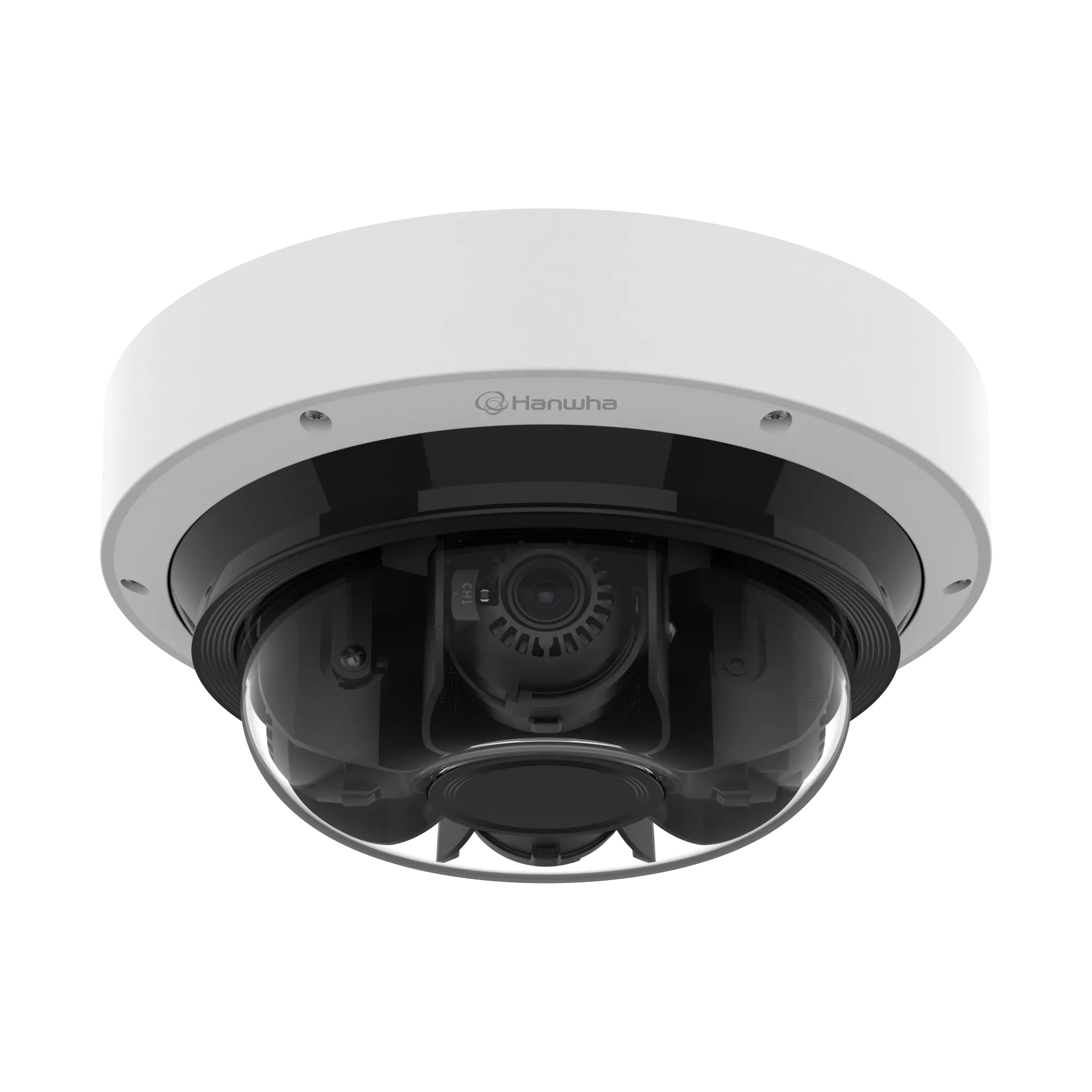

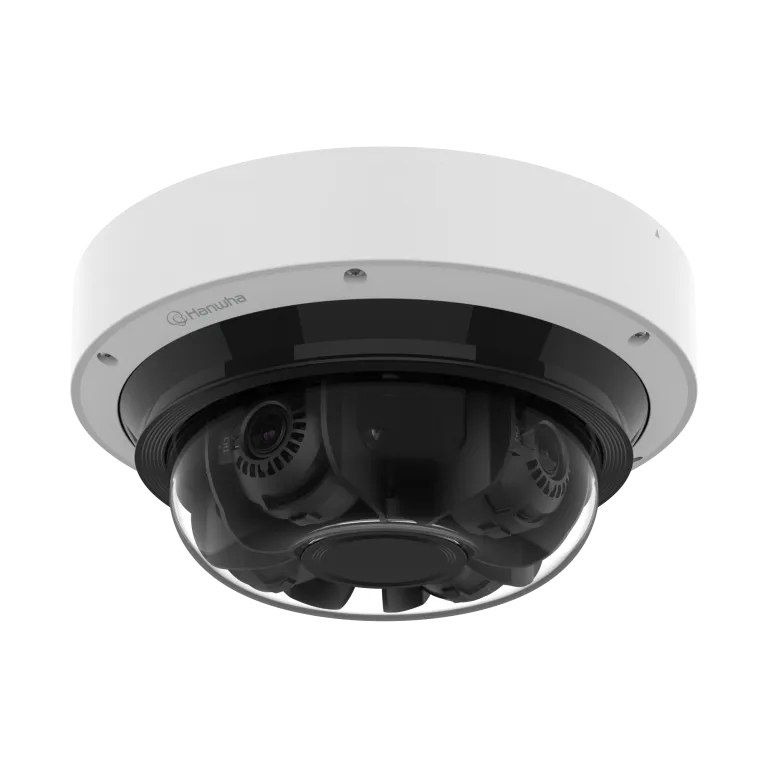

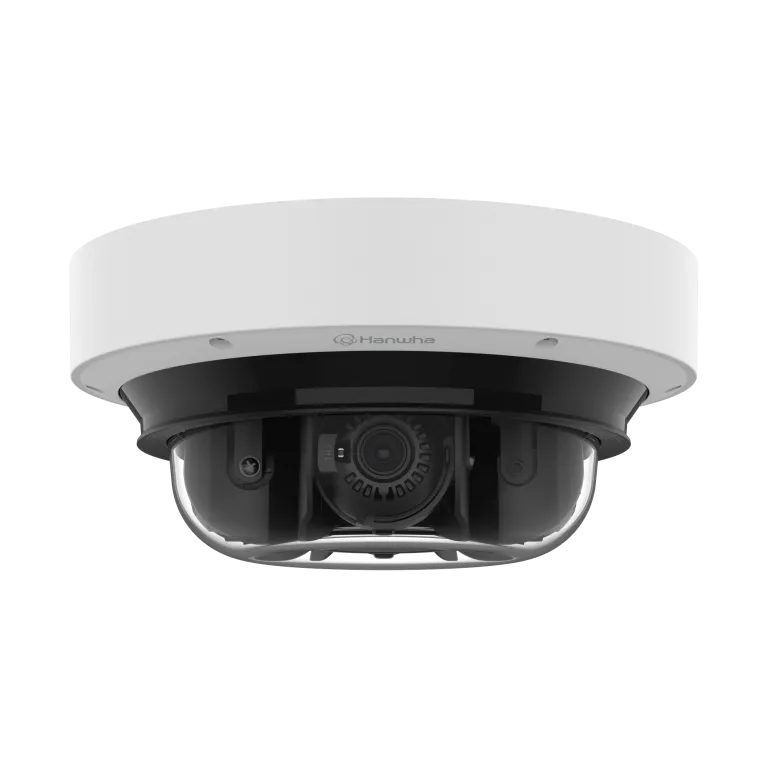

The Hanwha PNM-C32083RVQ is a 4K × 4 AI IR multi-directional dome camera equipped with four 1/2.8" CMOS sensors (8MP each, 32MP total) operating under a single IP address. Each camera head features a 3.3–5.7mm (1.7x) motorized varifocal lens (F1.5–F1.9, 109°–56° HFUV) with simple focus capabilities. It delivers up to 15 fps at 8MP per channel with AI enabled, or 20 fps at 8MP with AI disabled, and includes integrated IR illumination that rotates dynamically with each sensor module, providing a night vision range of up to 15 meters using PoE+ or 20 meters with HPoE.

Key Configuration

• • Imaging device: 1/2.8" CMOS × 4CH; resolution: 8MP per channel at 15 fps (AI On) or 20 fps (AI Off)
• • Lens: 3.3~5.7mm motorized varifocal (1.7x), fixed iris, F1.5(W)–F1.9(T); horizontal FOV: 109°(W)–56°(T)
• • IR: integrated WiseIR (rotates with camera head); viewable length: PoE+ up to 15m (49 ft), HPoE up to 20m (65 ft)
• • Power: PoE+ (IEEE 802.3at) or HPoE (injector not included; 20m IR available via future firmware update)
• • Dimensions and weight: not specified

Key Features

Featuring 120dB WDR, WiseNRⅡ AI noise reduction, LDC, and hallway views, this camera delivers edge AI analytics that detect people and vehicles (including sub-types) alongside BestShot metadata, virtual line crossing, and area monitoring. It includes dual microSD slots (up to 1TB total), a micro USB setup port, and audio/alarm I/O. System alerts triggered by analytics or MQTT automate actions like email notifications, local recording, and PTZ handovers. The design supports straightforward gangbox installation.

Technical Context

With a minimum object distance of 1.3m (4.27 ft), this camera features simple focus control, an AI-optimized electronic shutter (1/5 to 1/12,000$ sec), 6 privacy masks, and 8 motion detection zones per channel. It utilizes standard network protocols (including HTTPS, SRTP, and MQTT) to support unicast streaming for up to 10 users and up to 3 profiles per channel. Built for harsh environments, the unit operates from -40°C to +55°C (-40°F to 131°F) with IP66, IK10, and NEMA4X certifications, and features a hard-coated dome bubble. Note that the HPoE injector is sold separately, and full HPoE/20m IR functionality requires a future firmware update.

Installation Notes

This multi-directional camera features 4 independent sensors with individual pan (0–360°), tilt (0–65°), rotate (0–90°), and separate hallway view adjustments. Built for extreme conditions, the hard-coated dome assembly operates from -40°C to 55°C (-40°F to 131°F) and carries IP66 weather, IK10 vandal, and NEMA4X corrosion resistance ratings. The unit is powered via PoE+ or HPoE (injector sold separately) and is designed for easy gangbox mounting. For physical connectivity, it includes a micro USB Type-B installation port, dual microSD storage slots, and integrated audio and alarm I/O interfaces.
