Hanwha - PNM-C7083RVD - 2MP X 2 Multi-Directional AI Outdoor Dome Camera

Product Overview

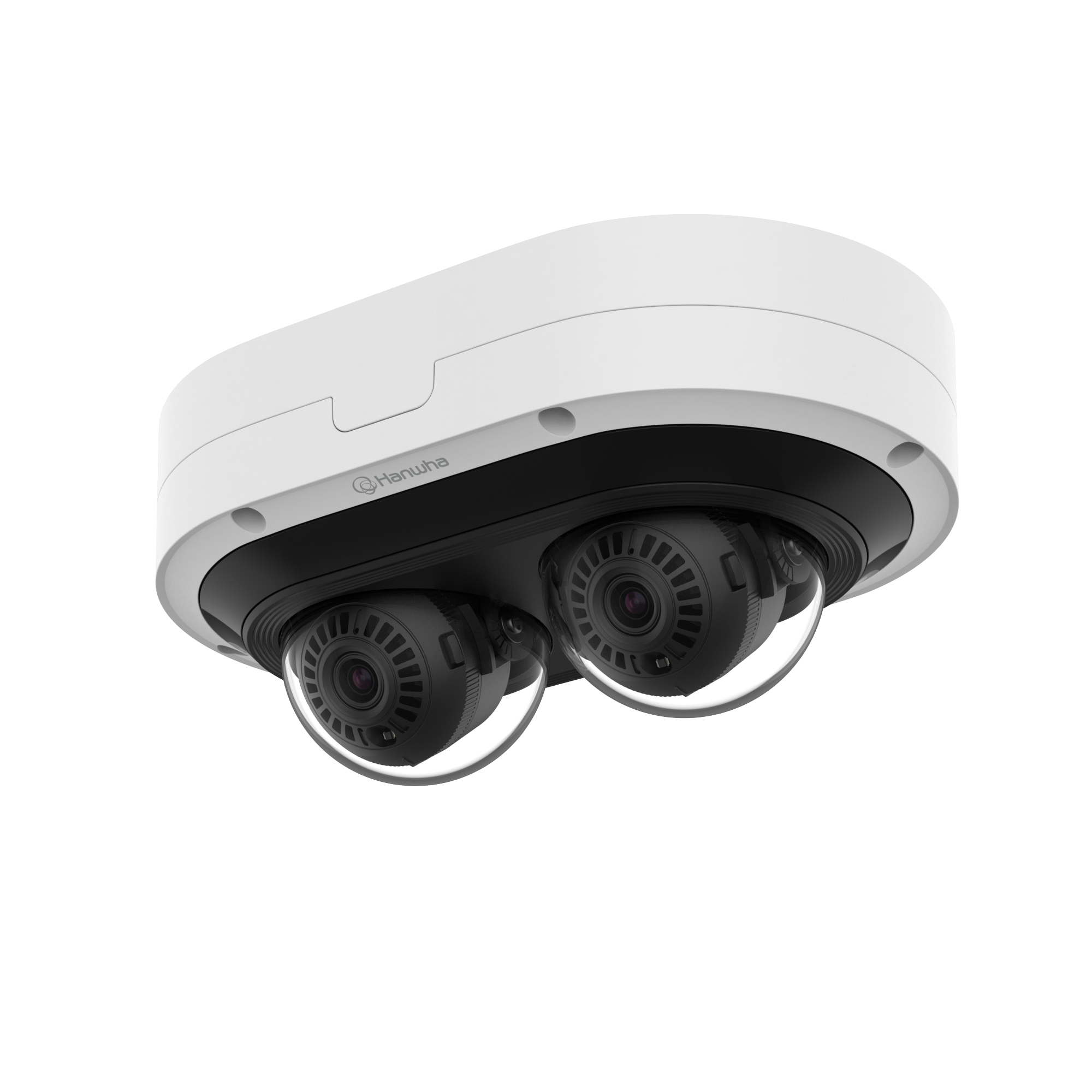

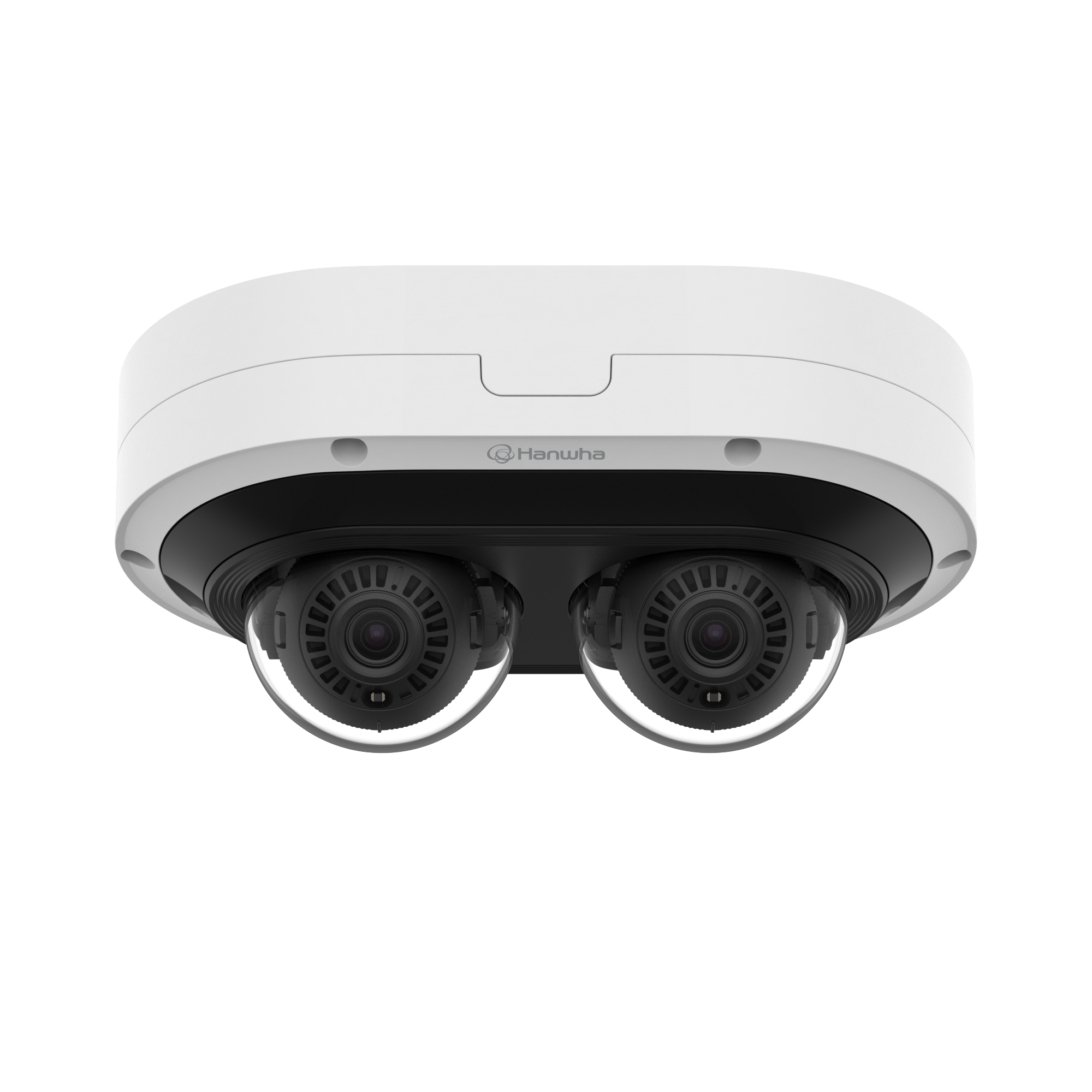

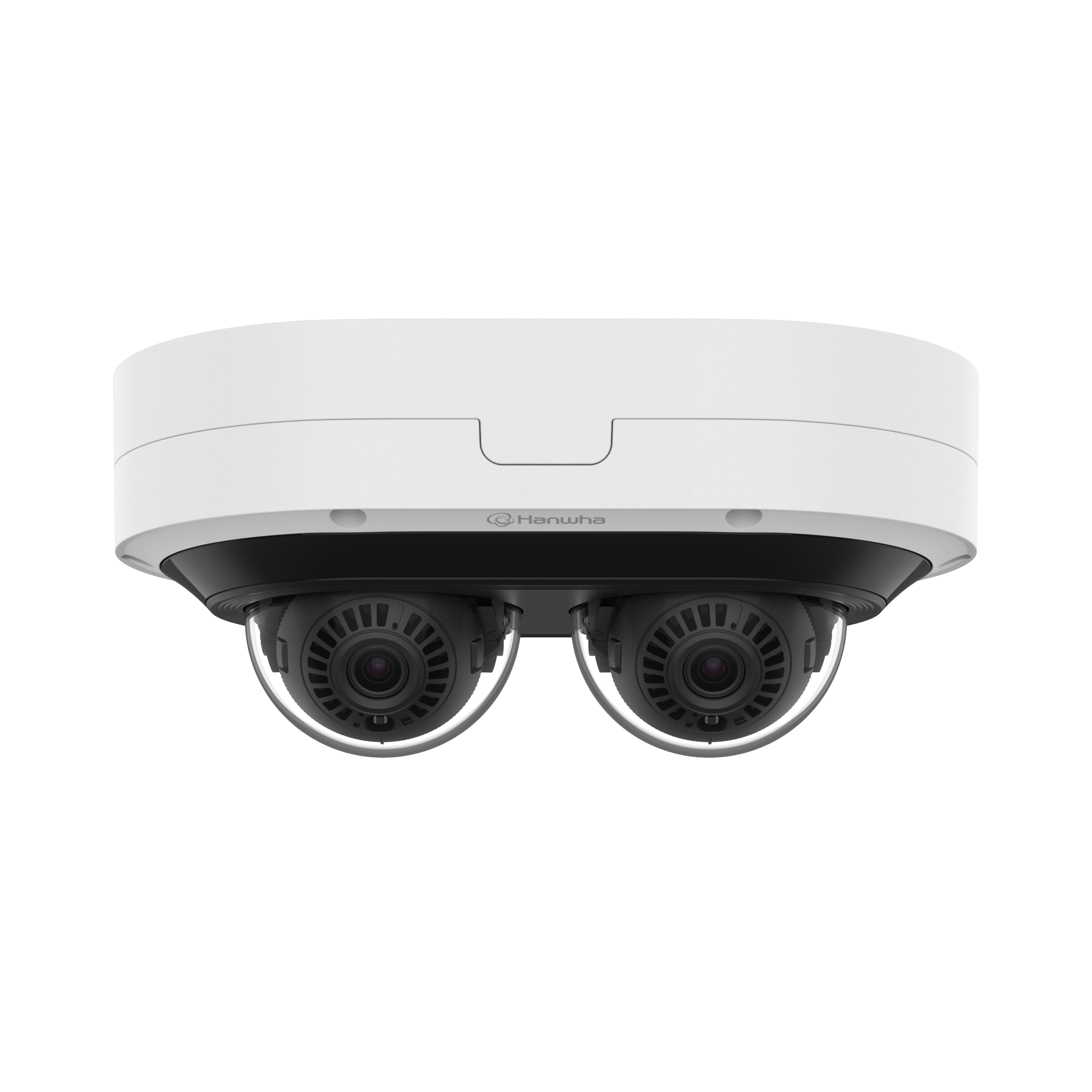

The Hanwha PNM-C7083RVD is a vandal-resistant outdoor 2-channel AI IR dome camera with dual 1/2.8" CMOS sensors, delivering 2MP per channel (4MP total) under a single IP address. It features two motorized 3–6mm varifocal lenses with a 107°–56.3° horizontal field of view and simple focus adjustment. The camera supports up to 30 fps per channel with H.265/H.264/MJPEG compression for efficient video streaming.


Key Configuration

• Imaging: dual 1/2.8" CMOS sensors, 2MP per channel (1920×1080) at up to 30 fps.
• Lens: 3–6mm motorized varifocal (per channel), F2.2–F3.1, 107°–56.3° horizontal FOV.
• IR/low light: up to 25 m IR range; 0.035 lux (color), 0.0035 lux (B/W), 0 lux with IR.
• Power: PoE+ (IEEE 802.3at Class 4), max 20W (typical 15.5W).
• Dimensions: 215 × 135 × 93.2 mm, weight 1330 g (2.93 lb).

Key Features

Equipped with 120 dB extreme WDR, the Hanwha PNM-C7083RVD uses WiseNRⅡ AI noise reduction and SSNRⅤ for enhanced image quality. It includes lens distortion correction (LDC) and AI-based analytics for detecting persons, faces, vehicles, and license plates, along with vehicle attributes and BestShot capture. IVA functions support virtual line crossing, intrusion, loitering, and enter/exit detection, while additional analytics cover motion detection, tampering, defocus, audio detection, and sound classification. The camera supports microSD storage up to 512GB, TPM 2.0 with FIPS 140-2 security, and a hardened dome design with 3-axis adjustment (pan 0–355°, tilt 0–78°, rotate 0–180°).

Technical Context

Supports a minimum object distance of 0.5 m with simple focus control and electronic shutter speeds from 1/5 to 1/12,000 sec, including AI-based auto shutter optimization. It offers privacy masking with up to 6 quadrilateral zones per channel and supports multiple network protocols, including IPv4/IPv6, RTSP, HTTPS, SSL/TLS, SNMP, FTP, MQTT, and more. The camera provides unicast streaming for up to 10 users, multicast support, and 5 stream profiles per channel. It is certified for IP66, IK10, and NEMA4X protection and is compatible with multiple conduit and gang box installations.

Installation Notes

White aluminum dual-sensor dome design measuring 215 × 135 × 93.2 mm and weighing 1.33 kg, with a hard-coated dome bubble. It operates in extreme conditions from -40°C to 55°C with humidity below 95% RH and storage tolerance down to -50°C. Power is supplied via PoE+ (IEEE 802.3at Class 4), with edge storage support up to 512GB via microSD. The camera includes a USB micro Type B service output and optional audio I/O via an external module. It features independently adjustable dual lenses in a multi-directional dome configuration for flexible coverage per channel.
