Hanwha - PNM-C9022RV - 8MP IR Panoramic Camera with 2.8mm Fixed Focal Lens

Product Overview

The Hanwha PNM-C9022RV is a panoramic multi-sensor camera equipped with four 1/2.8" CMOS sensors that deliver an 8MP composite resolution (5120×1568) at up to 20 fps. It utilizes a hardware-stitching algorithm to generate a seamless 209° horizontal panoramic image with a 60° vertical field of view. Video compression is managed via H.265, H.264, and MJPEG triple codecs enhanced by WiseStreamⅢ smart compression technology.

Key Configuration

• • Imaging device: 1/2.8" CMOS × 4 sensors; resolution: 5120×1568 (panoramic) at 20 fps
• • Lens: 2.8mm fixed focal ×4, F2.0; field of view: horizontal 209°, vertical 60°
• • IR: WiseIR up to 20m (65 ft), 4 individual zones with automatic/manual level adjustment
• • Minimum illumination: color 0.1 lux, B/W 0.01 lux, 0 lux with IR; min. object distance: 5m (16.4 ft)
• • Power: PoE+ (IEEE 802.3at, Class 4) or 12V DC; PoE+ max 24.5W / typical 11.3W, 12VDC max 22.0W / typical 10.4W; power redundancy failover

Key Features

This multi-sensor camera operates on a 4GB RAM and 512MB Flash platform, delivering 120dB extremeWDR, WiseNRⅡ, and SSNRⅤ noise reduction alongside alpha blending for seamless 4-channel panoramic stitching. Its integrated edge AI engine enables precise object detection (people and vehicles) to drive intelligent virtual line and area analytics (crossing, direction, loitering, intrusion, enter/exit) alongside standard defocus, motion, tampering, audio, and appear/disappear alerts. Operating on a secure OS with TPM 2.0 FIPS 140-2 Level 2 and verified firmware, the ONVIF Profiles S/G/T/M compliant unit features a micro USB installation video output and dual 512GB microSD slots for up to 1TB of local edge storage.

Technical Context

Featuring a fixed focus lens and a 2 to 1/12,000 sec electronic shutter with AI-based auto prefer shutter control, this camera supports 8 polygonal motion detection zones and 10 rectangular privacy masking zones with multiple color options. It accommodates up to 3 streaming profiles across 2 virtual channels, allowing up to 20 unicast users or unlimited multicast users over standard network protocols, including PIM-SM. The ruggedized hardware is certified with IP66, IK10, and NEMA4X ratings for severe environmental and impact protection.

Installation Notes

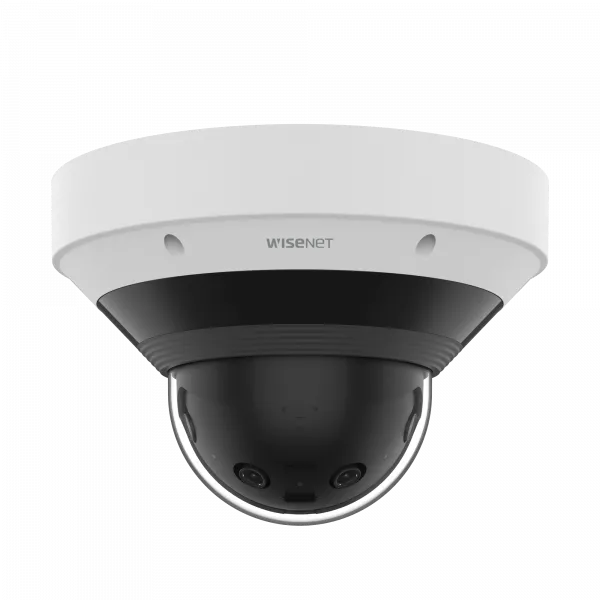

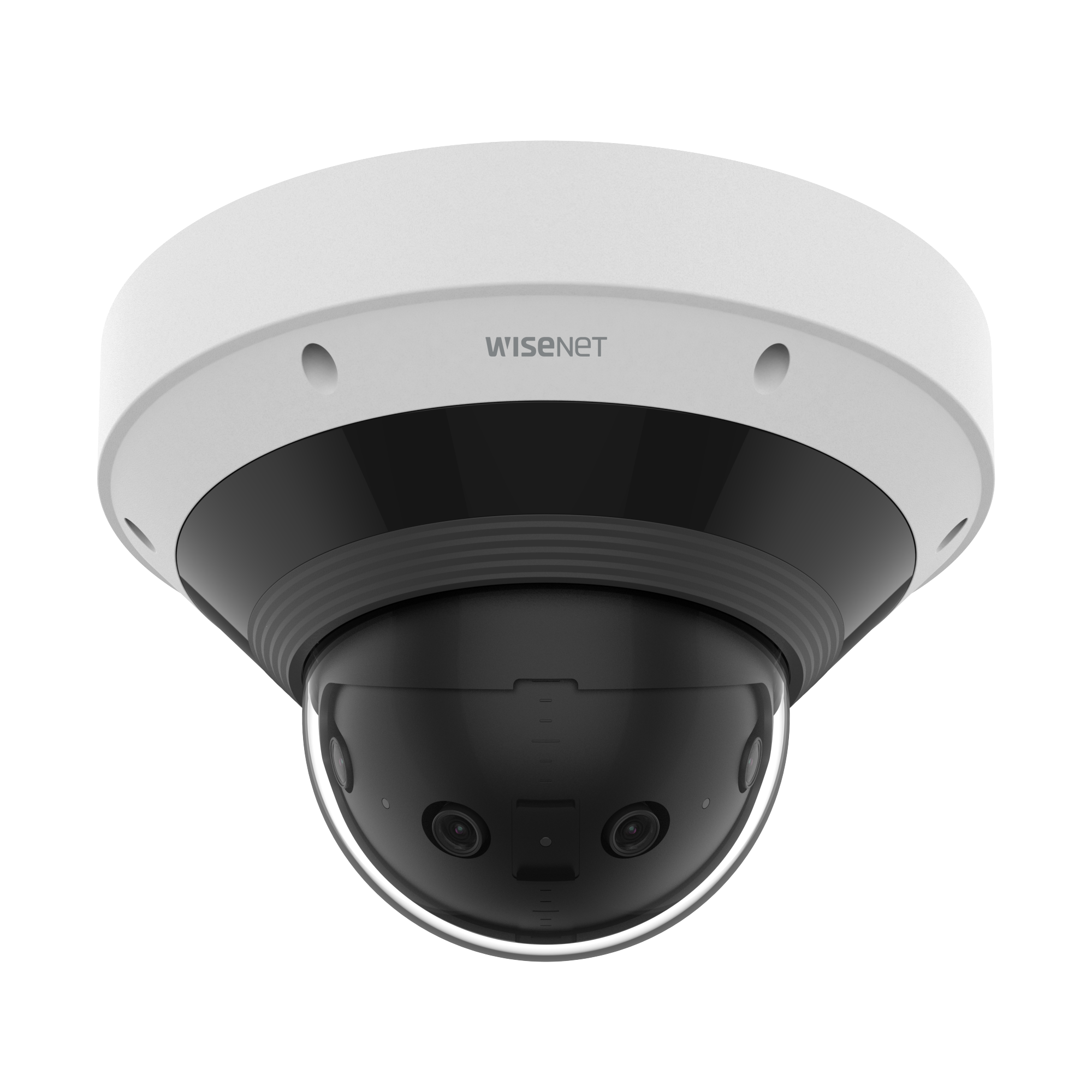

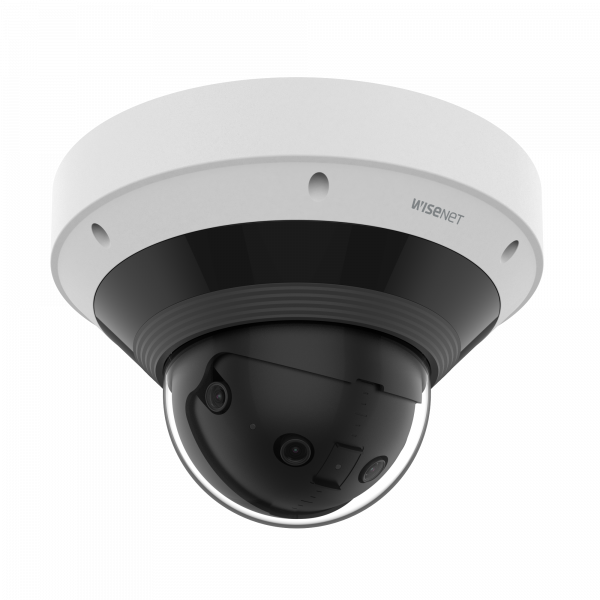

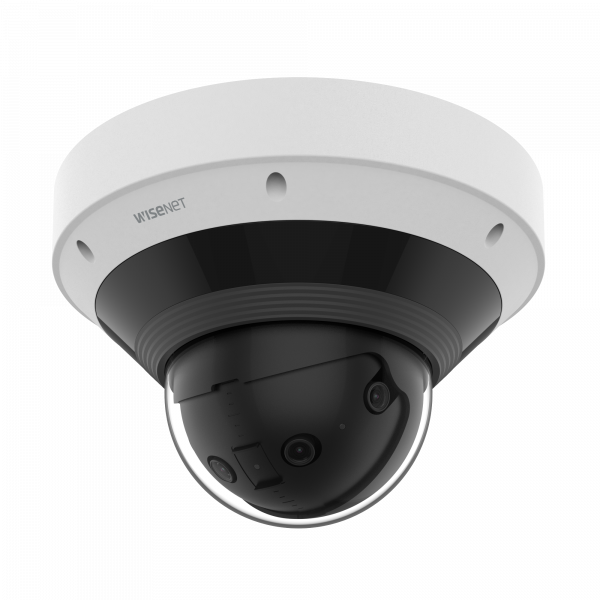

Measuring Ø253 × 170 mm and weighing 2,900g, this panoramic multi-sensor camera features a white aluminum chassis with a hard-coated dome bubble. It operates from -40°C to 55°C and stores from -30°C to 60°C under 0–95% non-condensing relative humidity. The camera runs on PoE+ Class 4 or 12V DC with automatic power redundancy failover. It includes dual 512GB microSD slots for local edge storage, a 3/4" (M25) conduit hole, and a micro Type B USB port for installation video output or setup via an optional Wi-Fi adapter. The base mounts directly to single, double, 4" octagon, and square gang boxes, and is compatible with the SBP-276HMW hanging mount.
