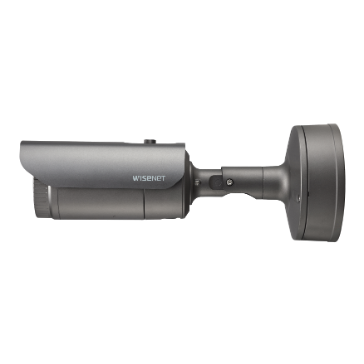

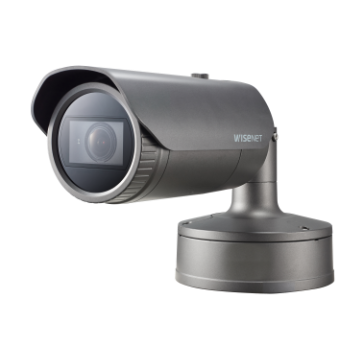

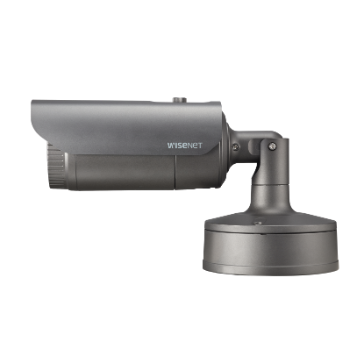

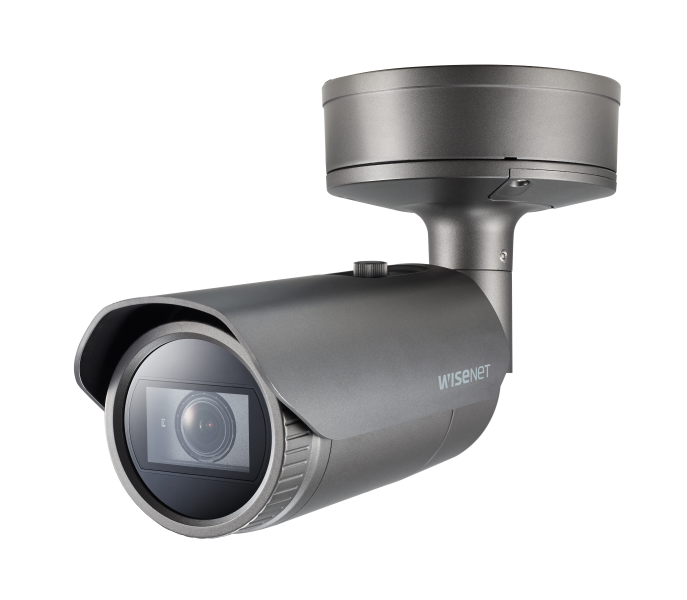

Hanwha - PNO-A9081R - 4K Network AI IR Bullet Camera, 4.5~10mm Motorized Varifocal Lens
Product Overview
The PNO-A9081R is a 4K AI IR bullet camera featuring a 1/1.8" 8MP CMOS sensor and a 4.5–10mm (2.2x) motorized varifocal lens providing a 101.4°–45.5° horizontal field of view. Part of the Wisenet P series, it delivers 4K (3840×2160) video at up to 30 fps using H.265, H.264, and MJPEG compression codecs optimized by WiseStream II and WiseStream III bandwidth technologies.
Key Configuration
- • Imaging device: 1/1.8" 8MP CMOS; resolution: 3840×2160 (4K) at up to 30 fps
- • Lens: 4.5~10mm motorized varifocal (2.2x), F1.6(W)–F2.65(T), P-iris; horizontal FOV: 101.4°(W)–45.5°(T)
- • IR viewable length: 30m (98 ft); minimum illumination: color 0.05 lux, 0 lux with IR
- • Video compression: H.265/H.264 (Main/High), MJPEG; WiseStreamⅡ/Ⅲ
- • Power: PoE+ or 12V DC; dimensions: Ø91.0 × 368.6 mm (without sunshield); weight: 2.48 kg (5.47 lb)
Key Features
Equipped with 120dB WDR, SSNR V, and gyro-stabilized DIS, this camera features LDC, Hallway View, and dual microSD slots, 512GB total. Edge AI analytics provide advanced object detection and classification (Person, Face, Vehicle, License Plate) with attribute extraction and BestShot capture, driving specialized tracking, behavioral alarms, environmental triggers, and audio classification. Business intelligence integrations enable heatmap generation, queue management, and retail demographic analytics. The system ensures broad compatibility via ONVIF Profiles S/G/T compliance.
Technical Context
Featuring a 0.5m minimum object distance and 1/5–1/12,000 sec electronic shutter, this camera supports 6 rectangular privacy masks and 8 motion zones. It delivers up to 3 streaming profiles to 20 unicast and unlimited multicast users. Network security is maintained via HTTPS, digest authentication, 802.1X, device certificates, IP filtering, and access logs across an enterprise protocol suite, including SRTP and LLDP.
Installation Notes
Measuring Ø91.0 × 368.6 mm and weighing 2.48 kg, this dark gray aluminum camera features IP66/IP67/IK10/NEMA4X environmental protection. It operates from -40°C to 55°C under 90% RH and is powered via 12VDC or PoE+. Hardware provisions include dual microSD slots, alarm/audio I/O, and dual CVBS/USB installation outputs.
| Video | |
| Imaging Device | 1/1.8" 8MP CMOS |
| Min. Illumination | Color: 0.05Lux(F1.6, 1/30sec) BW: 0Lux(IR LED on) |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation USB: Micro USB Type B, 1280x720 for installation |
| Lens |
| Focal Length (Zoom Ratio) | 4.5~10mm(2.2x) motorized varifocal |
| Max. Aperture Ratio | F1.6(Wide)~F2.65(Tele) |
| Angular Field of View | H:101.4°(Wide)~45.5°(Tele) / V:53.6°(Wide)~25.5°(Tele) / D:120.7°(Wide)~52.3°(Tele) |
| Min. Object Distance | 0.5m(1.64ft) |
| Focus Control | Simple focus |
| Lens Type | DC auto iris, P iris |
| Operational |
| Camera Title | Off / On (Up to 85 characters) |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNRⅤ |
| Digital Image Stabilization | Support(built-in gyro sensor) |
| Motion Detection | 8ea, polygonal zones |
| Privacy Masking | 6ea, rectangle zones - Color: Grey/Green/Red/Blue/Black/White |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1/5~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view(90˚/270˚) |
| Analytics | - Classified object type : Person/Face/Vehicle/License plate with attributes, BestShot per object - Analytics events based on AI engine : Object detection, Directional detection, Digital auto tracking, Enter/Exit, Loitering, Virtual line - Analytics events : Defocus detection, Motion detection, Appear/Disappear, Tampering, Audio detection, Sound classification, Shock detection |
| Business Intelligence | People counting, Queue management, Heatmap based on AI engine |
| Alarm I/O | Input 1ea / Output 1ea / DC 12V Power(Max. 50mA) 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output Handover |
| Audio In | Selectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm |
| Audio Out | Line out, Max.output level: 1Vrms |
| IR Viewable Length | 30m(98.42ft) |
| Network |
| Ethernet | RJ-45(10/100/1000BASE-T) |
| Video Compression | H.265/H.264: Main/High, MJPEG |
| Smart Codec | Manual(5ea area), WiseStreamⅡ |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(20 users) / Multicast Multiple streaming(Up to 3 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast) |
| Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) Device Certificate(Hanwha Techwin Root CA) |
| Application Programming Interface | ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform |
| Environmental & Electrical |
| Operating Temperature / Humidity | -40°C ~ +55°C(-40°F ~ +131°F) / Less than 90% RH * Start up should be done at above -30°C |
| Storage Temperature / Humidity | -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH |
| Certification | IP66/IP67, IK10, NEMA4X |
| Mechanical |
| Color / Material | Dark grey / Aluminum |
| Product dimensions / weight | Ø91.0x368.6mm (3.58" x 14.51") (Without sunshield), Weight : 2.48Kg (5.47lb) |
| DORI |
| Detect (25PPM/ 8PPF) | Wide: 62.9m(206.34ft) / Tele: 183m(600.33ft) |
| Observe (63PPM/ 19PPF) | Wide: 25.1m(82.34ft) / Tele: 73.3m(240.46ft) |
| Recognize (125PPM/ 38PPF) | Wide: 12.6m(41.33ft) / Tele: 36.6m(120.07ft) |
| Identify (250PPM/ 76PPF) | Wide: 6.3m(20.67ft) / Tele: 18.3m(60.03ft) |
