Hanwha - PNO-A9311R - 4K Network AI IR Bullet Camera, 6.91~214.7mm Lens
Product Overview

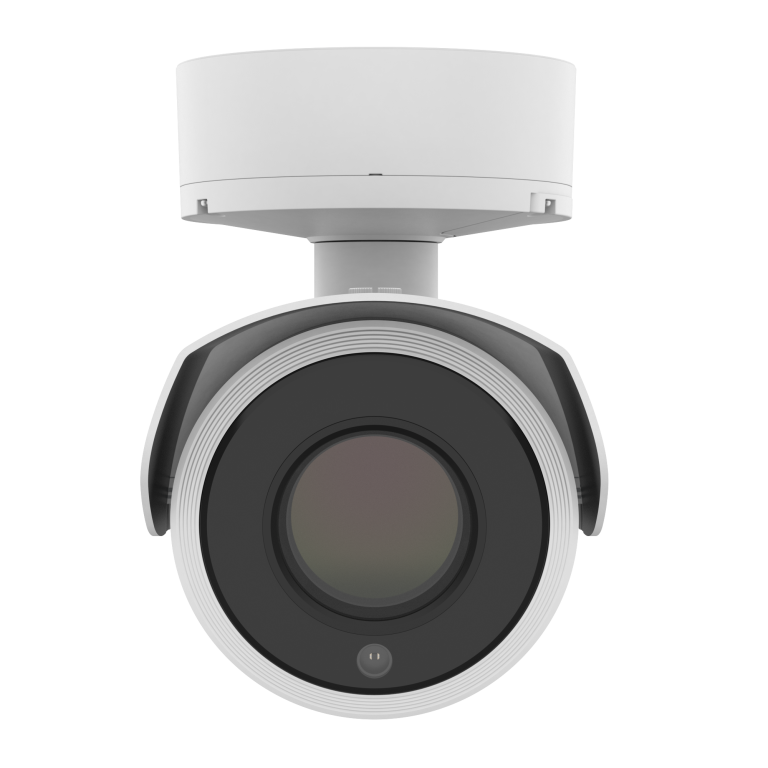

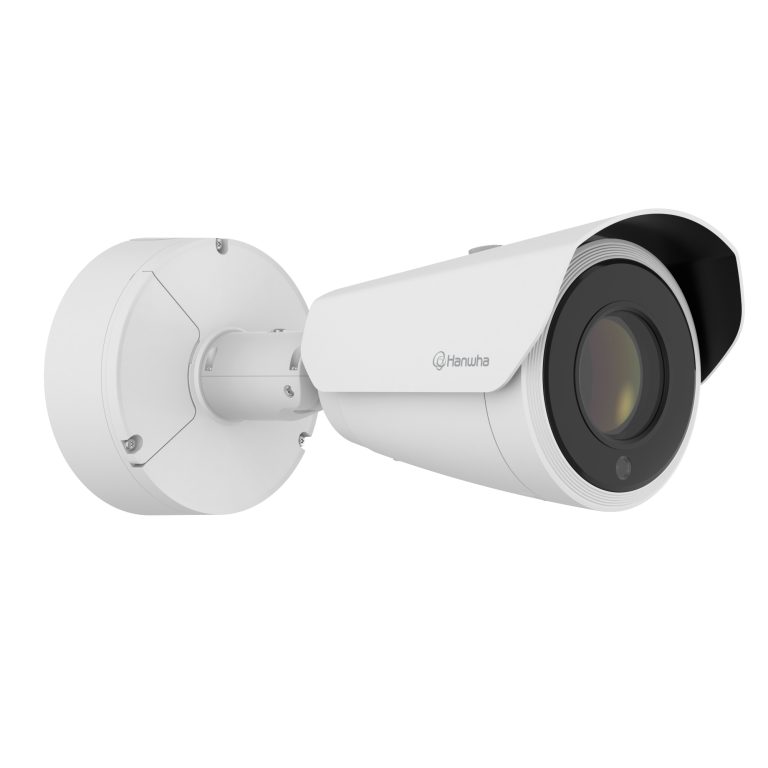

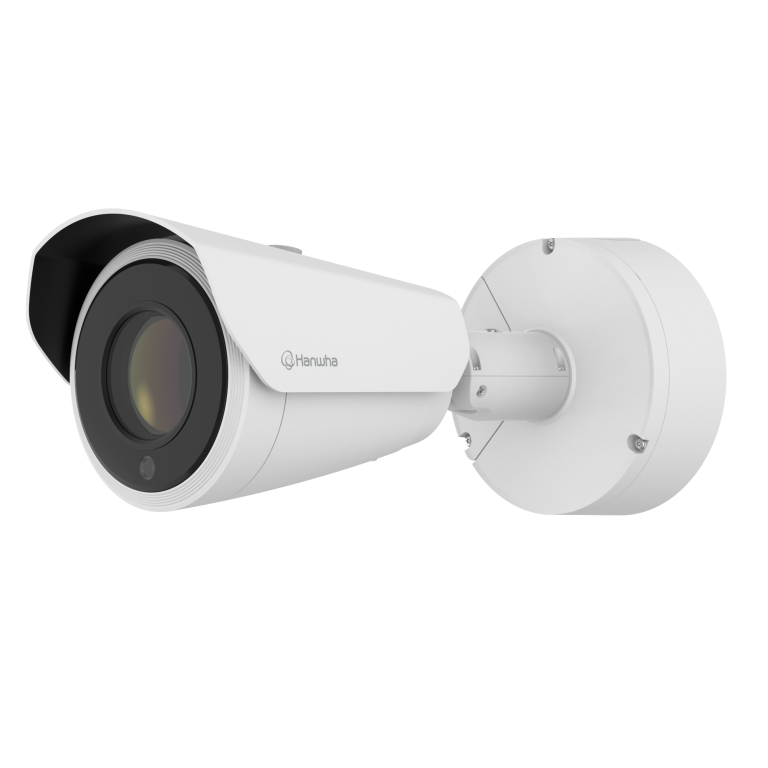

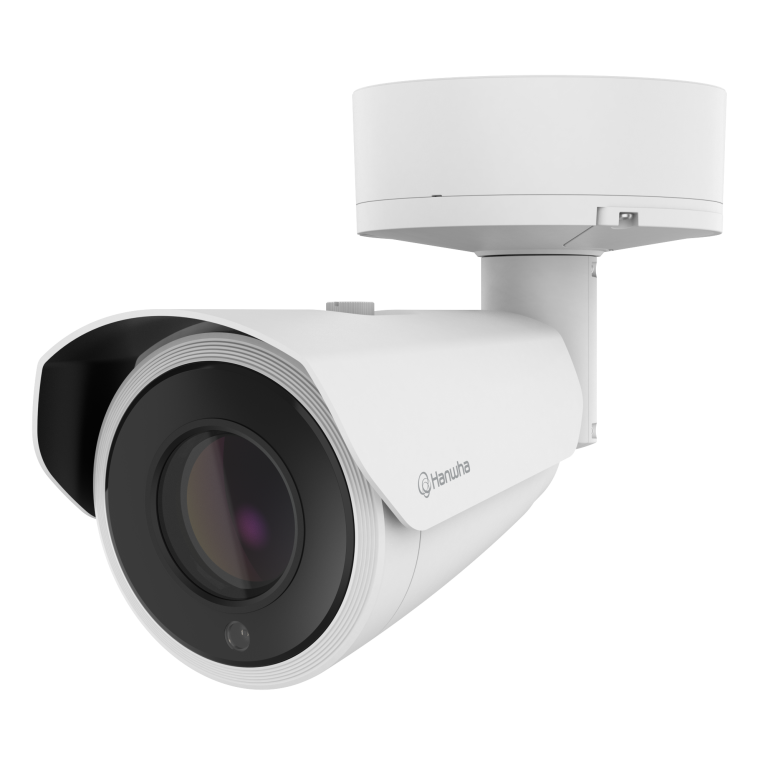

Hanwha PNO-A9311R is a 4K network AI IR bullet camera with a 1/1.8" CMOS sensor and 6.91~214.7mm (31x) motorized varifocal lens (F1.36–F4.6, 60.92°–2.2° horizontal FOV). Delivers 4K resolution (3840×2160) at up to 30 fps with H.265/H.264/MJPEG compression and WiseStreamⅡ/Ⅲ (AI-based) technology.
Key Configuration
• Imaging device: 1/1.8" CMOS, 3840×2160 (4K) resolution at up to 30 fps.
• Lens: 6.91~214.7mm motorized varifocal (31x zoom), P-iris, F1.36–F4.6, horizontal FOV 60.92°–2.2°.
• IR range: WiseIR up to 70 m (230 ft); minimum illumination 0.075 lux color, 0 lux with IR.
• Power: PoE+ (IEEE 802.3at Class 4) or 12V DC; max 25.5W, typical 14W.
• Dimensions: Ø136.2 × 358.7 mm (without sunshield); weight: 3.2 kg; backbox diameter: Ø160 mm.
Key Features
Features 120dB WDR, AI-based WiseNRⅡ noise reduction, SSNRⅤ, and DIS with a built-in gyro sensor for stable image quality. AI analytics support object classification for people, faces, vehicles, and license plates with attribute recognition and BestShot capture. IVA functions include virtual line crossing, intrusion, loitering, face mask detection, social distancing, and slip & fall detection. Additional business intelligence features include people/vehicle counting, queue management, crowd detection, and heatmaps. The camera also supports WiseDetector custom object learning, motion/tamper/audio/shock detection, dual microSD storage up to 512GB total, CVBS and USB installation video outputs, audio line out, privacy masking, and ONVIF Profiles S/G/T/M compatibility with WiseAI included.
Technical Context
Supports simple focus control with a minimum object distance of 3 m and electronic shutter speeds from 1/5 to 1/12,000 sec with AI-based shutter optimization. Networking includes IPv4/IPv6, RTSP, HTTPS, SRTP, MQTT, SNMP, QoS, Bonjour, and other standard protocols, with up to 6 streaming profiles and multicast support. Security features include HTTPS/SSL authentication, IP filtering, 802.1X authentication, TPM 2.0 (FIPS 140-2 Level 2), secure boot, encrypted firmware, and firmware verification. The camera is rated IP66/IP67, IK10, and NEMA4X, with a white RAL9003 finish for outdoor durability.
Installation Notes
Built with a white aluminum housing and hard-coated window, the camera measures Ø136.2 × 358.7 mm and weighs 3.2 kg. It operates in temperatures from -40°C to +55°C with support for PoE+ or 12V DC power. Features include dual installation video outputs (CVBS and USB), dual microSD slots supporting up to 256GB each, a modular installation design, and WiseIR with up to 70 m IR range. It also supports hallway view rotation, multiple gang box types, and 3/4" conduit compatibility for flexible mounting.
| Video | |
| Imaging Device | 1/1.8" CMOS |
| Resolution | 3840x2160, 3072x1728, 2592x1944, 2688x1520, 2560x1440, 2048x1536, 1920x1080, 1600x1200, 1280x1024,1280x960, 1280x720, 1024x768, 800 x 600, 800 x 448, 720 x 576, 720x480, 640x480, 640x360 |
| Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 30fps |
| Min. Illumination | Color: 0.075Lux(F1.36, 1/30sec, 30IRE) BW: 0.0075Lux(F1.36, 1/30sec, 30IRE), 0Lux(IR LED on) |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation USB: Micro USB Type B, 1280x720 for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 6.91~214.7mm (31x) motorized varifocal |
| Max. Aperture Ratio | F1.36(Wide)~F4.6(Tele) |
| Angular Field of View | H: 60.92°(Wide)~2.2°(Tele) V:35.26°(Wide)~1.24°(Tele) D:69.18°(Wide)~2.52°(Tele) |
| Min. Object Distance | 3m(9.84ft) |
| Focus Control | Simple focus |
| Lens Type | P iris |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | WiseNR Ⅱ(using AI engine) SSNRⅤ |
| Digital Image Stabilization | Support(built-in gyro sensor) |
| Motion Detection | 8ea, polygonal zones |
| Privacy Masking | 3ea, rectangle zones - Color: Gray/Black/White |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1/5~1/12,000sec) Auto prefer shutter control based on AI engine |
| Video Rotation | Flip, Mirror, Hallway view(90 /270 ) |
| Analytics | Classified object type: Person/Face/Vehicle/License plate Attributes: Person(Gender, Color and Bag), Face(Age, Gender, Mask and Glasses), Vehicle(Type: car/bus/truck/motorcycle/bicycle and Color) Support BestShot per object Analytics events based on AI engine - Object detection, Virtual line*(Crossing/Direction), Virtual area*(Loitering/Intrusion/Enter/Exit), Facemask detection, Social distancing detection, Slip&Fall detection Analytics events - Defocus detection, Motion detection, Tampering, Audio detection, Sound classification, Shockdetection, Virtual area(Appear/Disappear) Support WiseDetector for Adding custom objects *Some of the video analytics only works with people and vehicle detection |
| Audio Out | Line out |
| Light Type | IR LED (850nm) |
| IR Viewable Length | WiseIR 70m(229.66ft) |
| Network | |
| Ethernet | Metal shielded RJ-45(10/100/1000 BASE-T) |
| Video Compression | H.265/H.264: Main/High, MJPEG |
| Audio Compression | G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz |
| Smart Codec | Manual(5ea area), WiseStreamⅡ, WiseStreamⅢ(using AI engine) |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(6 users) / Multicast Multiple streaming(Up to 6 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast), MQTT |
| Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) Device Certificate(Hanwha Techwin Root CA) TPM 2.0 with FIPS 140-2 level2 Secure boot, Verify firmware forgery |
| Application Programming Interface | ONVIF Profile S/G/T/M SUNAPI(HTTP API) Wisenet open platform - WiseAI application included(Analytic based on AI, Business intelligence) |
| Security | |
| OS / Firmware Protect | Encrypted Firmware, Secure boot, Signed Firmware |
| User authentication | Digest Authenticaton, Prevent brute-force attack |
| Network authentication | IEEE 802.1X (EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) |
| Secure Communication | HTTPS, WSS (WebSocket Secure) |
| Access Control | IP-based access control |
| Data Protect | Encryption Credentials, Encrypt compress for live recording file |
| Audit | Access / System / Event Log management |
| Device ID | Device certificate (Hanwha Techwin Root CA) |
| Secure Storage | TPM, SDcard partition encrypt |
| Security Certificate | TPM with FIPS 140-2 level 2 |
| General | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Edge Storage | Micro SD/SDHC/SDXC 2slot Max. 512GB(256GBx2) |
| Memory | 4096MB RAM, 1024MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -40°C ~ +55°C(-40°F ~ +131°F) / Less than 90% RH * Start up should be done at above -30°C |
| Storage Temperature / Humidity | -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH |
| Certification | IP66/IP67, IK10, NEMA4X |
| Input Voltage | PoE+(IEEE802.3at, Class4), 12VDC |
| Power Consumption | PoE+: Max 25.5W, typical 14.0W 12VDC: Max 24.0W, typical 12.7.W |
| Mechanical | |
| Color / Material | White / Aluminum Hard-coated window |
| RAL Code | RAL9003 |
| Product Dimensions / Weight | ø136.2x358.7mm(ø5.36x14.12")(Without sunshield), 3200g(7.05lb) * backbox: ø160mm(ø6.30") |
| Compatible Conduit hole / Gangbox | 19.1mm(3/4")(M25) single, double, 4" octagon, 4" square |
