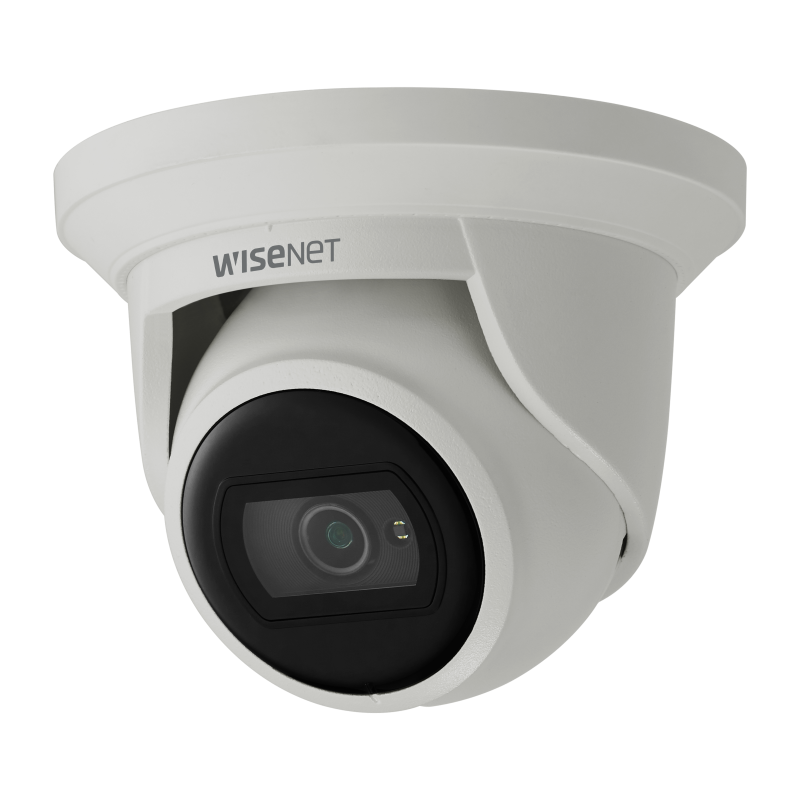

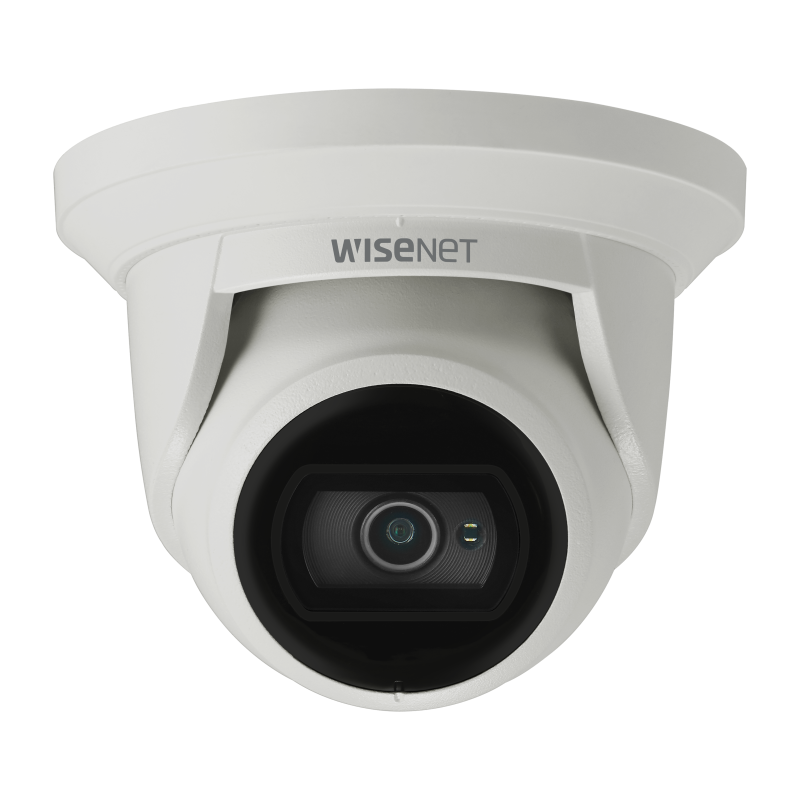

Hanwha - QNE-8011R - 5 MP Network IR Wisenet Q Mini Flateye Camera, 2.8mm Fixed Focal Lens
Product Overview
The Hanwha QNE-8011R is a Wisenet Q mini outdoor flat-eye camera equipped with a 1/2.8" CMOS sensor that delivers 5MP resolution (2592×1944) at up to 30 fps. It features a 2.8mm fixed lens with an F2.0 aperture and a 104.4° horizontal field of view. Video streaming is optimized through a triple codec configuration supporting H.265, H.264, and MJPEG compression technologies.
Key Configuration
- • Imaging device: 1/2.8" 5MP CMOS; resolution: 2592×1944 (5MP) at up to 30 fps (H.265/H.264)
- • Lens: 2.8mm fixed focal, F2.0; horizontal FOV: 104.4°, vertical: 76.7°, diagonal: 136.1°
- • IR viewable length: 20m (65 ft); minimum illumination: color 0.15 lux, 0 lux with IR
- • Video compression: H.265/H.264 (Main/High), MJPEG; WiseStreamⅡ; multiple streaming (up to 3 profiles)
- • Power: PoE (IEEE 802.3af, Class 3); max 7.4W, typical 5.5W
Key Features
This flat-eye camera features 120dB WDR, SSNR digital noise reduction, LDC, and 90°/270° Hallway View rotation, running on a 512MB RAM and 256MB Flash architecture. Integrated analytics include defocus detection, directional/virtual line detection, enter/exit detection, tampering, and motion detection across 4 polygonal zones. It includes 6 rectangular privacy masking zones, a 3-axis adjustment mechanism (pan 0–350°, tilt 0–75°, rotate 0–360°), a single microSD/SDHC/SDXC slot supporting up to 128GB of edge storage, and full conformance with ONVIF Profiles S, G, and T.
Technical Context
Featuring a fixed focus lens, this camera provides an electronic shutter speed range of 1/5 to 1/12,000 sec. Streaming supports up to 6 unicast users or multicast across a networking suite, including secure HTTPS, SSL/TLS, and LLDP protocols. Cybersecurity measures include HTTPS/SSL and digest login authentication, 802.1X, IP filtering, and user access logs. For physical installation, an included adaptation plate ensures compatibility with single-gang, double-gang, and 4" octagon electrical boxes.
Installation Notes
Measuring Ø125 × 87.35 mm and weighing 645g, this white aluminum flat-eye camera features IP67 weatherproofing and IK10 vandal resistance. It operates from -30°C to 55°C under 90% RH, and stores from -30°C to 60°C. Powered via PoE Class 3, the camera includes a single microSD slot supporting up to 128GB of edge storage. Designed for low-profile outdoor installation, it mounts directly to electrical gang boxes using the included adaptation plate.
| VIDEO | |
| Imaging Device | 1/2.8" 5 MP CMOS |
| Effective Pixels | 2592(H) x 1944(V) |
| Minimum Illumination | Color: 0.15Lux (F2.0, 1/30sec) BW: 0Lux (IR LED on) |
| LENS | |
| Focal Length (Zoom Ratio) | 2.8mm fixed focal |
| Maximum Aperture Ratio | F2.0 |
| Angular Field of View | H: 104.4° / V: 76.7° / D: 136.1° |
| Focus Control | Fixed |
| PAN / TILT / ROTATE | |
| Pan / Tilt / Rotate Range | 0°~350° / 0°~75° / 0°~360° |
| OPERATIONAL | |
| IR Viewable Length | 20m (65.62ft) |
| Camera Title | Displayed up to 85 characters, 5 lines, English / Numeric / Special & International characters, 6 colors, Transparency, Auto scale by resolution |
| Day & Night | Auto (ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNR |
| Motion Detection | 4ea, polygonal zones |
| Privacy Masking | 6ea, rectangular zones |
| Gain Control | Support |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti-flicker (1/5~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view (90°/270°) |
| Analytics | Defocus detection, Directional / Virtual Line detection, Motion detection, Enter/Exit, Tampering |
| Alarm Triggers | Analytics, Network disconnect |
| Alarm events | File upload via FTP and e-mail, Notification via e-mail, Handover, SD/SDHC/SDXC or NAS recording at event triggers |
| NETWORK | |
| Ethernet | RJ-45 (10/100BASE-T) |
| Video Compression | H.265/H.264: Main/High, MJPEG |
| Resolution | 2592 x 1944, 1920 x 1080, 1280 x 960, 1280 x 720, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360 |
| Maximum Framerate | H.265/H.264: Maximum 30fps / MJPEG: Maximum 15fps |
| Smart Codec | Manual (5ea area), WiseStream II |
| Video Quality Adjustment | H.264/H.265: Target bitrate level control / MJPEG: Quality Level control |
| Bitrate Control | H.264/H.265: CBR or VBR / MJPEG: VBR |
| Streaming | Unicast (6 users) / Multicast Multiple streaming (Up to 3 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP |
| Security | HTTPS(SSL) login authentication, Digest login authentication, IP address filtering, User access log, 802.1X authentication (EAP-TLS, EAP-LEAP) |
| Edge Storage | Micro SD/SDHC/SDXC 1 slot maximum 128GB |
| Application Programming Interface | ONVIF Profile S/G/T SUNAPI (HTTP API) Wisenet open platform |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Web Viewer | Supported OS: Windows 7, 8.1, 10, Mac OS X 10.12, 10.13, 10.14 Recommended Browser: Google Chrome Supported Browser: MS Internet Explorer 11, MS Edge, Mozilla Firefox (Windows 64-bit only), Apple Safari (Mac OS X only) |
| Memory | 512MB RAM, 256MB Flash |
| ENVIRONMENTAL | |
| Operating Temperature / Humidity | -30°C ~ +55°C (-22°F ~ +131°F) / Less than 90% RH * Start-up should be done at above -20°C |
| Storage Temperature / Humidity | -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH |
| Certification | IP67, IK10 |
| ELECTRICAL | |
| Input Voltage | PoE (IEEE802.3af, Class3) |
| Power Consumption | PoE: Maximum 7.4W, typical 5.5W |
| MECHANICAL | |
| Color / Material | White / Aluminum |
| RAL Code | RAL9003 |
| Product dimensions/weight | Ø125 x 87.35mm (Ø4.92 x 3.44"), 645g (1.422 lb) |
