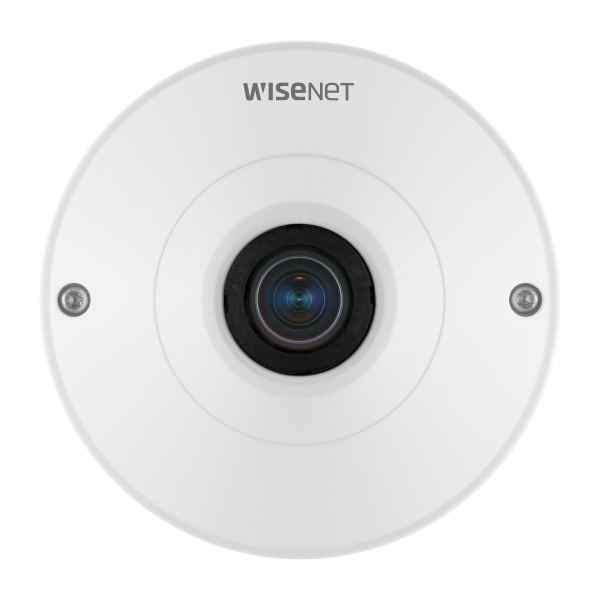

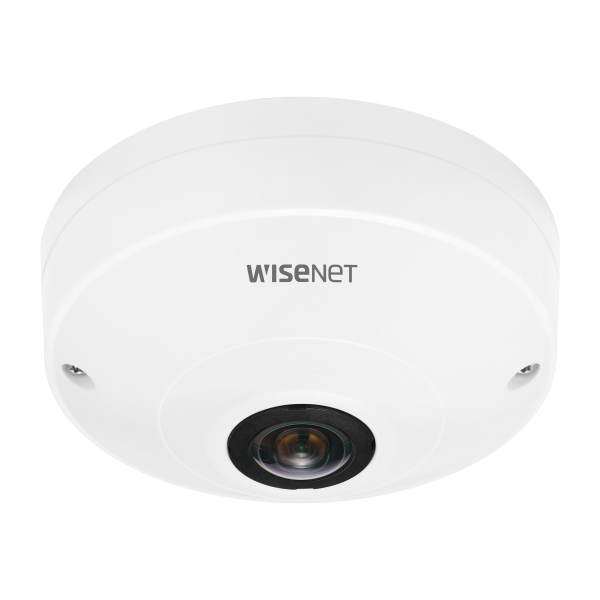

Hanwha - QNF-9010 - 12MP Network Indoor Fisheye Dome Wisenet Q Camera

Product Overview

Hanwha QNF-9010 is a Wisenet Q indoor network fisheye camera. It features a 1/2.3" 12MP CMOS sensor with a 1.08mm fixed lens that delivers a 187° omnidirectional field of view. The camera produces 3008×3008 resolution video at 30 fps. Video compression runs on H.265, H.264, and MJPEG platforms, which are enhanced by WiseStreamⅡ bandwidth optimization.

Key Configuration

• • Imaging device: 1/2.3" 12MP CMOS; resolution: 3008×3008 (original view) at up to 30 fps (H.265/H.264)
• • Lens: 1.08mm fixed focal, F2.2; field of view: 187° horizontal, vertical, and diagonal
• • Dewarping modes: original fisheye, single panorama (3200×800), double panorama (2560×1280), quad view (2560×1920)
• • Minimum illumination: color 0.39 lux (F2.2, 1/30 sec); no IR (Day/Night Auto Electrical)
• • Power: PoE (IEEE 802.3af, Class 3); max 7.7W, typical 6.4W

Key Features

Features 120dB Wide Dynamic Range and SSNRⅤ digital noise reduction for clear images in mixed lighting. Hardware elements include a rotating lens assembly for easy installation alongside 2048MB RAM and 256MB Flash memory. The platform supports six rectangular privacy masking zones, one 256GB microSD slot, and full ONVIF Profile S/G/T conformance. Built-in business intelligence tools provide heatmap and people counting statistics, while edge analytics cover defocus detection, tampering, and four polygonal motion detection zones.

Technical Context

Maintains a minimum object distance of 0.5m (1.64 ft) and runs an electronic shutter speed from 2 to 1/12,000 seconds with anti-flicker control. Dual-stack IPv4/IPv6 network streaming supports six unicast users, multicast, and three distinct profiles across major communication protocols. Hardware protection features an IP42 indoor rating to guard components against solid objects larger than 1mm and dripping water. Cybersecurity defenses safeguard network operations via Hanwha Techwin Root CA device certificates, 802.1X authentication, HTTPS/SSL logins, digest credentials, IP address filtering, and user access logs.

Installation Notes

Measures Ø99 × 49 mm (Ø3.9" × 1.93") and weighs 370g (0.82 lb). Environment operations handle -10°C to +40°C (+14°F to 104°F) under less than 90% relative humidity, with storage tolerances extending from -50°C to +60°C (-58°F to 140°F). Power is supplied via PoE Class 3 to deliver 360° situational coverage with on-board dewarping capabilities and color-only performance without built-in IR illumination. Hardware installation features include an integrated lens rotation mechanism, an analog video output for easy field adjustment, and a single local microSD slot supporting up to 256GB max edge storage.
