Hanwha - QNF-C9010 - 12MP Indoor Fisheye Dome Q Series Network Camera
Product Overview

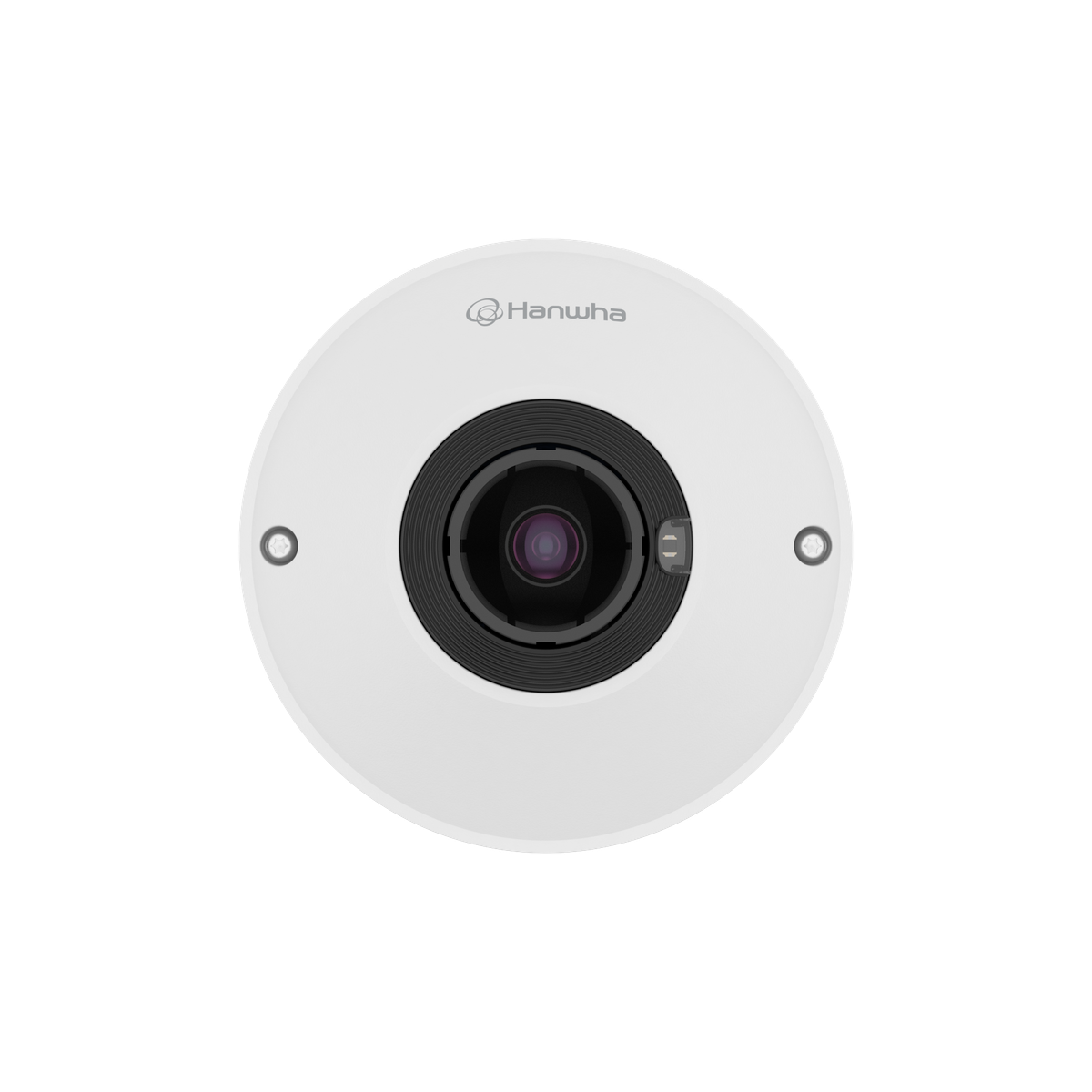

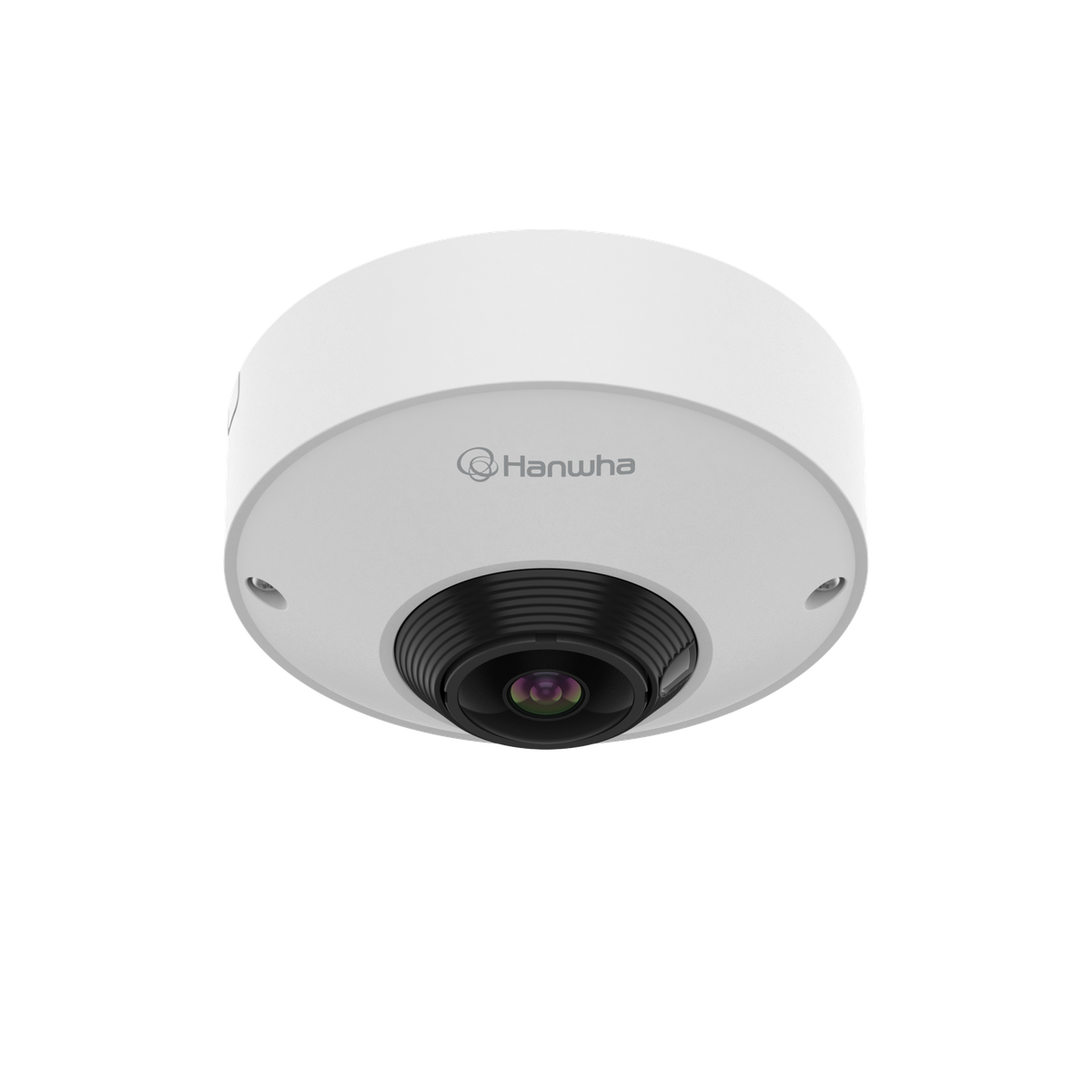

The QNF-C9010 is an indoor network fisheye camera from the Q Series, featuring a high-resolution 1/1.6" 12MP CMOS sensor and a 1.76mm fixed stereographic lens that provides a full 185° omnidirectional field of view. It delivers detailed 3584×2688 video at up to 20 fps, utilizing efficient H.265, H.264, and MJPEG compression codecs to balance image quality with bandwidth efficiency.
Key Configuration
- • Imaging device: 1/1.6" CMOS; resolution: up to 3584×2688 (12MP) at 20 fps (H.265/H.264), 5 fps (MJPEG)
- • Lens: 1.76mm fixed stereo graphic type, F1.8; field of view: 185° horizontal, vertical, and diagonal
- • Minimum illumination: color 0.02 lux, B/W 0.001 lux (1/30 sec, 30IRE)
- • Video compression: H.265/H.264 (Main/High), MJPEG; WiseStream (AI-based); smart codec: manual, WiseStream
- • Power: PoE (IEEE 802.3af, Class 3); max 7.3W, typical 4.3W
Key Features
Equipped with 2GB RAM and 1GB Flash, this fisheye camera features 120dB WDR, AI-driven WiseNR II, and SSNR V noise reduction. It utilizes digital PTZ and digital rotation instead of mechanical components to adjust the viewing field, and conforms to ONVIF Profiles S, G, T, and M.
Technical Context
Featuring a 0.5m minimum object distance, 32 privacy masks, and 8 motion zones. It handles up to 5 profiles for 20 unicast and unlimited multicast users over a broad protocol suite, including MQTT, SRTP, and IPv6.Cybersecurity defenses include a secure boot process, signed/encrypted firmware, device certificates, credential protection, HTTPS/WSS/802.1X authentication, and local AES-256 SD card partition encryption.
Installation Notes
Measuring Ø99 × 52 mm and weighing 360g, this compact RAL9003 white aluminum camera is IP42-rated for indoor use only, shielding against solid objects over 1mm and dripping water. It operates between -10°C and 40°C under 0–90% non-condensing humidity. Power is supplied via PoE Class 3, and a micro USB Type B port offers local video output for installation alignment. The unit features no onboard IR illumination and carries CE, FCC, and UL certifications.
| Video | |
|---|---|
| Imaging Device Size | 1/1.6" |
| Imaging Device Type | CMOS |
| Resolution | 3584x2688, 3584x1792, 3584x896, 3008x3008, 2560x2560, 2048x1536, 1920x1920, 1920x960, 1920x480, 1792x1344, 1504x1504, 1280x1280, 1280x640, 1280x320, 1024x768, 1024x512, 1024x256, 800x800, 768x576, 640x640, 640x320, 640x160, 512x384, 480x480 |
| Max. Framerate H.265/H.264 | 20fps/20fps(60Hz/50Hz) |
| Max. Framerate MJPEG | 5fps |
| Min. Illumination (Lux) Color(1/30sec, 30IRE) | 0.02 |
| Min. Illumination (Lux) BW(1/30sec, 30IRE) | 0.001 |
| Video Out | USB: Micro USB Type B |
| Lens | |
| Focal Length (mm) | 1.76 |
| Max Aperture Ratio (F number) Wide | F1.8 |
| Angular Field of View Horizontal | 185° |
| Angular Field of View Vertical | 185° |
| Angular Field of View Diagonal | 185° |
| Min. Object Distance | 0.5m(1.64ft) |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | Digital Rotation |
| Operational | |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range (dB) | 120 |
| Digital Noise Reduction | WiseNRⅡ(Based on AI engine), SSNRⅤ |
| Motion Detection Quantity | 8ea |
| Motion Detection Shape | 8point Polygonal zones |
| Privacy Masking Quantity | 32ea |
| Privacy Masking Shape | 4point Quadrangle zones |
| Gain Control | Low, Middle, High |
| White Balance | ATW, AWC, Manual, Indoor, Outdoor |
| Electronic Shutter Mode | Minimum, Maximum, Anti flicker |
| Electronic Shutter Speed Range | 1/5~1/12,000sec |
| Digital PTZ | Support |
| Video Rotation | Flip, Mirror |
| Alarm Triggers | Analytics, Network disconnect |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP/SFTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, MQTT: publication |
| Analytics | |
| Classified Object Type | Person, Vehicle |
| Attributes Person | Upper/Lower clothes color |
| Attributes Vehicle | Color |
| Thumbnail | BestShot |
| Analytics Events Based on AI Engine | Object detection, Virtual line(Crossing/Direction), Motion detection, Virtual area(Loitering/Intrusion/Enter/Exit/Appear/Disappear) |
| Analytics Events Normal | Defocus detection, Tampering |
| Business Intelligence Based on AI Engine | People counting, Queue management, Heatmap |
| Network | |
| Ethernet | RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/High, MJPEG |
| Smart Codec | Manual, WiseStream(Based on AI engine) |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR |
| Streaming Unicast | Up to 20 users |
| Streaming Multicast | Support |
| Multiple Streaming | Up to 5 profiles |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT |
| Application Programming Interface ONVIF | S, G, T, M |
| Application Programming Interface Others | SUNAPI(HTTP API), Hanwha Vision Open Platform |
| Direct Cloud Connection | Support |
| Security | |
| OS / Firmware Protect | Encrypted firmware, Secure boot, Signed firmware |
| User authentication | Digest authentication, Prevent brute-force attack |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) |
| Secure Communication | HTTPS, WSS(WebSocket Secure), SRTP |
| Access Control | IP-based access control |
| Data Protect | Encryption credentials |
| Audit | Access / System / Event Log management |
| Device ID | Device certificate(Hanwha Vision Root CA) |
| Secure Storage | SDcard partition encrypt(AES-256) |
| General | |
| Memory RAM | 2GB |
| Memory Flash | 1GB |
| Edge Storage Micro SD/SDHC/SDXC | Max. 256GB x 1slot |
| Edge Storage(OnCloud) Micro SD/SDHC/SDXC | Max. 1TB x 1slot *Hanwha Vision branded microSD cards have been certified and recommended for OnCloud edge recording. |
| Environmental & Electrical | |
| Operating Condition Temperature | -10°C~+40°C(+14°F~+104°F) |
| Operating Condition Humidity | 0~90% RH(non-condensing) |
| Storage Condition Temperature | -50°C~+60°C(-58°F~+140°F) |
| Storage Condition Humidity | 0~90% RH(non-condensing) |
| Input Voltage | PoE(IEEE802.3af, Class3) |
| Power Consumption PoE | Max 7.3W, typical 4.3W |
| Mechanical | |
| Color | White |
| Material | Aluminum |
| RAL Code | RAL9003 |
| Product Dimensions | ø99x52mm(ø3.9x2.05") |
| Product Weight | 360g(0.79lb) |
| Certifications & Standards | |
| EMC | FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835 |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471 |
| Environment | IEC/EN 63000, IEC 60529 IP42 |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/ 8PPF) Wide | 36.9m(121.03ft) |
| Observe (63PPM/ 19PPF) Wide | 14.8m(48.42ft) |
| Recognize (125PPM/ 38PPF) Wide | 7.4m(24.21ft) |
| Identify (250PPM/ 76PPF) Wide | 3.7m(12.10ft) |
