Hanwha - QNO-8010R - 5MP Network Outdoor Vandal Bullet Wisenet Q Camera, 2.8mm Fixed Focal Lens
Product Overview

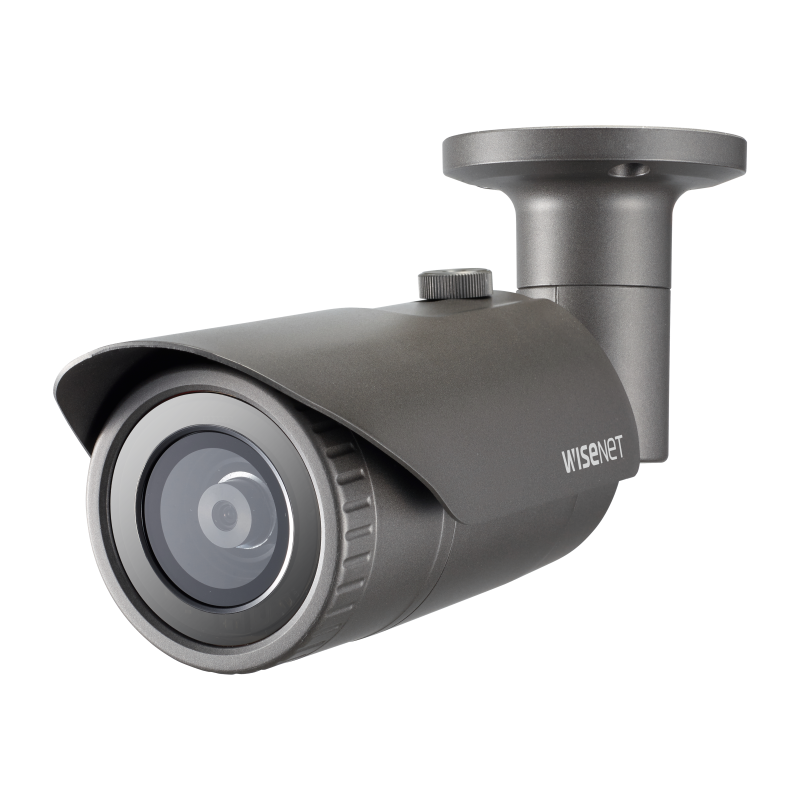

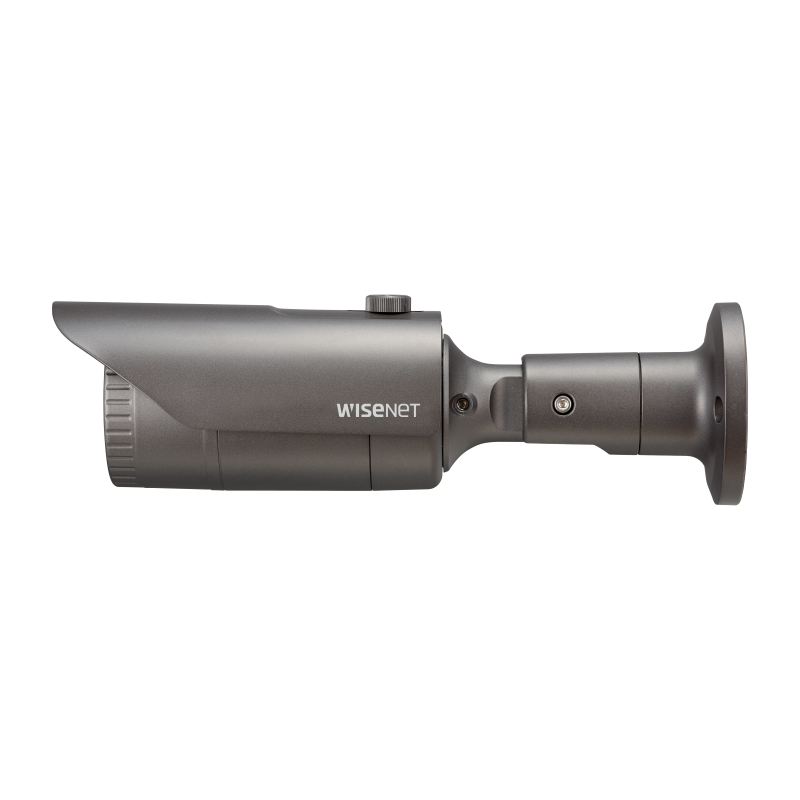

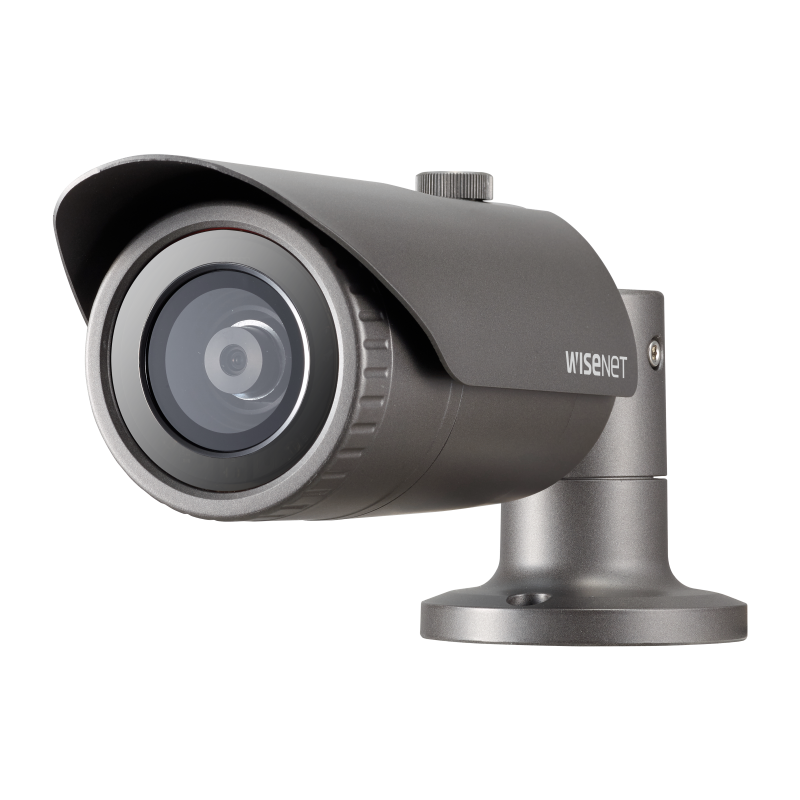

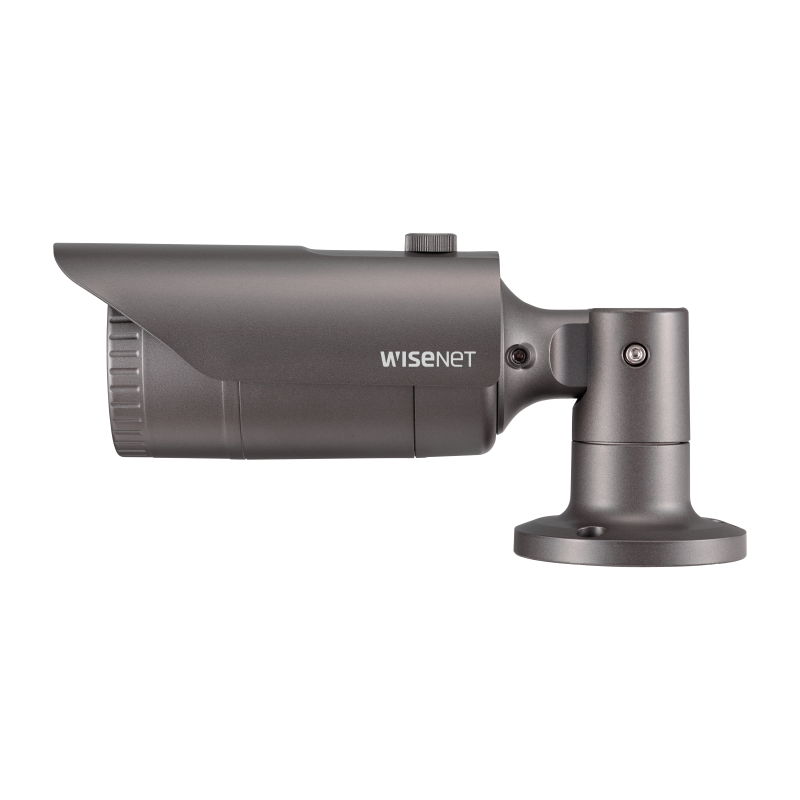

The Hanwha QNO-8010R is a Wisenet Q series outdoor vandal bullet camera featuring a 1/2.8" CMOS sensor that delivers 5MP resolution (2592×1944) at up to 30 fps. It comes equipped with a 2.8mm fixed lens (F2.0) providing a wide 104.7° horizontal field of view. Video transmission is managed via H.265/H.264/MJPEG triple-codec streaming optimized by WiseStreamⅡ compression technology.
Key Configuration
- • Imaging device: 1/2.8" 5MP CMOS; resolution: 2592×1944 (5MP) at up to 30 fps (H.265/H.264)
- • Lens: 2.8mm fixed focal, F2.0; horizontal FOV: 104.7°, vertical: 76.5°, diagonal: 136.0°
- • IR viewable length: 20m (65 ft); minimum illumination: color 0.15 lux, 0 lux with IR
- • Video compression: H.265/H.264 (Main/High), MJPEG; WiseStreamⅡ
- • Power: PoE (IEEE 802.3af, Class 3); max 7.5W, typical 6.1W
Key Features
This ONVIF Profiles S/G/T conformant bullet camera includes a 3-axis bracket, 512MB RAM, 256MB Flash, 120dB WDR, SSNR noise reduction, LDC, and Hallway View. Its analytics engine detects defocus, tampering, motion (4 zones), directional movement, virtual line crossing, and entry/exit across 6 privacy masking zones. Hardware features include a CVBS analog installation output, an alarm interface (1 input, 1 output), and a single-edge storage slot supporting up to 128GB microSD/SDHC/SDXC cards.
Technical Context
Featuring fixed focus control and an electronic shutter speed range of 1/5 to 1/12,000 sec, this camera handles up to 3 streaming profiles for 6 concurrent unicast or multicast users over core network protocols. System management is secured by HTTPS/SSL and digest login authentication, 802.1X access control, IP address filtering, and user access logs.
Installation Notes
Measuring Ø70.0 × 246.0 mm (Ø2.76" × 9.69") and weighing 680g (1.499 lb), this dark grey aluminum bullet camera features IP66 weatherproofing and IK10 vandal resistance. It operates between -30°C to 55°C (-22°F to 131°F) under 90% RH with a cold-start minimum of -20°C, and handles storage down to -30°C (-22°F). The unit runs on PoE (IEEE 802.3af, Class 3) and integrates a 128GB capacity microSD edge storage slot, a CVBS analog video alignment output, and direct mounting compatibility with single, double, or 4" octagon gangboxes via an optional SBO-100B1 bracket.
| VIDEO | |
| Imaging Device | 1/2.8" 5 MP CMOS |
| Effective Pixels | 2592(H) x 1944(V) |
| Minimum Illumination | Color: 0.15Lux (F2.0, 1/30sec) BW: 0Lux (IR LED on) |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720 x 480 for installation |
| LENS | |
| Focal Length (Zoom Ratio) | 2.8mm fixed focal |
| Maximum Aperture Ratio | F2.0 |
| Angular Field of View | H: 104.7° / V: 76.5° / D: 136.0° |
| Focus Control | Fixed |
| PAN / TILT / ROTATE | |
| Pan / Tilt / Rotate Range | 0°~350° / 0°~67° / 0°~355° |
| OPERATIONAL | |
| IR Viewable Length | 20m (65.62ft) |
| Camera Title | Displayed up to 85 characters, 5 lines, English / Numeric / Special & International characters, 6 colors, Transparency, Auto scale by resolution |
| Day & Night | Auto (ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNR |
| Motion Detection | 4ea, polygonal zones |
| Privacy Masking | 6ea, rectangular zones |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1/5~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view (90°/270°) |
| Analytics | Defocus detection, Directional/Virtual Line detection, Motion detection, Enter/Exit, Tampering |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm events | File upload via FTP and e-mail, Notification via e-mail, SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover |
| NETWORK | |
| Ethernet | RJ-45 (10/100BASE-T) |
| Video Compression | H.265/H.264: Main/High, MJPEG |
| Resolution | 2592 x 1944, 1920 x 1080, 1280 x 960, 1280 x 720, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360 |
| Maximum Framerate | H.265/H.264: Maximum 30fps / MJPEG: Maximum 15fps |
| Smart Codec | Manual (5ea area), WiseStream II |
| Video Quality Adjustment | H.264/H.265: Target bitrate level control / MJPEG: Quality level control |
| Bitrate Control | H.264/H.265: CBR or VBR / MJPEG: VBR |
| Streaming | Unicast (6 users) / Multicast / Multiple streaming (Up to 3 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP |
| Security | HTTPS (SSL) login authentication, Digest login authentication, IP address filtering, User access log, 802.1X authentication (EAP-TLS, EAP-LEAP) |
| Edge Storage | Micro SD/SDHC/SDXC 1 slot maximum 128GB |
| Application Programming Interface | ONVIF Profile S/G/T, SUNAPI (HTTP API), Wisenet open platform |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Web Viewer | Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12, 10.13, 10.14 Recommended Browser: Google Chrome Supported Browser: MS Explorer 11, MS Edge, Mozilla Firefox (Windows 64-bit only), Apple Safari (Mac OS X only) |
| Memory | 512MB RAM, 256MB Flash |
| ENVIRONMENTAL | |
| Operating Temperature / Humidity | -30°C ~ +55°C (-22°F ~ +131°F) / Less than 90% RH * Start up should be done at above -20°C |
| Storage Temperature / Humidity | -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH |
| Certification | IP66, IK10 |
| ELECTRICAL | |
| Input Voltage | PoE (IEEE802.3af, Class3) |
| Power Consumption | PoE: Maximum 7.5W, typical 6.1W |
| MECHANICAL | |
| Color / Material | Dark grey / Aluminum |
| Product dimensions / weight | Ø70.0 x 246.0mm (Ø2.76 x 9.69"), 680g (1.499 lb) |
| Gangbox Compatibility | Single, double, 4" octagon gangbox with optional SBO-100B1 |
