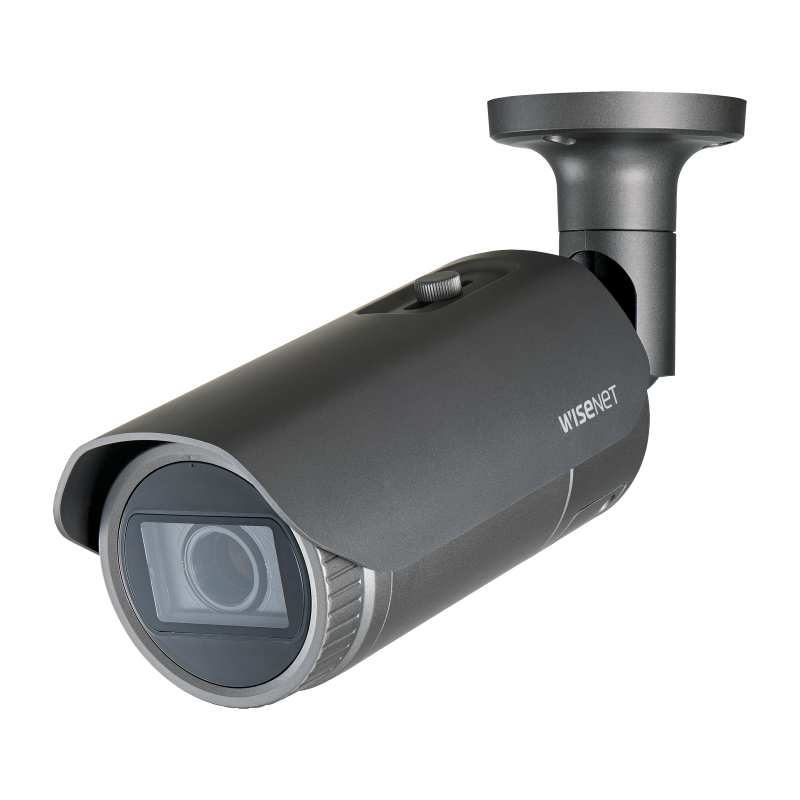

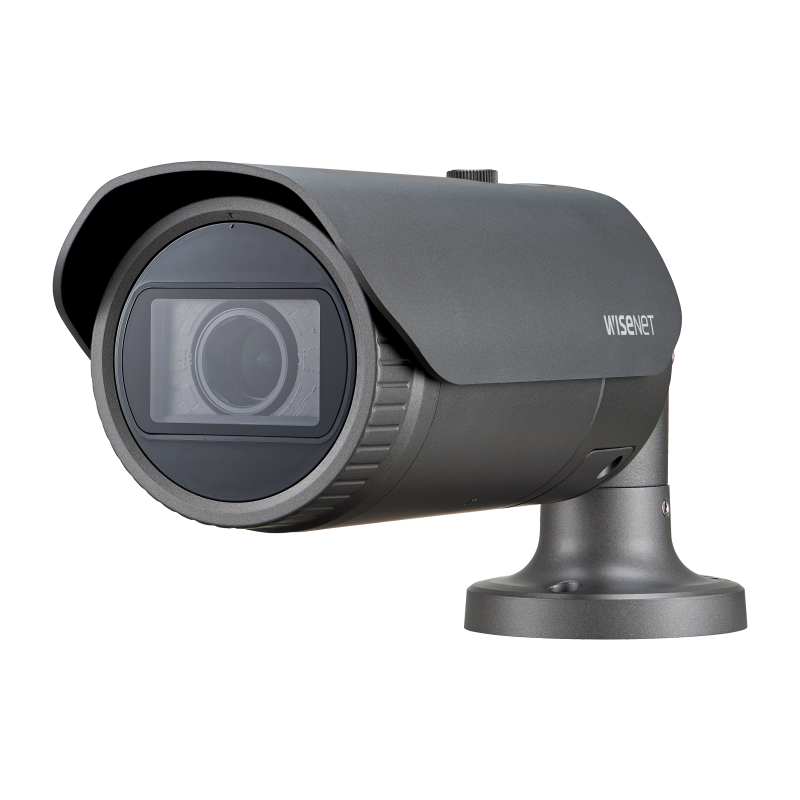

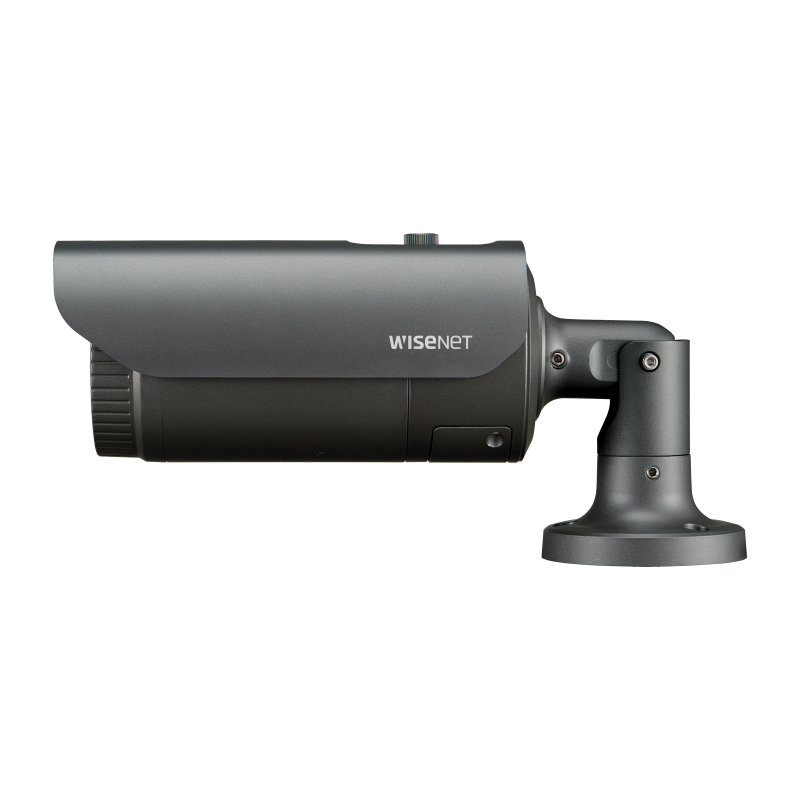

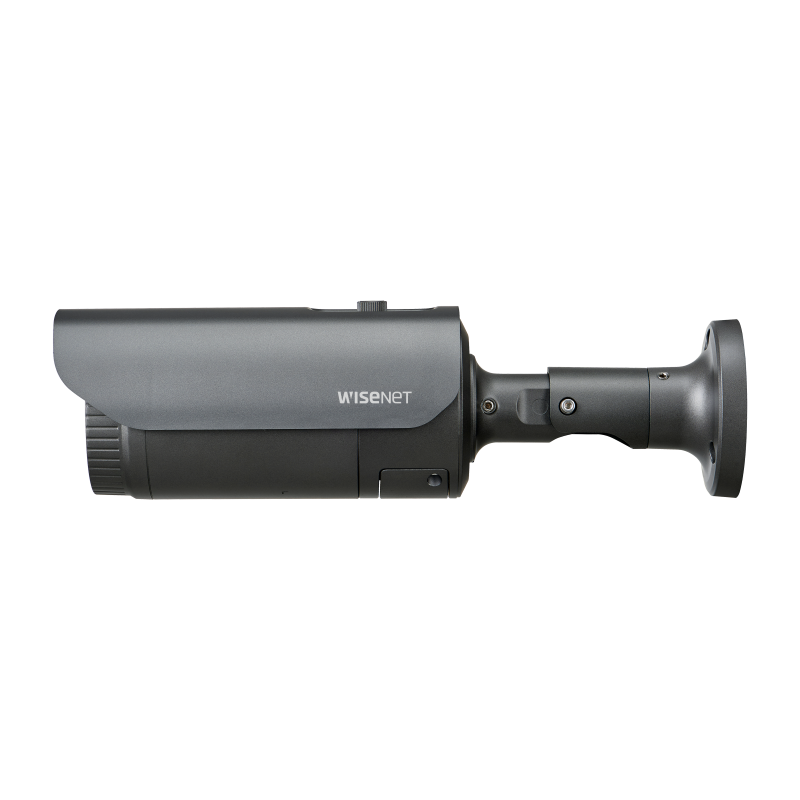

Hanwha - QNO-8080R - 5MP Network IR Bullet Camera with 3.2–10.0 mm Lens

Product Overview

The Hanwha QNO-8080R is a 5MP outdoor IR bullet camera delivering up to 2592×1944 resolution at 30 fps. It features a 3.1× motorized varifocal lens (3.2–10.0 mm) with a wide horizontal field of view from 100.3° to 31.2°, allowing flexible coverage adjustment. It includes 120dB WDR for challenging lighting conditions and supports up to 30 m IR illumination for night surveillance. Video is encoded using H.265/H.264/MJPEG with WiseStream II for efficient bandwidth and storage optimization.

Key Configuration

• 5MP (2592x1944) resolution at 30fps maximum frame rate (H.265/H.264)
• 3.2~10mm motorized vari-focal lens, 3.1x zoom, F1.6~F2.9 aperture
• PoE (IEEE802.3af, Class3) input, max 9.5W power consumption
• Micro SD/SDHC/SDXC slot supporting up to 128GB edge storage

Key Features

5MP network IR bullet camera with a 1/2.8" CMOS sensor, delivering color imaging at 0.15 lux and 0 lux in IR mode. It supports auto day/night (ICR), 120dB WDR with BLC/SSDR, SSNR noise reduction, and up to 30m IR illumination. The camera includes lens distortion correction, hallway view (90°/270° rotation), and simple focus support. Analytics cover motion, tampering, directional, and virtual line detection, and intrusion events, with actions such as FTP/email upload, SD/NAS recording, and alarm output. Networking supports 10/100 Ethernet, up to 6 unicast users, multicast streaming, and 3 profiles using WiseStream II with ROI-based compression control. It also includes ONVIF Profile S/G support, HTTPS/802.1X security, CVBS analog output for installation, and Wisenet open platform compatibility.

Technical Context

WiseStream II smart codec dynamically adjusts compression based on scene activity, reducing bandwidth while preserving image quality with H.265/H.264 encoding. The camera supports up to 3 simultaneous streaming profiles with unicast (up to 6 users) and multicast streaming, while MJPEG is limited to 15 fps. It also includes CVBS analog output (720×480) for on-site installation and focus setup without requiring a network connection. Lens distortion correction (LDC) helps reduce barrel distortion from wide-angle viewing, improving edge-to-edge image accuracy.

Installation Notes

Compact dark grey aluminum bullet camera with a 3MP-style form factor, measuring Ø91 × 322.9 mm and weighing 1.19 kg. It supports full articulation with pan 0°–350°, tilt 0°–67°, and rotation 0°–355° for flexible installation. Designed for harsh environments, it operates from -30°C to +55°C (startup above -20°C) with up to 90% humidity tolerance. Power is supplied via PoE (IEEE 802.3af Class 3), with low consumption (max 9.5W, typical 7.3W). It is certified IP66 for weather resistance and IK10 for vandal protection.
