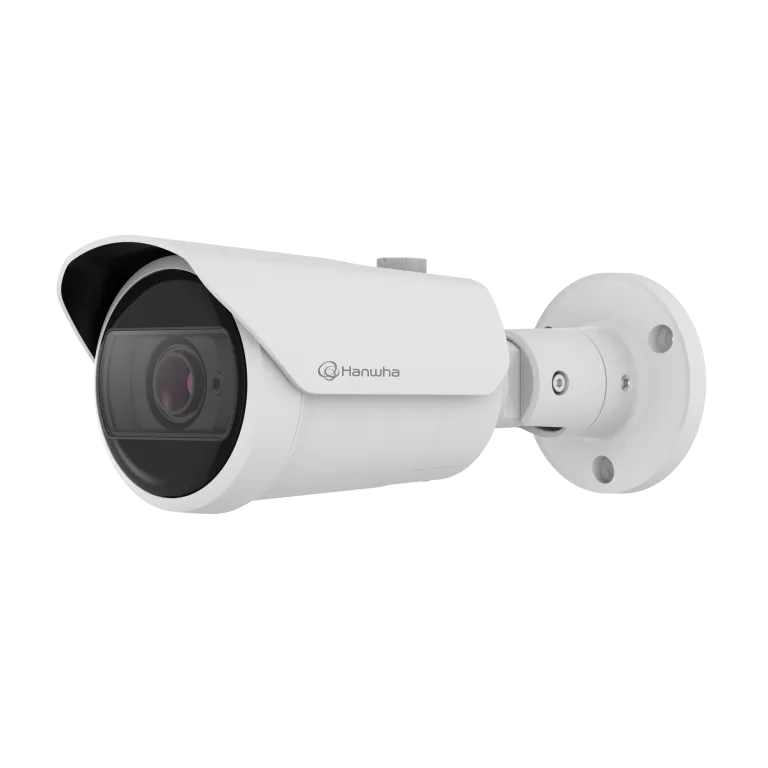

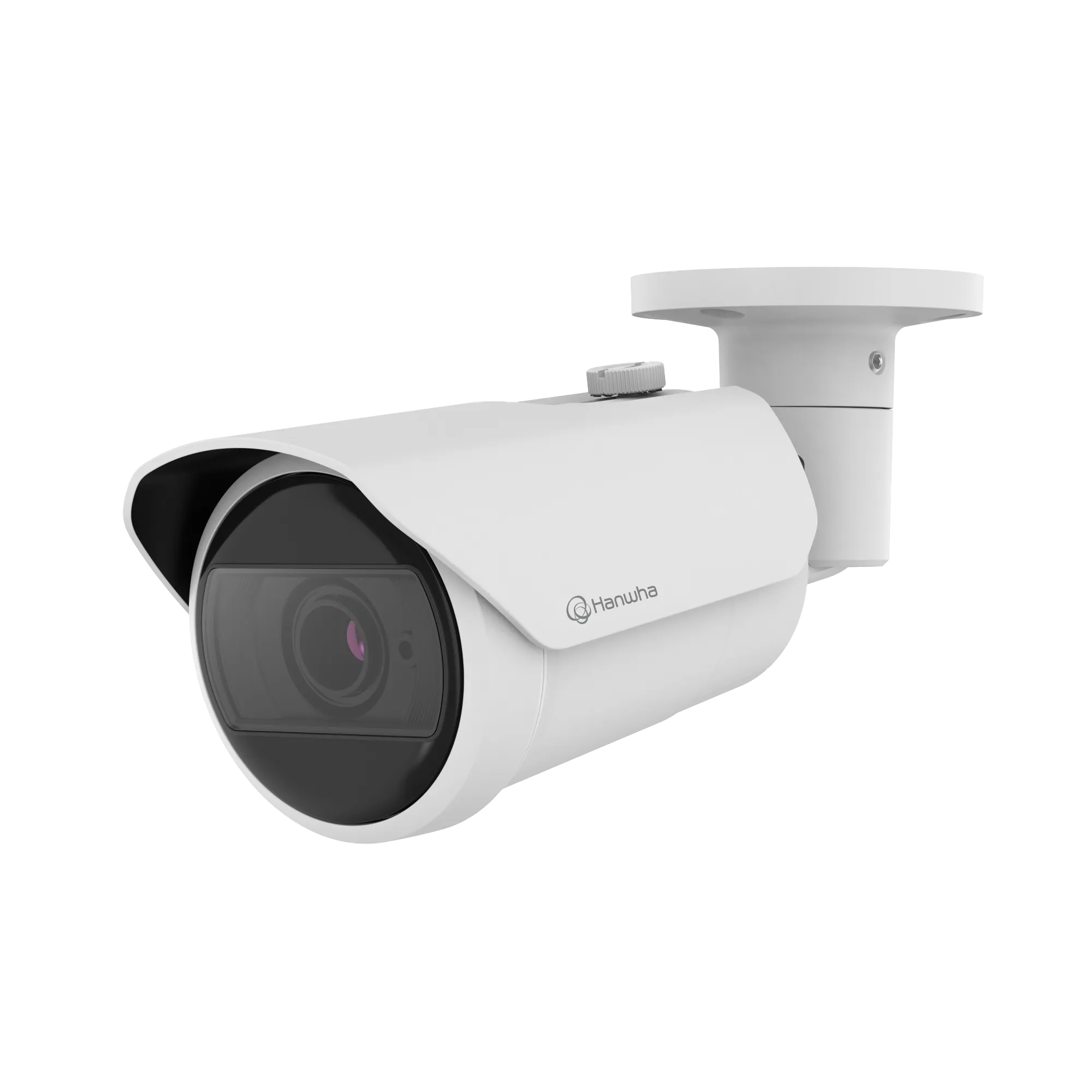

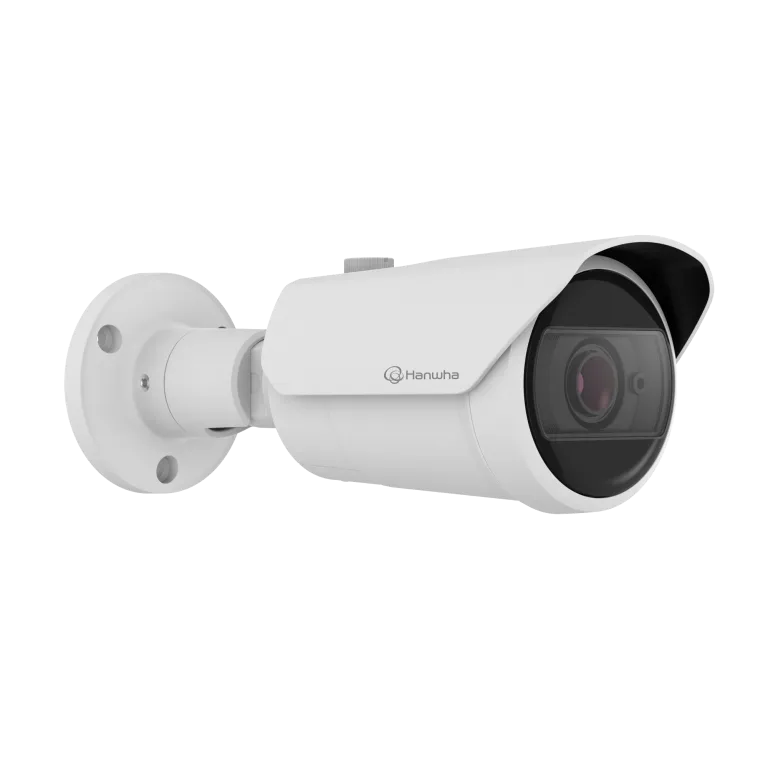

Hanwha - QNO-C8083R - 5MP Network Outdoor Vandal Bullet Wisenet Q Camera with 3.2~10.2mm Lens

Product Overview

Hanwha QNO-C8083R is a Wisenet Q outdoor vandal bullet camera. It features a 1/2.8" CMOS sensor with a 3.2–10.2mm motorized varifocal lens that offers a 95° to 29° horizontal field of view and simple focus control. The camera delivers 5MP resolution at up to 30 fps. It utilizes a triple codec system supporting H.265, H.264, and MJPEG compression, which is enhanced by AI-based WiseStreamⅢ technology and WiseNRⅡ AI-based noise reduction.

Key Configuration

• • Imaging device: 1/2.8" CMOS; resolution: 2592×1944 (5MP) at up to 30 fps (H.265/H.264)
• • Lens: 3.2~10.2mm motorized varifocal (3.2x), F1.6(W)–F3.1(T), DC auto iris (IR corrected); horizontal FOV: 95°(W)–29°(T)
• • IR viewable length: 30m (98 ft), 850nm LED; minimum illumination: color 0.07 lux, B/W 0.007 lux, 0 lux with IR
• • Video compression: H.265/H.264 (Main/High), MJPEG; WiseStreamⅢ (AI-based)
• • Power: PoE (IEEE 802.3af, Class 3); dimensions and weight not specified

Key Features

Features 120dB WDR, WiseNRⅡ AI noise reduction, SSNRⅤ, lens distortion correction, hallway view, a micro USB setup port, and 2GB RAM/1GB Flash memory. Onboard AI analytics provide motion detection, classification for persons and vehicles, and intelligent events covering line crossing, direction, loitering, intrusion, and entry or exit. Standard tools monitor defocus, tampering, and appearance changes, while business intelligence track people counting, heatmaps, queues, and vehicles. Hardware interfaces include two-way audio, a 256GB encrypted microSD slot, ONVIF S/G/T/M compliance, and cybersecurity defenses covering secure boot, signed firmware, 802.1X verification, HTTPS, SRTP, WSS, and IP access control.

Technical Context

Maintains a 1.2m (3.93 ft) minimum object distance with simple focus and a 1/5 to 1/12,000 second shutter speed with anti-flicker. Dual-stack network streaming supports 20 unicast users, multicast, and 5 profiles across protocols like SRTP, HTTPS, and LLDP. Environmental protection includes IK10 vandal resistance and an IP66 rating with an air vent to manage 0 to 95% non-condensing humidity across a -30°C to +55°C (-22°F to 131°F) range. Processing features 32 privacy masking zones, 8 motion detection zones, a -50°C to +60°C storage range, and compatibility with the optional SBO-140BW backbox.

Installation Notes

Power is supplied via PoE Class 3 to drive an outdoor bullet form factor camera featuring hallway view support and lens distortion correction. Physical connection options integrate a micro Type B USB port for installation video output, a single local microSD slot for up to 256GB max edge storage, and selectable mic/line audio inputs and outputs. Physical installation is supported by compatibility with the optional SBO-140BW backbox accessory.
