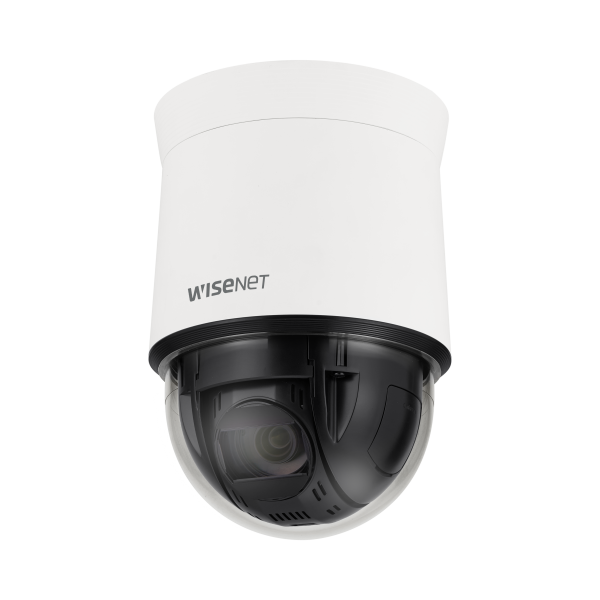

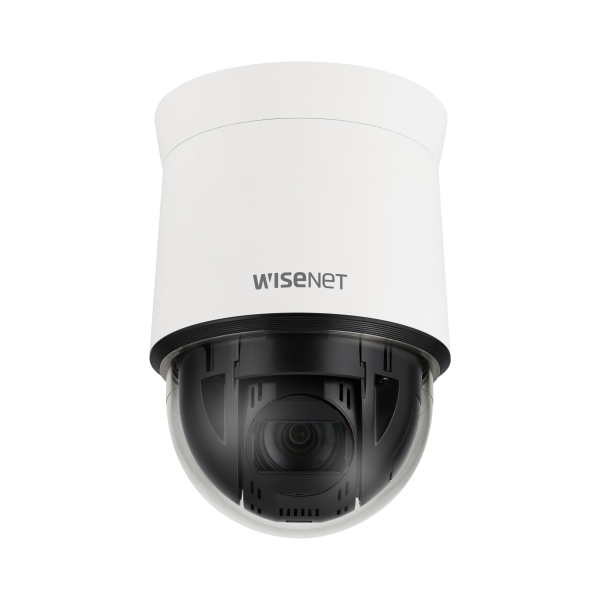

Hanwha - QNP-6250 - 2MP 25x Network Indoor PTZ Camera

Product Overview

Hanwha QNP-6250 Wisenet Q indoor network PTZ camera features a 1/2.8" CMOS sensor with a 4.44–111mm 25x optical zoom lens to deliver 2MP Full HD resolution video at 60 fps. Processing utilizes H.265, H.264, and MJPEG compression enhanced by WiseStreamⅡ technology, while hardware performance integrates 120dB Wide Dynamic Range, defog support, and digital image stabilization backed by an internal gyro sensor.

Key Configuration

• • Imaging device: 1/2.8" CMOS; resolution: 1920×1080 (2MP) at up to 60 fps (H.265/H.264)
• • Lens: 4.44~111mm (25x optical zoom, 32x digital), F1.6(W)–F3.9(T); horizontal FOV: 64.66°(W)–2.99°(T)
• • PTZ: pan 360° endless (preset 700°/sec, manual 0.024–200°/sec); tilt 105° (90° to -15°) (preset 300°/sec, manual 0.024–200°/sec)
• • Minimum illumination: color 0.05 lux, B/W 0.005 lux (1/30 sec, F1.6, 30IRE); no built-in IR
• • Power: PoE+ (IEEE 802.3at, Class 4); max 14.5W, typical 12W

Key Features

Integrates 120dB Wide Dynamic Range, SSNRⅤ digital noise reduction, gyro-sensor digital image stabilization, defog, and auto-tracking capabilities. Intelligent edge performance features 32 customizable privacy masking zones, micro SD/SDHC/SDXC storage expanding up to 256GB, 4 alarm inputs, 2 alarm outputs, and selectable mic/line two-way audio. PTZ mechanics manage 300 presets with ±0.2° accuracy across preset, swing, group, trace, tour, auto-run, and scheduled sequence modes under Oneshot AF and Focus Save control. Onboard analytics incorporate directional detection, tampering, enter/exit tracking, virtual line crossing, audio detection, and 8 polygonal motion detection zones with full ONVIF Profile S/G/T compliance.

Technical Context

Maintains a minimum object distance of 1.5m (4.92 ft) at wide and 2.0m (6.56 ft) at tele, running an electronic shutter speed from 2 to 1/12,000 seconds with anti-flicker control. Dual-stack IPv4/IPv6 network operations support up to 20 unicast users, multicast, and 10 streaming profiles across major protocols, including SRTP, HTTPS, and NTCIP1205. Cybersecurity infrastructure protects edge traffic via Hanwha Techwin Root CA device certificates, firmware encryption, digest authentication, and 802.1X verification. Access defenses enforce further layer protection through IP address filtering, user logs, and strict encryption for credentials, data transmission, and ZIP backups.

Installation Notes

Measures Ø152 × 218 mm (Ø5.98" × 8.58") and weighs 1700g (3.75 lb), utilizing a white plastic indoor-only chassis that operates from -10°C to +55°C (+14°F to 131°F) under 0 to 95% non-condensing relative humidity and stores from -30°C to +60°C. Power is supplied via PoE+ Class 4 to drive physical PTZ mechanics delivering a 360° endless pan and 105° tilt range without built-in IR illumination. Edge infrastructure integrates a 256GB max microSD slot, dedicated audio and alarm I/O connections, and compatibility with a mounting accessory ecosystem including the SBP-301HMW3 hanging mount along with ceiling, wall, pole, in-ceiling, parapet, corner, housing, and cabinet brackets.
