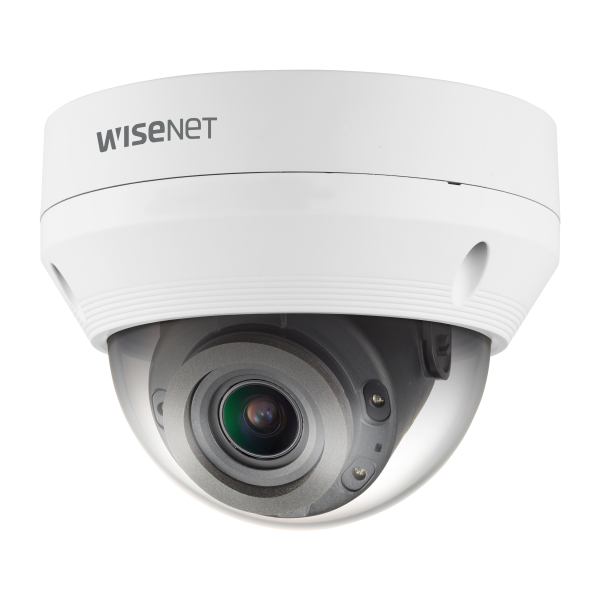

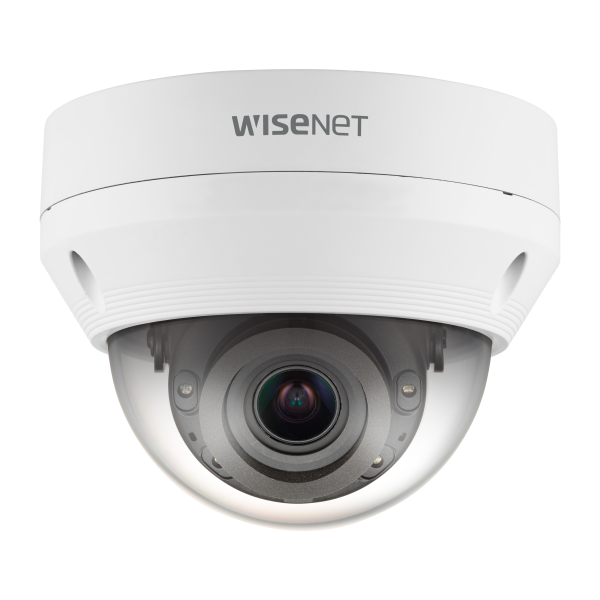

Hanwha - QNV-7082R - 4MP IR Vandal Dome Camera with 3.2~10mm Lens

Product Overview

Hanwha QNV-7082R is a Wisenet Q series outdoor vandal-resistant network dome camera equipped with a 1/3" CMOS sensor that delivers 4MP resolution (2560×1440) at up to 30 fps. It features a 3.2~10mm (3.1x) motorized varifocal lens providing a 109°–33.2° horizontal field of view with simple focus automation. Video management is handled via H.265, H.264, and MJPEG triple-codec compression.

Key Configuration

• • Imaging device: 1/3" CMOS; resolution: 2560×1440 (4MP) at up to 30 fps (H.265/H.264)
• • Lens: 3.2~10mm motorized varifocal (3.1x), F1.6(W)–F2.9(T); horizontal FOV: 98.6°(W)–30.8°(T)
• • IR viewable length: 30m (98 ft); minimum illumination: color 0.1 lux, 0 lux with IR
• • Video compression: H.265/H.264 (Main/High), MJPEG; WiseStreamⅡ
• • Power: PoE (IEEE 802.3af, Class 3) or 12V DC; PoE max 11.4W / typical 8.5W, 12VDC max 9.6W / typical 7.2W

Key Features

Equipped with a 3-axis gimbal, 512MB RAM, and 256MB Flash, this ONVIF Profiles S/G/T conformant device features 120dB WDR, SSNR noise reduction, LDC optical correction, and selectable Hallway View orientation. Onboard intelligence delivers defocus warnings, directional tracking, tampering alarms, entry/exit detection, virtual tripwires, and 4 polygonal motion detection fields. Hardware connectivity consists of 6 rectangular privacy zones, a 128GB microSD expansion slot, a line-level audio input, a single alarm I/O terminal loop, and a composite CVBS analog output intended for field setup and aiming.

Technical Context

Providing motorized simple focus control and a flexible electronic shutter range of 1/5 to 1/12,000 sec, this IP66 and IK10 certified camera manages up to 3 individual streaming profiles for up to 6 concurrent unicast or multicast connections across standard network protocols, including PPPoE and PIM-SM multicast routing. Device access remains secured by HTTPS/SSL and digest login authentications, 802.1X network access control, IP address filtering, and automated user activity logs.

Installation Notes

Measuring Ø137.0 × 106.1 mm (Ø5.39" × 4.18") and weighing 710g (1.565 lb), this white aluminum vandal-resistant camera is powered via dual-source PoE (Class 3) or 12V DC. It functions reliably in temperatures ranging from -40°C to 55°C (-40°F to 131°F) under 95% non-condensing relative humidity, requiring startup temperatures above -30°C. Hardware physical options include a single 128GB capacity microSD edge storage slot, a line-level audio input, and an active CVBS composite video output for localized monitor connection and onsite installation alignment.
