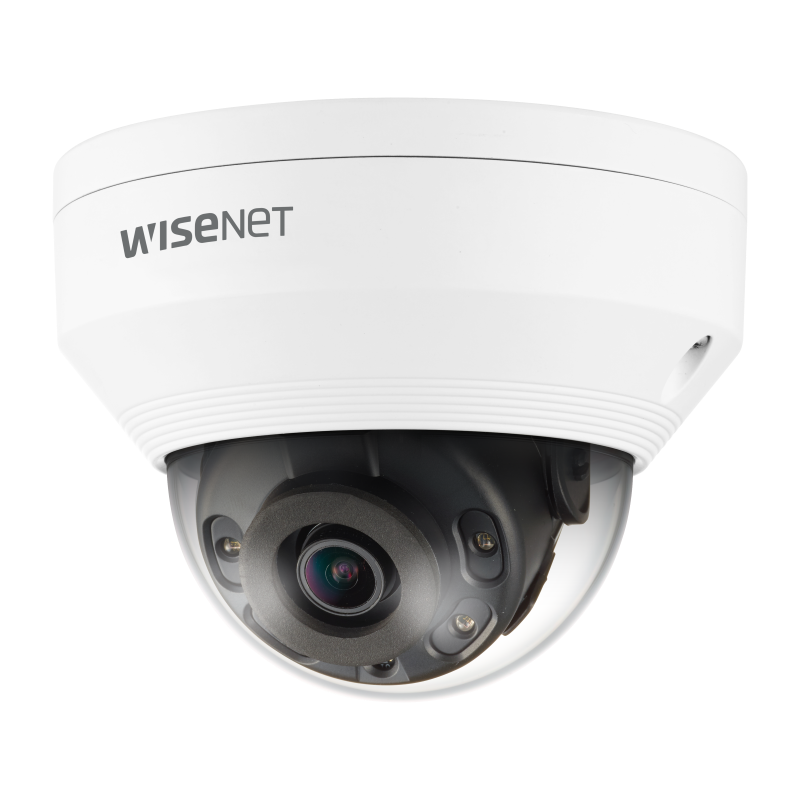

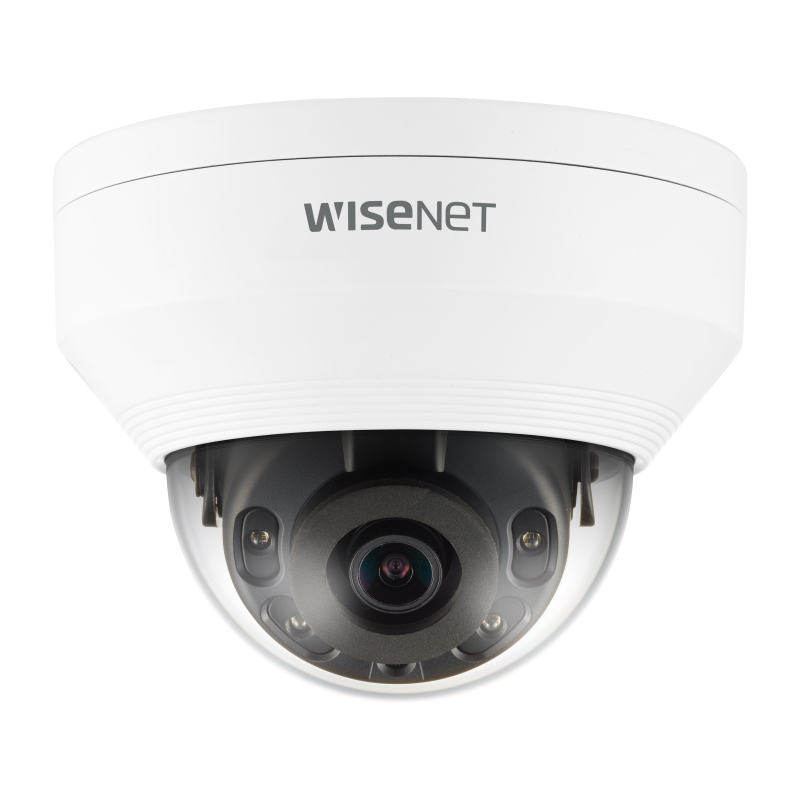

Hanwha - QNV-8010R - 5MP Network Outdoor Vandal Dome Wisenet Q Camera, 2.8mm Fixed Focal Lens
Product Overview
The Hanwha QNV-8010R is a Wisenet Q series outdoor vandal dome camera featuring a 1/2.8" CMOS sensor that delivers 5MP resolution (2592×1944) at up to 30 fps. It utilizes a 2.8mm fixed lens (F2.0) with a 104.7° horizontal field of view. Bandwidth efficiency is optimized through H.265/H.264/MJPEG triple-codec streaming paired with WiseStreamⅡ compression technology.
Key Configuration
- • Imaging device: 1/2.8" 5MP CMOS; resolution: 2592×1944 (5MP) at up to 30 fps (H.265/H.264)
- • Lens: 2.8mm fixed focal, F2.0; horizontal FOV: 104.7°, vertical: 76.5°, diagonal: 136.0°
- • IR viewable length: 20m (65 ft); minimum illumination: color 0.15 lux, 0 lux with IR
- • Video compression: H.265/H.264 (Main/High), MJPEG; WiseStreamⅡ
- • Power: PoE (IEEE 802.3af, Class 3); max 7.5W, typical 5.8W
Key Features
Featuring 120dB WDR, SSNR noise reduction, LDC, and Hallway View, this ONVIF Profiles S/G/T conformant camera includes a 3-axis mechanical adjustment, 0–350° pan, 0–67° tilt, 0–355° rotate. Backed by 512MB RAM and 256MB Flash, its analytics suite handles defocus, motion, tampering, entry/exit, and directional/line detection alongside 6 privacy zones. Setup and local backup are supported by a CVBS installation video output, a 1-input/1-output alarm interface, and a single microSD slot supporting up to 128GB.
Technical Context
Equipped with a fixed focus mechanism and an electronic shutter speed of 1/5 to 1/12,000 sec, this unit supports up to 3 streaming profiles for 6 concurrent unicast or multicast users. It runs a full protocol suite featuring LLDP and QoS, secured by HTTPS/SSL and digest login authentication, IP filtering, user access logging, and 802.1X network control. The durable chassis carries IP66 weatherproof and IK10 vandal-proof certifications.
Installation Notes
Measuring Ø120.3 × 91.7 mm (Ø4.74" × 3.61") and weighing 510g (1.124 lb), this white aluminum dome camera features IP66 weather-resistant and IK10 vandal-resistant protection ratings. It operates between -30°C to +55°C (-22°F to 131°F) with a start-up threshold above -20°C under 90% RH, and stores safely down to -30°C (-22°F). The device is powered via PoE (IEEE 802.3af, Class 3) and includes a single microSD slot for up to 128GB of edge storage alongside a CVBS video output for local installation alignment.
| VIDEO | |
|---|---|
| Imaging Device | 1/2.8" 5 MP CMOS |
| Effective Pixels | 2592(H) x 1944(V) |
| Minimum Illumination | Color: 0.15Lux (F2.0, 1/30sec) BW: 0Lux (IR LED on) |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720 x 480 for installation |
| LENS | |
| Focal Length (Zoom Ratio) | 2.8mm fixed focal |
| Maximum Aperture Ratio | F2.0 |
| Angular Field of View | H: 104.7° / V: 76.5° / D: 136.0° |
| Focus Control | Fixed |
| PAN / TILT / ROTATE | |
| Pan / Tilt / Rotate Range | 0°~350° / 0°~67° / 0°~355° |
| OPERATIONAL | |
| IR Viewable Length | 20m (65.62ft) |
| Camera Title | Displayed up to 85 characters, 5 lines, English / Numeric / Special & International characters, 6 colors, Transparency, Auto scale by resolution |
| Day & Night | Auto (ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNR |
| Motion Detection | 4ea, polygonal zones |
| Privacy Masking | 6ea, rectangular zones |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti-flicker (1/5~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view (90°/270°) |
| Analytics | Defocus detection, Directional/Virtual Line detection, Motion detection, Enter/Exit, Tampering |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm events | File upload via FTP and e-mail, Notification via e-mail, SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover |
| NETWORK | |
| Ethernet | RJ-45 (10/100BASE-T) |
| Video Compression | H.265/H.264: Main/High, MJPEG |
| Resolution | 2592 x 1944, 1920 x 1080, 1280 x 960, 1280 x 720, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360 |
| Maximum Framerate | H.265/H.264: Maximum 30fps / MJPEG: Maximum 15fps |
| Smart Codec | WiseStream II |
| Video Quality Adjustment | H.264/H.265: Target bitrate level control / MJPEG: Quality level control |
| Bitrate Control | H.264/H.265: CBR or VBR / MJPEG: VBR |
| Streaming | Unicast (6 users) / Multicast / Multiple streaming (Up to 3 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP |
| Security | HTTPS (SSL) login authentication, Digest login authentication, IP address filtering, User access log, 802.1X authentication (EAP-TLS, EAP-LEAP) |
| Edge Storage | Micro SD/SDHC/SDXC 1 slot maximum 128GB |
| Application Programming Interface | ONVIF Profile S/G/T, SUNAPI (HTTP API), Wisenet open platform |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch |
| Web Viewer | Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12, 10.13, 10.14 Recommended Browser: Google Chrome Supported Browser: MS Explorer 11, MS Edge, Mozilla Firefox (Windows 64-bit only), Apple Safari (Mac OS X only) |
| Memory | 512MB RAM, 256MB Flash |
| ENVIRONMENTAL | |
| Operating Temperature / Humidity | -30°C ~ +55°C (-22°F ~ +131°F) / Less than 90% RH * Start-up should be done at above -20°C |
| Storage Temperature / Humidity | -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH |
| Certification | IP66, IK10 |
| ELECTRICAL | |
| Input Voltage | PoE (IEEE802.3af, Class3) |
| Power Consumption | PoE: Maximum 7.5W, typical 5.8W |
| MECHANICAL | |
| Color / Material | White / Aluminum |
| RAL Code | RAL9003 |
| Product dimensions/weight | Ø120.3 x 91.7mm (Ø4.74 x 3.61"), 510g (1.124 lb) |
