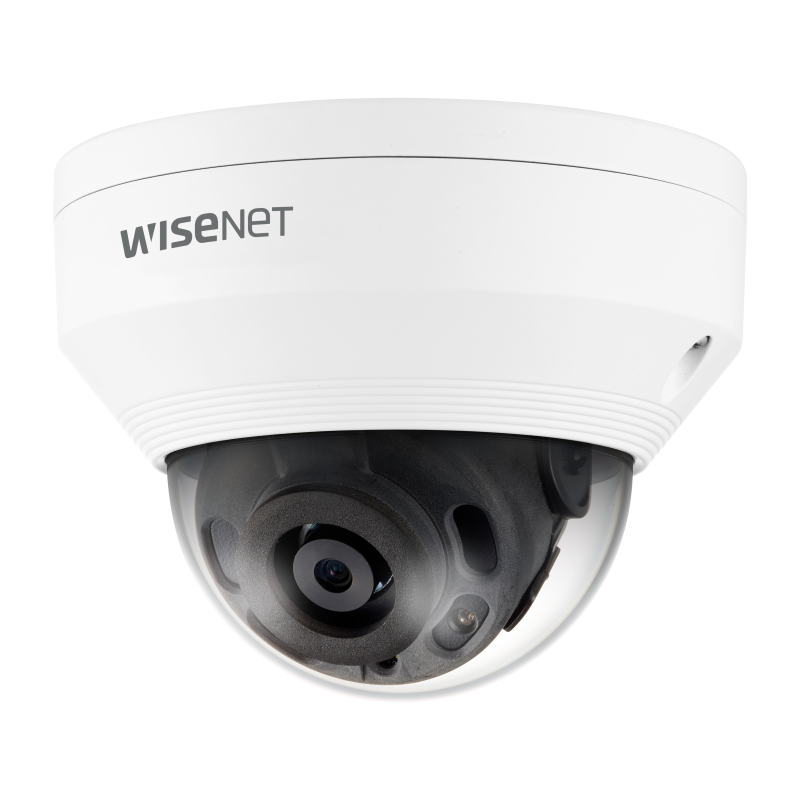

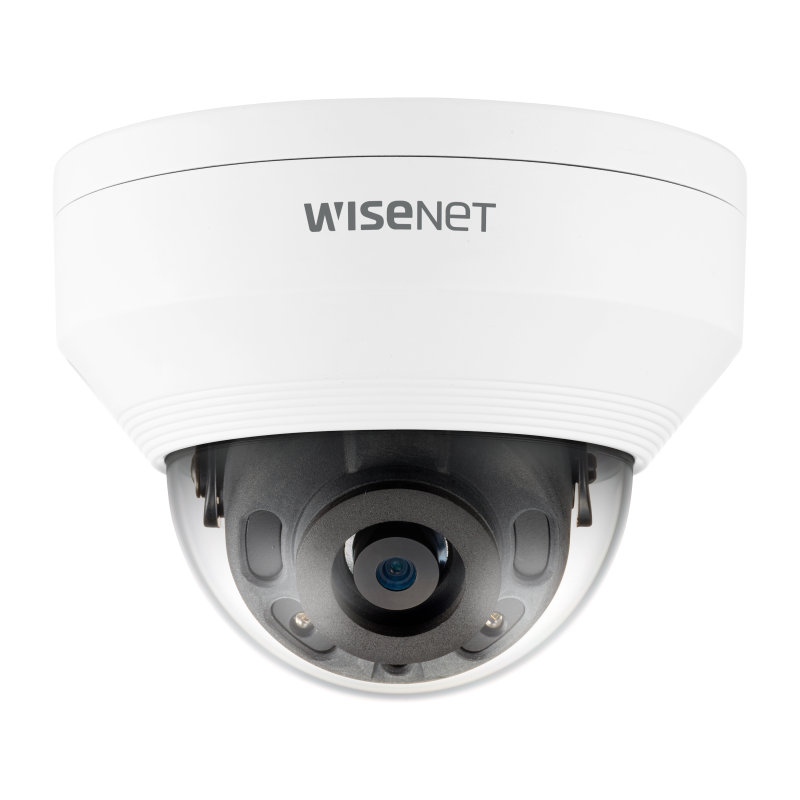

Hanwha - QNV-8020R - 5MP Network Outdoor Vandal Dome Wisenet Q Camera with 4.0mm Fixed Focal Lens

Product Overview

Hanwha QNV-8020R Wisenet Q outdoor vandal dome camera integrates a 1/2.8" 5MP CMOS sensor paired with a 4.0mm fixed lens featuring an F1.6 aperture and a 79.8° horizontal FOV. Performance metrics deliver 5MP resolution (2592×1944) at up to 30 fps using H.265, H.264, and MJPEG compression codecs. Bandwidth management is optimized via WiseStream II efficiency technology within the outdoor-rated housing.

Key Configuration

• • Imaging device: 1/2.8" 5MP CMOS; resolution: 2592×1944 (5MP) at up to 30 fps (H.265/H.264)
• • Lens: 4.0mm fixed focal, F1.6; horizontal FOV: 79.8°, vertical: 58.1°, diagonal: 105.9°
• • IR viewable length: 25m (82 ft); minimum illumination: color 0.15 lux, 0 lux with IR
• • Video compression: H.265/H.264 (Main/High), MJPEG; WiseStreamⅡ
• • Power: PoE (IEEE 802.3af, Class 3); max 7.2W, typical 5.4W

Key Features

Provides 120dB WDR, SSNR digital noise reduction, Lens Distortion Correction (LDC), and Hallway View supporting 90° or 270° video rotation. Edge intelligence includes 6 rectangular privacy masks, 4 polygonal motion detection zones, and built-in analytics for defocus, directional movement, virtual line crossing, entry/exit, and tampering. Physical deployment is supported by a 3-axis gimbal mechanism providing 0 to 350° pan, 0 to 67° tilt, and 0 to 355° rotation, paired with 512MB RAM, 256MB Flash, 1 alarm input, 1 alarm output, a single 128GB capacity microSD slot, and a local CVBS (720×480) installation video output.

Technical Context

Utilizes a fixed focus setup and an electronic shutter speed range of 1/5 to 1/12,000 sec with anti-flicker control. Built with IP66 weatherproof and IK10 vandal-resistant certifications, the unit transmits up to 3 simultaneous streaming profiles for up to 6 concurrent unicast or multicast users across standard network protocols. Hardened cybersecurity protocols include HTTPS/SSL and digest login authentication, IP address filtering, user access logging, and 802.1X network access protection via EAP-TLS and EAP-LEAP.

Installation Notes

Measures Ø120.3 × 91.7 mm (Ø4.74" × 3.61") and weighs 510g (1.124 lb), featuring a durable white aluminum housing rated with IP66 weather resistance and IK10 vandal protection. Environmental operation spans -30°C to +55°C (-22°F to 131°F) with start-up required above -20°C under 90% relative humidity. Engineering attributes include power deployment via standard PoE (Class 3), a single edge-storage microSD slot supporting up to 128GB, and a dedicated local CVBS video output for field installation alignment.
