Hanwha - QNV-8080R - 5MP IR Outdoor Dome Camera with 3.2~10mm Lens

Product Overview

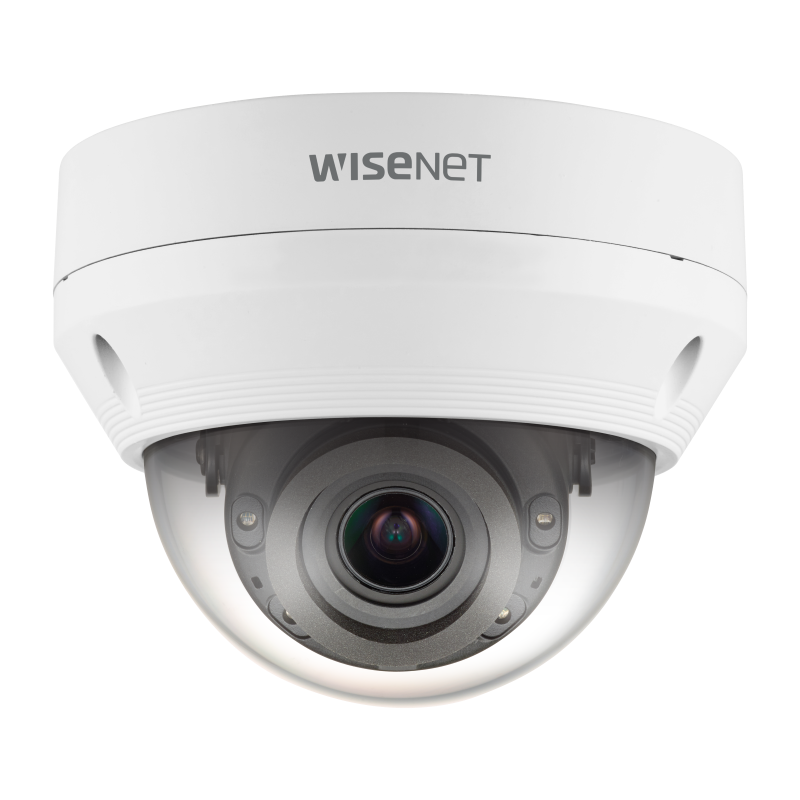

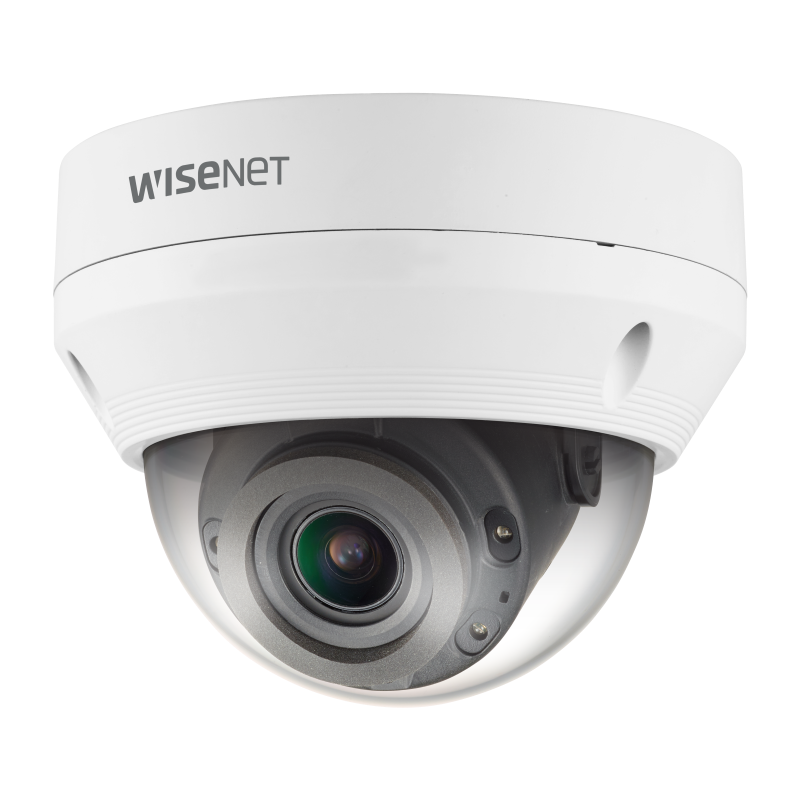

Hanwha QNV-8080R Wisenet Q outdoor vandal dome camera integrates a 1/2.8" 5MP CMOS sensor paired with a 3.2~10mm (3.1x) motorized varifocal lens featuring an F1.6–F2.9 aperture, simple focus capability, and a 100.3°–31.2° horizontal FOV. Performance metrics deliver 5MP resolution (2592×1944) at up to 30 fps using H.265, H.264, and MJPEG compression codecs. Bandwidth management is optimized via WiseStream II efficiency technology within the outdoor-rated housing.

Key Configuration

• • Imaging device: 1/2.8" 5MP CMOS; resolution: 2592×1944 (5MP) at up to 30 fps (H.265/H.264)
• • Lens: 3.2~10mm motorized varifocal (3.1x), F1.6(W)–F2.9(T); horizontal FOV: 100.3°(W)–31.2°(T)
• • IR viewable length: 30m (98 ft); minimum illumination: color 0.15 lux, 0 lux with IR
• • Video compression: H.265/H.264 (Main/High), MJPEG; WiseStreamⅡ
• • Power: PoE (IEEE 802.3af, Class 3); max 8.9W, typical 6.6W

Key Features

Provides 120dB WDR, SSNR digital noise reduction, Lens Distortion Correction, and Hallway View supporting 90° or 270° video rotation alongside simple focus for streamlined installation. Edge intelligence features 6 rectangular privacy masks, 4 polygonal motion detection zones, and built-in analytics for defocus, directional movement, virtual line crossing, entry/exit, and tampering. Physical deployment is supported by a 3-axis gimbal mechanism providing 0 to 350° pan, 0 to 67° tilt, and 0 to 355° rotation, paired with 512MB RAM, 256MB Flash, 1 alarm input, 1 alarm output, a single 128GB capacity microSD slot, and a local CVBS (720×480) installation video output.

Technical Context

Utilizes a simple focus control setup and an electronic shutter speed range of 1/5 to 1/12,000 sec with anti-flicker functionality. Certified to IP66 weatherproof and IK10 vandal-resistant standards, the unit transmits up to 3 simultaneous streaming profiles for up to 6 concurrent unicast or multicast users across core network protocols. Network protection features comprise HTTPS/SSL and digest login authentication, IP address filtering, comprehensive user access logs, and 802.1X authentication via EAP-TLS and EAP-LEAP.

Installation Notes

Measures Ø137.0 × 106.1 mm (Ø5.39" × 4.18") and weighs 700g (1.543 lb), utilizing a durable white aluminum housing rated for outdoor deployment. Environmental operations span -30°C to +55°C (-22°F to 131°F) with start-up required above -20°C under 90% relative humidity. Physical attributes include a motorized varifocal lens with a dedicated simple focus button for field setup, power delivery over standard PoE Class 3, a single 128GB capacity edge-storage microSD slot, a local CVBS video output for installation alignment, and no specified audio inputs or outputs.
