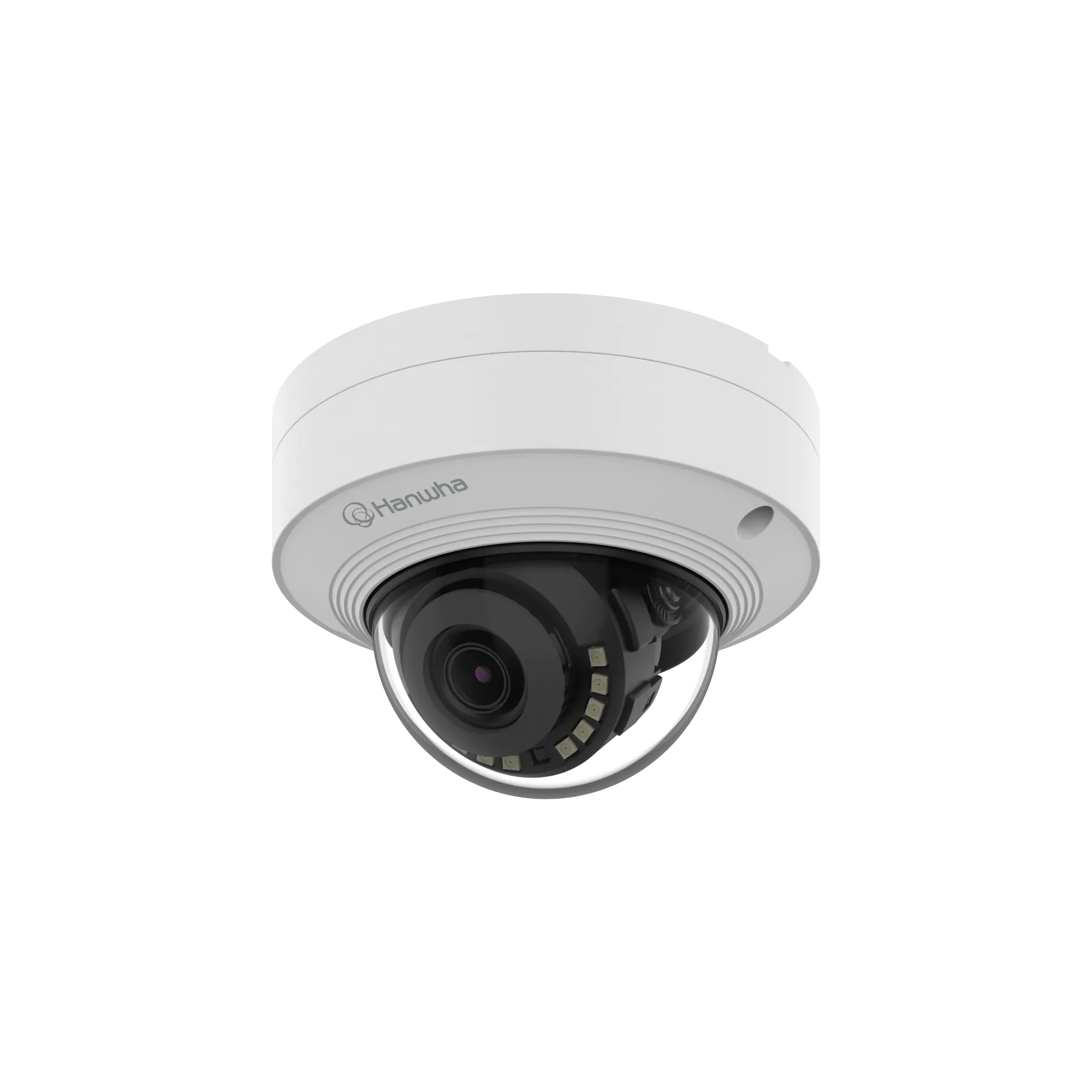

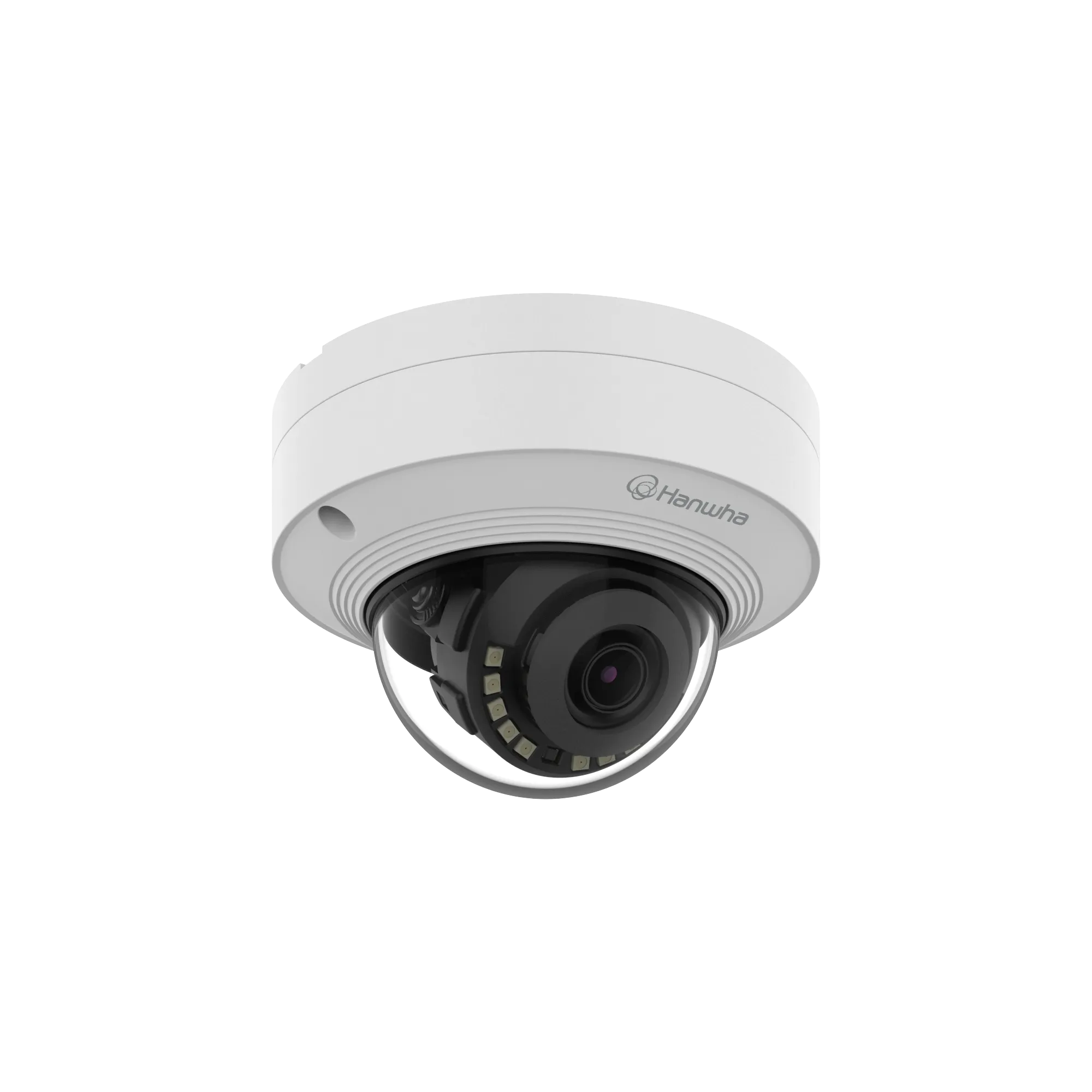

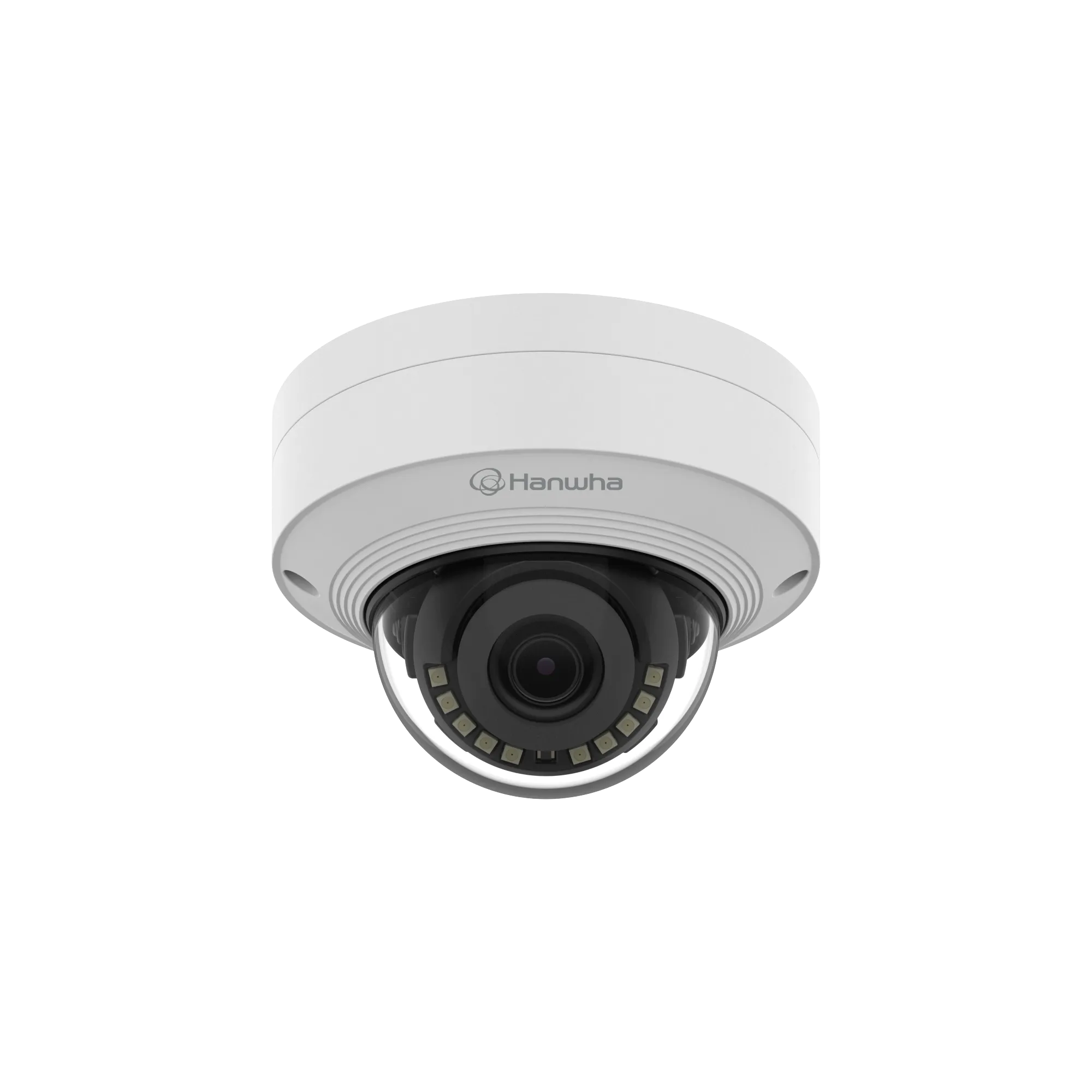

Hanwha - QNV-C8011R - 5MP IR Wisenet Q Mini Vandal Dome Camera, 3mm Fixed Lens

Product Overview

The Hanwha QNV-C8011R is a Wisenet Q mini outdoor vandal-resistant dome camera featuring a 1/2.8" CMOS sensor that delivers 5MP resolution (2592×1944) at up to 30 fps. It is equipped with a 3.0mm fixed lens with an F1.6 aperture and a 100° horizontal field of view. Video streaming is supported via a triple-codec compression stack of H.265, H.264, and MJPEG.

Key Configuration

• • Imaging device: 1/2.8" CMOS; resolution: 2592×1944 (5MP) at up to 30 fps (H.265/H.264)
• • Lens: 3.0mm fixed focal, F1.6, M12 mount; horizontal FOV: 100°, vertical: 73°, diagonal: 129°
• • IR viewable length: 20m (65 ft), 850nm LED; minimum illumination: color 0.03 lux, B/W 0.003 lux, 0 lux with IR
• • Video compression: H.265/H.264 (Main/High), MJPEG; WiseStreamⅢ (AI-based)
• • Power: PoE (IEEE 802.3af, Class 3) or 12V DC; max 8.5W, typical 4.9W

Key Features

This compact vandal dome operates on a 2GB RAM and 1GB Flash platform with hardware security including secure boot, signed/encrypted firmware, and device certificates. It delivers 120dB WDR, WiseNRⅡ, SSNRⅤ, WiseStreamⅢ, LDC, a 20m IR range, and a 90°/270° hallway view. The integrated edge AI engine provides advanced object classification (people and vehicle subtypes) that drives motion detection, virtual line/area analytics, and business intelligence functions (people/vehicle counting, heatmaps, queue management), alongside standard tampering and defocus alerts. The IP66/IK10/NEMA4X housing supports a 3-axis camera adjustment (350° pan, -35–70° tilt, 355° rotation) and features a single 256GB microSD slot, a micro USB installation port, and compliance with ONVIF Profiles S/G/T/M.

Technical Context

Featuring a 0.5m minimum object distance with a fixed focus lens and a 1/5 to 1/12,000 sec electronic shutter, this camera supports 32 quadrilateral privacy masking zones and 8 polygonal motion detection zones. It handles up to 5 streaming profiles for up to 20 unicast users or unlimited multicast users across a comprehensive suite of IP protocols. The hardware is certified with IP66, IK10, and NEMA4X ratings for outdoor and high-vandalism environments.

Installation Notes

Measuring Ø110 × 77 mm and weighing 522g, this IP66, IK10, and NEMA4X-rated mini dome features a white aluminum chassis with a hard-coated bubble and air vapor humidity control. It operates from -40°C to 55°C (start-up above -30°C) and stores from -50°C to 60°C. Powered via PoE (Class 3) or 12V DC, the unit includes a 256GB microSD slot, a micro USB installation port, and compatibility with the SBD-110GP1 gang plate, SBP-120HMW hanging mount, and SBV-140BW backbox.
