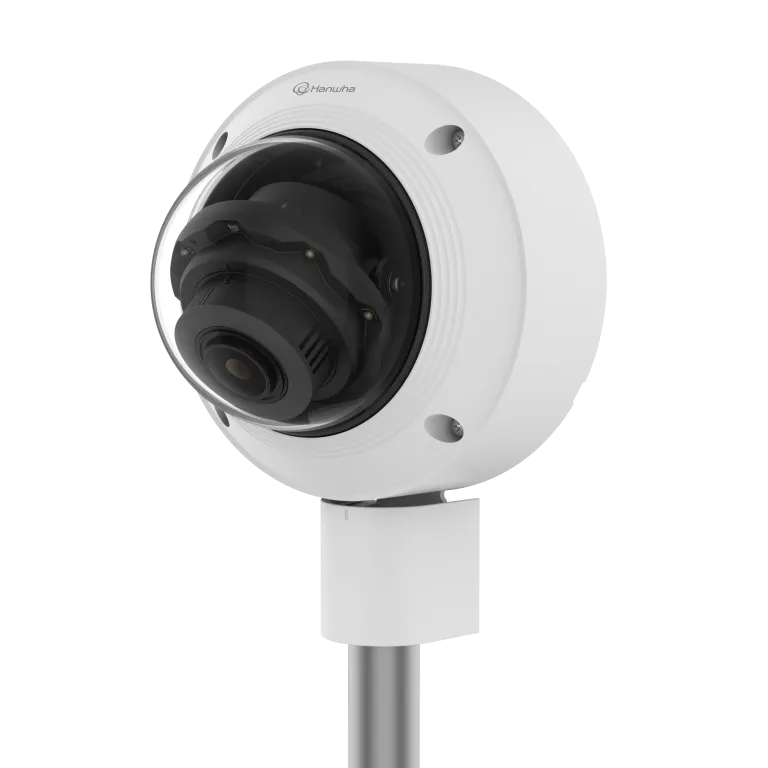

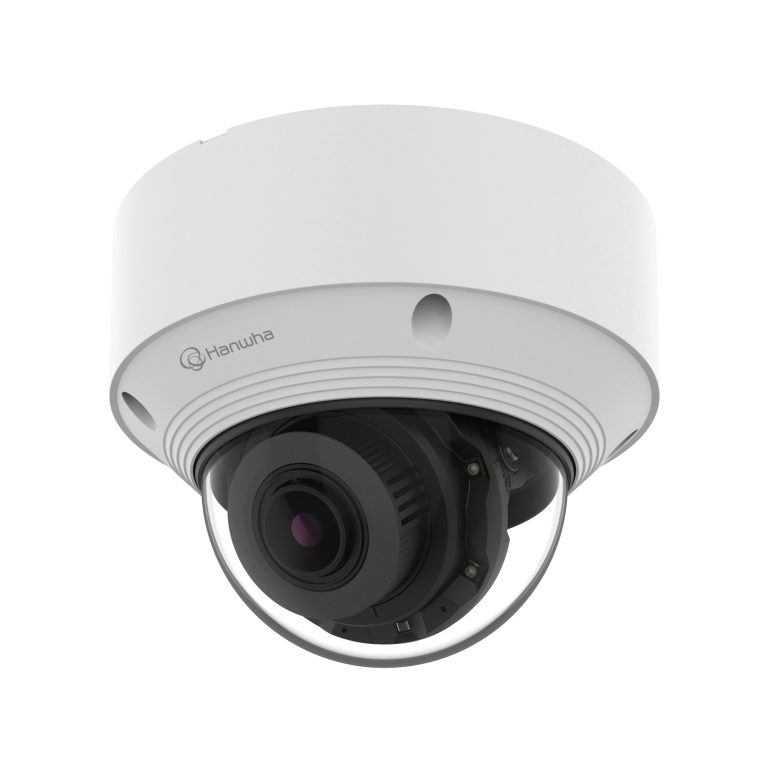

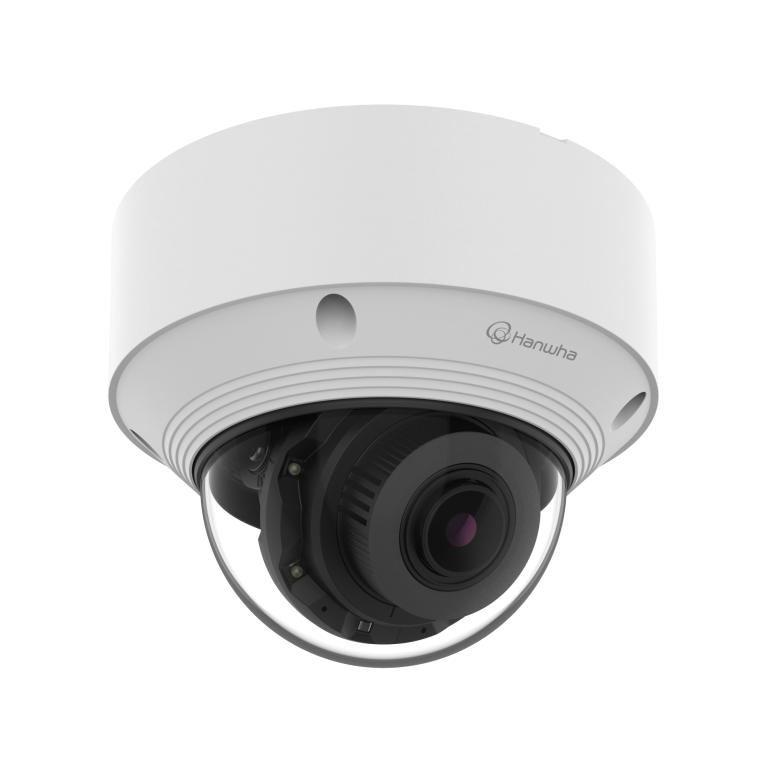

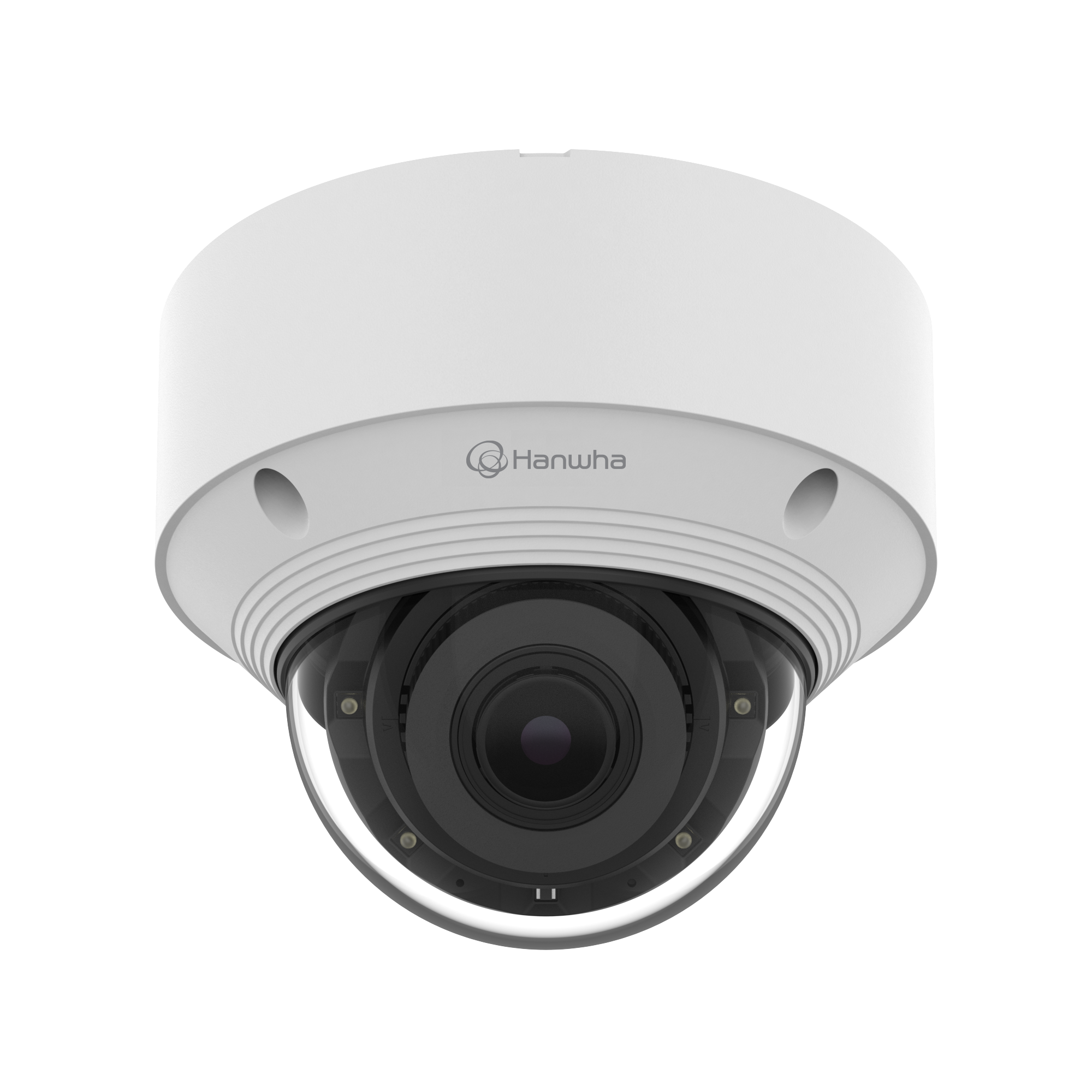

Hanwha - QNV-C8083R - 5MP Network Outdoor Vandal Dome Wisenet Q Camera with 3.2~10.2mm Lens
Product Overview
Power is supplied via PoE Class 3 to drive an outdoor bullet form factor camera featuring hallway view support and lens distortion correction. Physical connection options integrate a micro Type B USB port for installation video output, a single local microSD slot for up to 256GB max edge storage, and selectable mic/line audio inputs and outputs. Physical installation is supported by compatibility with the optional SBO-140BW backbox accessory.
Key Configuration
- • Imaging device: 1/2.8" CMOS; resolution: 2592×1944 (5MP) at up to 30 fps (H.265/H.264)
- • Lens: 3.2~10.2mm motorized varifocal (3.2x), F1.6(W)–F3.1(T), DC auto iris (IR corrected); horizontal FOV: 95°(W)–29°(T)
- • IR viewable length: 30m (98 ft), 850nm LED; minimum illumination: color 0.07 lux, B/W 0.007 lux, 0 lux with IR
- • Video compression: H.265/H.264 (Main/High), MJPEG; WiseStreamⅢ (AI-based)
- • Power: PoE (IEEE 802.3af, Class 3); dimensions and weight not specified
Key Features
Features 120dB WDR, WiseNRⅡ AI noise reduction, SSNRⅤ, lens distortion correction, hallway view, a micro USB setup port, a 3-axis adjustment mechanism, and 2GB RAM/1GB Flash memory. Onboard AI analytics provide motion detection, DetectionShot support, classification for persons and vehicles, and intelligent events covering line crossing, direction, loitering, intrusion, and entry or exit. Standard edge tools monitor defocus, tampering, and appearance changes, while business intelligence tracks people counting, heatmaps, queues, and vehicles. Hardware interfaces include ONVIF S/G/T/M compliance, a 256GB encrypted microSD slot, optional SPP-C7400 cable support for audio and alarm I/O, and cybersecurity defenses covering secure boot, signed firmware, 802.1X verification, HTTPS, SRTP, WSS, and IP access control.
Technical Context
Maintains a 1.2m (3.93 ft) minimum object distance with simple focus and a 1/5 to 1/12,000 second shutter speed with anti-flicker. Dual-stack network streaming supports 20 unicast users, multicast, and 5 profiles across protocols like SRTP, HTTPS, and LLDP. Environmental protection includes IK10 vandal resistance and an IP66 rating for outdoor durability. Processing features include 32 privacy masking zones, 8 motion detection zones, and conduit access via the optional SBO-147BA adapter accessory.
Installation Notes
Operates within a temperature range of -30°C to +55°C (-22°F to 131°F) with start-up required above -30°C under 0 to 95% non-condensing relative humidity using an integrated air vent. Storage tolerances extend from -50°C to +60°C (-58°F to 140°F) within an outdoor vandal-resistant dome form factor rated at IP66 and IK10. Power is delivered via PoE Class 3 to support core features like hallway view rotation and lens distortion correction. Interface options include a micro Type B USB port for installation video output, a 256GB max microSD slot for local edge storage, conduit access via the optional SBO-147BA adapter, and audio/alarm I/O connectivity through the optional SPP-C7400 cable.
| Video | |
| Imaging Device | 1/2.8" CMOS |
| Resolution | 2592x1944, 2560x1440, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 |
| Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 30fps(@5MP Max. 5fps) |
| Min. Illumination | Color: 0.07Lux (F1.6, 1/30sec) BW: 0.007Lux (F1.6, 1/30sec, 30IRE), 0Lux(IR LED on) |
| Video Out | USB: Micro USB Type B, 1280x720 for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 3.2~10.2mm(3.2x) motorized varifocal |
| Max. Aperture Ratio | F1.6(Wide)~F3.1(Tele) |
| Angular Field of View | H: 95°(Wide)~29°(Tele) V: 69°(Wide)~21°(Tele) D: 126°(Wide)~36°(Tele) |
| Min. Object Distance | 1.2m (3.93ft) |
| Focus Control | Simple focus |
| Lens Type | DC auto iris(IR corrected) |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 0°~350° / -35°~70°/ 0°~355° |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNRⅤ, WiseNRⅡ(Based on AI engine) |
| Motion Detection | 8ea, 8point Polygonal zones |
| Privacy Masking | 32ea, 4point quadrangle zones |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1/5~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) |
| Analytics | Classified object type: Person/Vehicle Attributes: Vehicle(Type:car/bus/truck/motorcycle/bicycle) Support DetectionShot Analytics events based on AI engine - Motion detection*, Object detection, Virtual line*(Crossing/Direction), Virtualarea*(Loitering/Intrusion/Enter/Exit) Analytics events - Defocus detection, Tampering, Virtual area(Appear/Disappear) * Some of the video analytics only works with people and vehicle detection |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | When alarm trigger occurred - File upload(image) : e-mail/FTP - Notification : e-mail - Recording : SD/SDHC/SDXC or NAS recording at event triggers- Alarm output - Handover(PTZ preset, Send message by HTTP/HTTPS/TCP) - Audio clip playback |
| Audio In | Selectable(mic in/line in) * Audio In is supported through an optional cable(SPP-C7400) |
| Audio Out | Line out, Max.output level: 0.5Vrms * Audio Out is supported through an optional cable(SPP-C7400) |
| IR Viewable Length | 30m(98.42ft) |
| IR Wavelength | long-life 850 nm IR LED |
| Network | |
| Ethernet | RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/High, MJPEG |
| Audio Compression | G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz |
| Smart Codec | Manual(5ea area), WiseStreamⅡ → ( will be supported as R/C in July) Manual(5ea area), WiseStreamⅢ(Based on AI engine) |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(20 users) / Multicast Multiple streaming(Up to 5 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast) |
| Application Programming Interface | ONVIF Profile S/G/T/M SUNAPI(HTTP API) |
| Security | |
| OS / Firmware Protect | Secure boot, Signed firmware, Firmware encryption |
| User authentication | Digest Authentication, Prevent brute-force attack |
| Network authentication | 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2) |
| Secure Communication | HTTPS, SRTP, WSS(Websocket secure) |
| Access Control | Access control based on IP address |
| Data Protect | Authentication information encryption, ZIP compression encryption |
| Audit | User Access/System/Event log management |
| Device ID | Device Certificate(Hanwha Private Root CA) |
| Secure Storage | SDcard partition encrypt |
