Hanwha - QNV-C9011R - Mini Network Outdoor Vandal Dome Wisenet Q Camera, 3mm Fixed Lens

Product Overview

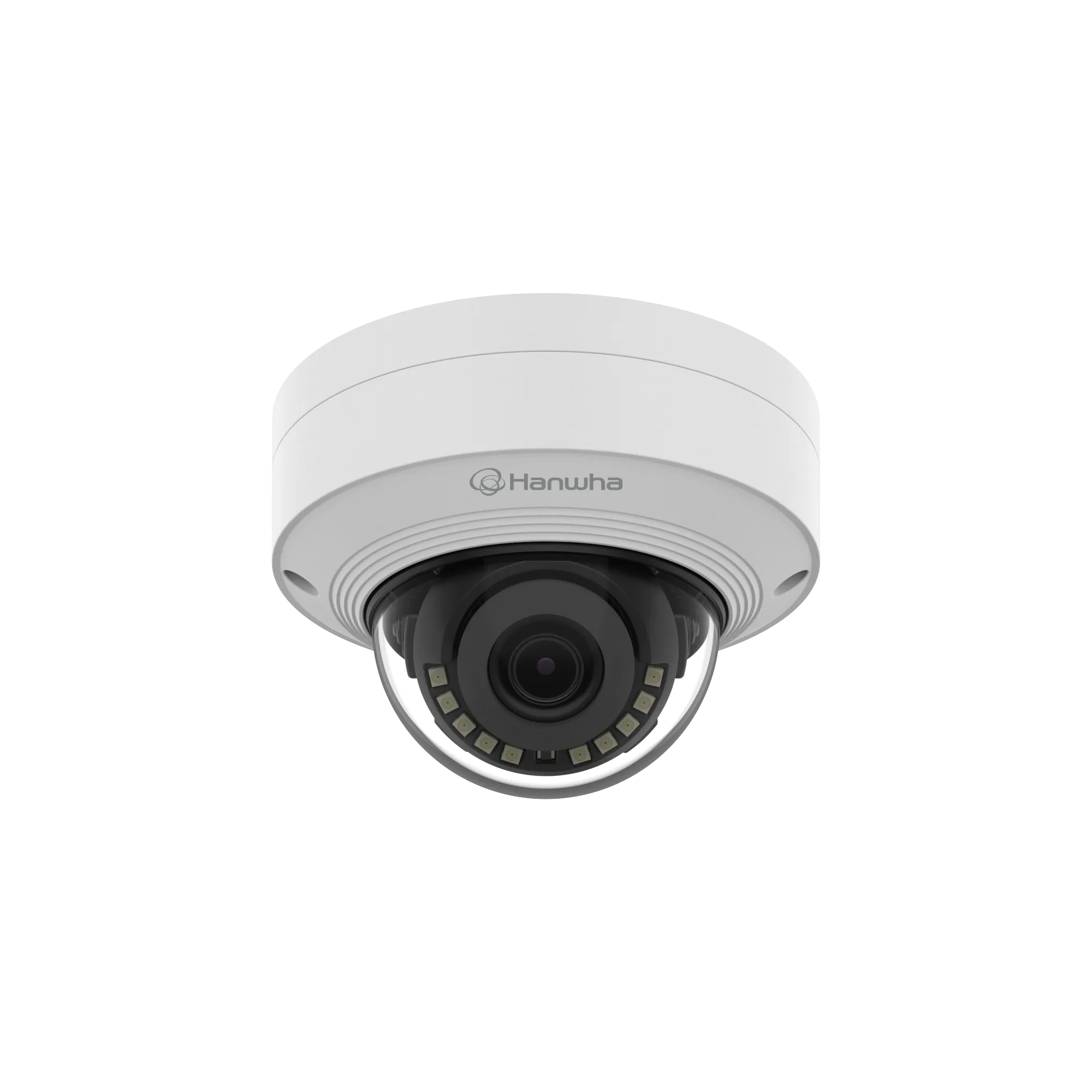

The Hanwha QNV-C9011R is a Wisenet Q mini outdoor vandal dome camera featuring a 1/2.8" CMOS sensor that delivers 4K (3840×2160) resolution at up to 30 fps. Equipped with a 3.0mm fixed lens providing a 108° horizontal FOV, the camera supports Lens Distortion Correction (LDC) and hallway view optimization.

Key Configuration

• • Imaging device: 1/2.8" CMOS; resolution: 3840×2160 (4K) at up to 30 fps (H.265/H.264)
• • Lens: 3.0mm fixed focal, F1.6, M12 mount; horizontal FOV: 108°, vertical: 59°, diagonal: 127°
• • IR viewable length: 20m (65 ft), 850nm LED; minimum illumination: color 0.03 lux, B/W 0.003 lux, 0 lux with IR
• • Video compression: H.265/H.264 (Main/High), MJPEG; WiseStreamⅢ (AI-based)
• • Power: PoE (IEEE 802.3af, Class 3) or 12V DC

Key Features

This ONVIF S/G/T/M camera features 3-axis adjustment, a micro USB installation port, 120dB WDR, WiseNRⅡ AI noise reduction, digital PTZ, LDC, and hallway view. Its edge AI engine provides object classification (person/vehicle) and rule-based alerts (loitering, intrusion, line crossing), alongside standard defocus and tampering detection. Cyber security includes secure boot, encrypted firmware, 802.1X, HTTPS, SRTP, and a Hanwha Root CA certificate, supported by an encrypted 256GB microSD slot.

Technical Context

Featuring an IP66 and IK10 rating, this fixed-focus camera offers a 0.5m minimum object distance and an electronic shutter range of 1/5 to 1/12,000 sec with anti-flicker. It supports 32 quadrilateral privacy masking zones and 8 polygonal motion detection zones. Operating over standard network protocols, including SRTP and SNMP, the unit provides multi-streaming up to 5 profiles, accommodating multicast and up to 20 unicast users.

Installation Notes

The camera carries IP66 weather-resistant and IK10 vandal-resistant ratings. It operates across a -40°C to 55°C temperature range, utilizing either PoE Class 3 or 12V DC power, and includes a micro USB Type B port for installation video output.
