Hanwha - QRN-1630S-10TB - 16-channel Network Video Record with 16 built-in PoE ports, 130W budget, 10TB

Product Overview

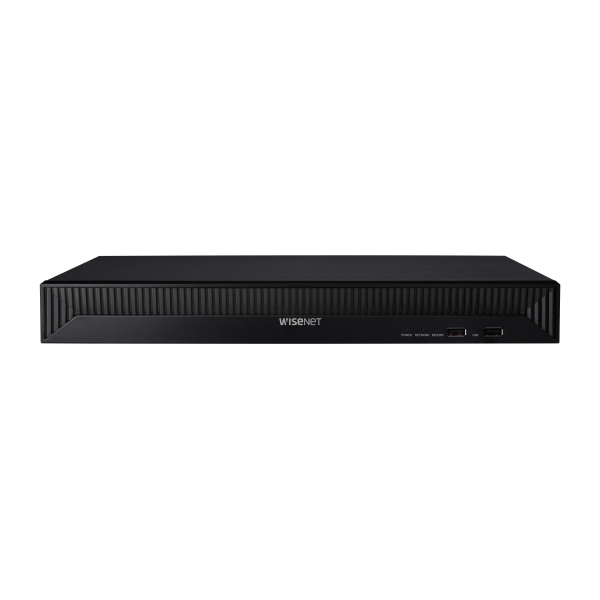

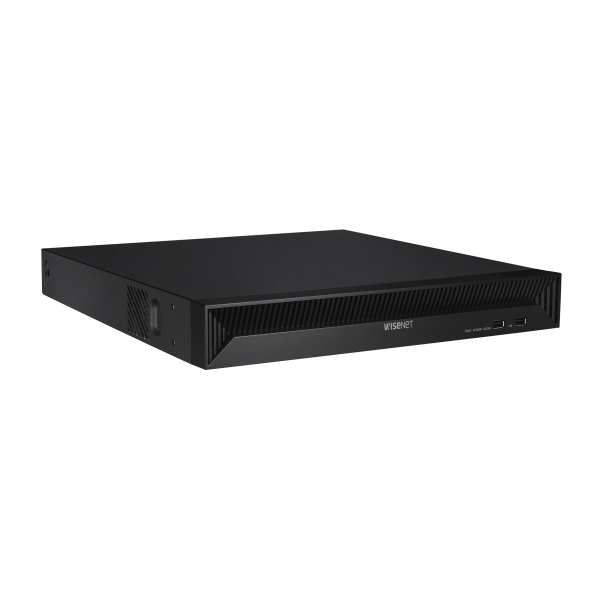

The QRN-1630S-10TB is a 16-channel NVR with 16 built-in PoE ports, 130W budget, and 10TB of pre-installed storage, expandable to 20TB via two internal bays. Supporting up to 8MP recording at 128 Mbps bandwidth, it utilizes H.265/H.264/MJPEG compression and dual-stream recording. Connectivity features include dual HDMI outputs (4K and 1080p), 4/2 alarm I/O, an RCA audio output, and ARB redundancy for edge data retrieval.

Key Configuration

• • Channels: up to 16 IP camera inputs; PoE ports: 16 × RJ45, 130W total PoE budget; plug & play
• • Storage: 10TB pre-installed; HDD bays: 2 × fixed internal SATA, up to 10TB per HDD (max 20TB total)
• • Recording bandwidth: 128 Mbps; playback bandwidth: 32 Mbps
• • Video outputs: 2 × HDMI (HDMI1: 4K/3840×2160 @30Hz, HDMI2: 1920×1080 @60Hz)
• • Alarm: 4 inputs, 2 outputs; audio: 1 RCA output (2-way audio via network)

Key Features

Local decoding supports 8MP (60 fps), 1080p (240 fps), and D1 (960 fps) across 40 simultaneous playback channels (16-channel local), with CMS fisheye dewarping and ARB edge retrieval. Flexible dual-stream, scheduled, and event recording modes trigger via alarms, video loss, or camera analytics to drive automated emails, push alerts, PTZ presets, and SUNAPI commands. Network-ready features include QR-code P2P setup for Wisenet Mobile/Viewer, ONVIF Profile-S compliance, and full NDAA/FCC certification.

Technical Context

Running on an embedded Linux OS, this NVR features a 16-channel network audio input supporting G.711, G.726, and AAC compression alongside two-way voice communication. It handles standard enterprise networking protocols, ONVIF Profile-S, and SUNAPI. Cyber security is maintained via IP filtering, user access logs, 802.1X authentication, device certificates (Hanwha Techwin Root CA), and signed firmware. Cross-platform management is supported through plugin-free web viewing on Windows 10 and macOS 11 using Chrome, Edge, or Safari. The unit is fully NDAA and FCC compliant.

Installation Notes

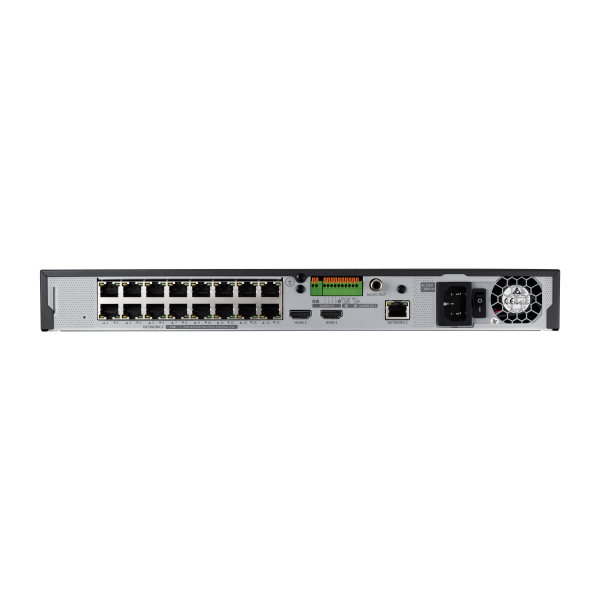

This 16-channel NVR features 16 integrated PoE ports delivering network and power to IP cameras within a 130W total budget, supported by 2 fixed, non-hot-swappable internal SATA bays and ARB (Automatic Recovery Backup) for edge data retrieval. Local monitoring is driven by dual HDMI outputs supporting simultaneous 4K and 1080p displays, while system integration is streamlined via P2P QR-code mobile provisioning and hardware alarm inputs/outputs for external sensor connectivity.
