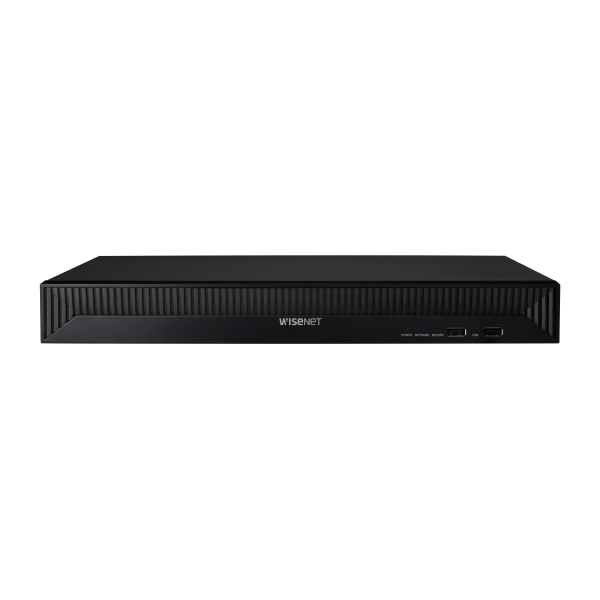

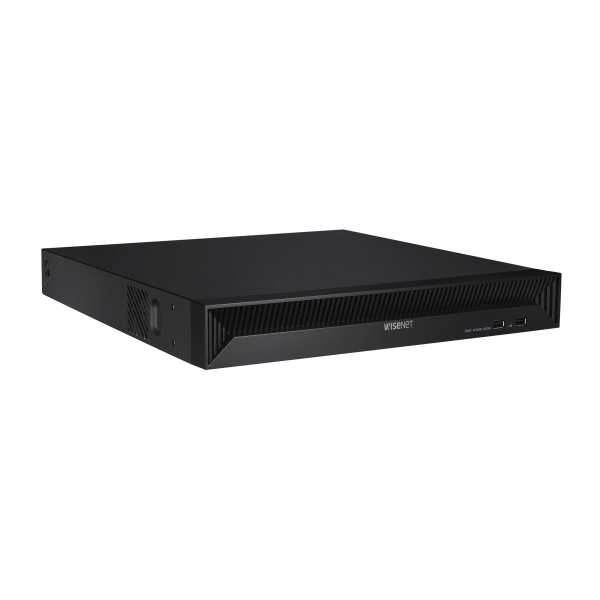

Hanwha - QRN-1630S-20TB - 16 Channel Network Video Record, 20TB with 16 PoE Ports

Product Overview

The Hanwha QRN-1630S-20TB is a 16-channel network video recorder with 20TB pre-installed storage (2 × 10TB HDDs). It includes 16 built-in PoE ports with a 130W total budget, supports up to 8MP IP cameras, and uses H.265/H.264/MJPEG compression with 128 Mbps recording bandwidth.

Key Configuration

• • Channels: up to 16 IP camera inputs; PoE ports: 16 × RJ45, 130W total PoE budget
• • HDD bays: 2 × fixed internal SATA, up to 10TB per HDD (max 20TB total); 20TB pre-installed (2 × 10TB)
• • Recording bandwidth: 128 Mbps; playback bandwidth: 32 Mbps
• • Video outputs: 2 × HDMI (HDMI1: 4K/3840×2160 @30Hz, HDMI2: 1920×1080 @60Hz)

Key Features

Supports high-speed decoding up to 8MP at 60 fps with multi-resolution playback up to D1 at 960 fps. It allows up to 40-channel simultaneous playback and flexible recording modes, including normal, event, dual stream, and scheduled recording with pre/post-event buffering. It includes advanced event handling such as motion, video loss, analytics, audio detection, and user events, with actions like email alerts, PTZ control, alarm output, and FTP backup. Additional features include 16-channel audio support, fisheye dewarping, ARB backup recovery, ONVIF Profile-S compatibility, and P2P mobile access via QR code.

Technical Context

Runs on embedded Linux with support for IPv4/IPv6, RTSP, HTTPS, ONVIF Profile-S, SUNAPI, SNMP, and other standard networking protocols. Security features include IP filtering, 802.1X authentication, encrypted communication, user access logs, device certificates, and signed firmware for system integrity. Web viewing is supported on Windows 10 and macOS 11 using Chrome, Edge, and Safari browsers.

Installation Notes

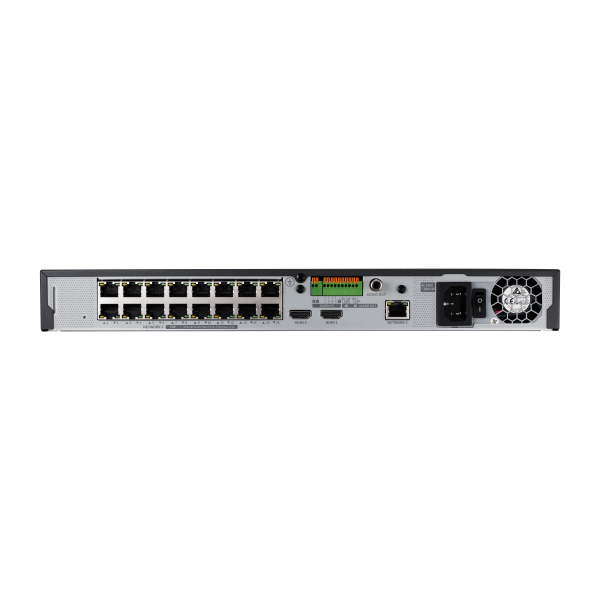

16 PoE ports provide power and network connectivity to IP cameras with a 130W total budget. Storage includes 2 fixed SATA HDD bays supporting up to 10TB per drive, with 20TB pre-installed. It supports dual HDMI outputs (4K and 1080p) for local monitoring, ARB for edge recording recovery, alarm I/O for external sensors, and P2P QR code setup for mobile access.
