Hanwha - QRN-1630S-4TB - 16 Channel Network Video Record, 4TB with 16 PoE Ports

Product Overview

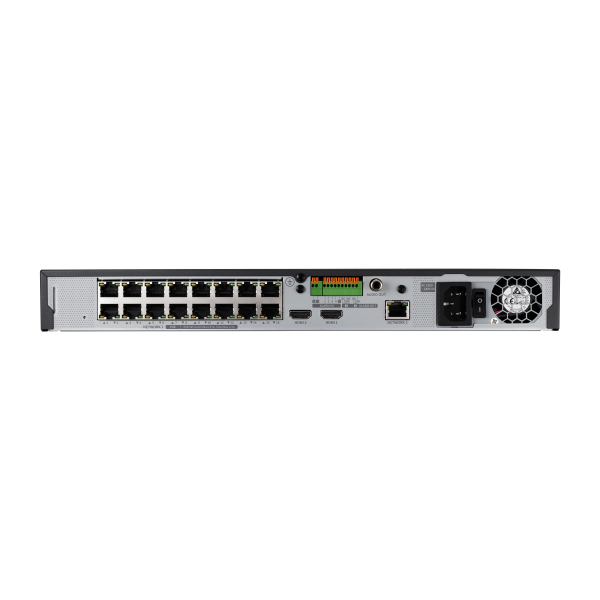

The Hanwha QRN-1630S-4TB is a 16-channel NVR featuring 16 integrated PoE ports (130W budget) and 4TB of pre-installed storage, expandable up to 20TB via two SATA bays. It supports up to 8MP recording resolution at 128 Mbps total bandwidth using H.265, H.264, or MJPEG compression, and features dual-stream recording alongside Automatic Recovery Backup (ARB) for edge-storage retrieval. Physical hardware includes dual HDMI outputs (HDMI1 at 4K/30Hz, HDMI2 at 1080p/60Hz), 4 alarm inputs, 2 alarm outputs, and an RCA audio output.

Key Configuration

• • Channels: up to 16 IP camera inputs; PoE ports: 16 × RJ45 (10/100 Mbps), 130W total PoE budget; plug & play
• • Storage: 4TB pre-installed; HDD bays: 2 × fixed internal SATA, up to 10TB per HDD (max 20TB total)
• • Recording bandwidth: 128 Mbps; playback bandwidth: 32 Mbps
• • Video outputs: 2 × HDMI (HDMI1: 4K/3840×2160 @30Hz, HDMI2: 1920×1080 @60Hz)
• • Dimensions: 370.0 × 50.7 × 320 mm (14.6" × 2.0" × 12.6"); weight: 2.87 kg (6.33 lb)

Key Features

Decoding up to 8MP @ 60 fps (or 1080p @ 240 fps), this ONVIF Profile-S NVR supports normal, scheduled, and dual-stream recording with 16-channel local and 8-channel remote simultaneous playback. It features ARB edge recovery, CMS fisheye dewarping, and P2P QR-code pairing for Wisenet apps. The unit provides 4 alarm inputs, 2 outputs, and an RCA output supporting two-way communication and 16-channel network audio (G.711/G.726/AAC). System actions like emails, push notifications, and PTZ presets are triggered by physical I/O, video loss, or camera analytics.

Technical Context

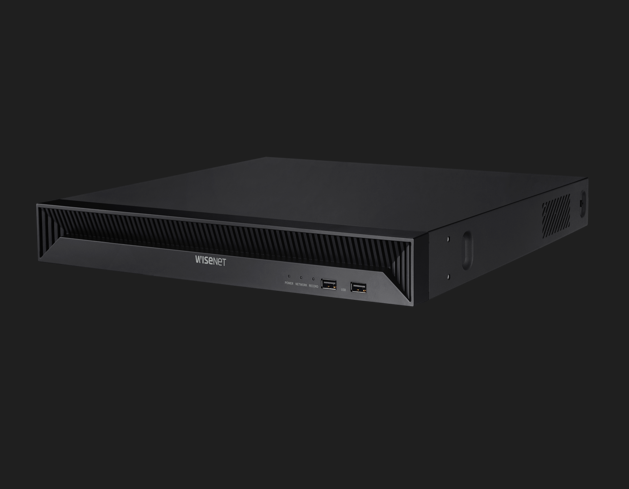

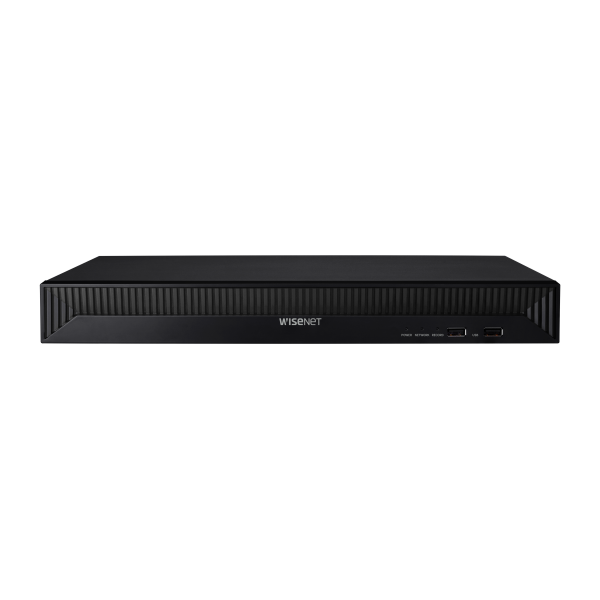

Running on embedded Linux, this system features one 1Gbps LAN/WAN port and 16 PoE ports 10/100 Mbps alongside two front-panel USB 2.0 ports. It operates over standard network protocols, including ONVIF Profile-S and SUNAPI, and incorporates advanced security measures such as IP filtering, 802.1x authentication, user logs, encryption, signed firmware, and Hanwha Techwin Root CA device certificates. Web viewing is supported via Chrome, Edge, and Safari on Windows 10 and macOS 11.

Installation Notes

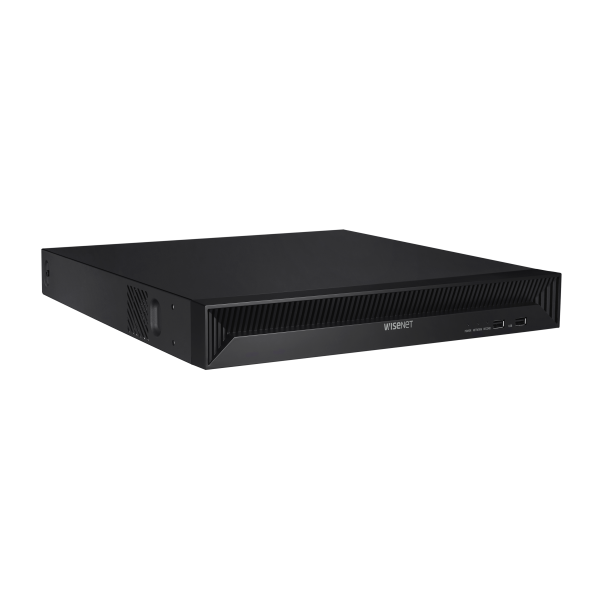

Housed in a black metal chassis, this unit measures 370.0 × 50.7 × 320 mm and weighs 2.87 kg. It features 16 integrated PoE ports (130W budget) to power IP cameras, two fixed internal SATA HDD bays, and dual HDMI outputs for local 4K and 1080p monitoring. Core features include ARB edge recording retrieval, P2P QR-code mobile pairing, and alarm I/O for external sensors. The system runs on a 100–240 VAC power input with a maximum consumption of 200W, operating reliably between 0°C and 40°C under 20–85% RH.
