Hanwha - QRN-1630S - 16 Channel Network Video Record with 16 PoE Ports, 2 Fixed Internal SATA HDDs, 2 HDMI Outputs
Product Overview
The Hanwha QRN-1630S is a 16-channel NVR with 16 built-in PoE ports and a 130W total PoE budget, supporting up to 8MP IP cameras with H.265/H.264/MJPEG compression and 128 Mbps recording bandwidth. It includes two internal SATA HDD bays supporting up to 20TB total storage (10TB per drive) and dual HDMI outputs (4K@30Hz and 1080p@60Hz). The system also supports ARB (Automatic Recovery Backup), 4 alarm inputs, 2 alarm outputs, RCA audio output, and P2P QR setup for Wisenet Mobile and Wisenet Viewer, with NDAA and FCC compliance.
Key Configuration
- • Channels: up to 16 IP camera inputs; PoE ports: 16 × RJ45, 130W total PoE budget
- • HDD bays: 2 × fixed internal SATA, up to 10TB per HDD (max 20TB total)
- • Recording bandwidth: 128 Mbps; playback bandwidth: 32 Mbps
- • Video outputs: 2 × HDMI (HDMI1: 4K/3840×2160 @30Hz, HDMI2: 1920×1080 @60Hz)
- • Dimensions and weight: not specified
Key Features
Supports high-performance decoding up to 8MP at 60 fps, with playback up to 40 channels simultaneously (16CH local, 8CH remote per user). Recording modes include continuous, event-based, dual stream, schedule, and bookmark. Event handling covers motion, analytics, audio, video loss, and user triggers with actions such as email alerts, PTZ control, alarm outputs, FTP backup, and system shutdown. It also includes fisheye dewarping, 16-channel network audio with two-way communication, ONVIF Profile-S support, ARB for edge recovery, and P2P QR mobile access via Wisenet apps.
Technical Context
Runs on embedded Linux with support for IPv4/IPv6, RTSP, HTTPS, SNMP, ONVIF Profile-S, SUNAPI, and other standard network protocols. Security features include IP filtering, 802.1X authentication, encryption, access logs, device certificates, and signed firmware for secure operation. Web access is supported on Windows 10 and macOS 11 using Chrome, Edge, or Safari. Operating temperature and power input are not specified, while the system provides a 130W PoE budget for connected devices.
Installation Notes

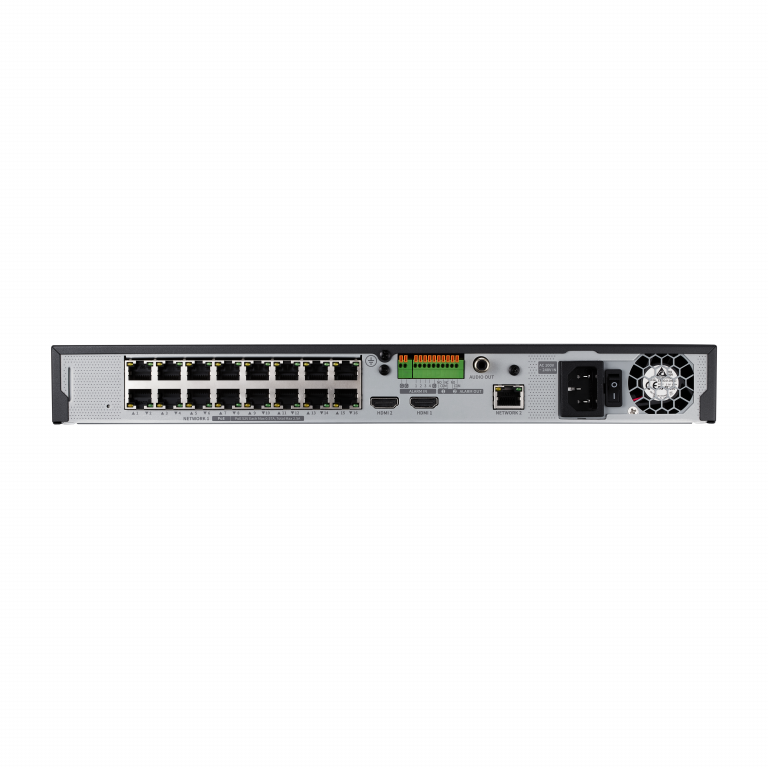

16 PoE ports supply power and network connectivity to IP cameras with a 130W total budget. Storage is provided via 2 fixed internal SATA HDD bays supporting up to 10TB per drive. Includes dual HDMI outputs for local monitoring (4K and 1080p), P2P QR mobile setup, ARB for edge recording recovery, and alarm I/O for external sensors, with no VGA output.
| Display | |
|---|---|
| Network Camera Inputs | Max. 16CH |
| Network Camera Resolution | 8MP ~ CIF |
| Network Camera Protocols | SUNAPI, ONVIF |
| Local Display | HDMI1: 3840x2160 (30Hz), HDMI2: 1920x1080 (60Hz) |
| Multi-Screen Display | Clone Mode: Dynamic layout Expand Mode: HDMI1 Dynamic layout, HDMI2 up to 16 Div. [Web] 1/ 2H/ 2V/ 3V/ 4/ 6/ 8/ 9 |
| Resolution (Local Monitor) | 8MP (60fps), 1080p (240fps), 720P (480fps), D1 (960fps) |
| Performance | |
| Operating System | Embedded Linux |
| Compression | H.265, H.264, MJPEG |
| Recording Bandwidth | Max. 128Mbps |
| Recording Resolution | 8MP ~ CIF |
| Recording Mode | Normal, Dual Stream, Schedule (Continuous/Event), Event (Pre/Post), Bookmark |
| Event Trigger | Alarm Input, Video Loss, Camera Event (Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event, User Event |
| Event Action | e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out, FTP, SUNAPI Command, Shutdown |
| Search & Play | |
| Playback Bandwidth | Max. 32Mbps |
| Max. Users | Max. 4 Users (Local 1, Remote 3) |
| Simultaneous Playback | Max. 40CH (Local 16CH, Remote 8CH per user) |
| Fisheye Dewarping | CMS |
| Search Mode | Date & Time (Calendar), Event list, Text Search, Smart Search |
| Playback Resolution | CIF ~ 8MP |
| Playback Control | Fast/Slow Forward / Backward, Move one step Up / Down |
| Storage | |
| Supported HDD Capacity | Up to 10TB per HDD |
| HDD Slots | SATA 2ea (Max. 20TB) |
| Backup File Format | BU/Exe/AVI (GUI), JPG/AVI (Network) |
| Backup Function | Multi-channel (Up to 8CH) Play, Date-Time/Title display |
| Network | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI (Server, Client) |
| DDNS | Hanwha DDNS |
| Transmission Bandwidth | Max. 128Mbps |
| Audio | |
| Input / Output | 16CH (network) |
| Compression | G.711, G.726, AAC (16/48KHz) |
| Audio Communication | 2-Way |
| Max. Remote Users | Search (3), Live Unicast (10), Multicast (20) |
| Security | |
| Security Features | IP address filtering, User access Log, 802.1x, Encryption Device certificate (Hanwha Techwin Root CA), Signed firmware |
| Web Viewer | |
| Supported OS | Windows 10, macOS 11 |
| Supported Browser | Google Chrome, Microsoft Edge, and Mac Safari |
