Hanwha - QRN-830S - 8 Channel Network Video Record with 8 PoE Ports

Product Overview

Hanwha QRN-830S 8-channel NVR features 8 built-in PoE/PoE+ ports with a 65W total budget and supports up to 8MP recording resolutions. Delivering 80 Mbps recording and 32 Mbps playback bandwidth, it utilizes H.265, H.264, and MJPEG compression alongside dual-stream recording options. Hardware deployment offers 1 fixed internal SATA HDD bay up to 6TB and a local 4K HDMI monitor output. Operational features include Automatic Recovery Backup for edge retrieval, P2P QR-code integration for Wisenet Mobile and Wisenet Viewer, and full NDAA and FCC compliance.

Key Configuration

• • Channels: up to 8 IP camera inputs; PoE ports: 8 × RJ45 (10/100 Mbps), 65W total PoE budget
• • HDD: 1 × fixed internal SATA bay, up to 6TB (HDD not included)
• • Recording bandwidth: 80 Mbps; playback bandwidth: 32 Mbps
• • Video output: HDMI (4K/3840×2160 @30Hz); display modes: dynamic layout (local), web (1/2H/2V/3V/4/6/8/9)
• • Dimensions: 300 × 47.6 × 238.9 mm (11.8" × 1.9" × 9.4"); weight: 1.32 kg (2.91 lb)

Key Features

Delivers local decoding performance up to 8MP at 60 fps or 1080p at 240 fps, supporting normal, dual stream, scheduled, event, and bookmark recording modes. Synchronous playback handles up to 32 channels with multi-mode calendar, event, text, and smart search capabilities. Connectivity interfaces include 1 Gigabit LAN/WAN port, 8 fast Ethernet PoE ports, 2 front USB 2.0 ports, and 8 network audio inputs supporting two-way G.711, G.726, or AAC communication. Comprehensive event tracking triggers actions like email, push notifications, PTZ presets, and SUNAPI commands from analytics, alarm, or video loss events. Advanced utilities incorporate client-side fisheye dewarping, 300 PTZ presets, Automatic Recovery Backup data synchronization, and P2P QR-code mobile pairing.

Technical Context

Runs on an embedded Linux operating system across network protocols like HTTPS, SNMP, and ONVIF Profile-S, while supporting client access on Windows 10 or macOS 11 via Chrome, Edge, or Safari browsers. Cybersecurity measures protect operations through IP address filtering, user access logs, 802.1x authentication, data encryption, signed firmware, and Hanwha Techwin Root CA device certificates. Hardware construction features a black metal chassis powered by a 54VDC, 1.55A input that draws a maximum power consumption of 84W with the integrated 65W PoE budget fully loaded.

Installation Notes

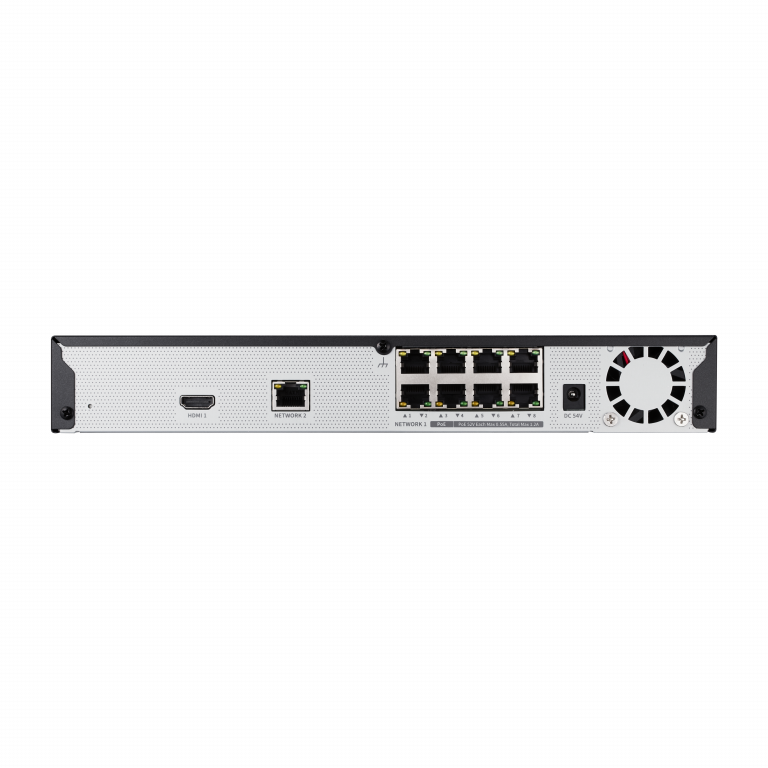

Measures 300 × 47.6 × 238.9 mm (11.8" × 1.9" × 9.4") and weighs 1.32 kg (2.91 lb), featuring a compact form factor designed for stable desktop or shelf installation. Environmental operation spans 0°C to 40°C (32°F to 104°F) under a 20 to 85% relative humidity range. System infrastructure provides 8 built-in PoE/PoE+ ports backed by a 65W total power budget alongside 1 fixed, internal SATA HDD bay supporting up to 6TB storage capacities. Rear panel connectivity offers a dedicated HDMI output for crisp local 4K monitoring setups. Operational highlights encompass Automatic Recovery Backup for automated edge recording retrieval, quick P2P QR-code mobile app pairing, and strict compliance with NDAA and FCC safety regulations.
