Hanwha - SHD-1601FPW - Plenum In-Ceiling Mount Compatible with XNF-A9014RV, XNF-A9014R, XNF-A8014RV, XNF-A8014R
Part number:
Price:
Product Overview

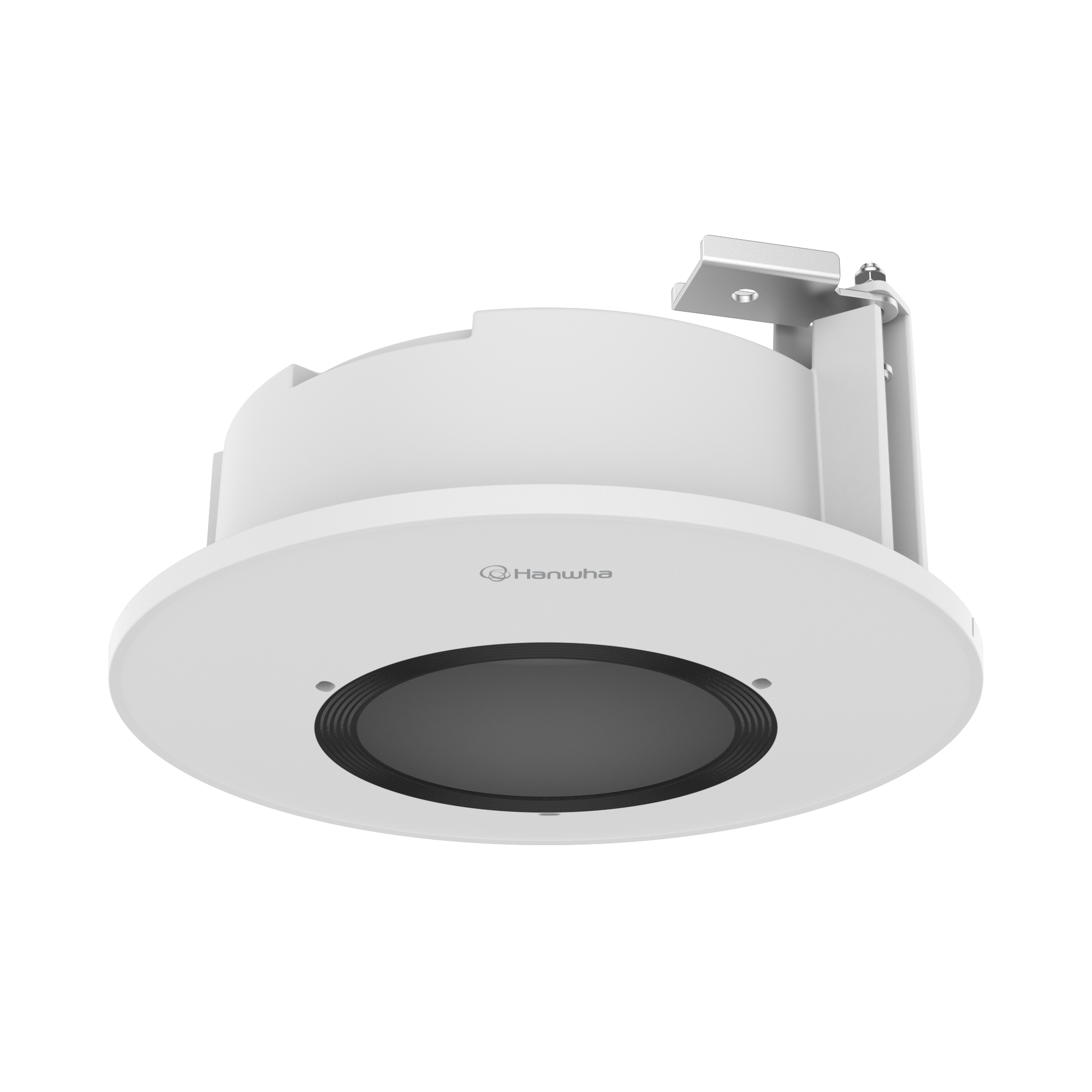

The Hanwha SHD-1601FPW is a plenum-rated in-ceiling mount compatible with XNF-A9014RV, XNF-A9014R, XNF-A8014RV, and XNF-A8014R camera models. This mount features a white finish (RAL9003), construction from polycarbonate and aluminum.
Key Configuration
- • Mount screw size: TR20
- • Tile thickness range: 5 ~ 70 mm
- • Maximum load: 3.5 kg
- • Conduit holes: 19.1 mm (3/4"/M25) and 12.7 mm (1/2"/M20)
- • Dimensions: Ø220 x 99.3 mm (Ø8.66 x 3.91 in.)
- • Weight: 830 g (1.83 lb)
| Mechanical | |
| Color | White |
| Material | PC (Polycarbonate), Aluminum |
| RAL code | RAL9003 |
| Product dimensions/weight | ø220 x 99.3mm (ø8.66 x 3.91") / 830g (1.83lb) |
| Tile thickness | 5~70mm |
| Mount Screw size | TR20 |
| Max. load | 3.5kg |
| Conduit hole | 19.1mm (3/4") (M25), 12.7mm (1/2") (M20) |
| Supported products | |
| Compatible models | XNF-A9014RV, XNF-A9014R, XNF-A8014RV, XNF-A8014R |
Name
Description
Size
Downloads
File
Manual
3.3mb
File
Datasheet
0.3mb
