Hanwha - SHD-1601FW - In-Ceiling Mount Compatible with XNF-A9014RV, XNF-A9014R, XNF-A8014RV, XNF-A8014R
Part number:
Price:
Product Overview

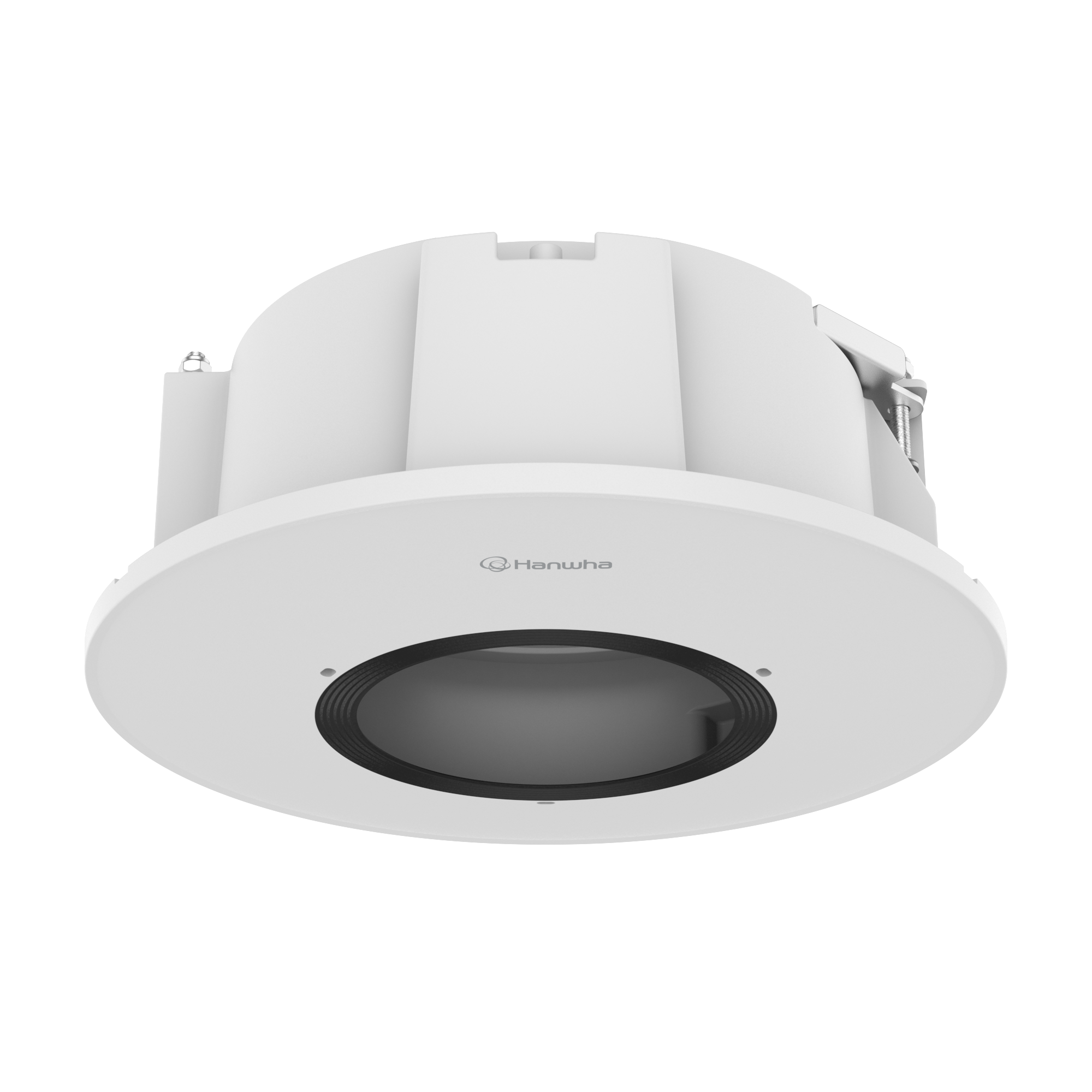

The Hanwha SHD-1601FW is an in-ceiling mount compatible with XNF-A9014RV, XNF-A9014R, XNF-A8014RV, and XNF-A8014R camera models. This mount features a white finish and polycarbonate construction.
Key Configuration
- • Dimensions: Ø232 x 94.4 mm (Ø9.13 x 3.72 in.)
- • Weight: 580 g (1.28 lb)
- • Tile thickness range: 5 ~ 70 mm
- • Maximum load: 3.5 kg
- • Mount screw size: TR20
- • Conduit holes: 19.1 mm (3/4"/M25) and 12.7 mm (1/2"/M20)
- • Material: Polycarbonate (PC)
- • Color: White (RAL9003)
| Mechanical | |
| Color | White |
| Material | PC (Polycarbonate) |
| RAL code | RAL9003 |
| Product dimensions / weight | ø232 x 94.4mm (ø9.13 x 3.72") / 580g (1.28lb) |
| Tile thickness | 5~70mm |
| Mount Screw size | TR20 |
| Max. load | 3.5kg |
| Conduit hole | 19.1mm (3/4") (M25), 12.7mm (1/2") (M20) |
| Supported products | |
| Compatible models | XNF-A9014RV, XNF-A9014R, XNF-A8014RV, XNF-A8014R |
Name
Description
Size
Downloads
File
Manual
3.1mb
File
Datasheet
0.3mb
