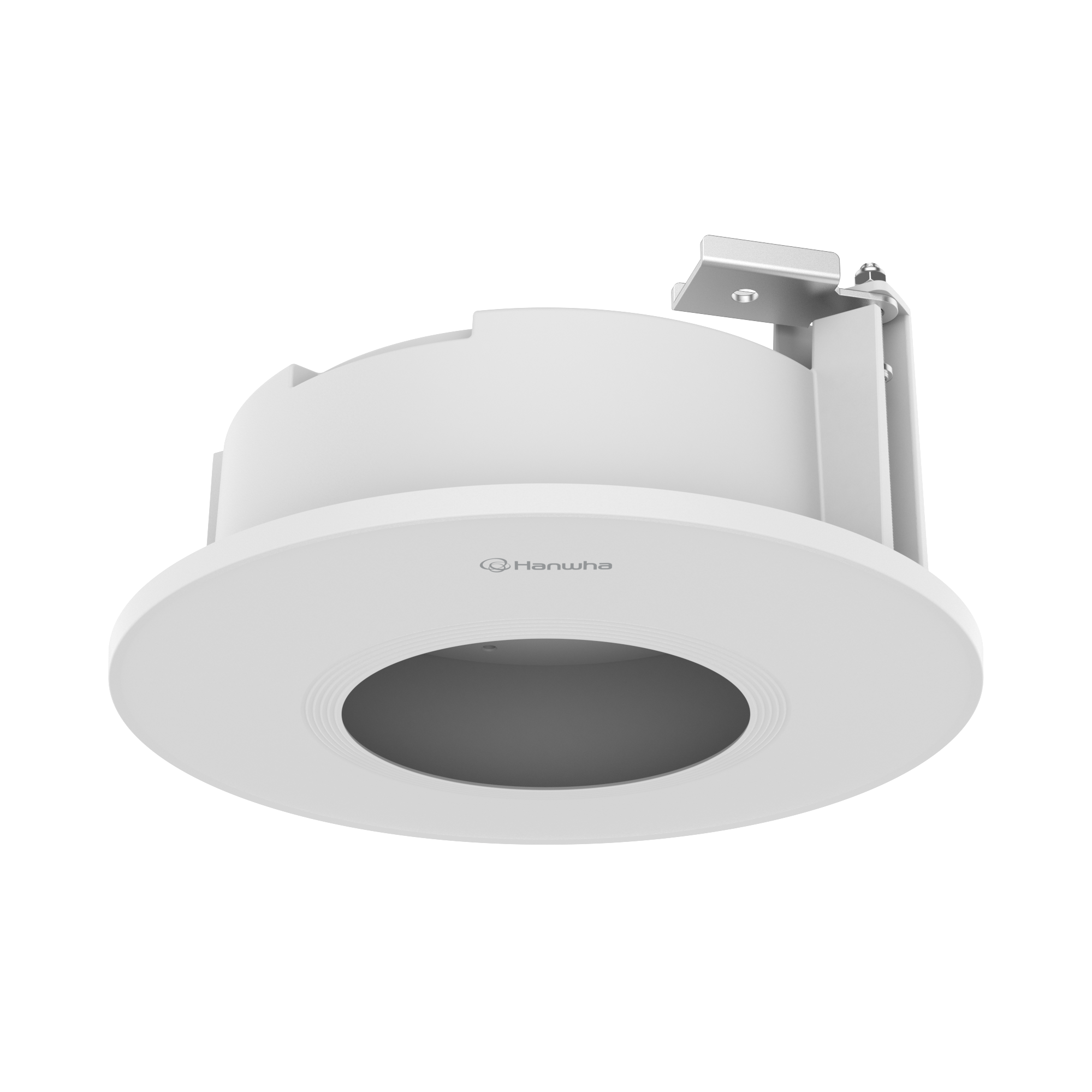

Hanwha - SHD-1602FPW - Plenum In-Ceiling Mount Compatible with XND-C6083RV, XND-C7083RV, XND-C8083RV, XND-A6084RV, XND-A8084RV, XND-A9084RV, XNV-C6083R, XNV-C9083RV, XNV-A6084R, XNV-A8084R, XNV-A9084R
Part number:
Price:
Product Overview
The Hanwha SHD-1602FPW is a plenum-rated in-ceiling mount compatible with multiple Hanwha camera models, including XNV-C6083R, XND-C7083R, XND-C8083R, XND-C9083R, XNV-C6083, XND-C6083RV, XND-C7083RV, XND-C8083RV, XNV-C9083RV, XNV-A6084R, XNV-A8084R, XNV-A9084R, XND-A6084RV, XND-A8084RV, and XND-A9084RV. This mount features a white finish (RAL9003), aluminum construction, and dual conduit holes.
Key Configuration
- • Dimensions: Ø220 x 95.6 mm (Ø8.66 x 3.76 in.)
- • Weight: 740 g (1.63 lb)
- • Material: Aluminum
- • Color: White
- • RAL code: RAL9003
- • Conduit holes: 19.1 mm (3/4"/M25) and 12.7 mm (1/2"/M20)
| Mechanical | |
| Color | White |
| Material | Aluminum |
| RAL code | RAL9003 |
| Product dimensions / weight | ø220 x 95.6mm (ø8.66 x 3.76") / 740g (1.63lb) |
| Adjustment Angle | TBD |
| Tile thickness | TBD |
| Max. load | TBD |
| Conduit hole | 19.1mm (3/4") (M25), 12.7mm (1/2") (M20) |
| Supported products | |
| Compatible models | XNV-C6083R, XND-C7083R, XND-C8083R, XND-C9083R, XNV-C6083, XND-C6083RV, XND-C7083RV, XND-C8083RV, XNV-C9083RV, XNV-A6084R, XNV-A8084R, XNV-A9084R, XND-A6084RV, XND-A8084RV, XND-A9084RV |
Name
Description
Size
Downloads
File
Manual
3.3mb
File
Datasheet
0.3mb
