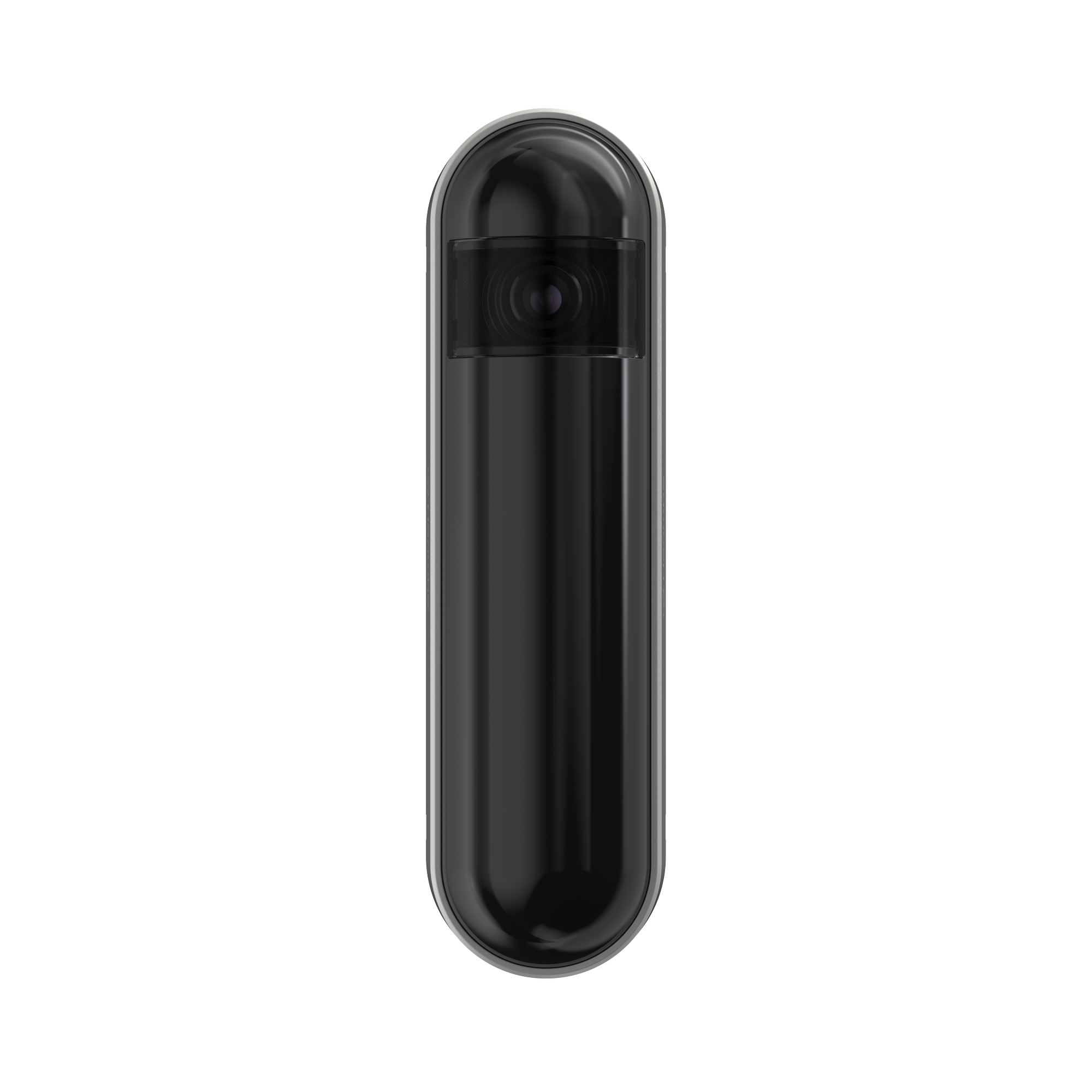

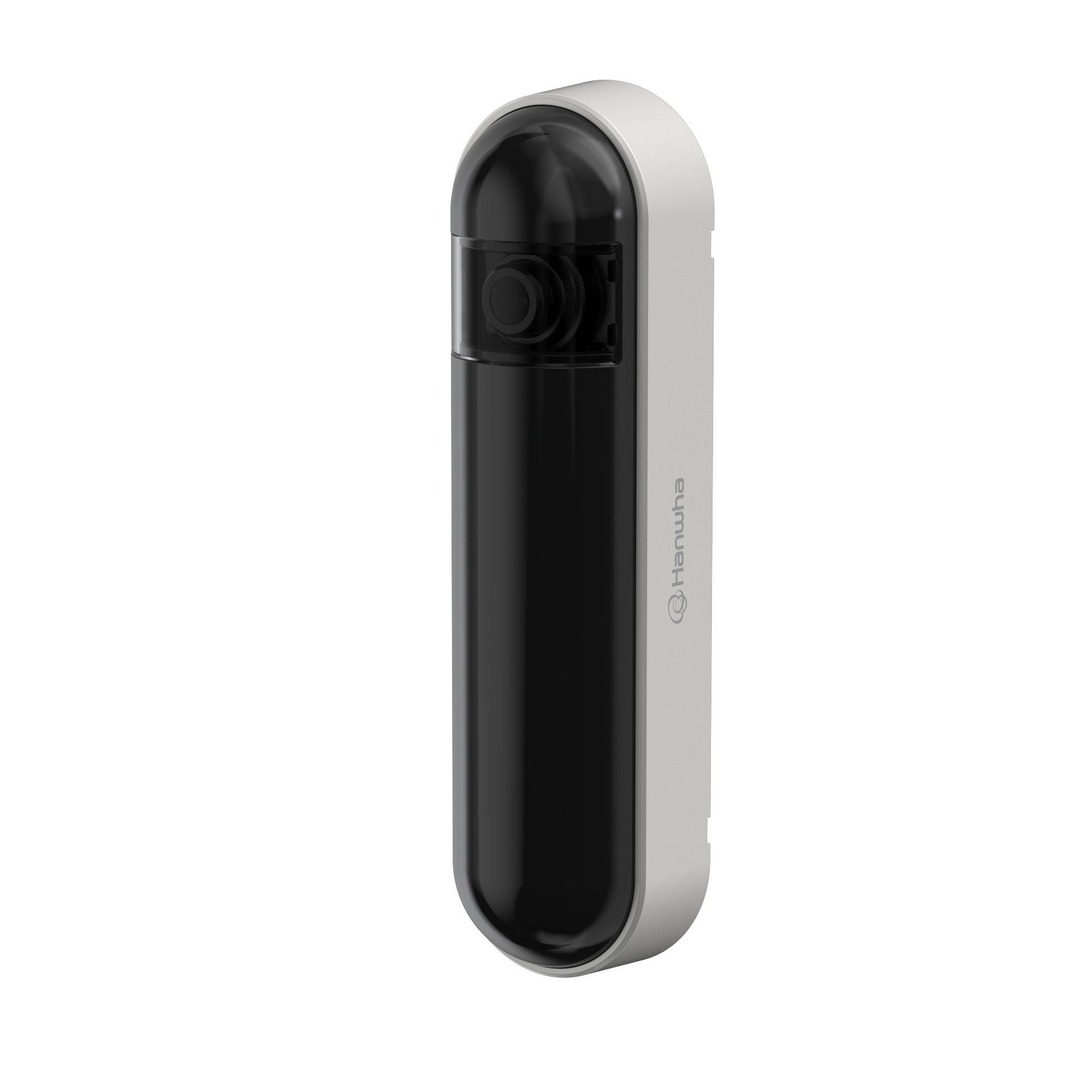

Hanwha - SLA-F2480DSA - 5MP Silver Door Jamb with 2.45mm Lens, compatible with PNM-C20000QB
Product Overview
Hanwha SLA-F2480DSA is a 5MP doorjamb lens module delivering 2560x1440 resolution, compatible with PNM-C20000QB. This discrete lens module features a 2.45mm fixed lens with 123° horizontal field of view, adjustable panning from -30° to 30°, and includes an 8m RJ12 cable for flexible installation.
Key Configuration
• Resolution: 5MP (2560 × 1440)
• Lens: 2.45 mm fixed focal length, F2.0 aperture, H: 123° / V: 91° / D: 159° field of view
• Connection: RJ12 interface
• Cable: 8 m (26.2 ft) included cable
Key Features
Features a 1/2.8" CMOS image sensor with 0.08 Lux minimum illumination and fixed-focus operation. The camera provides flexible ±30° pan adjustment and a discreet design with hidden security screws. It includes the lens and housing in a premium silver plastic finish and operates from -10°C to +55°C with up to 95% non-condensing humidity. Certified to multiple FCC, CE, UKCA, VCCI, RCM, KS, UL, and CSA safety and EMC standards.
Technical Context
The 8 m RJ12 cable allows the lens module to be installed remotely from the main camera unit, enabling discreet monitoring in door frames and other space-constrained locations. A ±30° pan adjustment provides flexibility for fine-tuning the viewing angle after installation.
Installation Notes

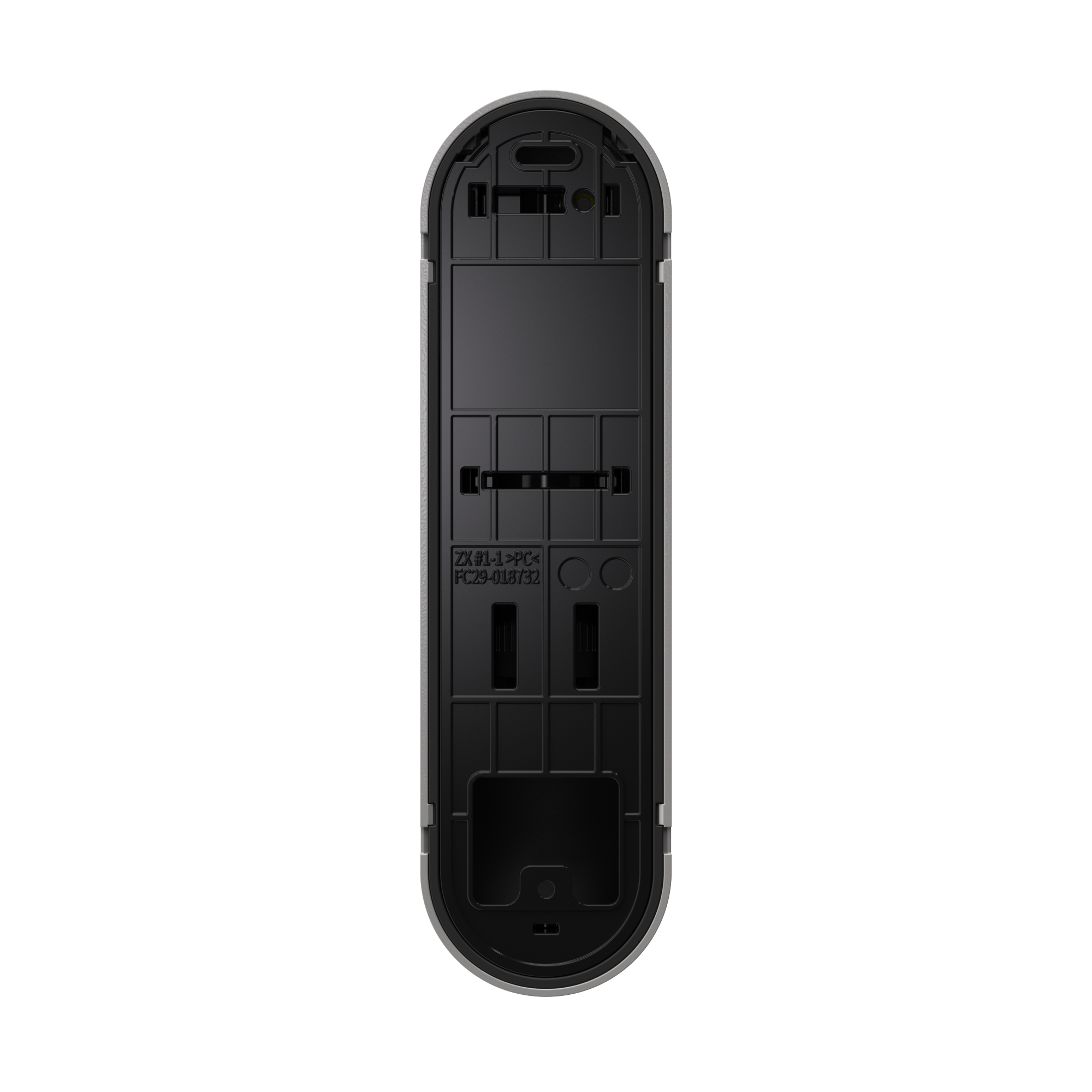

Compact silver plastic lens module measuring 48.29 × 37.0 × 174.01 mm (1.9" × 1.46" × 6.85"), with a module weight of 124.5 g (0.27 lb) and cable weight of 350 g (0.77 lb). It uses an RJ12 connection and features a discreet low-profile design with hidden security screws.
| Video | |
|---|---|
| Imaging Device Size | 1/2.8" |
| Type | CMOS |
| Min. Illumination (Lux) | Color (1/30sec, 30IRE): 0.08 BW (1/30sec, 30IRE): 0.08 |
| Lens | |
| Focal Length (mm) | 2.45 |
| Max. Aperture Ratio (F number) - Wide | 2.0 |
| Max. Aperture Ratio (F number) - Tele | 2.0 |
| Angular Field of View | Horizontal: 123° Vertical: 91° Diagonal: 159° |
| Mount Type | RJ12 connected with the main unit |
| Focus Control | Fixed |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | Pan: Flexible panning ±30° |
| Environmental & Electrical | |
| Operating Condition Temperature | -10°C ~ +55°C (+14°F ~ +131°F) |
| Operating Condition Humidity | 0 ~ 95% RH |
| Storage Condition Temperature | -50°C ~ +60°C (-58°F ~ +140°F) |
| Storage Condition Humidity | Less than 90% RH |
| Mechanical | |
| Color | Silver |
| Material | Plastic |
| Product Dimensions | 48.29(W) x 37.0(H) x 174.01(D) mm (1.9 x 1.46 x 6.85"), Cable: 8m (26.2ft) |
| Product Weight | 124.5g (0.27lb), Cable: 350g (0.77lb) |
| Certification & Standards | |
| EMC | FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS/NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835 |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1 |
| Environment | IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78 |
