Hanwha - SLA-F2480HA - 5MP Height Strip with 2.45mm Lens, compatible with PNM-C20000QB
Product Overview

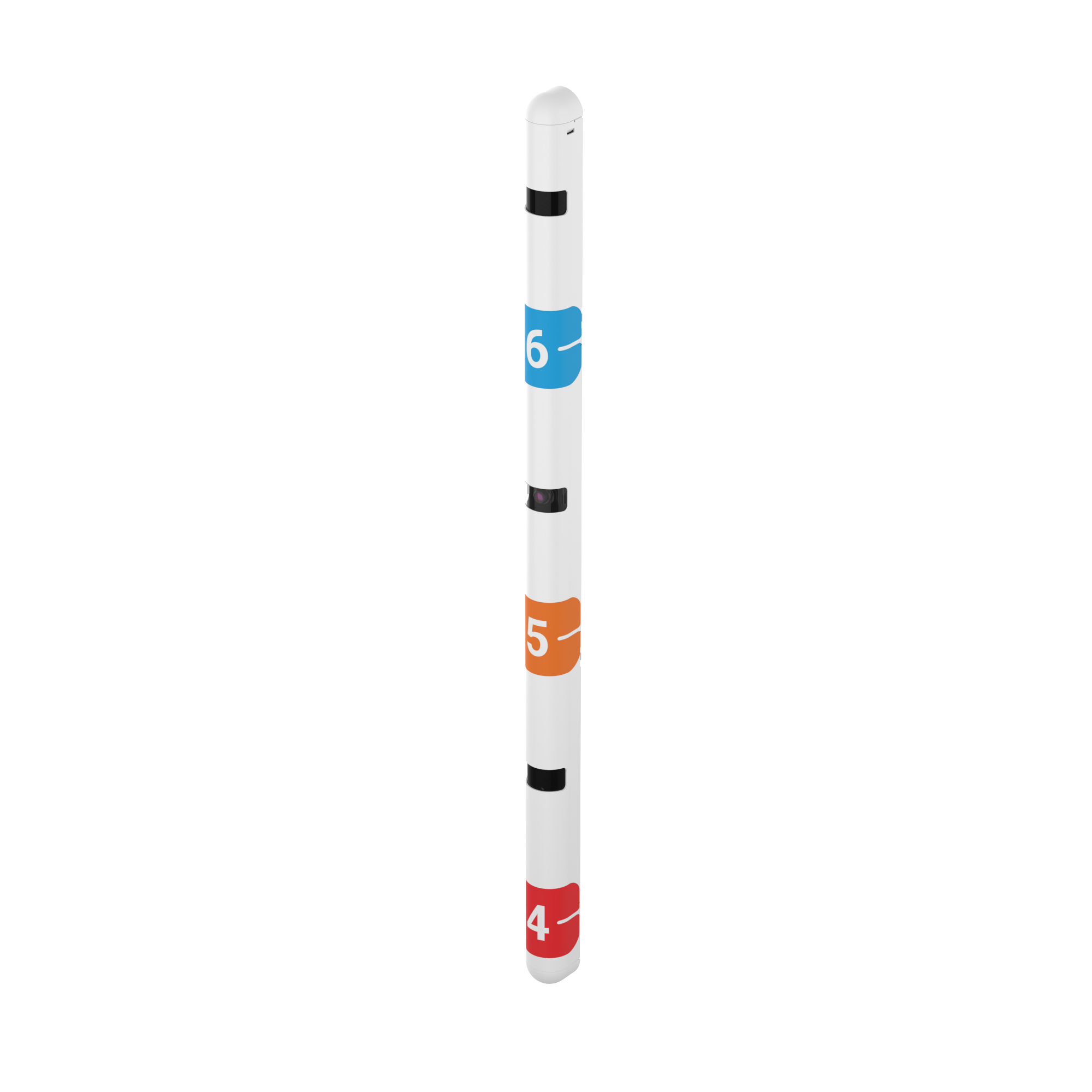

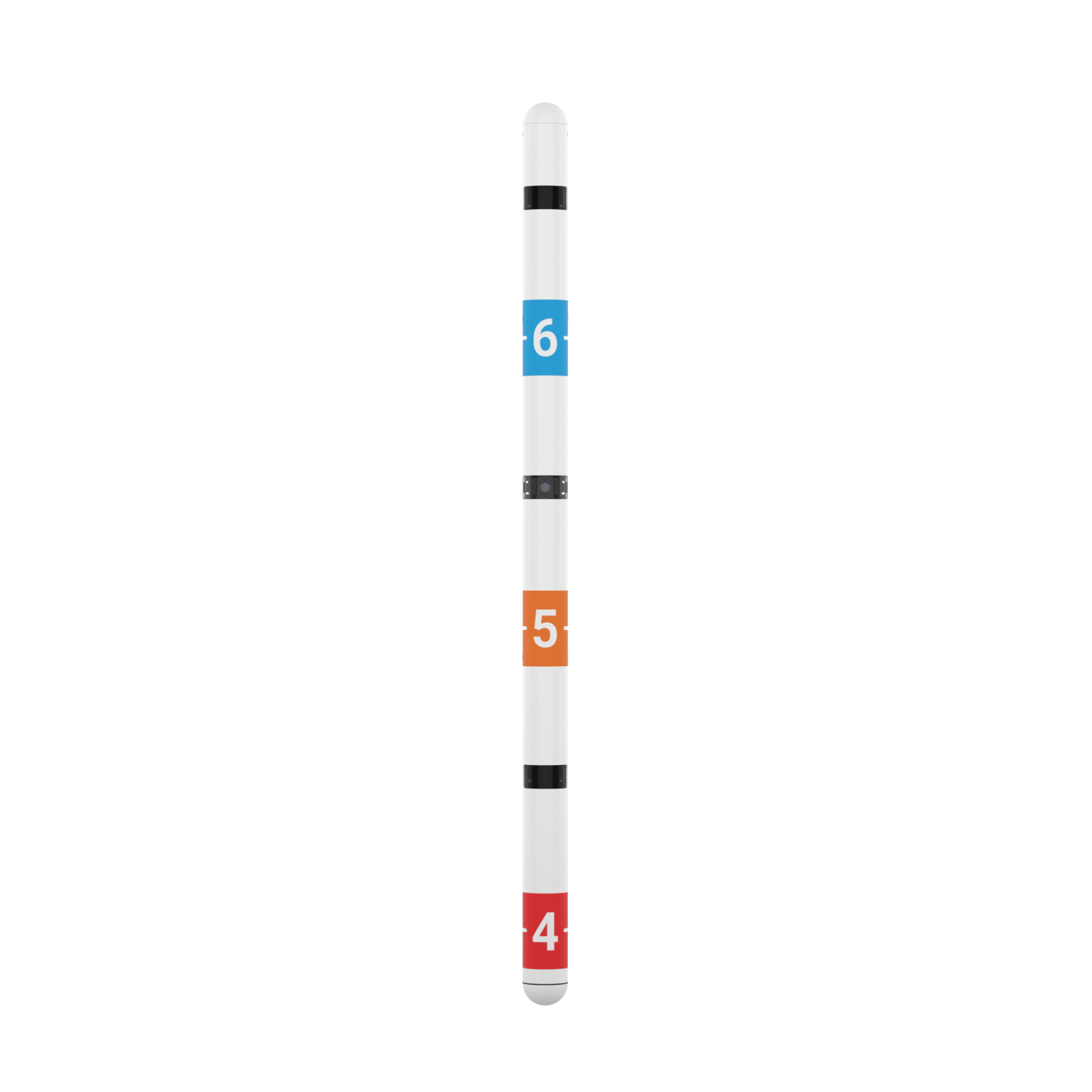

Hanwha SLA-F2480HA is a 5MP height strip lens housing designed for capturing facial details and approximate height, compatible with PNM-C20000QB. This lens housing features a 2.45mm fixed lens with 123° horizontal field of view, a curved design allowing 180° HFOV adjustment, and includes an 8m RJ12 cable. The housing includes highly visible color-coded height indicators and adjustable 3-position lens mounting.
Key Configuration
• Resolution: 5MP (2560 × 1440)
• Lens: 2.45 mm fixed focal length, F2.0 aperture, H: 123° / V: 91° / D: 159° field of view
• Connection: RJ12 interface to main unit
• Cable: 8 m (26.2 ft) included
• Design: Curved form factor enabling 180° horizontal field of view adjustment
Key Features
Features a 1/2.8" CMOS image sensor with 0.08 Lux minimum illumination in both color and B/W modes and fixed-focus operation. The design supports ±30° flexible pan adjustment and is optimized for easy installation in standard door frames. It includes adjustable 3-position lens mounting, color-coded height indicators for approximate height capture, and side-visible wrap-around labels. The unit comes with integrated lens and housing and is certified to FCC, CE/UKCA, VCCI, RCM, KS, UL, and CSA safety and EMC standards.
Technical Context
Designed for the Hanwha PNM-C20000QB multi-sensor camera, this height strip module mounts vertically beside door frames to capture facial detail along with approximate subject height in a single frame. Its curved design enables up to 180° horizontal field of view adjustment for flexible coverage, while an 8 m RJ12 cable allows remote placement from the main camera unit. The housing includes color-coded height indicators to assist with visual height estimation.
Installation Notes
Compact white plastic height strip module measuring 48 × 955 × 44 mm (1.89" × 37.61" × 1.73"), with a housing weight of 1,043 g (2.30 lb) and cable weight of 350 g (0.77 lb). It operates from -10°C to +55°C with 0–95% non-condensing humidity and is designed for standard door frame compatibility. Features include adjustable 3-position lens mounting, curved design with 180° horizontal field of view adjustment, and RJ12 connection to the main unit.
| Video | |
|---|---|
| Imaging Device Size | 1/2.8" |
| Type | CMOS |
| Min. Illumination (Lux) | Color (1/30sec, 30IRE): 0.08 BW (1/30sec, 30IRE): 0.08 |
| Lens | |
| Focal Length (mm) | 2.45 |
| Max. Aperture Ratio (F number) - Wide | 2.0 |
| Angular Field of View | Horizontal: 123° Vertical: 91° Diagonal: 159° |
| Mount Type | RJ12 connected with the main unit |
| Focus Control | Fixed |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | Pan: Flexible panning ±30° |
| Environmental & Electrical | |
| Operating Condition Temperature | -10°C ~ +55°C (+14°F ~ +131°F) |
| Operating Condition Humidity | 0 ~ 95% RH |
| Storage Condition Temperature | -50°C ~ +60°C (-58°F ~ +140°F) |
| Storage Condition Humidity | Less than 90% RH |
| Mechanical | |
| Color | White |
| Material | Plastic |
| Product Dimensions | 48 x 955 x 44 mm (1.89 x 37.61 x 1.73"), Cable: 8m (26.2ft) |
| Product Weight | 1,043g (2.30lb), Cable: 350g (0.77lb) |
| Certification & Standards | |
| EMC | FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS/NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835 |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1 |
| Environment | None, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78 |
