Hanwha - SPS-A100M - Audio Beacon Speaker with Max. Sound Pressure Level 90dB

Product Overview

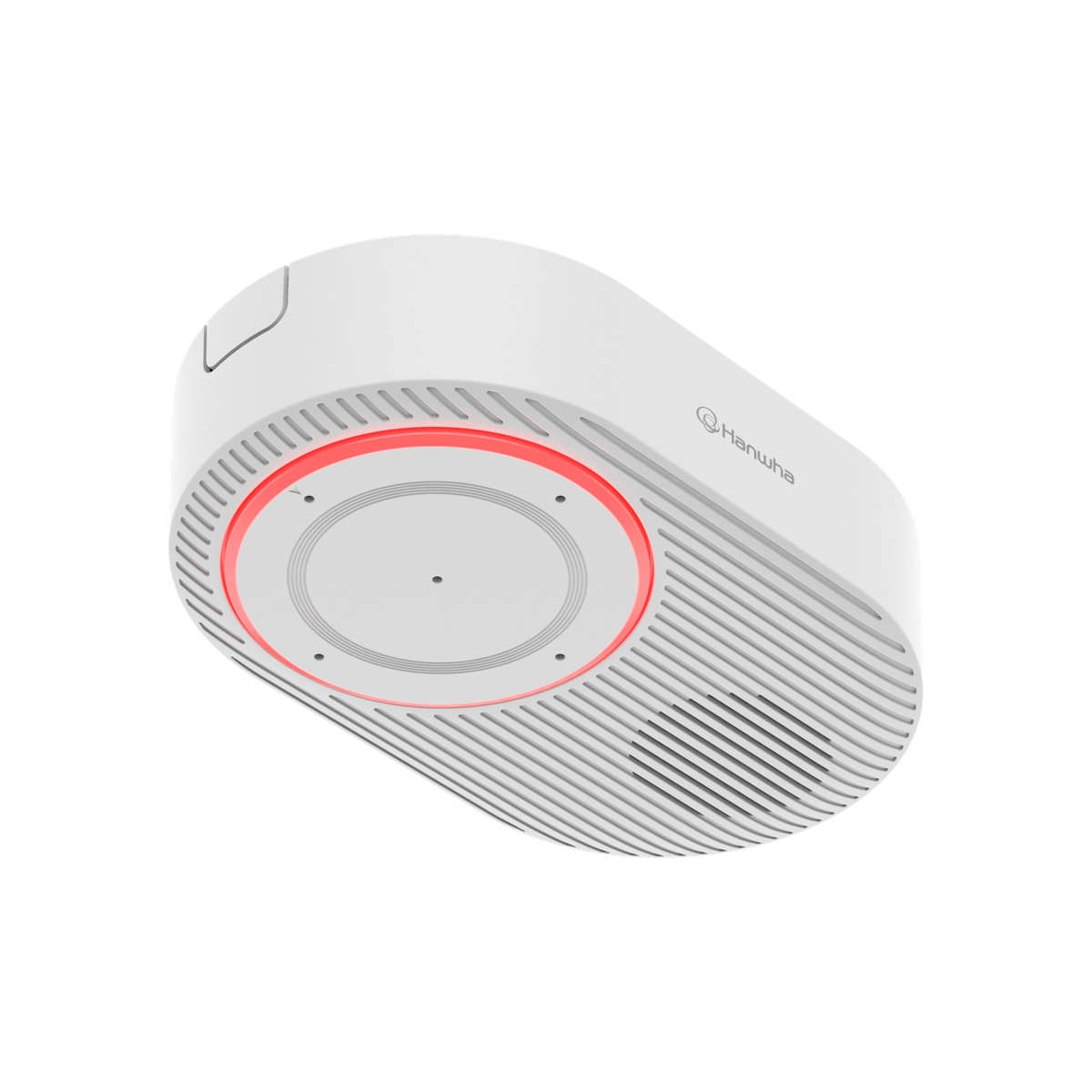

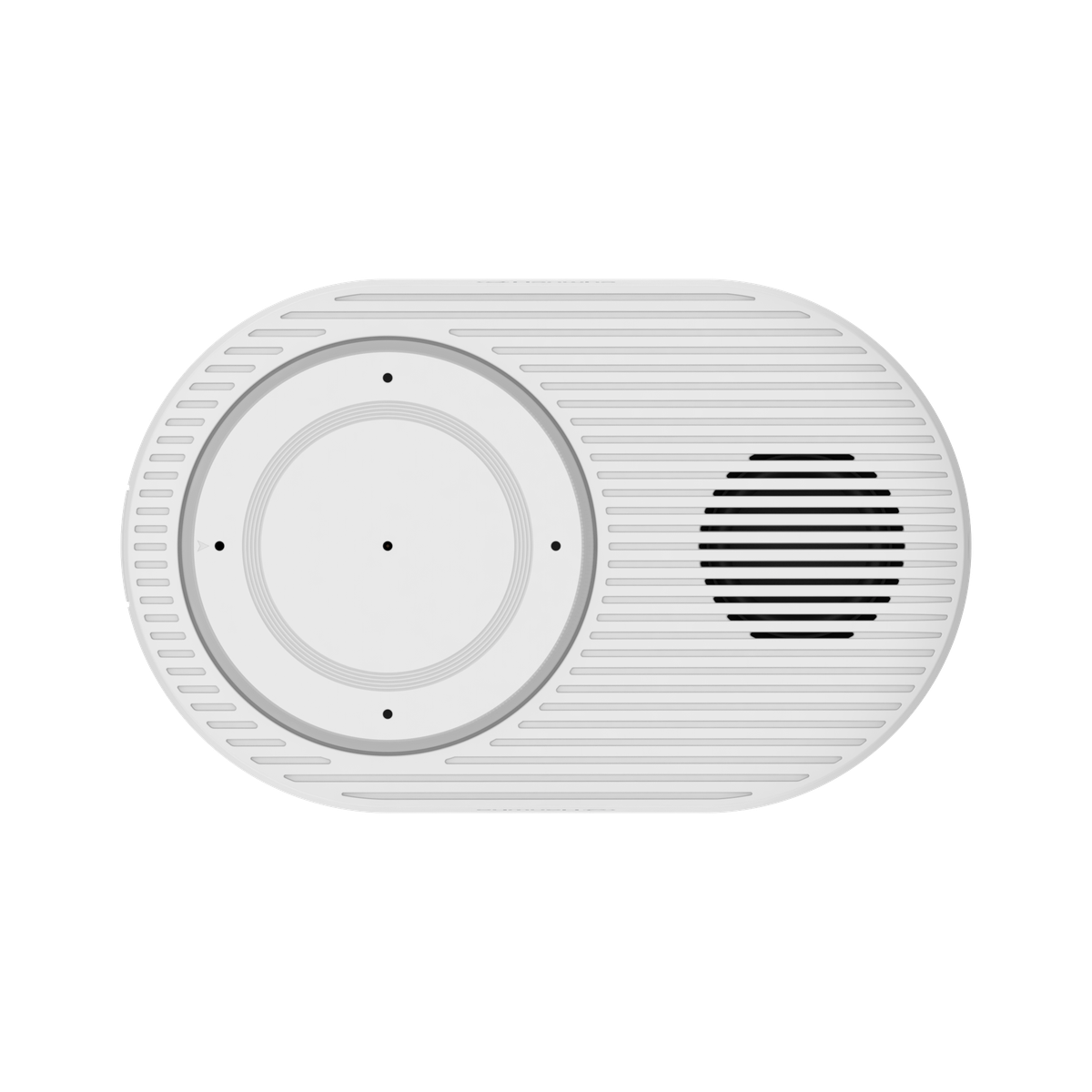

The Hanwha SPS-A100M is an AI-driven audio beacon speaker equipped with five MEMS microphones and an internal speaker delivering up to 90dB SPL at 1m. Featuring AI sound classification, it supports full-duplex two-way communication with echo cancellation and noise reduction. System status and alerts are provided visually via an integrated multi-color LED ring indicator: green, blue, red, pink, sky blue, and purple.

Key Configuration

• • Audio: five built-in MEMS microphones; built-in speaker (max 90dB SPL at 1m, frequency range 144Hz–20kHz)
• • LED ring indicator: colors (green, blue, red, pink, sky blue, purple) for event actions
• • Audio compression: G.711 u-law/G.726 selectable, AAC-LC (48Kbps at 16KHz)
• • Alarm I/O: 2 configurable I/O ports; alarm triggers: analytics, network disconnect, alarm input, app event (sound classification), schedule, MQTT subscription, case tampering
• • Power: PoE+ (IEEE 802.3at, Class 4); max 18.5W, typical 8.2W

Key Features

This ONVIF Profile-S device features AI sound classification to detect glass breaks, screams, horns, and tire screeches, exporting metadata with sound type, direction (±15° ceiling accuracy), confidence, timestamp, decibels, and the audio file. It supports full-duplex two-way audio, SIP 2.0 telephony, and an alert LED ring, with event triggers that include email/FTP uploads, alarm outputs, PTZ handovers, 6MB WAV playback, and LED/speaker actions. Driven by 4096MB RAM and 512MB Flash, it supports up to 6 streaming profiles and embeds high-level security like secure boot, encrypted firmware, 802.1X, and a hardware secure element (FIPS 140-3 Level 3, CC EAL6+).

Technical Context

Video compression handles static image video feeds using H.265/H.264 up to 10 fps and MJPEG up to 5 fps. It supports standard network and IoT protocols, including IPv4/IPv6, enterprise security HTTPS, SSL/TLS, SRTP, MQTT, and SIP 2.0. Regulatory approvals include FCC, CE, UKCA, VCCI, RCM, UL, and IEC/EN 62471 certifications. For installation, it mounts directly to single, double, 4" octagon, and 4" square gang boxes.

Installation Notes

Measuring 215.1 × 135.1 × 52.8 mm and weighing 973g, this RAL9003 aluminum/plastic unit is powered via PoE+ (Class 4) and includes two configurable I/O ports. It operates from -20°C to +55°C and features a USB Micro Type-C port for Wisenet software alignment.
