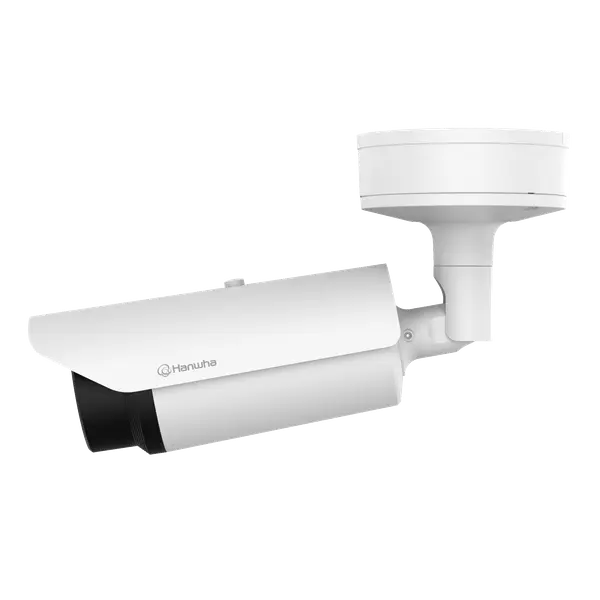

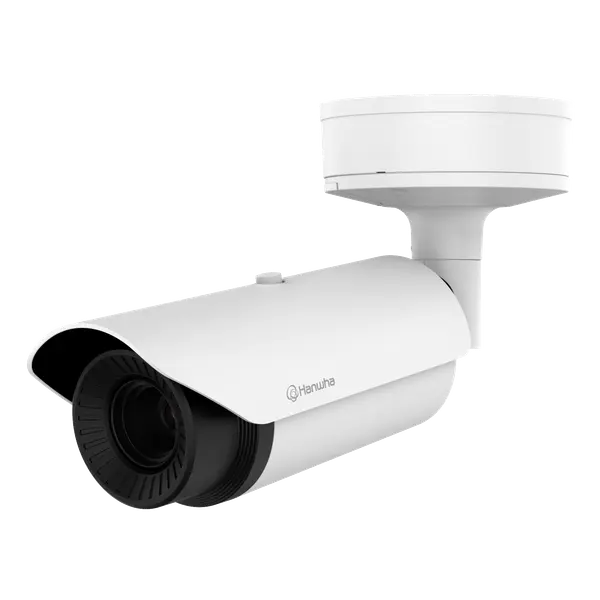

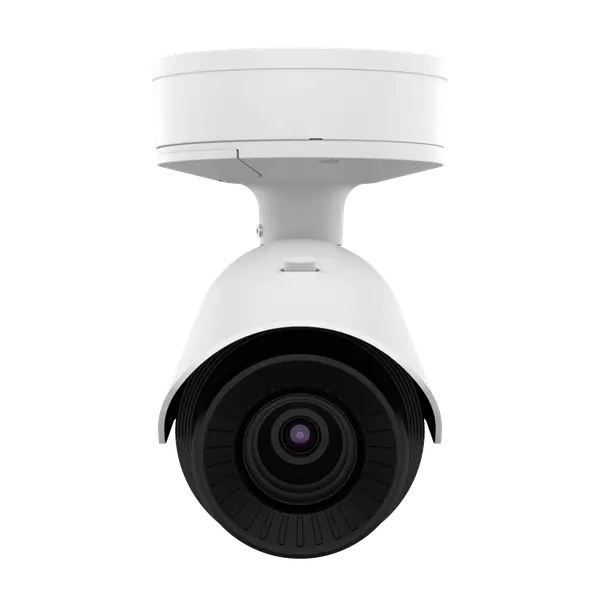

Hanwa - TNO-4030T/KUS - Network IP VGA Thermal Bullet Camera with 13mm Lens, White
Product Overview
Hanwha Vision TNO-4030T is a VGA thermal network camera with an uncooled 640 × 480 microbolometer and a built-in 13mm fixed lens. It supports H.265, H.264, and MJPEG video, thermal analytics including temperature detection, motion, intrusion, loitering, and directional detection, plus edge recording to Micro SD cards up to 256GB. PoE, 12V DC, and 24V AC power options, together with IP66, IK10, and NEMA 4X protection, support reliable outdoor operation.
Key Configuration
Model: TNO-4030T | Resolution: 640 × 480 thermal imaging | Lens: 13mm fixed, F1.0 | Spectral Range: 8-14μm | Thermal Sensitivity: NETD ≤50mK | Connectivity: 10/100BASE-T RJ-45 | Storage: Micro SD/SDHC/SDXC up to 256GB | Power: IEEE 802.3af PoE, 12V DC, or 24V AC | Protection: IP66, IK10, NEMA 4X
Key Features
- · 640 × 480 uncooled microbolometer thermal imaging sensor
- · 13mm fixed lens with F1.0 aperture and 48.6° horizontal field of view
- · 8-14μm spectral range with NETD of ≤50mK
- · H.265, H.264, and MJPEG video compression with up to 30fps
- · Thermal analytics include temperature detection, motion, tampering, and audio detection
- · Virtual area and virtual line analytics support intrusion, loitering, enter/exit, crossing, and direction detection
- · Micro SD/SDHC/SDXC edge storage supports cards up to 256GB
- · Supports ONVIF S, G, and T profiles and Hanwha Vision Open Platform
- · Supports PoE, 12V DC, and 24V AC power inputs
- · IP66, IK10, and NEMA 4X protection for outdoor deployment
Technical Context
The uncooled microbolometer detects infrared radiation in the 8-14μm range and provides thermal imagery with NETD of ≤50mK, supporting temperature-based monitoring and analytics. Multiple video codecs, WiseStream II, event recording, and up to 10 streaming profiles help balance image quality, bandwidth, and storage requirements.
Installation Notes
The camera measures approximately Ø101.97 × 401.8mm and weighs 3.124kg. It supports IEEE 802.3af PoE, 12V DC, or 24V AC power and has a minimum object distance of 5m. Operating temperature is -40°C to +60°C with 0%-90% non-condensing humidity. The Micro USB Type-B port is intended only for preview and installation and requires a Wi-Fi dongle.
| General | |
| Model | TNO-4030T |
| Product Type | VGA H.265 Thermal Camera |
| Key Features | 640 × 480 thermal resolution H.265, H.264 and MJPEG codecs Motion detection, tampering, loitering and directional detection Audio detection and temperature detection Hallway View and WiseStream II support PoE, 12 V DC and 24 V AC power |
| Video and Imaging | |
| Imaging Device | Uncooled microbolometer, 640 × 480 |
| Resolution | 640 × 480 640 × 360 320 × 240 |
| Maximum Frame Rate | H.265/H.264: 30 fps / 25 fps at 60 Hz / 50 Hz MJPEG: 30 fps |
| Spectral Range | 8–14 micrometers |
| NETD | ≤50 mK |
| Pixel Size | 17 micrometers |
| Video Output | CVBS: 1.0 Vp-p / 75 ohms composite output for installation USB: Micro USB Type-B for preview and installation only USB output requires a Wi-Fi dongle. |
| Video Rotation | Flip, mirror and Hallway View at 90°/270° |
| Lens | |
| Lens Type | Fixed lens |
| Focal Length | 13 mm |
| Maximum Aperture | F1.0 |
| Field of View | Horizontal: 48.6° Vertical: 36.4° Diagonal: 61.6° |
| iFoV | 1.308 mRad |
| Minimum Object Distance | 5 m |
| Focus Control | Fixed |
| Operational Features | |
| Digital Image Stabilization | Supported with built-in gyroscope sensor |
| Motion Detection | Quantity: 8 Shape: 8-point polygonal zones |
| Privacy Masking | Quantity: 32 Shape: Polygonal zones |
| Privacy Mask Colors | Gray, green, red, blue, black, white and mosaic |
| Alarm Interface | 1 alarm input and 2 alarm outputs |
| Alarm Triggers | Analytics, network disconnection and alarm input |
| Alarm Events | Image file upload by email or FTP Email notification SD card or NAS event recording Alarm output Handover to PTZ preset |
| Thermal and Analytics | |
| Color Palettes | White-hot, black-hot, rainbow, sepia, red, iron and custom |
| Analytics Events | Motion detection Tampering Audio detection Sound classification Shock detection Temperature detection Virtual area: loitering, intrusion, enter/exit, appear/disappear Virtual line: crossing and direction detection |
| Audio | |
| Audio Input | Selectable microphone input or line input |
| Audio Output | Line output |
| Audio Compression | G.711 u-law or G.726 selectable G.726 ADPCM at 8 kHz G.711 at 8 kHz G.726 at 16/24/32/40 kbps AAC-LC at 48 kbps and 16 kHz |
| Network and Streaming | |
| Ethernet | RJ45 10/100BASE-T |
| Video Compression | H.265/H.264: Main, Baseline and High profiles MJPEG |
| Smart Codec | Manual mode and WiseStream II |
| Bitrate Control | H.265/H.264: CBR or VBR MJPEG: VBR |
| Unicast | Up to 20 users |
| Multicast | Supported |
| Multiple Streaming | Up to 10 profiles |
| Network Protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP/UDP, RTP/TCP, RTCP, RTSP, NTP HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP SNMPv1/v2c/v3, ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP SRTP/TCP, SRTP/UDP unicast and PIM-SM |
| Application Programming Interface | SUNAPI HTTP API and Hanwha Vision Open Platform |
| ONVIF | ONVIF Profiles S, G and T |
| Security | |
| User Authentication | Digest authentication |
| Network Authentication | IEEE 802.1X with EAP-TLS and EAP-LEAP |
| Secure Communication | HTTPS, WSS and SRTP |
| Access Control | IP-based access control |
| Audit | Access, system and event log management |
| Storage and Memory | |
| RAM | 1 GB |
| Flash Memory | 256 MB |
| Edge Storage | 1 × Micro SD/SDHC/SDXC slot, up to 256 GB |
| Recording Storage | SD/SDHC/SDXC card or NAS recording triggered by events |
| Environmental and Electrical | |
| Operating Temperature | -40°C to 60°C |
| Operating Humidity | 0% to 90% RH, non-condensing |
| Storage Temperature | -50°C to 60°C |
| Storage Humidity | 0% to 90% RH, non-condensing |
| Input Voltage | PoE: IEEE 802.3af, Class 3 12 V DC 24 V AC |
| Power Consumption | PoE: maximum 10 W, typical 8.6 W 12 V DC: maximum 9 W, typical 7.5 W 24 V AC: maximum 10.5 W, typical 8.9 W |
| Mechanical | |
| Color | White |
| Material | Aluminum |
| RAL Code | RAL9003 |
| Product Dimensions | Diameter 101.97 × 401.8 mm |
| Product Weight | 3124 g |
| Certifications and Protection | |
| Ingress Protection | IEC 60529 IP66 |
| Impact Protection | IEC 62262 IK10 |
| Enclosure Standard | NEMA 250 Type 4X |
