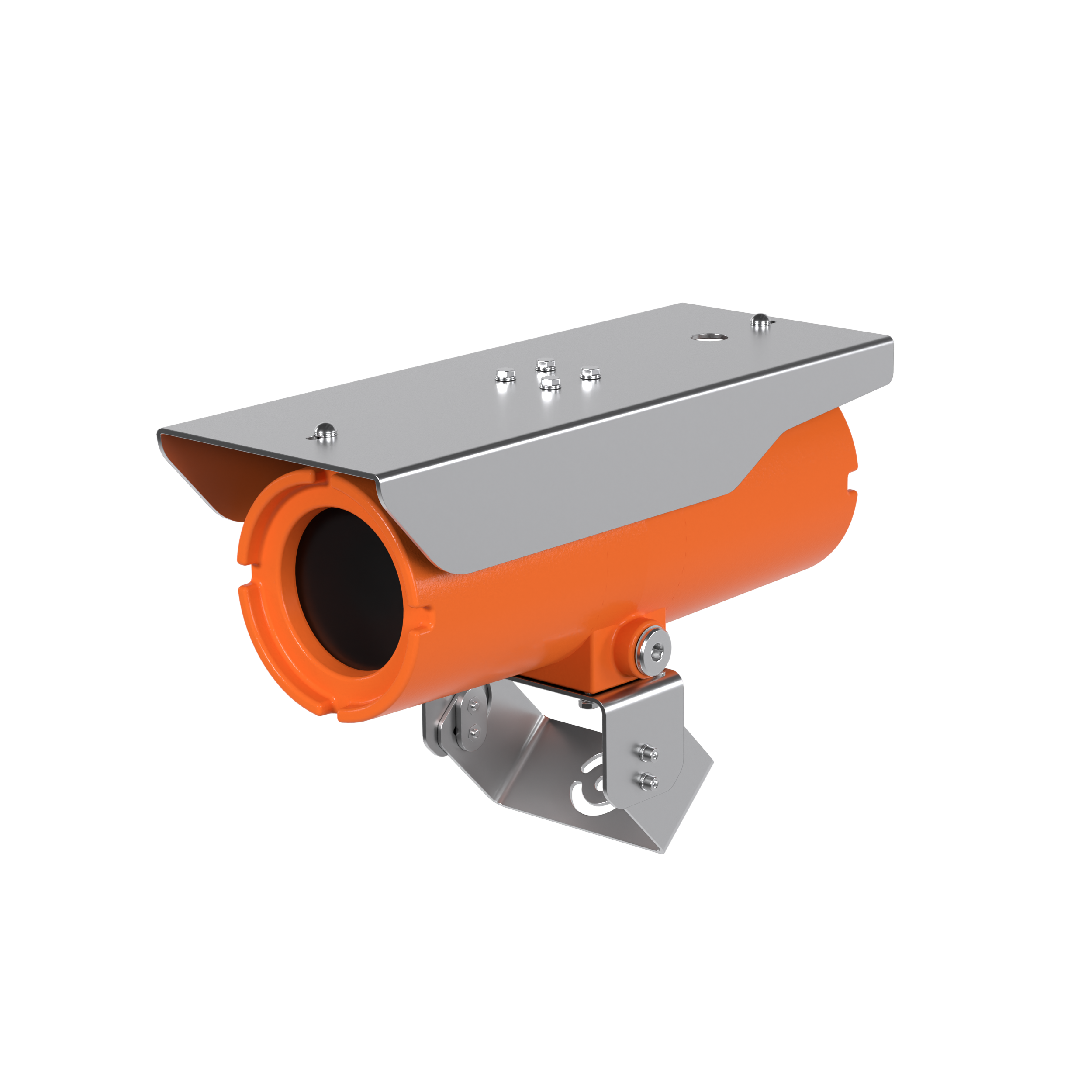

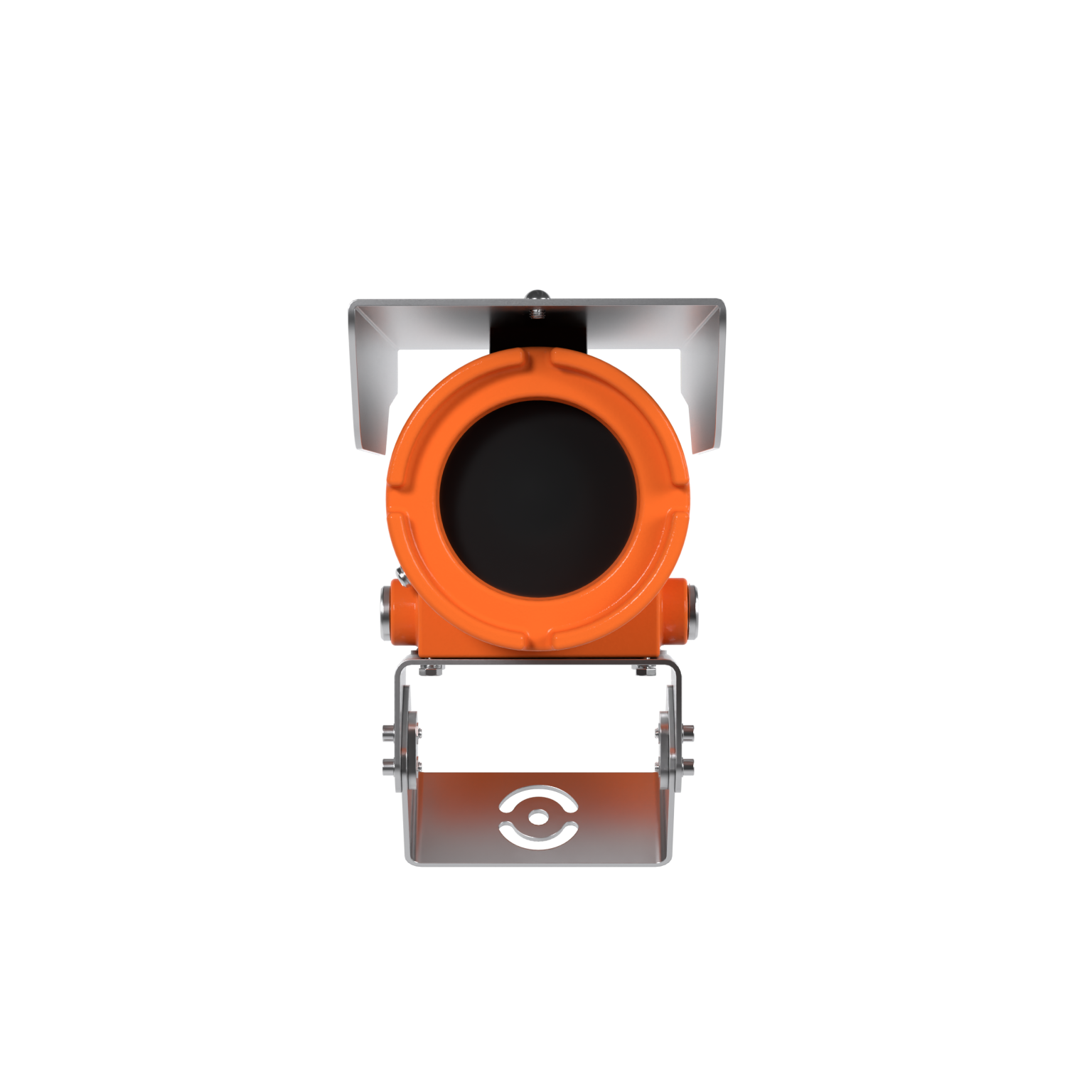

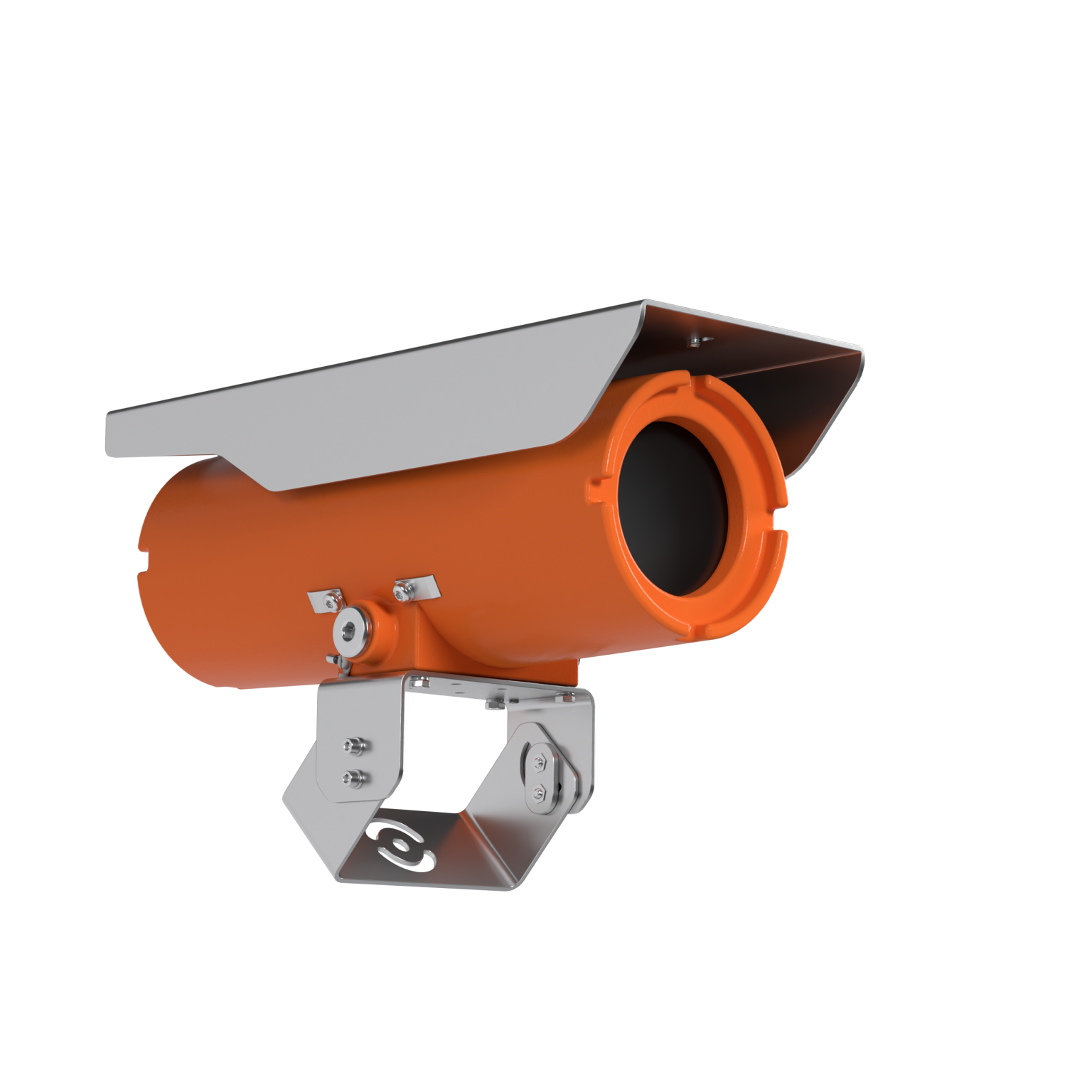

Hanwha - TNO-X6074EPT1-Z - 2MP Explosion Proof Camera with 2.8-9mm Lens, AI-Based WiseStream, WiseNR Ⅱ

Product Overview

Hanwha TNO-X6074EPT1-Z is an explosion-proof fixed camera powered by WN9, utilizing the XNB-A6004 box camera core and delivering 2MP (1920x1080) resolution at up to 60fps. This hazardous-location camera features a 2.8~9mm motorized varifocal lens with P-iris support, extreme WDR, and AI-based WiseStream III compression. Certified for FM Class I/II/III Division 1 Groups B-G, with IP66, Type 4X ratings.

Key Configuration

• 2MP (1920 × 1080) resolution at up to 60 fps continuous capture
• 2.8–9 mm motorized varifocal P-iris lens with 98° (wide) to 39° (tele) horizontal field of view
• PoE-powered; up to 90W power consumption with heater active (no mechanical wiper)
• Hazardous-area certified: FM Class I/II/III Division 1, Groups B, C, D, E, F, and G

Key Features

The system supports H.265/H.264/MJPEG compression with AI-powered WiseStream III, WiseNR II noise reduction, and extremeWDR. AI analytics include object detection, line crossing, slip-and-fall detection, and classification of people, faces, vehicles, and license plates, along with people counting, queue management, heatmaps, and BestShot capture. The enclosure features a RAL2000 Yellow Orange powder-coated aluminum finish and is NDAA compliant.

Technical Context

Designed for hazardous locations and certified for FM Class I/II/III Division 1 Groups B–G environments. It features a factory-sealed explosion-proof enclosure with an internal heater supporting operation down from -50°C to +55°C and power consumption up to 90W when heating is active. The box camera core is permanently sealed within the housing, and no mechanical wiper is provided on this model.
