Hanwha - WRN-1632-4TB - 2U WAVE Network Video Record with 4 Professional Licenses, 4TB RAW

Part number:
WRN-1632-4TB
Price:

Product Overview

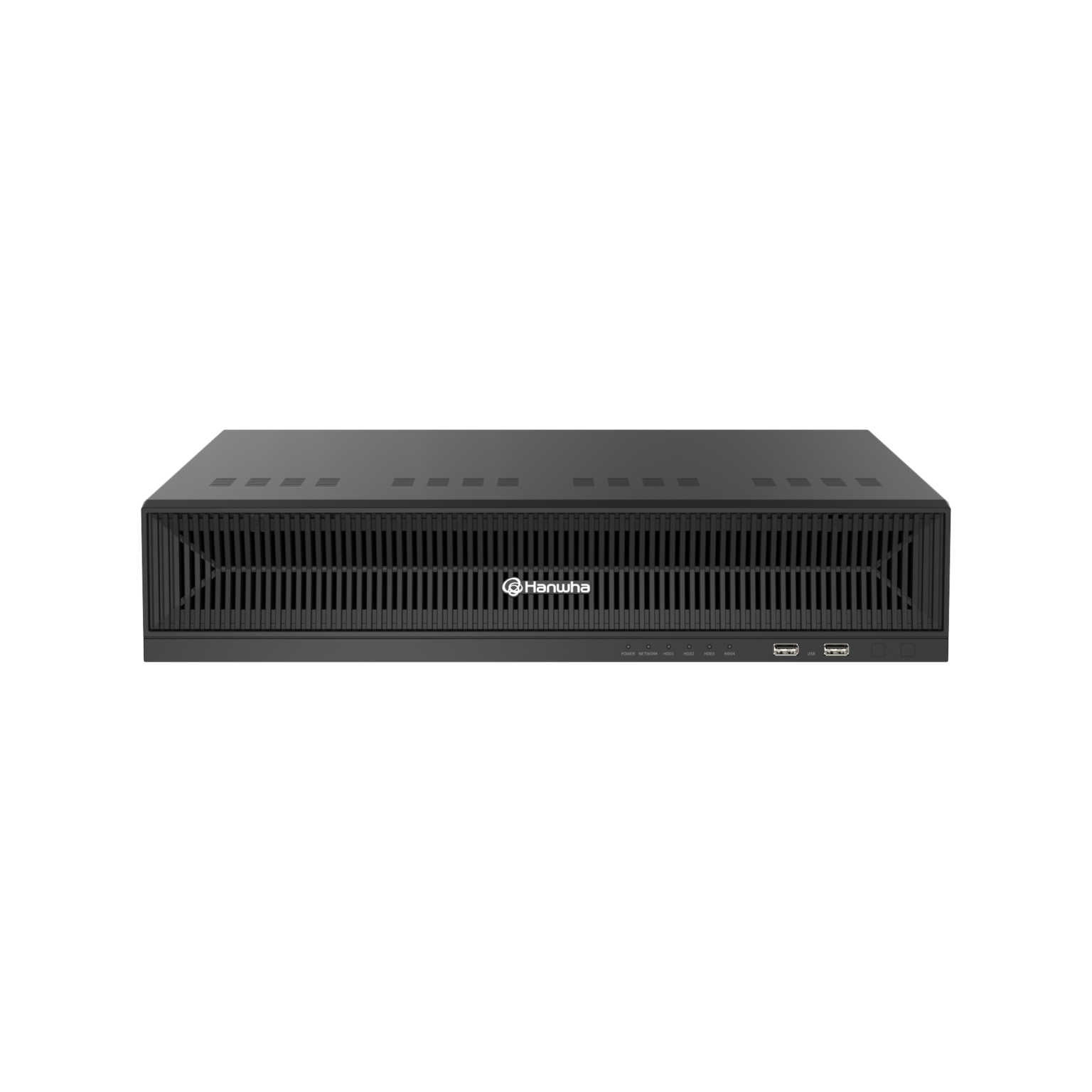

The Hanwha WRN-1632-4TB is a 2U Intel-based Wisenet WAVE NVR with WAVE VMS pre-installed and 4 Professional licenses included. It supports up to 32 channels with H.264/H.265/MJPEG compression and delivers up to 250 Mbps recording throughput. The system includes Wisestream bandwidth optimization, HDMI and DisplayPort outputs, and dual Gigabit Ethernet network interfaces for flexible connectivity.


Key Configuration

• Channels: up to 32 IP camera inputs.
• HDD bays: 4 × fixed internal SATA, up to 10TB per HDD (max 40TB), 4TB RAW pre-installed.
• Recording throughput: 250 Mbps.
• Video outputs: HDMI (1) and DisplayPort (1) for monitoring and configuration.
• Dimensions: 440 × 89.8 × 428.4 mm, weight: 5.47 kg (12.06 lb).


Key Features

Supports Wisenet WAVE client, mobile access, and Cloud Sync, with AI metadata support when used with compatible Hanwha AI cameras. It runs on Ubuntu 22.04 LTS and includes WAVE VMS with 4 Professional licenses pre-installed. The system features Wisestream bandwidth optimization, dual GbE WAN ports, audio output, USB 2.0/3.0 ports, and includes a USB mouse with rack mount brackets for installation.


Technical Context

Black metal standalone NVR powered by a quad-core CPU with 8GB DDR4 RAM and 32GB eMMC storage. It supports 100–240 VAC input with 80W power consumption and operates in temperatures from 0°C to 40°C with 20–85% humidity. The unit has no PoE ports and is designed for external network camera connections.


Installation Notes

2U rackmount unit measuring 440 × 89.8 × 428.4 mm and weighing 5.47 kg. It includes 4 fixed internal SATA HDD bays (not hot-swappable), supporting up to 10TB per drive with 4TB pre-installed. The system provides HDMI and DisplayPort outputs for local monitoring and comes with rack-mount brackets for installation.

Display
Decoding

Local Display

HDMI (1), DP (1)

Performance
Operating System

Embedded

Ubuntu 22.04 LTS

Record

Recording Bandwidth

Max. 250Mbps

Storage

Supported HDD: Up to 10TB

HDD Slot: SATA 4ea (Max. 40TB)

Interface
Front

Indicator

Power, Network, HDD1, HDD2, HDD3, HDD4

HDMI 1EA
DP  1EA

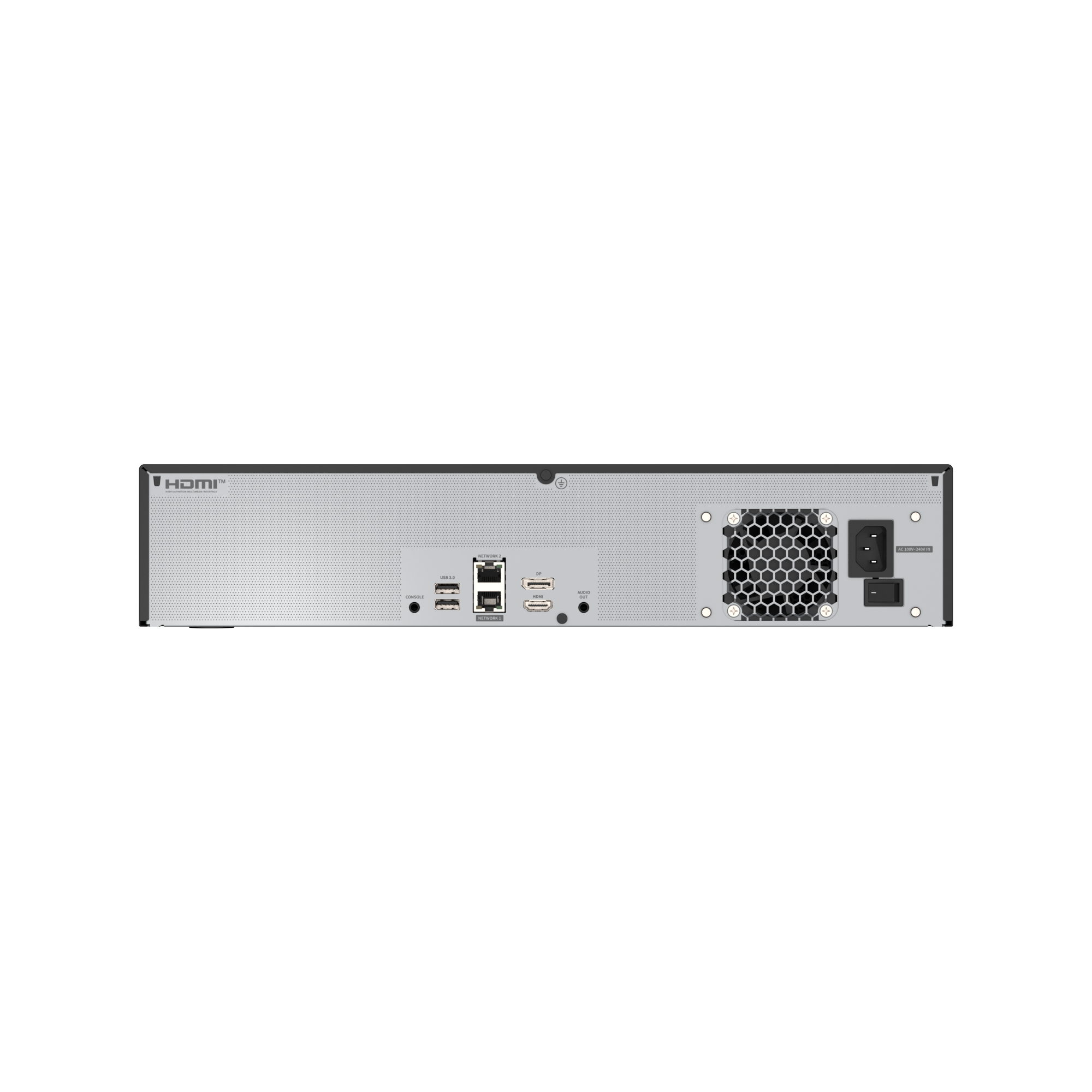

Audio Audio output
Ethernet  RJ-45 2ea (WAN, 1Gbps)
 USB Front USB 2.0(2), Rear USB 3.0(2)
Environmental
CPU  Quad core
RAM DDR4 8GB
OS HDD   eMMC 32GB
Operating Temperature 0°C to +40°C (32℉to 104℉)
Operating Humidity   20% ~ 85% RH
Electrical
Power Input   100 ~ 240 VAC ±10%; 50/60 Hz
 Power Consumption 80W
Mechanical
Color / Material   Black / Metal
Dimension (WxHxD) 440 x 89.8 x 428.4 mm
Weight  5.47Kg
