Hanwha - WRR-P-E201S-32TB - 1U Wisenet WAVE Network Video Recorder with 4 Professional Licenses, 32TB Raw
Product Overview
The Hanwha WRR-P-E201S-32TB is a 1U Wisenet WAVE NVR with 4 Professional licenses pre-installed, supporting 470 Mbps recording throughput. It includes 4 front hot-swappable HDD bays with 32TB raw storage (21TB usable in RAID 5), powered by an Intel Xeon E2356G processor with 16GB DDR4 RAM and dual 480GB SSD OS drives in RAID 1.
Key Configuration
• Recording bandwidth: up to 470 Mbps.
• Licenses: 4 × Wisenet WAVE Professional included.

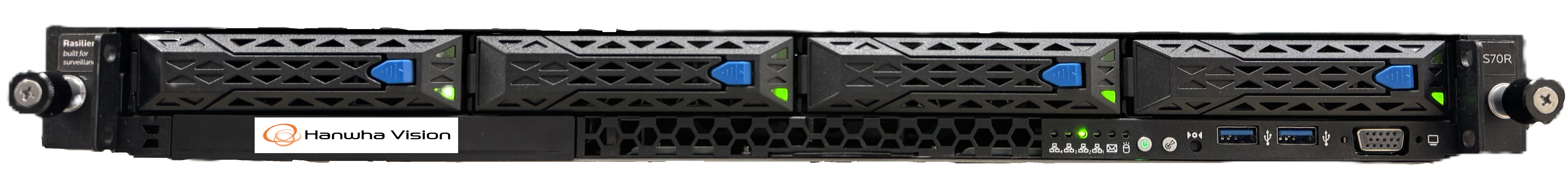

• Storage: 32TB raw (21TB usable after RAID 5), 4 × 3.5" hot-swappable bays (up to 80TB raw).
• OS drives: 2 × 480GB SSD (RAID 1, internal).
• Dimensions: 440 × 498 × 44 mm, weight: 23 kg (without HDDs).
Key Features
Powered by an Intel Xeon E2356G processor with 16GB DDR4 RAM, the system runs Windows Server 2022 Standard and also supports Windows 10 IoT Enterprise LTSC 2021 or Ubuntu 22.04 LTS. It supports RAID 0/1/5/6 with 512MB NV cache, HDMI and VGA outputs, and dual RJ45 GbE ports with optional 10GbE connectivity. Additional features include IPMI remote management, redundant 450W power supplies, front/rear USB 3.2 ports, serial connectivity, and an included keyboard, mouse, and sliding rail kit with cable management arm.
Technical Context
Includes Wisenet WAVE VMS with 4 Professional licenses pre-installed and supports up to 470 Mbps recording throughput based on Hanwha performance testing. The system features 4 front hot-swappable HDD bays supporting up to 80TB raw storage, with RAID 5 providing 21TB usable capacity from the included 32TB raw storage. Connectivity includes dual 1GbE network interfaces.
Installation Notes
1U rackmount unit measuring 440 × 498 × 44 mm and weighing 23 kg (without HDDs), designed for 100–240 VAC power input. It includes hot-swappable HDD bays for easy maintenance. Operating temperature 50°F - 95°F (10℃ - 35℃)
| System | |
|---|---|
| Video Management Software | Wave VMS |
| Recording Bandwidth | Up to 470 Mbps * Bandwidth performance figures based on performance testing by Hanwha Vision using Wave VMS |
| Included Licenses | 4 x Wave Professional License |
| Storage | |
| OS Drive Bays | 2 x 480GB Dual RAID 1 SSD (Internally Mounted) |
| Data Drive Bays | 4 x 3.5" Front Hot Swappable Bays |
| Data Storage | Up to 80TB raw storage |
| Interface | |
| Network Interface | 2 x RJ45 GbE (default), 2 x RJ45 + 2 x 10GbE RJ45 (optional) |
| Memory | 16GB, 2 x 8GB DDR4 |
| USB Ports | 2 x USB 3.2 (Front), 2 x USB 3.2 (Rear) |
| Other Ports | Serial |
| Keyboard & Mouse | Included |
| Sliding Rail Kit | Included, with Cable Management Arm |
| Operating System | Windows 10 IoT Enterprise LTSC 2021 / Windows Server 2022 Standard / Ubuntu 22.04 LTS |
| Mechanical | |
| Dimensions (W x D x H) | 17.3" (440mm) x 19.6" (498mm) x 1.7" (44mm) |
| Weight | 50 lbs (23 kg) * Weight is on chassis without HDDs |
| Electrical | |
| Power Input | 100 - 240 VAC |
| Environmental | |
| Operating Temperature | 50°F - 95°F (10°C - 35°C) |
| Storage Temperature | -40°F to 158°F (-40°C to 70°C) |
| Operating Humidity | 10% to 80% RH with 29°C (84.2°F) maximum dew point |
| Certifications and Compliance | |
| Certifications | BSMI, CE, FCC (Class A), UL/cUL equivalent (MET/Eurofins) |
