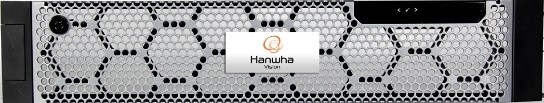

Hanwha - WRR-P-S204W-240TB - 2U Wisenet WAVE Network Video Recorder with 4 Professional Licenses, 240TB Raw
Product Overview
The Hanwha WRR-P-S204W-240TB is a 2U Wisenet WAVE NVR with 4 Professional licenses pre-installed and up to 470 Mbps recording bandwidth. It includes 12 hot-swappable HDD bays with 240TB raw storage (200TB usable RAID 5), an Intel Xeon 4410Y processor, 16GB DDR4 RAM, dual 480GB SSD OS drives, RAID 0/1/5/6 support, 4 × 1GbE NICs, IPMI, redundant 800W power supplies, and Windows 10 IoT Enterprise LTSC 2021.
Key Configuration
- • Recording bandwidth: up to 470 Mbps
- • Included licenses: 4 × Wisenet WAVE Professional licenses
- • Storage: 240TB raw (200TB usable after RAID 5), 12 × 3.5" front hot-swappable bays
- • OS drives: 2 × 480GB SSD (RAID 1, internally mounted)
- • Dimensions: 482 × 772.13 × 86.8 mm (18.97" × 30.39" × 3.41"); weight: 25.1 kg (53.3 lb)
Key Features
It features an Intel Xeon 4410Y processor, 16GB DDR4 RAM, and Windows 10 IoT Enterprise LTSC 2021, with support for Windows Server 2022 Standard or Ubuntu 22.04 LTS. It supports RAID 0/1/5/6 with 8GB NV cache and includes mDP/VGA outputs, 4 × GbE RJ45 ports (optional 10GbE SFP configuration), IPMI remote management, and redundant 800W 80 Plus Platinum power supplies. Additional features include USB 2.0/3.0 ports, a serial interface, an included keyboard and mouse, a sliding rail kit with cable management arm, and certifications including UL, NOM, RoHS, TUV, and GS.
Technical Context
Pre-installed with Wisenet WAVE VMS and 4 Professional licenses, the system supports up to 470 Mbps recording bandwidth. It includes 12 front hot-swappable HDD bays with 240 TB of raw storage, delivering 200 TB of usable capacity in RAID 5. The unit features 4 × 1GbE network interfaces, IPMI for remote management, and redundant power supplies for high availability.
Installation Notes
Built in a 2U rackmount form factor, the system measures 482 × 772.13 × 86.8 mm and weighs 25.1 kg. It operates at temperatures from 10°C to 35°C with 5–95% humidity (max dew point of 27°C) and supports storage temperatures from -40°C to 65°C. Power is supplied via 100–240 VAC.
| System | |
|---|---|
| Video Management Software | Wave VMS |
| Recording Bandwidth | Up to 470 Mbps * Bandwidth performance figures based on performance testing by Hanwha Vision using Wave VMS |
| Included Licenses | 4 x Wave Professional License |
| Storage | |
| OS Drive Bays | 2 x 480GB Dual RAID 1 SSD (Internally Mounted) |
| Data Drive Bays | 12 x 3.5" Front Hot Swappable Bays |
| Data Storage | Up to 240TB raw |
| Interface | |
| Network Interface | 4 x RJ45 GbE (default), 2 x RJ45 + 2 x 10GbE SFP (optional) |
| Memory | 16GB, 1 x 16GB DDR4 |
| USB Ports | 1 x USB 2.0 (Front), 1 x USB 2.0 + 1 x USB 3.0 (Rear) |
| Other Ports | Serial |
| Keyboard & Mouse | Included |
| Sliding Rail Kit | Included, with Cable Management Arm |
| Operating System | Windows 10 IoT Enterprise LTSC 2021 / Windows Server 2022 Standard / Ubuntu 22.04 LTS |
| Mechanical | |
| Form Factor | 2U rack mount chassis |
| Dimensions (W x D x H) | 18.97" (482mm) x 30.39" (772.13mm) x 3.41" (86.8mm) |
| Weight | 53.3 lbs (25.1 kg) |
| Electrical | |
| Power Supply | (2) 800W 80 Plus Platinum |
| Power Input | 100 - 240 VAC |
| Heat Dissipation | |
| Environmental | |
| Operating Temperature | 50°F - 95°F (10°C - 35°C) |
| Storage Temperature | -40°F to 149°F (-40°C to 65°C) |
| Operating Humidity | 5% to 95% RH with 27°C (80.6°F) maximum dew point |
| Certifications and Compliance | |
| Certifications | UL, NOM, RoHS, TUV, GS |
