Hanwha - WRT-P-5204W-16TB - Mini-Tower Form Factor Wisenet WAVE Network Video Recorder with 4 Professional Licenses
Product Overview
Hanwha WRT-P-5204W-16TB is a mini-tower Wisenet WAVE Network Video Recorder pre-configured with Wisenet WAVE VMS and utility tools. It delivers 470 Mbps of recording throughput utilizing a 14th Gen Intel Core i5 processor paired with 16GB DDR4 RAM, a 256GB M.2 SSD operating system drive, and Windows 10 IoT Enterprise LTSC. Storage hardware supplies 16TB of raw capacity out of the box with expansion up to 36TB across three 3.5" internal HDD bays.
Key Configuration
- • Recording bandwidth: up to 470 Mbps
- • Included licenses: 4 × Wisenet WAVE Professional licenses
- • Data storage: 16TB raw (3× 3.5" SATA HDD bays, up to 36TB total); OS drive: 1× 256GB M.2 SSD (internally mounted)
- • Processor: Intel Core i5 (14th Generation); RAM: 16GB DDR4
- • Dimensions: 14.68" × 6.81" × 16.54" (372.9 × 173 × 420 mm); weight: 24 lbs (10.68 kg)
Key Features

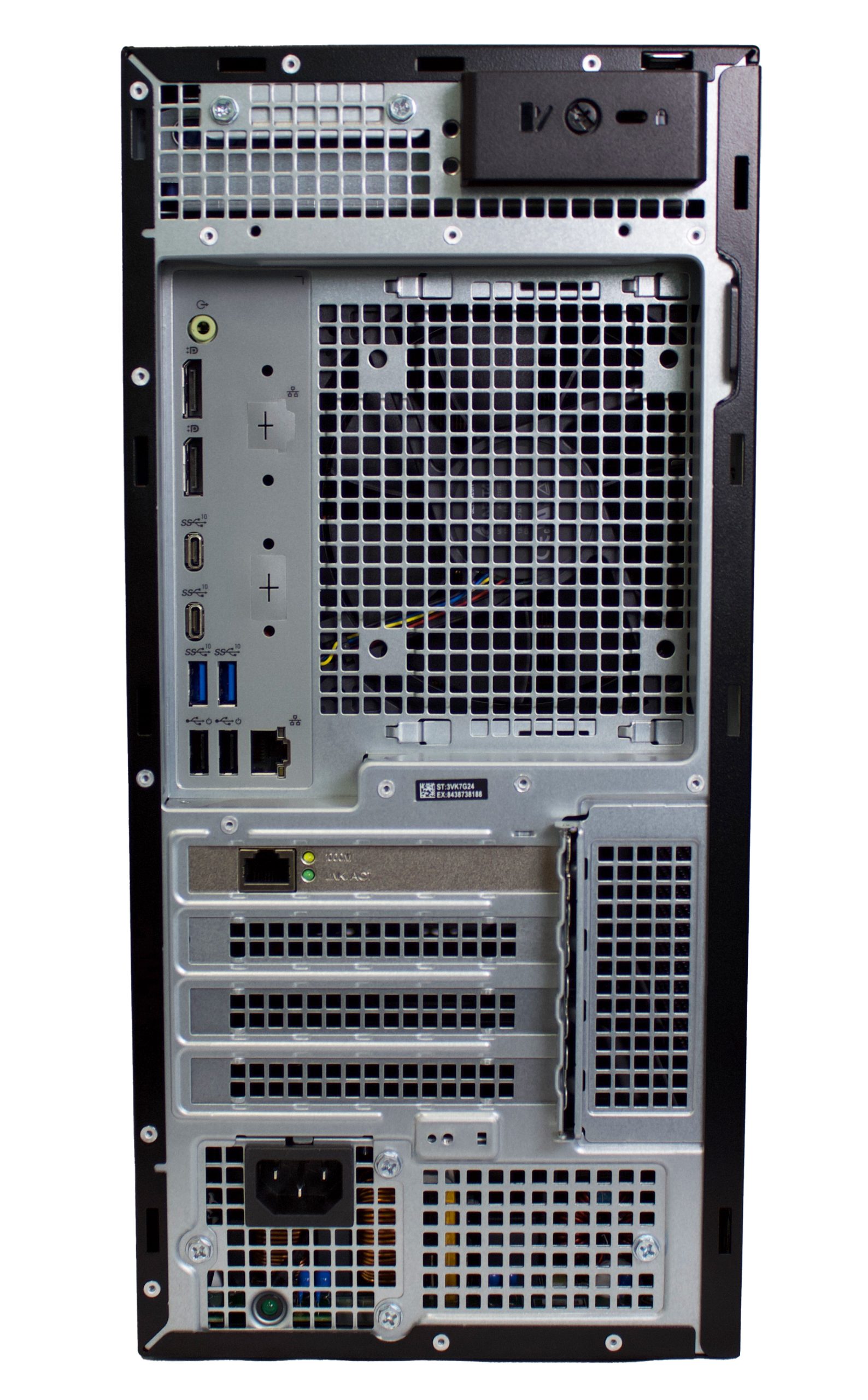

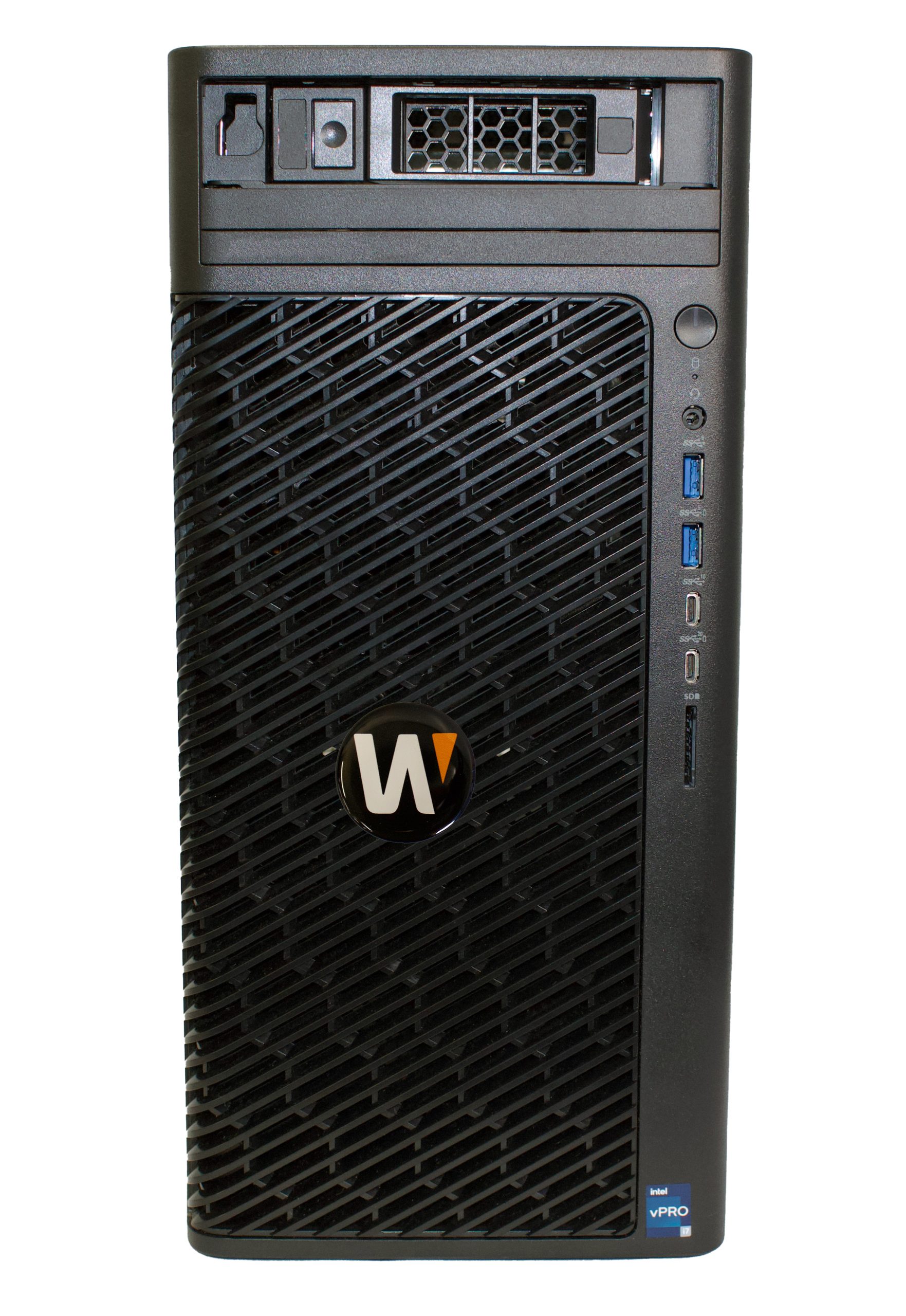

Delivers turnkey VMS deployment straight out of the box with preloaded Wisenet WAVE software and tools. Dual 1GbE network ports split bandwidth between an on-board interface and a PCIe NIC card, while dual rear DisplayPorts include an HDMI adapter for flexible monitoring. Peripheral connectivity features ten assorted front and rear USB ports alongside front and rear 3.5mm audio jacks. Operational equipment includes a packaged USB keyboard and mouse powered efficiently by a 500W 80 Plus Platinum supply. System coverage balances reliability with data security through a 5-year, on-site, next-business-day, keep-your-hard-drive warranty.
Technical Context
Offers deployment flexibility with operating system options for Windows 10 IoT Enterprise LTSC or Ubuntu Linux 22.04 LTS inside a black metal tower form factor. Environmental limitations maintain an operating temperature range of 50°F to 95°F (10°C to 35°C) and a storage tolerance of -40°F to 149°F (-40°C to 65°C) under 20% to 85% non-condensing relative humidity. Structural and electrical validations are backed by regulatory UL, cUL, CB, FCC, and 80 Plus Gold certifications.
Installation Notes
Measures 14.68" × 6.81" × 16.54" (372.9 × 173 × 420 mm) and weighs 24 lbs (10.68 kg) for desktop mini-tower placement. Electrical configurations utilize a 100–240V AC power input with a maximum power consumption of 500W. External control accessories include a packaged keyboard and mouse. Hardware capacity supports up to 36TB of raw data across three internal 3.5" HDD bays for storage expansion.
| System | |
| Video Management Software | Wisenet WAVE |
| Included Licenses | 4 x Wisenet WAVE Professional license |
| Recording Bandwidth | Up to 470 Mbps |
| OS Drive Bays | 1 x 256GB M.2 SSD (internally mounted) |
| Data Drive Bays | 3x 3.5" SATA HDDs |
| Data Storage | Up to 36TB raw storage |
| Network Interface | (2) 1GbE RJ45 Ports (1 on-board & 1 PCIe NIC) |
| Processor | 1 x Intel® Core® i5 14th Generation |
| Memory | 16GB DDR4 |
| Operating System | Windows 10 IoT Enterprise LTSC / Ubuntu Linux 22.04 LTS |
| Video Outputs | 2 x DP w/ 1 x DP to HDMI adapter |
| USB Ports | Rear: 2x USB 3.2 Gen 2, 2x USB 3.2 Gen 2 Type-C, 2x USB 2.0 Front: 2x USB 3.2 Gen 1, 1x USB 3.2 Gen 2 Type-C, 1x USB 3.2 Gen 2x2 Type-C |
| Other Ports | Front: 1x 3.5mm Universal Audio, Back: 1x 3.5mm audio output |
| Keyboard & Mouse | Included |
| Mechanical | |
| Form Factor | Tower |
| Color / Material | Black / Metal |
| Dimensions (HxWxD) | 14.68" x 6.81" x 16.54" (372.9mm x 173mm x 420mm) |
| Weight | 24 lbs (10.68 kg) |
| Electrical | |
| Power Supply | 500W 80 Plus Platinum |
| Power Input | 100 ~ 240V AC |
| Power Consumption | Maximum 500W |
| Environmental | |
| Operating Temperature | 50°F to 95°F (10°C to 35°C) |
| Storage Temperature | -40°F to 149°F (-40°C to 65°C) |
| Operating Humidity | 20% to 85% (non-condensing) |
| Certification | UL, cUL, CB, FCC, 80 Plus Gold |
