Hanwha - XNB-A6004 - 2MP AI Box Camera, H.265/H.264/MJPEG Codec, USB-C Port
Product Overview

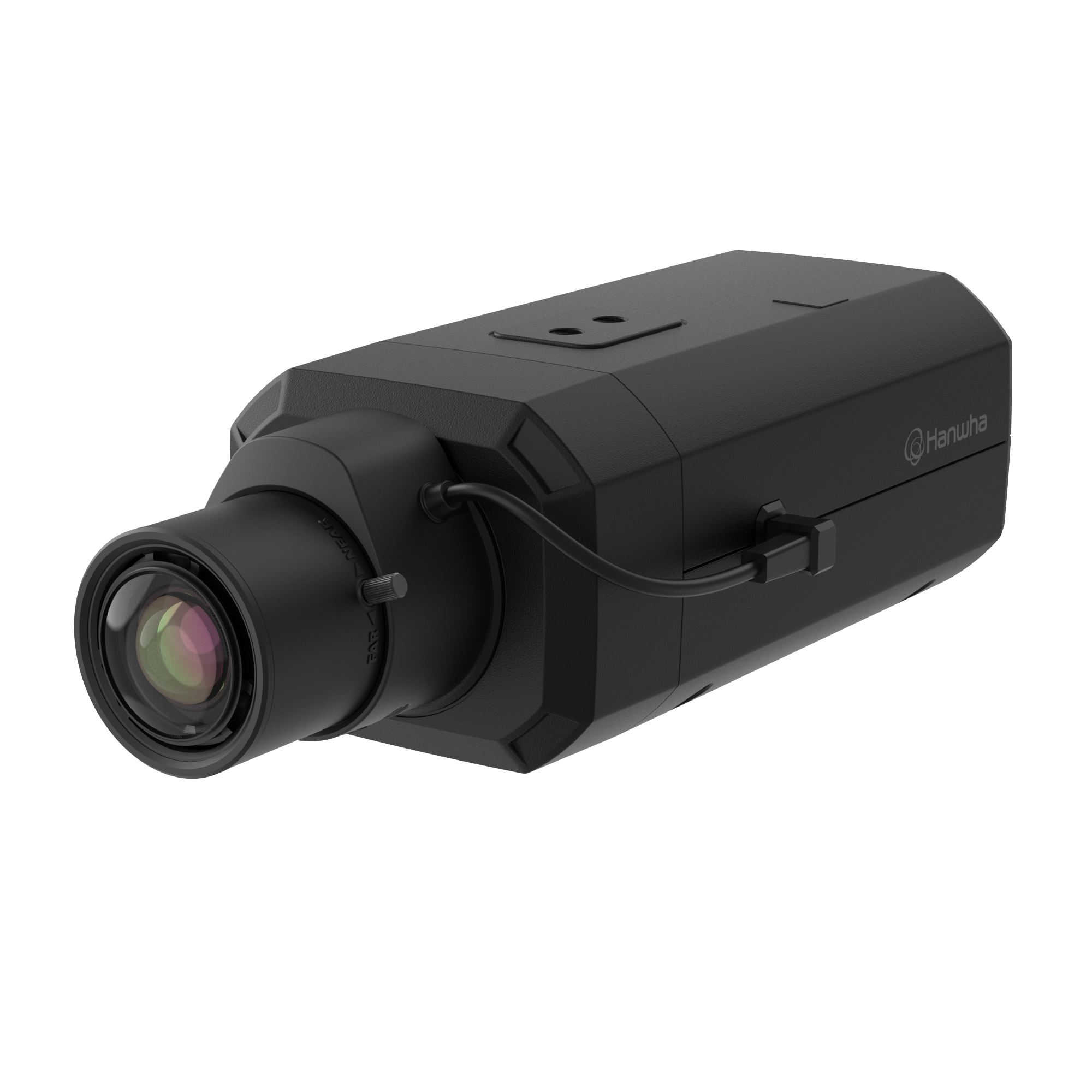

Hanwha XNB-A6004 is a 2MP AI box camera powered by Wisenet 9 with dual NPU support, delivering 1920x1080 resolution at up to 60fps (WDR off). This box camera features 150dB WDR, WiseNR II AI noise reduction, WiseStream AI-based compression, and extreme low-light sensitivity (color 0.02Lux, BW 0.002Lux). Security certifications include FIPS 140-3 Level 3 and CC EAL6+ secure element, with ONVIF Profiles S/G/T/M compliance.
Key Configuration
• 2MP (1920 × 1080) resolution at up to 60 fps (H.265/H.264 with WDR off); MJPEG up to 30 fps
• C-mount or CS-mount lens support with DC auto iris, P-iris (IR-corrected), manual, and I-CS lens compatibility; simple focus control
• PoE (IEEE 802.3af Class 3) or 12VDC power input; PoE max 7.5W (typ. 6.0W), 12VDC max 6.9W (typ. 5.6W)
• Dual microSD/SDHC/SDXC slots supporting up to 1TB per slot (2TB total) for edge storage
Key Features
Features a 1/2.8" CMOS sensor with up to 150dB WDR, AI-powered WiseNR II noise reduction, digital image stabilization, and defog support. AI analytics include object, face, vehicle, and license plate detection, along with people counting, queue management, heatmaps, crowd counting, slip-and-fall detection, and social distancing monitoring. The camera supports WiseStream AI compression, up to five streaming profiles, built-in audio, alarm I/O, and advanced cybersecurity features including secure boot, encrypted storage, MACsec, and a FIPS 140-3 Level 3 secure element. Powered by the Wisenet 9 platform with dual NPUs, it supports direct cloud connectivity and power redundancy failover.
Technical Context

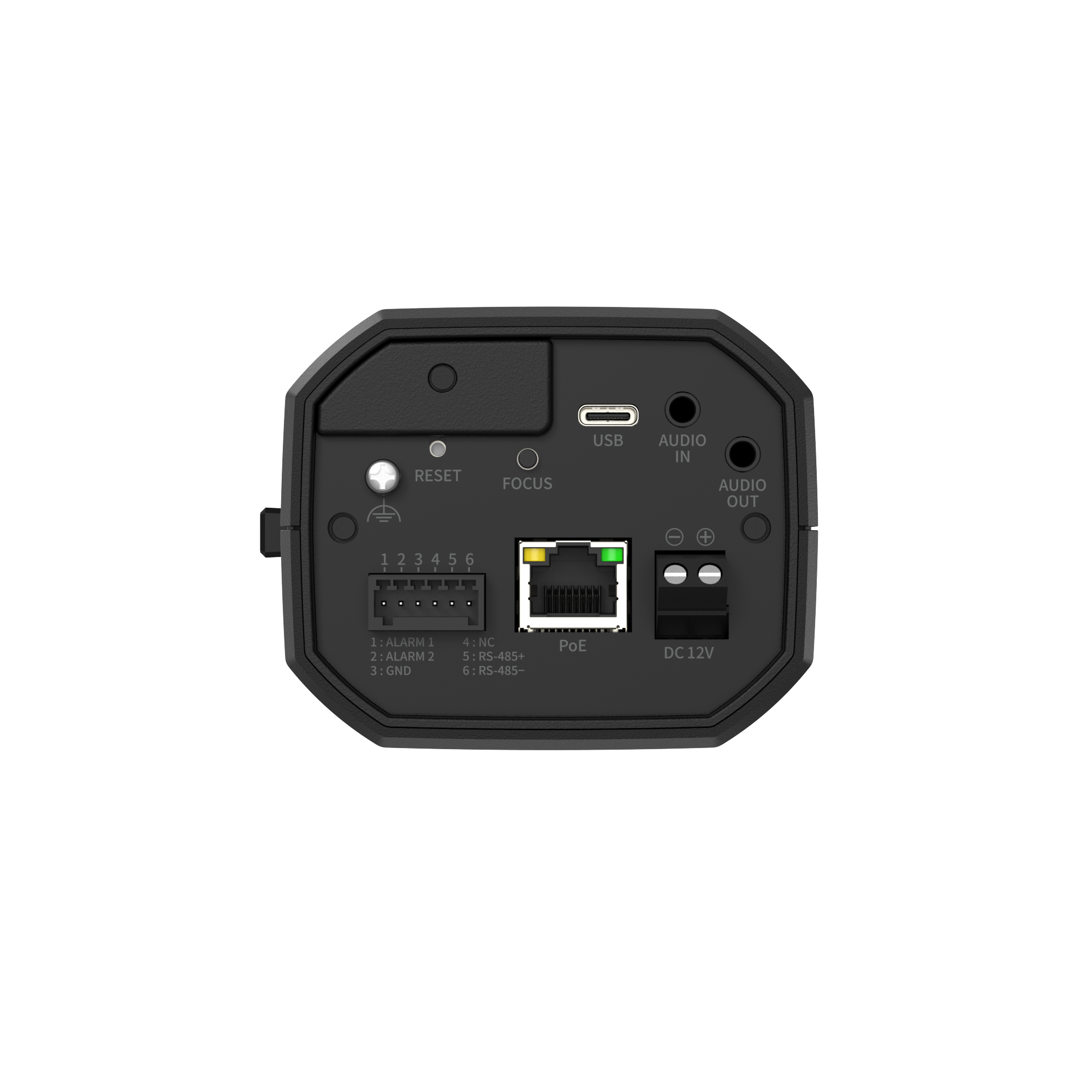

The Wisenet 9 platform with dual NPUs for advanced on-device processing and AI-optimized shutter control for improved capture of moving objects. Dynamic privacy masking can automatically obscure detected faces or license plates, while WisePower provides real-time power monitoring and Eco mode operation. The box camera supports interchangeable C-mount and CS-mount lenses for flexible deployment. A USB Type-C port is available for installation preview and setup when used with a compatible Wi-Fi dongle.
Installation Notes

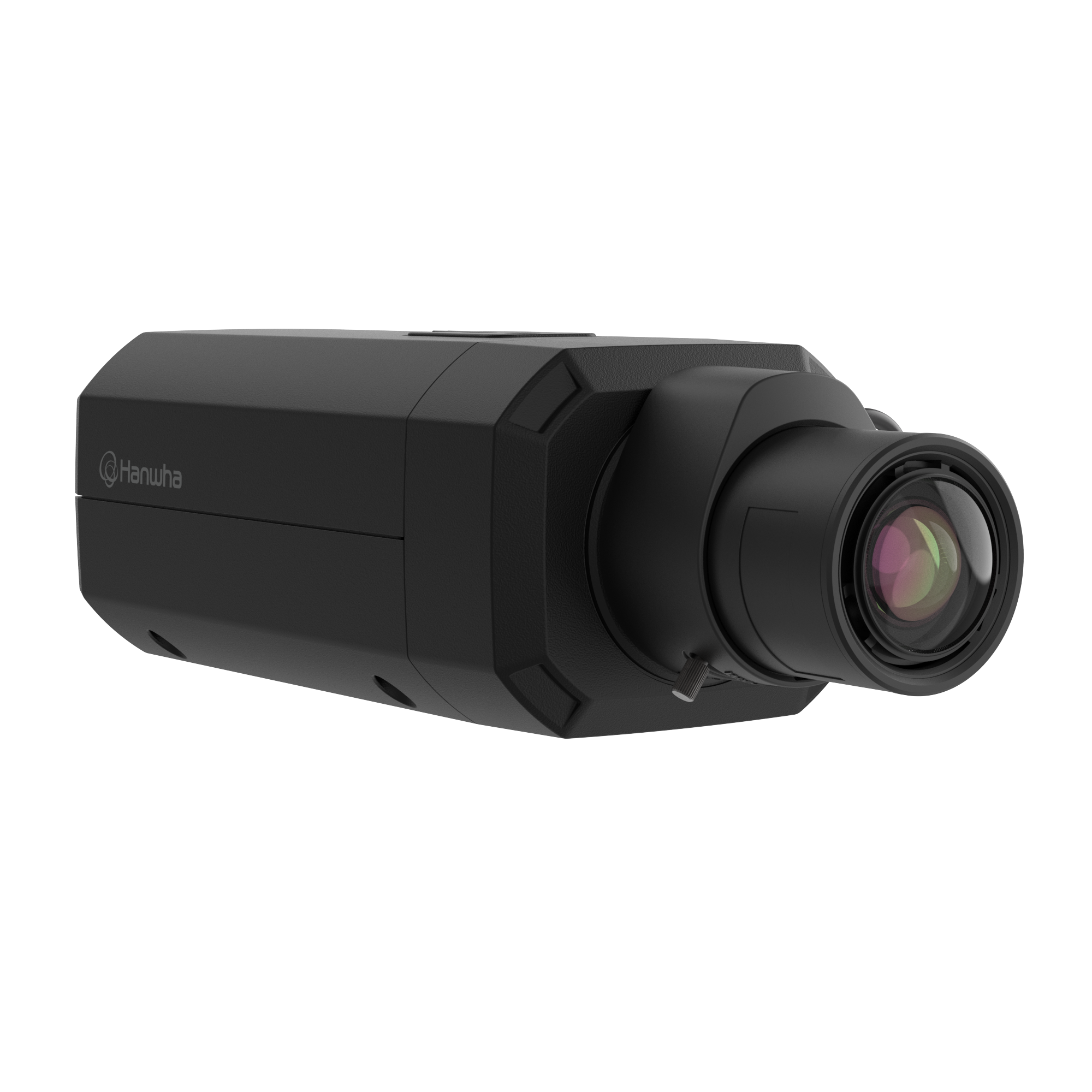

Black aluminum box camera measuring 81 × 67 × 165 mm (3.19" × 2.64" × 6.48") and weighing 851 g (1.88 lb). It operates from -10°C to +55°C with 0–95% non-condensing humidity tolerance and supports PoE (IEEE 802.3af Class 3) or 12VDC power input. The camera is supplied without a lens and supports interchangeable C-mount or CS-mount lenses.
| Video | |
|---|---|
| Imaging Device Size | 1/2.8" |
| Type | CMOS |
| Resolution | 1920x1080, 1280x960, 1280x720, 1024x768, 800x600, 640x480, 640x360, 320x240, 320x180 |
| Max. Framerate | H.265/H.264: 60fps/50fps (60Hz/50Hz) (WDR off) / 30fps/25fps (60Hz/50Hz) (WDR on) MJPEG: 30fps |
| Min. Illumination (Lux) | Color (1/30sec, 30IRE): 0.02 BW (1/30sec, 30IRE): 0.002 |
| Video Out | USB: USB Type C. Preview and installation ONLY. Requires a WiFi dongle. |
| Lens | |
| Focus Control | Simple focus |
| Lens Type | DC auto iris, P iris (IR corrected), Manual, I-CS |
| Mount Type | C mount, CS mount |
| Operational | |
| Day & Night | Auto (ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range (dB) | 150 |
| Digital Noise Reduction | WiseNRⅡ (Based on AI engine), SSNRⅤ |
| Digital Image Stabilization | Support |
| Defog | Support |
| Motion Detection | Quantity: 8ea Shape: 8point Polygonal zones |
| Privacy Masking | Quantity: 32ea Shape: 8point Polygonal zones Color / Option: Gray, Green, Red, Blue, Black, White, Mosaic, Purple, Yellow |
| Dynamic Privacy Masking Color / Option | Gray, Green, Red, Blue, Black, White, Mosaic, Purple, Yellow |
| Gain Control | Off, Max gain, Manual |
| White Balance | ATW, Narrow ATW, AWC, Manual, Indoor, Outdoor |
| LDC | Support (Fill/stretch mode) |
| Electronic Shutter Mode | Minimum, Maximum, Anti-flicker, Prefer shutter control (Based on AI engine) |
| Video Rotation | Flip, Mirror, Hallway view (90°/270°) |
| Serial Interface | RS-485 (Samsung-T, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell) |
| Alarm Interface | In/Out: 2 configurable I/O ports Others: Support extra alarm I/O via an optional I/O box |
| Alarm Triggers | Analytics, Network disconnect, Alarm input, schedule, MQTT subscription, Day/Night, Storage disruption |
| Alarm Events | File upload (image): e-mail/FTP/SFTP File upload (video clip): FTP/SFTP Notification: e-mail Recording: SD/SDHC/SDXC or NAS recording at event triggers Alarm output Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback MQTT: publication |
| Audio In | Selectable (mic in/line in), Built-in mic |
| Audio Out | Line out |
| Analytics | |
| Classified Object Type | Person, Face, Vehicle, License plate |
| Attributes (Person) | Upper/Lower clothes color, Gender, Bag |
| Attributes (Vehicle) | Type (car, bus, truck, motorcycle, bicycle), Color |
| Attributes (Face) | Age, Gender, Face mask, Glasses |
| Thumbnail | BestShot |
| Analytics Events Based on AI Engine | Object detection, Virtual line (Crossing/Direction), Motion detection, Face mask detection, Social distancing detection, Slip & fall detection, Virtual area (Loitering/Intrusion/Enter/Exit/Appear/Disappear) |
| Business Intelligence Based on an AI Engine | People counting, Queue management, Heatmap, Vehicle counting, Crowd counting |
| Network | |
| Ethernet | Metal shielded RJ-45 (10/100BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Audio Compression | G.711 (PCM): 8kHz (64kbps) G.726 (ADPCM): 8kHz (16/24/32/40kbps) AAC-LC: 16kHz (48kbps) OPUS: 48kHz (64kbps) |
| Smart Codec | WiseStream (Based on an AI engine) |
| Bitrate Control | H.265/H.264: CBR or VBR MJPEG: VBR |
| Streaming (Unicast) | Up to 20 users |
| Streaming (Multicast) | Support |
| Multiple Streaming | Up to 5 profiles, 3 virtual channel support |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT, SMTP(StartTLS), Syslog |
| Application Programming Interface | ONVIF S, G, T, M Others: SUNAPI (HTTP API), Hanwha Vision Open Platform Direct Cloud Connection Support |
| Security | |
| OS / Firmware Protect | Encrypted firmware, Secure boot, Signed firmware |
| User authentication | Digest authentication prevents brute-force attacks |
| Network authentication | IEEE 802.1X (EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) |
| Secure Communication | HTTPS, WSS (WebSocket Secure), SRTP, 802.1AE (MACsec) |
| Access Control | IP-based access control, MAC-based access control, and auto logout |
| Data Protect | Encryption credentials, Encrypt compress for live recording file export |
| Audit | Access / System / Event Log management |
| Device ID | Device certificate (Hanwha Vision Root CA) |
| Secure Storage | SDcard partition encrypt (AES-256), Secure element |
| Supply Chain Security | SBOM |
| Security Certificate | Secure element (FIPS 140-3 level3, CC EAL6+), Consumer IoT Security Standard (ETSI EN 303 645), Security Built-in Process Certification (IEC 62443-4-1) |
| General | |
| SoC Type | Wisenet 9 |
| Dual NPU | Support |
| Memory (RAM) | 4GB |
| Memory (Flash) | 8GB eMMC |
| Edge Storage | Micro SD/SDHC/SDXC Max. 1TB x 2 slot (Total 2TB) |
| Edge Storage (OnCloud) | Micro SD/SDHC/SDXC Max. 1TB x 2 slots (Total 2TB) * Hanwha Vision-branded microSD cards have been certified and recommended for OnCloud edge recording. |
| Environmental & Electrical | |
| Operating Temperature | -10°C ~ +55°C (+14°F ~ +131°F) |
| Operating Humidity | 0 ~ 95% RH (non-condensing) |
| Storage Temperature | -50°C ~ +60°C (-58°F ~ +140°F) |
| Storage Humidity | 0 ~ 90% RH (non-condensing) |
| Input Voltage | PoE (IEEE802.3af, Class3), 12VDC |
| Power Consumption | PoE: Max. 7.5W, typical 6.0W 12VDC: Max. 6.9W, typical 5.6W |
| WisePower | Power monitoring, Eco mode |
| Power Redundancy | Failover Support |
| Mechanical | |
| Color | Black |
| Material | Aluminum |
| Material Management Declaration | RoHS (EU RoHS directive 2011/65/EU and IEC/EN 63000:2018), REACH (Regulation (EC) No. 1907/2006), Conflict mineral policy (Section 1502 of the US Dodd Frank Act) |
| RAL Code | RAL9005 |
| Product Dimensions | 81(W) x 67(H) x 165(D) mm (3.19 x 2.64 x 6.48") |
| Product Weight | 851g (1.88lb) |
| Certifications & Standards | |
| EMC | FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835 |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471 |
| Environment | IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78 |
