Hanwha - XNF-9013RV - 12MP AI IR Fisheye Camera, 1.08mm Fixed Focal Lens

Product Overview

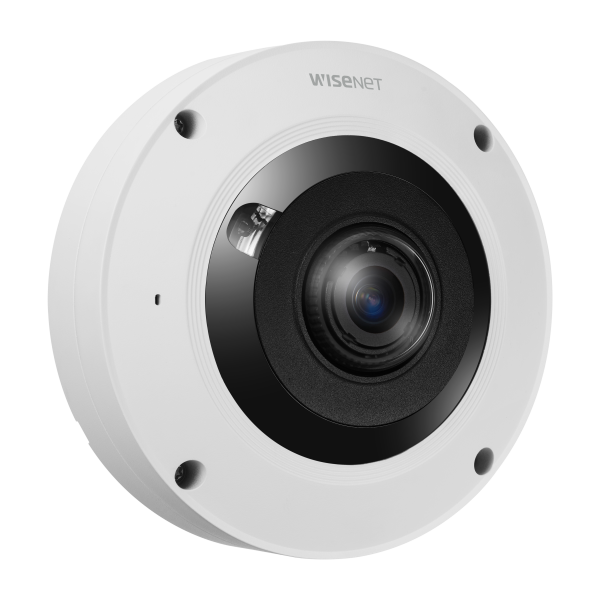

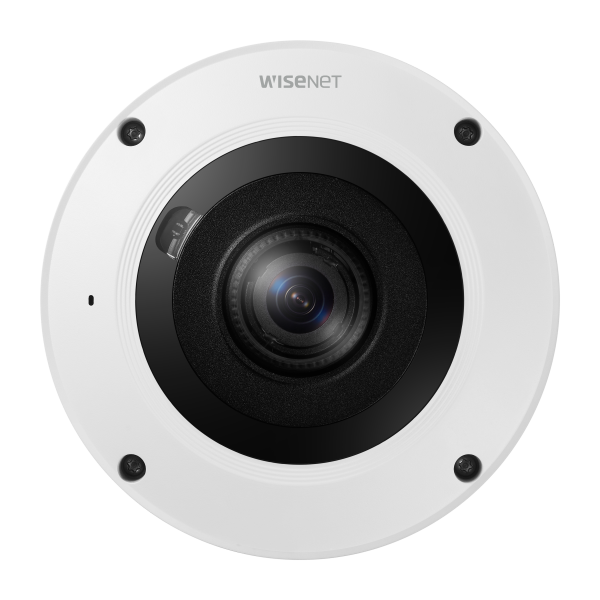

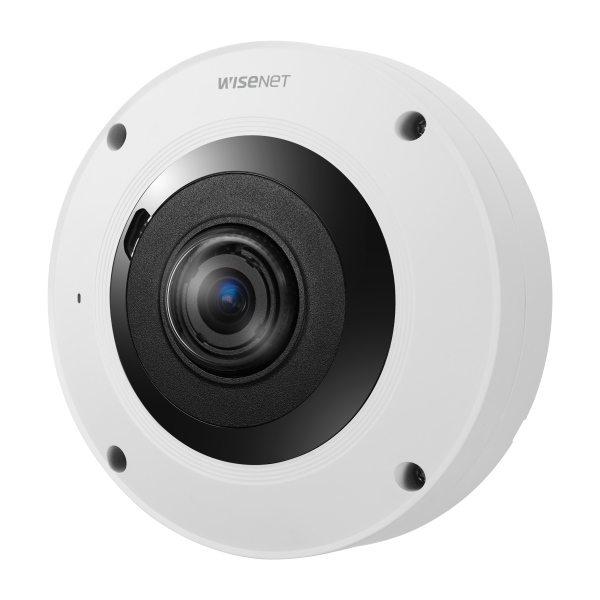

The Hanwha XNF-9013RV is a Wisenet X series outdoor fisheye camera powered by the WN7 chipset, utilizing a 1/2.3" 12MP CMOS sensor to deliver full 12MP resolution (3008×3008) at up to 30 fps. It is equipped with a 1.08mm fixed stereographic lens that provides a 187° omnidirectional field of view (FOV) in all directions. Video compression is handled via H.265, H.264, and MJPEG triple codecs.

Key Configuration

• • Imaging device: 1/2.3" 12MP CMOS; resolution: 3008×3008 (original view) at up to 30 fps
• • Lens: 1.08mm fixed stereo graphic type, F2.2; field of view: 187° horizontal, vertical, and diagonal
• • IR: WiseIR (multi-zone management); viewable length: PoE+ mode up to 13m (42.6 ft), PoE mode up to 8m (26.2 ft)
• • Dewarping modes: fisheye, single panorama (3584×896), double panorama (3584×1792), quad view (3584×2688), Q1-Q4 (1792×1344)
• • Power: PoE (IEEE 802.3af, Class 3), PoE+, or 12V DC; dimensions: Ø160 × 72 mm (6.23" × 2.84"); weight: 1,170g (2.58 lb)

Key Features

Featuring onboard dewarping for live viewing across up to 5 virtual channels, this fisheye camera includes extremeWDR (120dB), WiseNRⅡ AI noise reduction, digital PTZ, and a hard-coated dome cover. Its edge AI engine enables object classification (people, faces, vehicles, plates), virtual line/area alerts, and business intelligence (people counting, heatmaps, queue management) alongside standard defocus, fog, and audio detection. Operating on a secure OS with TPM 2.0 (FIPS 140-2) and verified firmware, the ONVIF Profiles S/G/T/M compliant unit features dual installation outputs (CVBS/micro USB), a direct-connect female shielded RJ45 port, and dual microSD slots (1TB total).

Technical Context

Offering a 0.5m minimum object distance with simple focus and AI-preferred shutter control 1/5 to 1/12,000 sec, this camera supports 8 polygonal motion detection zones and 32 polygonal privacy zones featuring color options and mosaic masking. It accommodates up to 10 streaming profiles for up to 20 unicast users or unlimited multicast users over standard network protocols. Operating on a 4096MB RAM and 512MB Flash platform, the hardware carries IP66, IK10, and NEMA4X environmental and vandal-resistance ratings.

Installation Notes

Measuring Ø160 × 72 mm and weighing 1,170g, this outdoor fisheye features a white aluminum chassis with a hard-coated dome cover. It operates from -40°C to 60°C (with a PoE+ mode IR hysteresis limit at 55°C) and stores from -50°C to 60°C under 95% RH. Driven by PoE Class 3, PoE+, or 12V DC, the unit includes a direct-connect female shielded RJ45 port, dual installation outputs CVBS and USB, dual 512GB microSD slots, and compatibility with the SBP-167HMW hanging mount and SBC-160BF skin cover.
