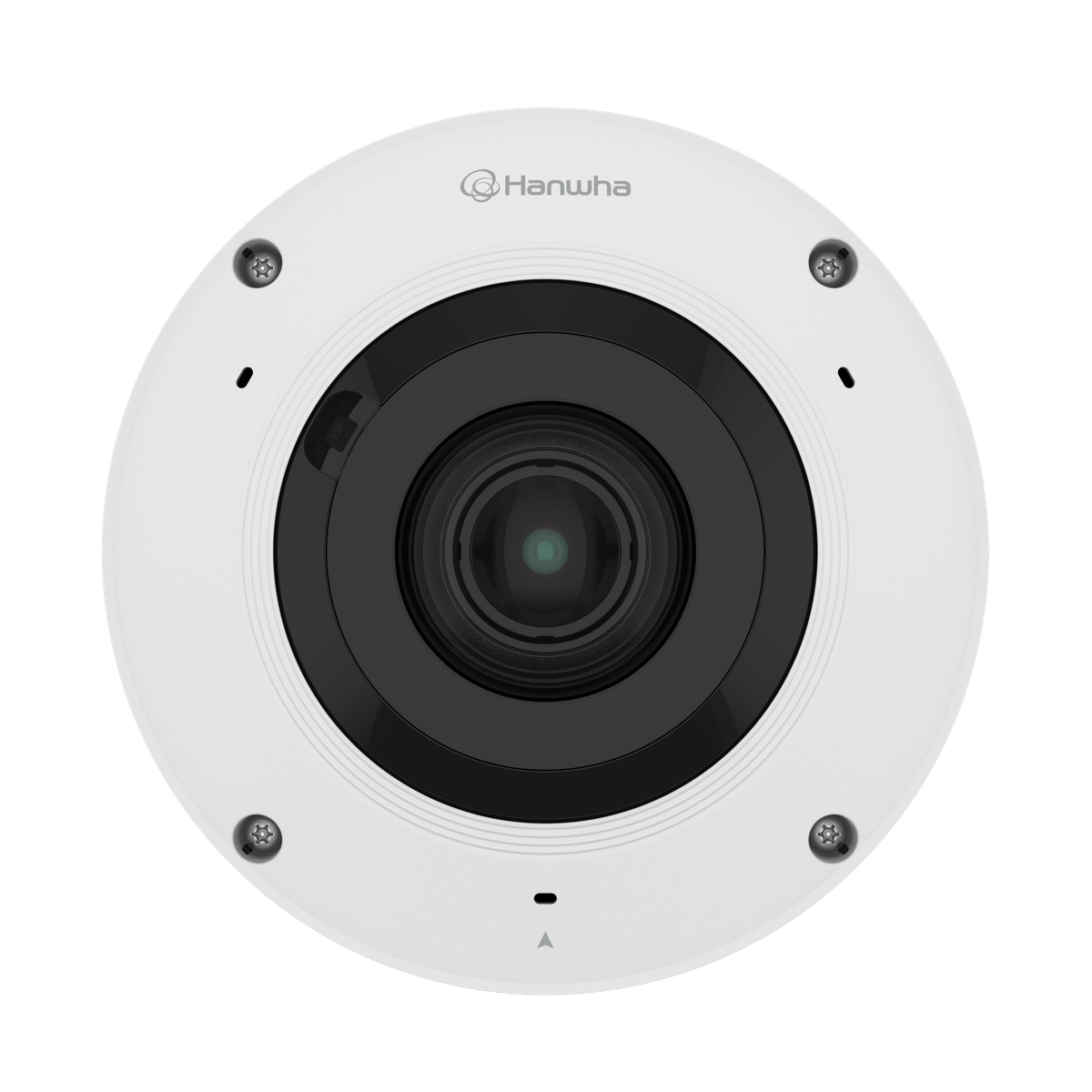

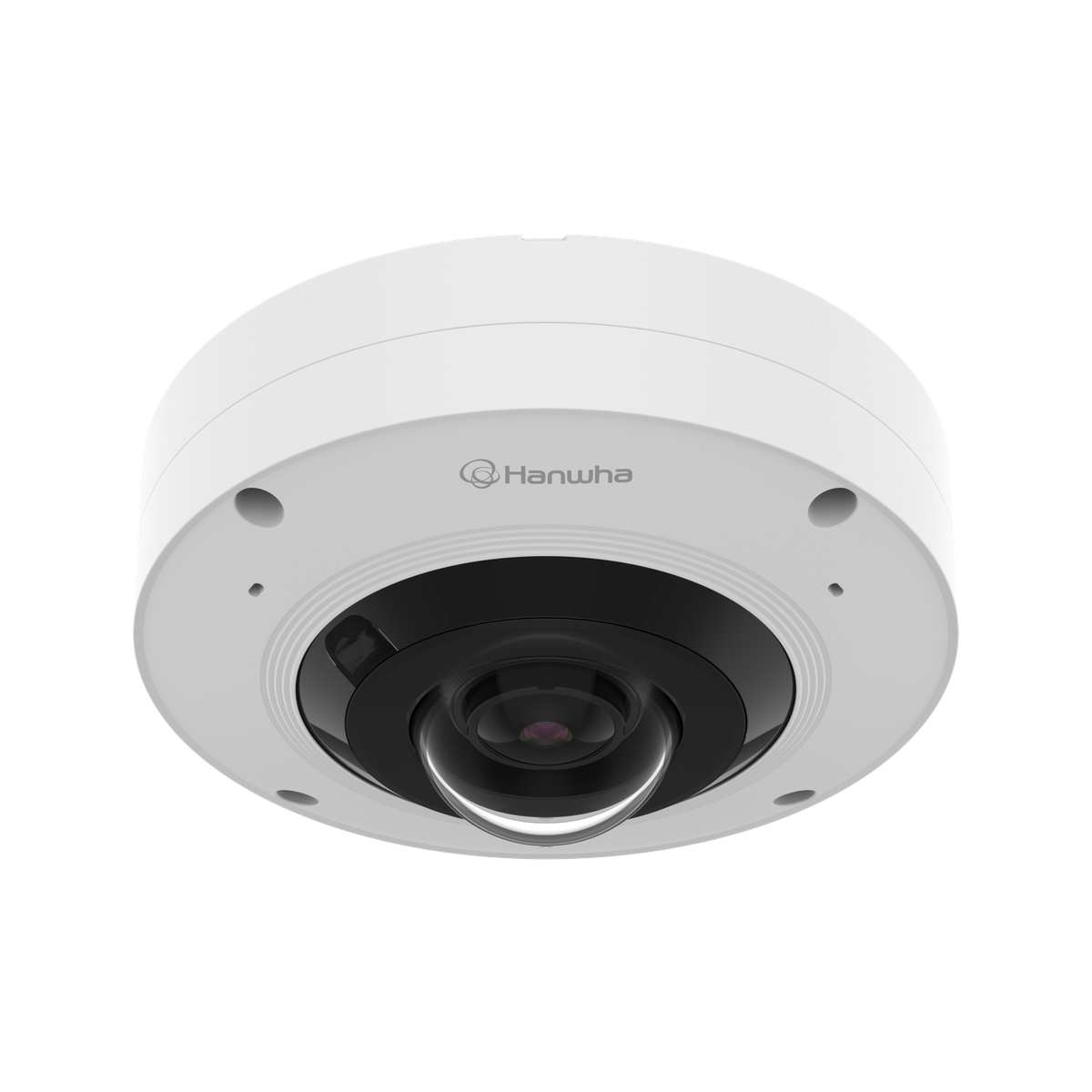

Hanwha - XNF-A9014RV - 12MP AI IR Fisheye Camera

Product Overview

The Hanwha Vision XNF-A9014RV is a rugged 12MP AI fisheye camera featuring a 1/1.6" CMOS sensor and a 1.76mm lens that delivers ultra-high 3536×3536 resolution with a full 185° field of view. Built for harsh environments with IP66 and IK10 ratings, it provides clear imagery in total darkness via 20m WiseIR and utilizes a dual NPU for AI-driven image enhancement and advanced analytics. This powerful unit identifies specific color attributes through BestShot technology and offers comprehensive business intelligence, including people/vehicle/crowd counting, queue management, and heatmaps for superior situational awareness.

Configuration

• • Imaging device: 1/1.6" CMOS; resolution options up to 3536×3536 (12MP)
• • Lens: 1.76mm fixed, F1.8; 185° horizontal, vertical, and diagonal field of view
• • IR wavelength: 850nm; WiseIR viewable length: up to 20m (65.61ft)
• • Max framerate: 30 fps (H.265/H.264), 5 fps (MJPEG); max 20 fps in PoE mode
• • Edge storage: Micro SD/SDHC/SDXC ×1 slot, max 1TB (Hanwha Vision branded cards recommended for OnCloud)

Features

It features exceptional low-light sensitivity at 0.02 lux in color and utilizes a dual NPU for AI-driven image enhancement, 120dB WDR, and Digital Image Stabilization. Its advanced AI identifies subjects by clothing and vehicle attributes via BestShot, while simultaneously providing business intelligence through people counting, heatmaps, and queue management. With three built-in microphones, two configurable I/O ports, and comprehensive analytics for intrusion and loitering, this camera delivers high-resolution security and actionable operational data in a single, robust unit.

Technical Context

Built on the Wisenet 9 SoC with 4GB RAM and 8GB eMMC, this camera utilizes H.265/H.264 compression and AI-based WiseStream to optimize bandwidth for up to 5 streaming profiles. It supports an extensive array of protocols, including MQTT and IPv6, alongside ONVIF Profiles S, G, T, and M for broad compatibility. Security is enterprise-grade, featuring encrypted firmware, secure boot, and a FIPS 140-3 Level 3 secure element, while also offering direct cloud connection and multiple audio compression options like Opus and AAC-LC.

Installation Notes

It is a ruggedized aluminum camera with IP66, IK10, and NEMA 4X ratings, engineered to operate in extreme environments from -40°C to +55°C. It features a white RAL9003 finish, weighs 2.25 lbs, and is certified for specialized use in railway applications (EN 50155) and traffic systems. The unit supports versatile power options via PoE, PoE+, or 12VDC with redundancy failover and WisePower monitoring, and it easily mounts to various standard gang boxes. Designed for reliability, it includes digital PTZ/rotation and maintains performance in high humidity, though the IR illuminator automatically adjusts in extreme heat to protect the system.
