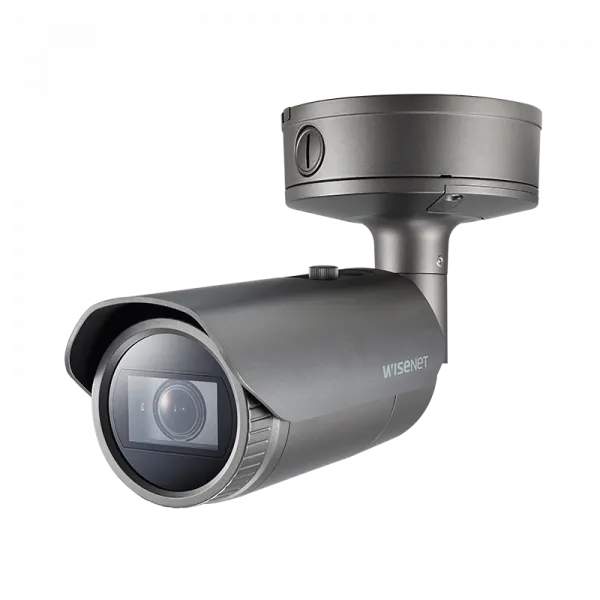

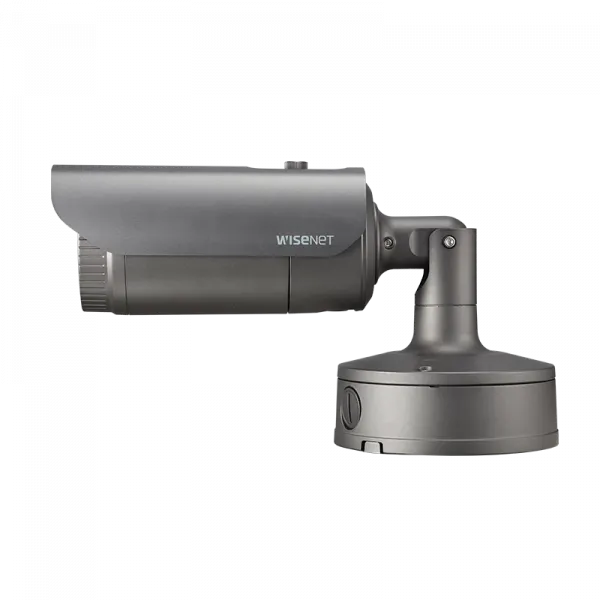

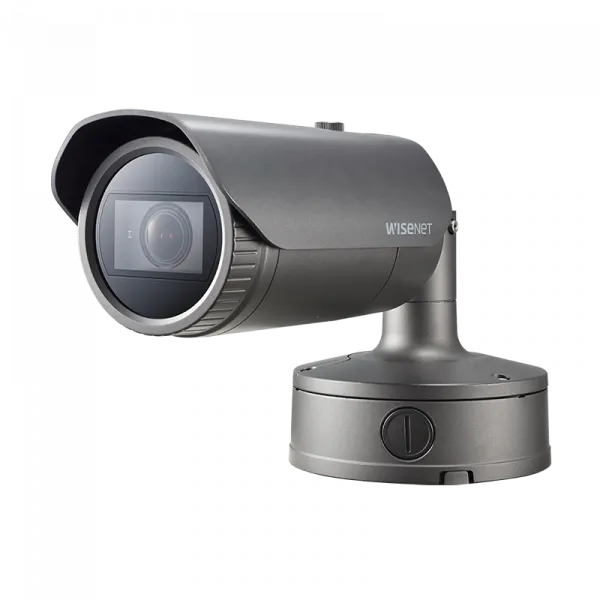

Hanwha - XNO-9082R - 4K Network IR Bullet Camera

Product Overview

Hanwha XNO-9082R is a Wisenet 7 X series 4K network IR bullet camera featuring a 1/2.8" CMOS sensor and a 2.8–8.4mm motorized varifocal lens that offers an F1.2–F2.8 aperture range and a 114° to 40.2° horizontal field of view. It delivers full 4K resolution at up to 30 fps using H.265, H.264, and MJPEG compression methods enhanced by WiseStreamⅡ technology. Specialized imaging capabilities include extreme WDR at 120dB for clarity in mixed lighting.

Key Configuration

• • Imaging device: 1/2.8" CMOS; resolution: 3840×2160 (4K) at up to 30 fps (H.265/H.264)
• • Lens: 2.8~8.4mm motorized varifocal (3x), F1.2(W)–F2.8(T), DC auto iris/P-iris; horizontal FOV: 114°(W)–40.2°(T)
• • IR viewable length: 40m (131 ft); minimum illumination: color 0.05 lux, 0 lux with IR
• • Power: PoE (IEEE 802.3af), 12VDC, or 24VAC with power redundancy failover; PoE max 12.95W / typical 10.5W
• • Dimensions: Ø91 × 368.6 mm (Ø3.85" × 14.51"); weight: 2.2 kg (4.85 lb)

Key Features

Features extremeWDR, SSNRⅤ noise reduction, gyro-stabilized DIS, defog, lens distortion correction, hallway view, and 4GB RAM/512MB Flash. Edge intelligence provides defocus, directional, shock, and tampering alerts, 8 motion zones, digital auto tracking, face/upper body detection, audio classification, behavioral events, and business tracking for people counting, queues, and heatmaps. Hardware options integrate two-way audio with playback, two alarm ports, dual microSD slots for 512GB total storage, CVBS or micro USB installation video outputs, ONVIF S/G/T compliance, and UL CAP cybersecurity defenses covering HTTPS, IP filtering, 802.1X, and device certificates.

Technical Context

Maintains a 0.7m (2.23 ft) minimum object distance with simple focus and a 1/5 to 1/12,000 second shutter speed with anti-flicker options. Visual privacy settings support 32 polygonal masking zones with selectable colors and mosaic effects. Dual-stack network streaming handles 20 unicast users, multicast, and 10 profiles across standard protocols like SRTP, HTTPS, and LLDP. Heavy-duty environmental shielding carries NEMA4X, IK10 vandal resistance, and dual IP66/IP67 weatherproofing certifications.

Installation Notes

Measures Ø91 × 368.6 mm (Ø3.85" × 14.51") and weighs 2.2 kg (4.85 lb) inside a dark grey aluminum bullet housing built for extreme outdoor conditions. Environmental defenses support a -50°C to +60°C (-58°F to 140°F) operating and storage range with start-up required above -30°C under 95% non-condensing relative humidity. Triple power inputs run on PoE, 12VDC, or 24VAC with automatic power redundancy failover protection. Hardware interfaces provide dual CVBS and USB installation video outputs, two microSD slots for 512GB total edge storage, dedicated audio and alarm I/O ports, hallway view support, and lens distortion correction.
