Hanwha - XNO-9083R - 4K Outdoor Network AI IR Bullet Camera with 4.4~9.3mm Lens

Product Overview

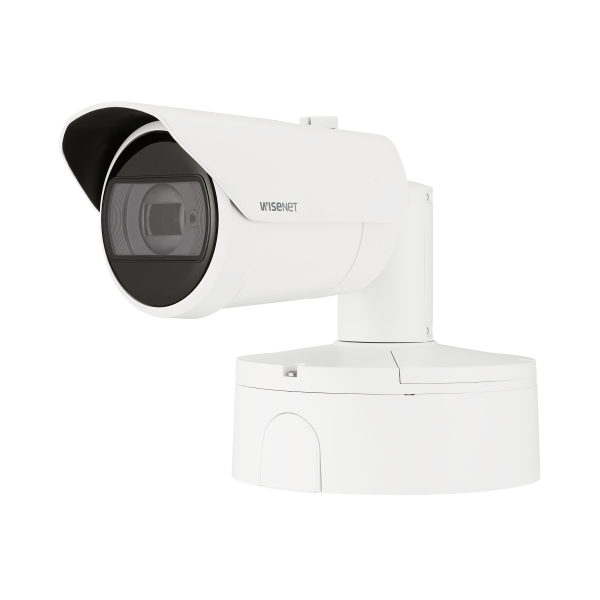

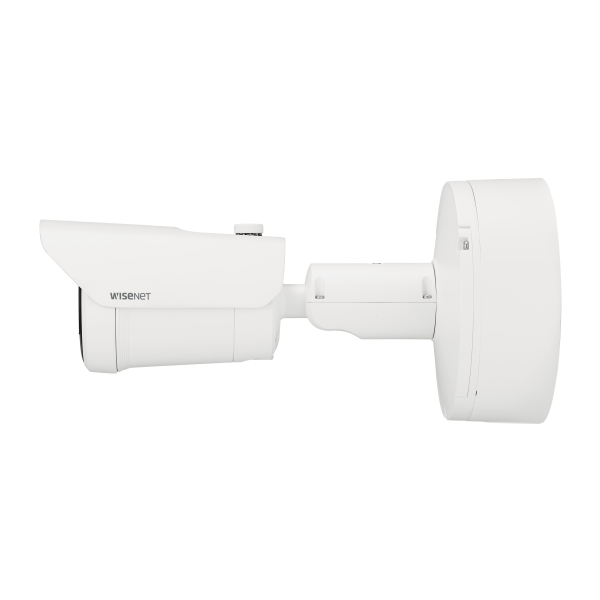

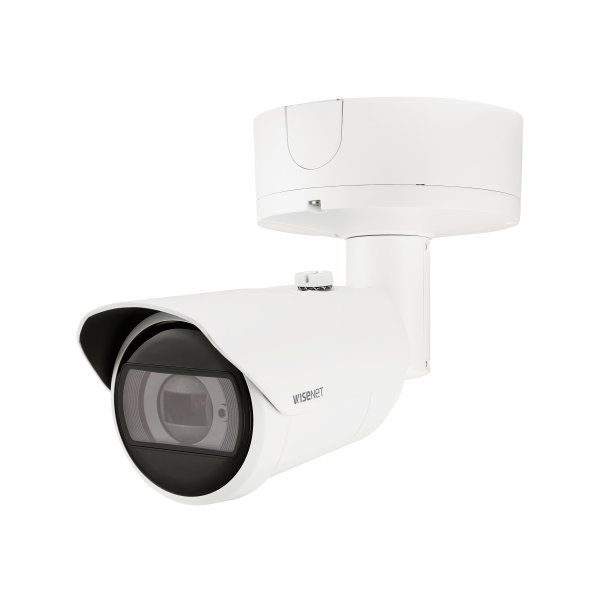

The Hanwha XNO-9083R is a 4K outdoor AI bullet camera from the WN7 X-Plus series, delivering up to 3840×2160 resolution at 30 fps. It features a 2.1× motorized varifocal lens (4.4–9.3 mm) with a 112.1°–47.5° horizontal field of view for flexible coverage. Includes 120dB extreme WDR and up to 50 m WiseIR illumination for clear low-light performance. H.265/H.264/MJPEG compression with WiseStream III and AI-based WiseNR II helps optimize bandwidth and improve image quality.

Key Configuration

• 4K (3840x2160) resolution at 30fps maximum frame rate (H.265/H.264); MJPEG limited to 15fps
• 4.4~9.3mm motorized vari-focal lens, 2.1x zoom, F1.3~F2.15 aperture, H: 112.1°~47.5° FOV
• PoE+ (IEEE802.3at, Class4) or 12VDC input; PoE+: max 22.5W / typical 17.9W; 12VDC: max 20.0W / typical 15.6W; power redundancy failover
• Dual micro SD/SDHC/SDXC slots supporting up to 1TB total (512GB x2) edge storage

Key Features

4K AI bullet camera with a 1/1.8" CMOS sensor, 120dB extreme WDR, and 50 m WiseIR illumination for high-quality low-light surveillance. It includes AI-based WiseNR II noise reduction, gyro-based image stabilization, defog, LDC, and hallway view support. AI analytics detect people, faces, vehicles, and license plates, with features including intrusion, loitering, virtual line/area, motion, heatmap, people counting, and queue management. The camera supports up to 10 streaming profiles, WiseStream II/III compression, audio/alarm I/O, CVBS and USB setup outputs, and enterprise-grade security with TPM 2.0, secure boot, encryption, and 802.1X authentication. Certified IP66, IP67, NEMA4X, and IK10.

Technical Context

The WN7 AI 4K bullet camera with on-device analytics (person, face, vehicle, license plate). WiseStream III optimizes bandwidth using object-aware compression, while WiseNR II improves low-light image quality. It includes gyro-based stabilization, AI shutter control, and a P-iris lens for precise exposure and sharpness. The camera supports up to 10 streams, 20 users, multicast, dual SD redundancy, and PoE+/12V failover. Security features include TPM 2.0 (FIPS 140-2 Level 2). DORI ranges from 51.7–174.5 m (detection) and 5.2–17.5 m (identification). Hard-coated windows improve durability against wear and the environment.

Installation Notes

White aluminum bullet camera with hard-coated window, measuring Ø93.4 × 298.4 mm and weighing 2.2 kg. It supports operation from −50°C to +60°C (startup above −30°C) with NEMA TS-2 rating up to 74°C and humidity control via GORE vent (less than 95% RH). Power options include PoE+ (IEEE 802.3at Class 4) or 12V DC. Installation is flexible with 3/4" (M25) conduit support, gangbox compatibility (single/double/4" square/octagon), and CVBS + USB ports for on-site setup and focus adjustment.
