Hanwha - XNO-C9083R - 4K Outdoor Network AI IR Bullet Camera with 4.4~9.3mm Lens

Product Overview

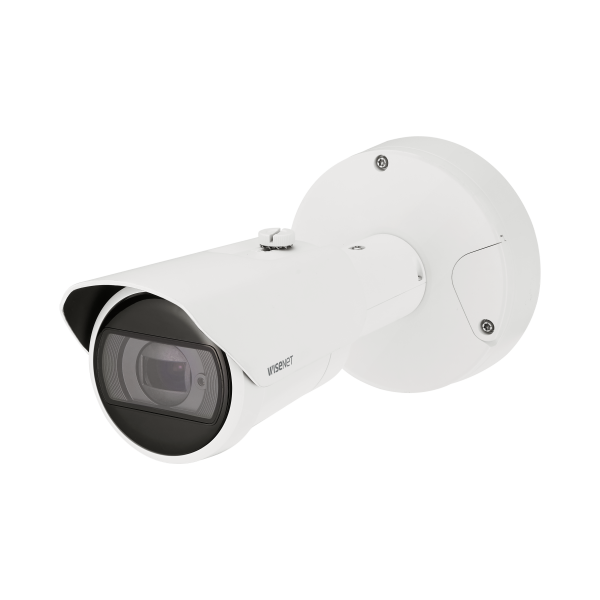

The Hanwha XNO-C9083R is an outdoor 4K AI-powered IR bullet camera featuring a 1/1.8" progressive CMOS sensor and a 2.1x motorized varifocal P-iris lens (4.4–9.3mm, F1.3–F2.15) with a 112.1°–47.5° horizontal field of view. It delivers 3840×2160 resolution at up to 30 fps using H.265/H.264/MJPEG compression with WN7 AI processing.


Key Configuration

• • Imaging device: 1/1.8" progressive CMOS; resolution: 3840×2160 (4K) at up to 30 fps (H.265/H.264)
• • Lens: 4.4~9.3mm motorized varifocal (2.1x), P-iris (IR corrected), F1.3(W)–F2.15(T); horizontal FOV: 112.1°(W)–47.5°(T)
• • IR viewable length: WiseIR 40m (131 ft); minimum illumination: color 0.04 lux, B/W 0.004 lux, 0 lux with IR
• • Power: PoE (IEEE 802.3af, Class 3) or 12V DC; PoE max 12.95W / typical 11.2W
• • Dimensions: Ø93.4 × 276.6 mm (Ø3.68" × 10.89"); weight: 1640g (3.62 lb)

Key Features

Supports 120dB WDR with WiseNRⅡ and SSNRⅤ noise reduction, DIS with gyro stabilization, defog, and LDC. AI-based analytics include object detection (person, face, vehicle, license plate), vehicle classification, and DetectionShot, as well as IVA functions such as virtual line crossing, intrusion, loitering, and area-based detection. Additional features include motion, tampering, fog, audio, and shock detection, plus 32-zone privacy masking with multiple color options. It supports microSD storage up to 512GB, ONVIF Profiles S/G/T compatibility, and advanced security with secure boot, TPM, encrypted authentication, and UL 2900-1 cybersecurity compliance.

Technical Context

Supports simple and manual focus with a minimum object distance of 0.5 m and electronic shutter speeds from 2 to 1/12,000 sec with AI-based shutter optimization. Networking includes IPv4/IPv6, RTSP, HTTPS, SRTP, SNMPv3, QoS, LLDP, and other standard protocols, with up to 20 unicast users, multicast support, and up to 10 streaming profiles with 3 virtual channels. The device is rated IP66, IP67, IK10, and NEMA4X for outdoor and vandal resistance, with compatibility for SBO-147BA conduit accessories and multiple gang box types for flexible installation.

Installation Notes

Built with a white aluminum + PC housing and hard-coated window, the camera measures Ø93.4 × 276.6 mm and weighs 1.64 kg. It operates from -40°C to +55°C (up to +60°C intermittent, 74°C under NEMA TS-2) with humidity tolerance up to 95% non-condensing using a GORE vent. Powered via PoE (IEEE 802.3af Class 3) or 12V DC, it supports microSD storage up to 512GB and USB micro-B for installation. Audio output is available (no audio input specified), with UL CAP cybersecurity certification and compatibility with SBO-147BA conduit and standard gang boxes.
