Hanwha - XNP-6120H - 2MP Outdoor Mini PTZ Camera

Product Overview

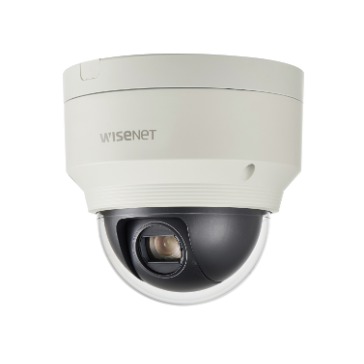

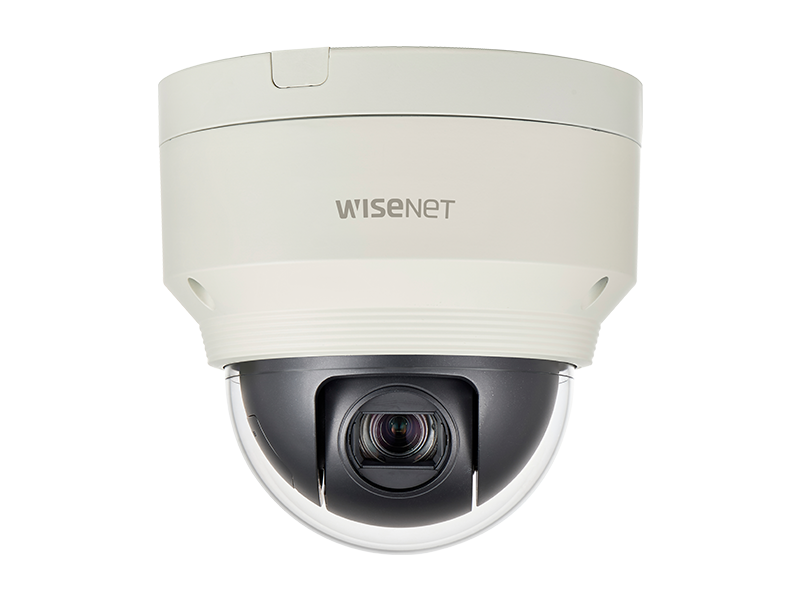

The Hanwha XNP-6120H is a Wisenet X series 2MP outdoor mini PTZ camera featuring a 1/2.8" CMOS sensor and a 5.2–62.4mm (12x) optical zoom lens, providing a 54.58° to 5.30° horizontal field of view. It delivers 1080p video at up to 60 fps using H.265/H.264/MJPEG compression and WiseStream II technology, while its PTZ mechanism supports a 360° endless pan and a -5° to 185° tilt range.

Key Configuration

• • Imaging device: 1/2.8" 2.16MP CMOS; resolution: 1920×1080 (1080p) at up to 60 fps
• • Lens: 5.2~62.4mm (12x optical zoom), F1.6(W)–F3.0(T); horizontal FOV: 54.58°(W)–5.30°(T)
• • PTZ: pan 360° endless (preset 350°/sec, manual 0.024–200°/sec); tilt -5° to 185° (preset 350°/sec, manual 0.024–200°/sec)
• • Minimum illumination: color 0.03 lux (1/30 sec, F1.6, 30IRE), B/W 0.003 lux, 0 lux with IR (IR not specified)
• • Power: 12V DC or PoE (class not specified); dimensions: Ø168 × 161.5 mm (6.61" × 6.36"); weight: 1.9 kg (4.19 lb)

Key Features

This camera features 150dB WDR, SSNR V noise reduction, and gyro-stabilized DIS. Analytics include loitering, virtual line, directional detection, sound classification, fog detection, and auto-tracking. It supports up to 512GB via one microSD slot, 1/1 alarm I/O, two-way audio, and CVBS/USB installation outputs. Built with an RS-485 interface supporting major protocols, it stores 300 presets (±0.2° accuracy) with multiple sequence modes and is ONVIF Profiles S/G conformant.

Technical Context

With a minimum object distance of 1.5m (wide) to 2.0m (tele), this camera features auto, manual, or one-shot autofocus and an electronic shutter speed of 2 to 1/12,000 sec with anti-flicker. It supports 24 rectangular privacy zones, 8 polygonal motion zones, and up to 10 streaming profiles. Operating across standard network protocols (including IPv4/IPv6, PIM-SM, and HTTPS/SSL), the unit incorporates IP filtering, 802.1X authentication, and user access logs, backed by robust IP66 and IK10 environmental certifications.

Installation Notes

Measuring Ø168 × 161.5 mm and weighing 1.9 kg, this ivory aluminum unit features IP66 weather-resistant and IK10 vandal-resistant protection ratings. It operates from -30°C to +55°C under 90% RH (storing down to +60°C) and can be powered via 12V DC or standard PoE. It provides audio and alarm I/O, an RS-485 interface for PTZ control, and dual CVBS and USB video outputs for installation setup. Low-light performance relies entirely on sensor sensitivity, as no built-in IR is specified.
