Hanwha - XNP-C8253R - 6MP 25x AI PTZ Camera, 5mm~125mm Lens

Product Overview

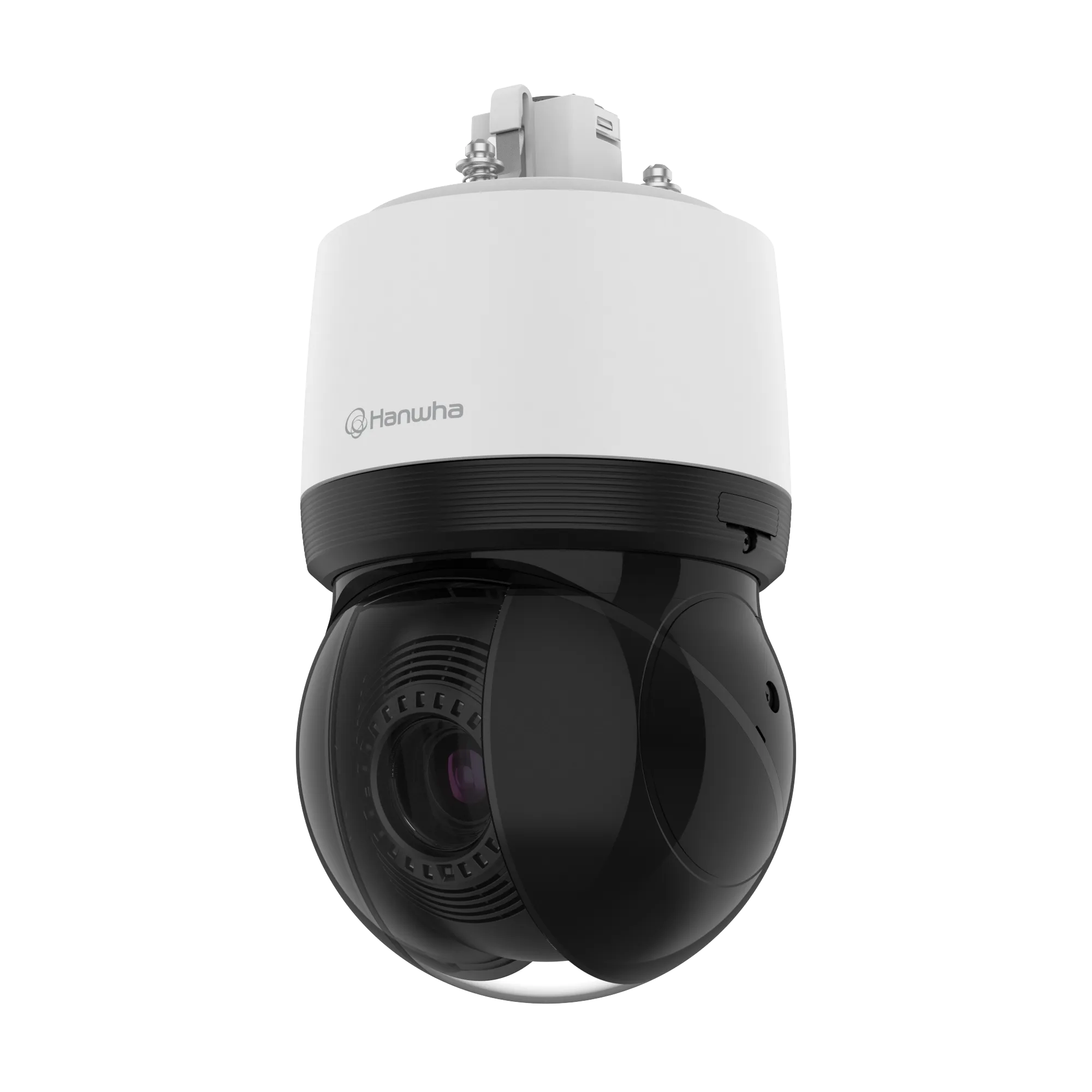

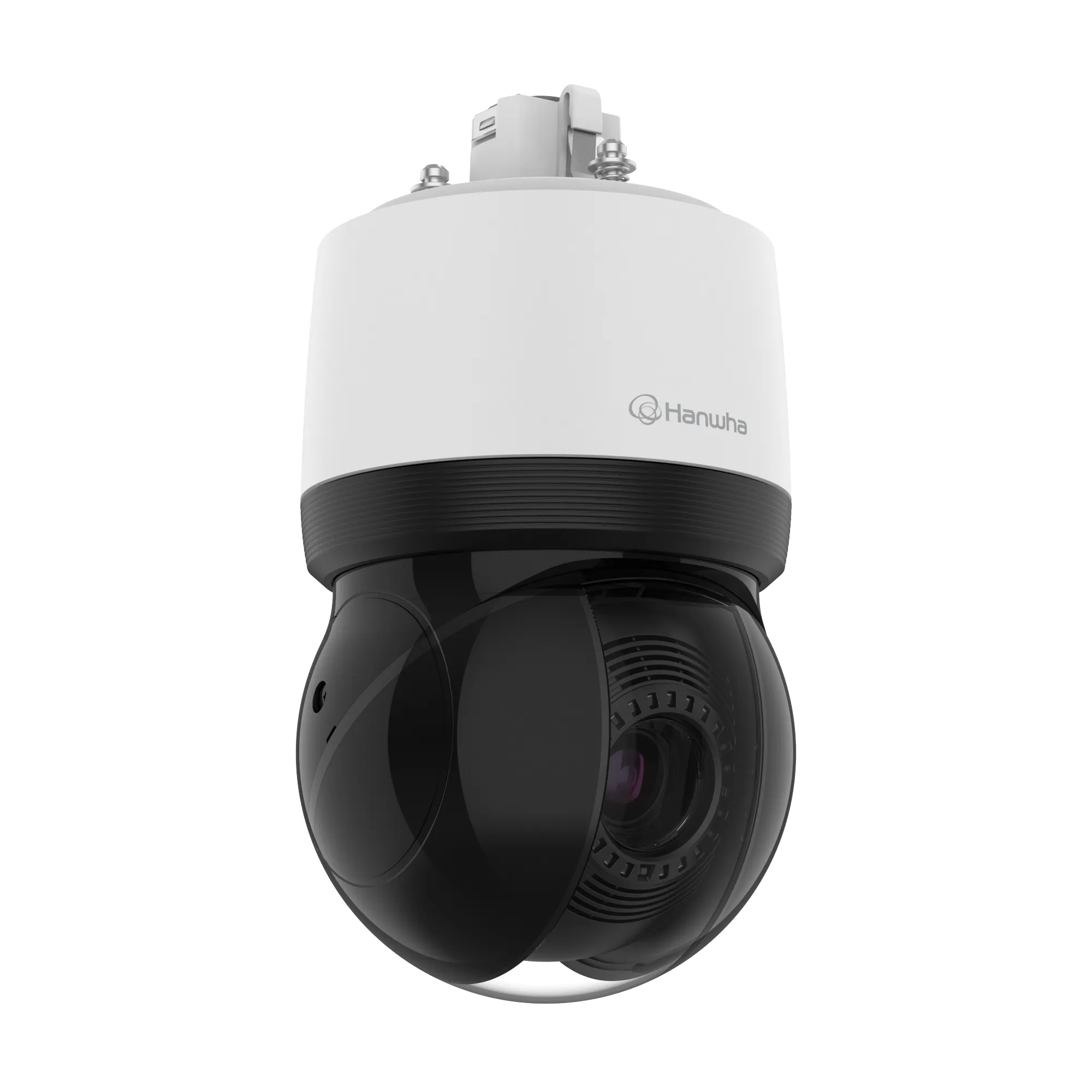

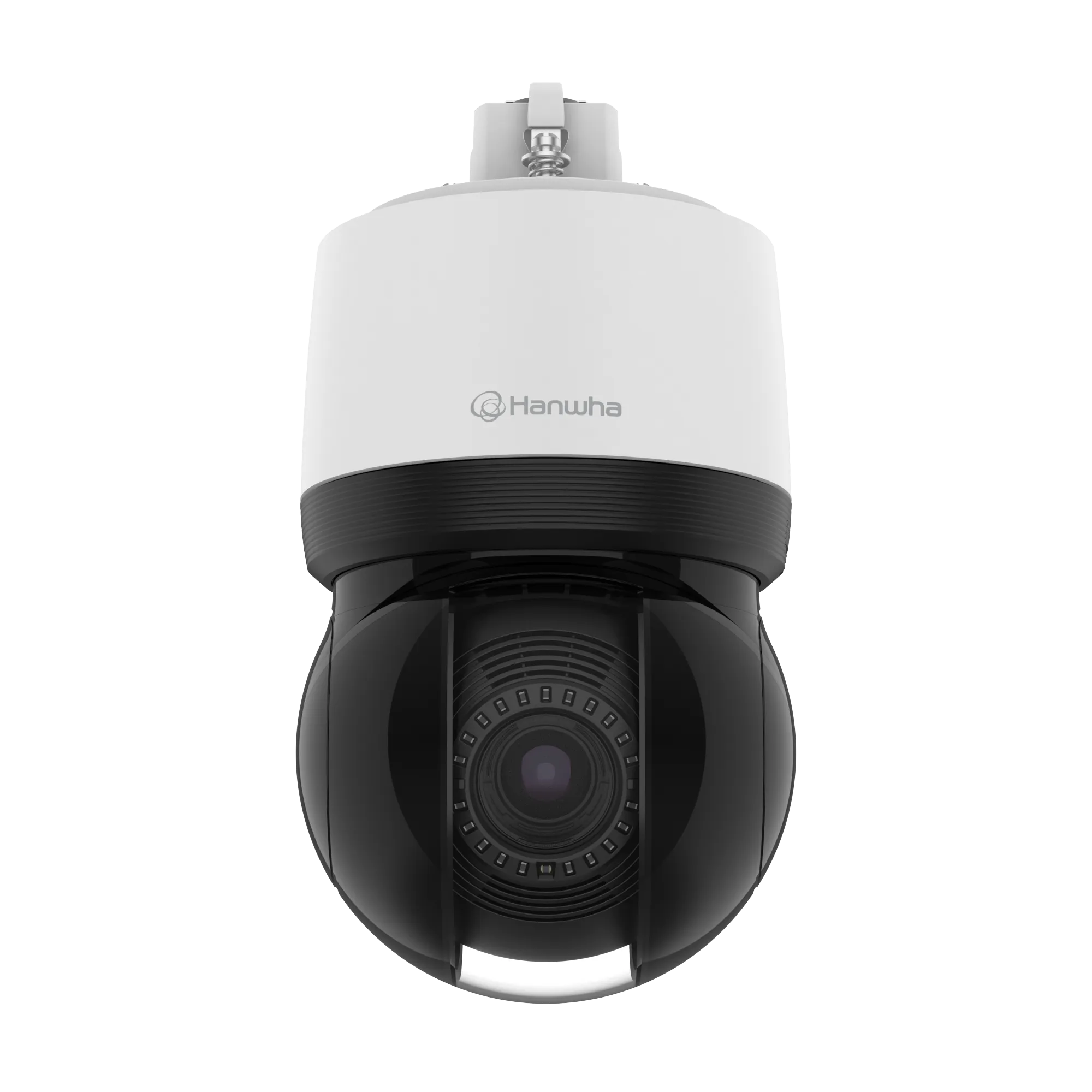

The XNP-C8253R is an outdoor, vandal-resistant PTZ Plus camera featuring an AI-driven design that pairs a 1/2.8" CMOS sensor with a powerful 25x optical zoom lens. It delivers up to a 6MP resolution at 30 fps, utilizing H.265/H.264/MJPEG compression alongside WiseStream III bandwidth optimization.

Key Configuration

• • Imaging device: 1/2.8" CMOS; resolution: up to 3328×1872 (6MP) at 30 fps (H.265/H.264), 5 fps (MJPEG at 6MP)
• • Lens: 5~125mm (25x optical zoom), F1.6(W)–F3.73(T); horizontal FOV: 57.42°(W)–2.71°(T); digital zoom 32x
• • IR viewable length: adaptive Wise IR up to 200m (656 ft); minimum illumination: color 0.1 lux, 0 lux with IR
• • PTZ: pan 360° endless (max 700°/sec, manual 0.024–250°/sec); tilt -20° to 90° (max 500°/sec, manual 0.024–250°/sec)
• • Power: PoE++ (IEEE 802.3bt, Class6, Type3, injector included); typical 24W, max 40W

Key Features

Equipped with 120dB extremeWDR, WiseNR II AI noise reduction, and gyro-stabilized DIS, this camera features a lens heater and a spin-dry water removal system. It uses edge AI to track and classify objects (people, faces, vehicles, plates) alongside standard IVA analytics, supporting up to 300 precise presets and advanced guard tour sequences. Hardened by a hardware-based TPM 2.0 module, it features 1TB of dual-slot microSD storage and ensures broad interoperability via ONVIF Profiles S, G, T, and M.

Technical Context

Featuring a DC auto-iris lens with a 5m minimum object distance, this PTZ provides Oneshot AF, Focus Save, and an AI-optimized electronic shutter. Operating on a 4GB RAM and 512MB Flash architecture, it delivers up to 10 streaming profiles to 20 unicast and 128 multicast users across a deep networking suite that supports MQTT and NTCIP 1205. Cyber protection is highly advanced, utilizing secure boot, encrypted firmware, SD card partition encryption, and a hardware TPM. The unit also features 32 privacy masks and 8 motion zones, completely enclosed in an IP66/IK10/NEMA4X and NEMA-TS 2 rated housing.

Installation Notes

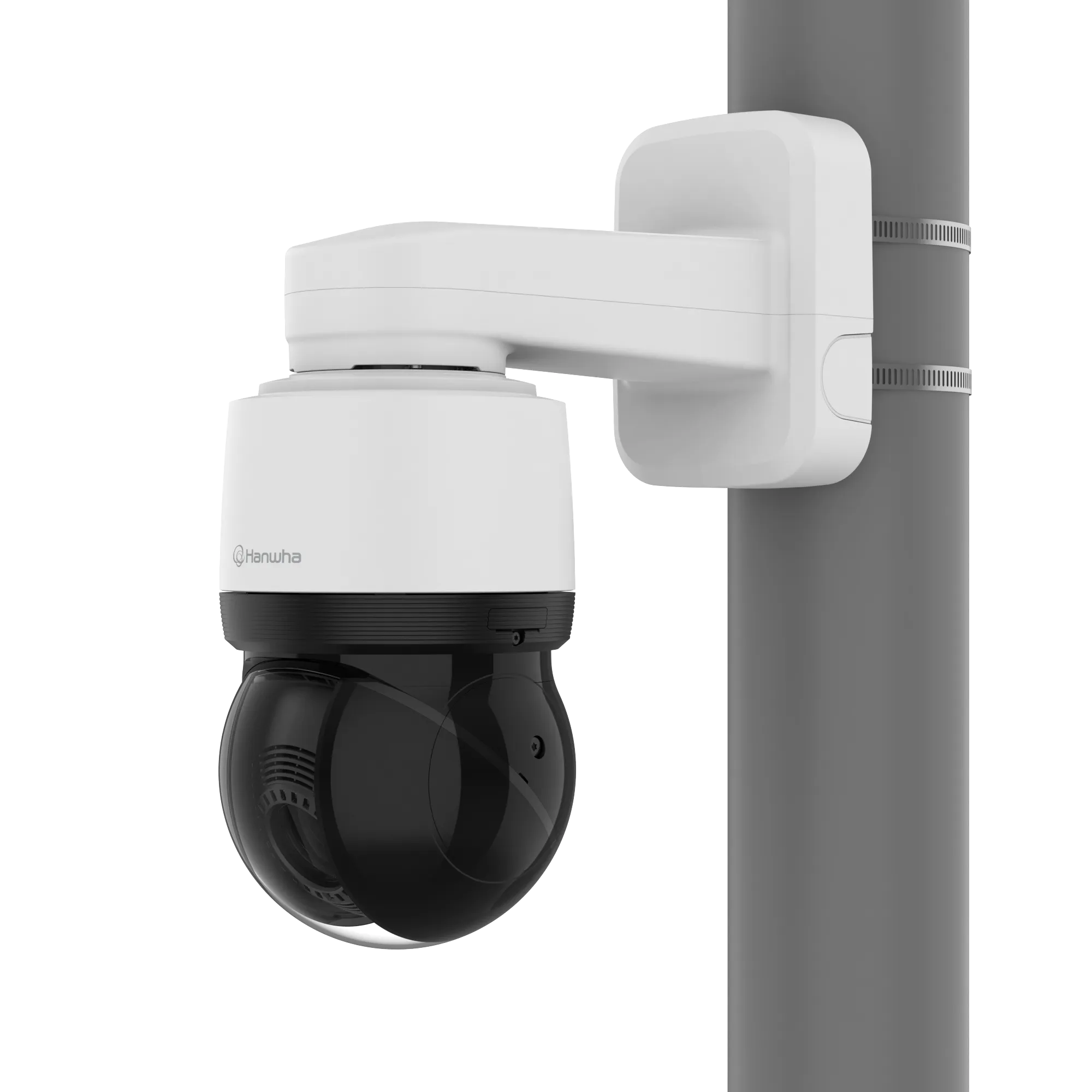

Measuring Ø158 × 293.3 mm and weighing 3200g, this PTZ camera features a white aluminum body with a hard-coated black polycarbonate dome. It operates from -40°C to 55°C (peaks up to 74°C) with cold-starts above -30°C. Powered via PoE++ (injector included), the unit provides dual microSD slots, requires an optional SPM-4210 box for audio/alarm I/O, and supports a full suite of wall, pole, corner, and ceiling mounts.
