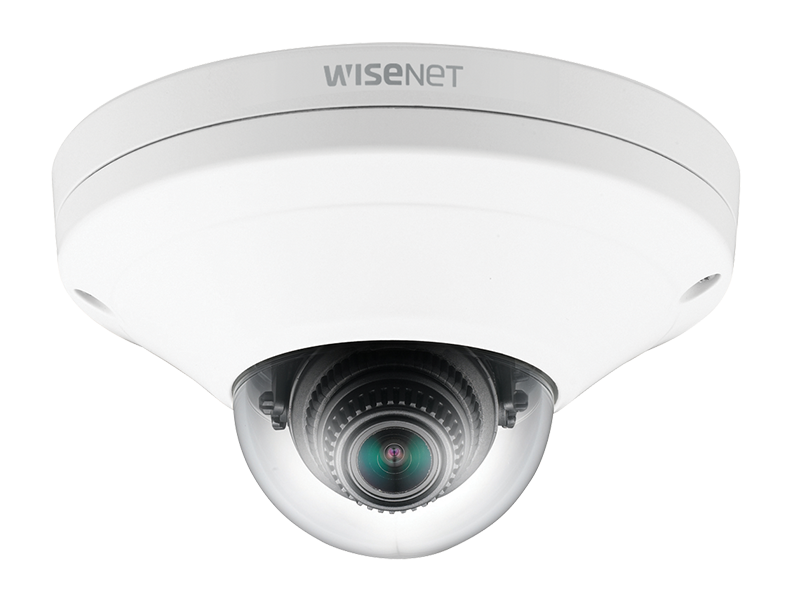

Hanwha - XNV-6011W - 2M Vandal-Resistant Network Dome Camera with 2.8mm Fixed Lens
Product Overview
The Hanwha XNV-6011W is a vandal-resistant outdoor dome camera from the Wisenet X series. Built with a 1/2.8" CMOS sensor and a 2.8mm fixed lens, it provides a wide 112° horizontal field of view. The camera captures 2MP Full HD resolution at up to 60 frames per second, optimizing bandwidth through H.265, H.264, and MJPEG compression technologies coupled with WiseStream II efficiency.
Key Configuration
- • Imaging device: 1/2.8" 2MP CMOS; resolution: 1920×1080 (1080p) at up to 60 fps (H.265/H.264)
- • Lens: 2.8mm fixed, F2.0; horizontal FOV: 112°, vertical: 62°, diagonal: 130°
- • Minimum illumination: color 0.055 lux, B/W 0.055 lux (F2.0, 1/30 sec); no built-in IR
- • Video compression: H.265/H.264 (Main/Baseline/High), MJPEG; WiseStreamⅡ
- • Power: PoE (IEEE 802.3af, Class 3); max 6.5W
Key Features
This feature network camera includes a 150dB Wide Dynamic Range (WDR) to handle harsh lighting, SSNRV digital noise reduction, digital image stabilization, defog processing, and lens distortion correction. For optimal framing, it supports a 24x digital PTZ and hallway view with 90° or 270° rotation. Its extensive built-in analytics detect motion across eight polygonal zones, tampering, loitering, and virtual line crossings, while offering specialized business intelligence tools like people counting, heatmaps, and queue management. Security and installation are streamlined via 32 customizable privacy masking zones, local edge storage supporting up to a 256GB microSD card, dual CVBS and USB micro Type B video outputs for easy setup, and full ONVIF Profile S and G compliance.
Technical Context
Featuring a 0.2m (0.66 ft) minimum object distance with manual focus, this device utilizes an electronic shutter from 2 to 1/12,000 sec and an electronic Day & Night mode. It supports extensive IPv4/IPv6 networking protocols for unicast streaming up to 20 users, multicast, and 10-profile multi-streaming. Enterprise security is maintained via HTTPS/SSL, digest login, IP filtering, user logs, and 802.1X authentication. Additionally, the rugged housing carries IP66, IK10, and NEMA4X certifications for harsh environments.
Installation Notes
Constructed from white metal, this compact, outdoor vandal dome measures Ø112.8 × 63.7 mm (Ø4.44" × 2.51"), weighs 420g (0.93 lb), and lacks built-in IR. It operates from -30°C to 55°C (-22°F to 131°F) with start-up required above -20°C, and draws power via PoE (IEEE 802.3af, Class 3). For installation and storage, the unit features dual CVBS and USB setup outputs, a dedicated USB configuration port, and a microSD edge storage slot supporting up to 256GB.
| Video | |
| Imaging Device | 1/2.8" 2M CMOS |
| Total Pixels | 1,945(H) x 1,109(V) 2.16M |
| Effective Pixels | 1,945(H) x 1,097(V) 2.13M |
| Scanning System | Progressive Scan |
| Min. Illumination | Color : 0.055 Lux (F2.0, 1/30sec) B/W : 0.055 Lux (F2.0, 1/30sec) |
| S / N Ratio | 50dB |
| Video Output | CVBS : 1.0 Vp-p / 75Ω composite, 720 x 480(N), 720 x 576(P), for installation USB : Micro USB type B, 1280 x 720, for installation |
| Lens |
| Focal Length (Zoom Ratio) | 2.8mm fixed |
| Max. Aperture Ratio | F2.0 |
| Angular Field of View | H : 112˚, V : 62˚, D : 130˚ |
| Min. Object Distance | 0.2m (0.66ft) |
| Focus Control | Manual |
| Lens Type | Fixed |
| PAN / TILT / ROTATE |
| Pan / Tilt / Rotate Range | Pan : 0° ~ +353° / Tilt : 0° ~ +59° / Rotate : 0° ~ +353 |
| Operational |
| Camera Title | Off / On (Displayed up to 85 characters) - W/W : English / Numeric / Special Characters - China : English / Numeric / Special / Chinese Characters - Common : Multi-line (Max 5), Color (Grey / Green / Red / Blue / Black / White), Transparency, Auto Scale by Resolution |
| Day & Night | Auto (Electrical) / Color / B/W |
| Backlight Compensation | Off / BLC / HLC (Masking / Dimming), WDR |
| Wide Dynamic Range | 150dB |
| Contrast Enhancement | SSDR (Off / On) |
| Digital Noise Reduction | SSNRⅤ (2D + 3D Noise Filter) (Off / On) |
| Digital Image Stabilization | Off / On |
| Defog | Auto (input from fog detection) / Manual / Off |
| Motion Detection | Off / On (8ea, 8point polygonal zones), Handover |
| Privacy Masking | Off / On (32ea, polygonal zones) - Color : Grey / Green / Red / Blue / Black / White - Mosaic |
| Gain Control | Off / Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor (Included Mercury & Sodium) |
| Contrast | Level Adjustment |
| LDC | Off / On (5 levels with Min / Max) |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2 ~ 1/12,000sec) |
| Digital PTZ | 24X, Digital PTZ (Preset, Group) |
| Flip / Mirror | Flip : Off / On, Mirror : Off / On, Hallway View : 90˚ / 270˚ |
| Video Analytics | Tampering, Loitering, Directional Detection, Defocus Detection, Fog Detection, Virtual Line, Enter / Exit, (Dis) Appear, Face Detection, Motion Detection, Digital Auto Tracking, People Counting, Heatmap, Queue management |
| Alarm Triggers | Motion Detection, Video Analytics, Network Disconnect |
| Alarm Events | File upload via FTP, E-Mail Notification via E-Mail Local Storage (SD / SDHC / SDXC) or NAS Recording at Event Triggers |
| Pixel Counter | Support |
| NETWORK |
| Ethernet | RJ-45 (10/100 BASE-T) |
| Video Compression Format | H.265 / H.264 (MPEG-4 Part 10 / AVC) : Main / Baseline / High, Motion JPEG |
| Resolution | 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240 |
| Max. Framerate | H.265 / H.264 : Max. 60fps at all resolutions, Motion JPEG : Max. 30fps |
| Smart Codec | Manual Mode (area-based : 5EA) |
| WiseStreamⅡ | Support |
| Video Quality Adjustment | H.264 / H.265 : Target bitrate Level Control, MJPEG : Target bitrate Level Control |
| Bitrate Control Method | H.264 / H.265 : CBR or VBR, MJPEG : VBR |
| Streaming Capability | Multiple Streaming (Up to 10 Profiles) |
| IP | IPv4, IPv6 |
| Protocol | TCP / IP, UDP / IP, RTP (UDP), RTP (TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL / TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMP v1 / v2c / v3 (MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour |
| Security | HTTPS (SSL) Login Authentication, Digest Login Authentication IP Address Filtering, User access Log, 802.1X Authentication (EAP-TLS, EAP-LEAP |
| Streaming Method | Unicast / Multicast |
| Max. User Access | 20 users at Unicast Mode |
| Edge Storage | SD / SDHC / SDXC (256GB) - Motion Images recorded in the SD / SDHC / SDXC memory card can be downloaded. NAS (Network Attached Storage), Local PC for Instant Recording |
| Application Programming Interface | e ONVIF Profile S/G, SUNAPI (HTTP API), Open Platform |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Web Viewer | Supported OS : Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12 Non-plugin WebViewer - Supported Browser : Google Chrome 54, MS Edge 38, Mozilla Firefox 49 (Window 64bit only), Apple Safari 10 (Mac OS X only) Plug-in WebViewer - Supported Browser : MS Explore 11, Apple Safari 9 (Mac OS X only) |
| Central Management Software | SmartViewer, SSM |
| ENVIRONMENTAL |
| Operating Temperature / Humidit | -30°C ~ +55°C (-22°F ~ +131°F) / Less than 90% RH *Start up should be done at above -20˚C |
| Storage Temperature / Humidity | 30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH |
| Ingress Protection | IP66 |
| Vandal Resistance | IK10, NEMA4X |
| ELECTRICAL |
| Input Voltage / Current | PoE (IEEE802.3af, Class3) |
| Power Consumption | Max 6.5W |
| MECHANICAL |
| Color / Material | White / Metal |
| Dimensions (WxH) | Ø112.8 x 63.7mm (Ø4.44" x 2.51") |
| Weight | 420g (0.93 lb) |
