Hanwha - XNV-8080R - 5MP Vandal-Resistant Network IR Dome Camera
Product Overview

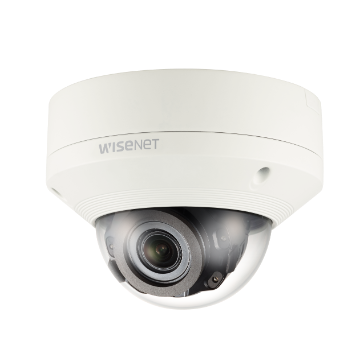

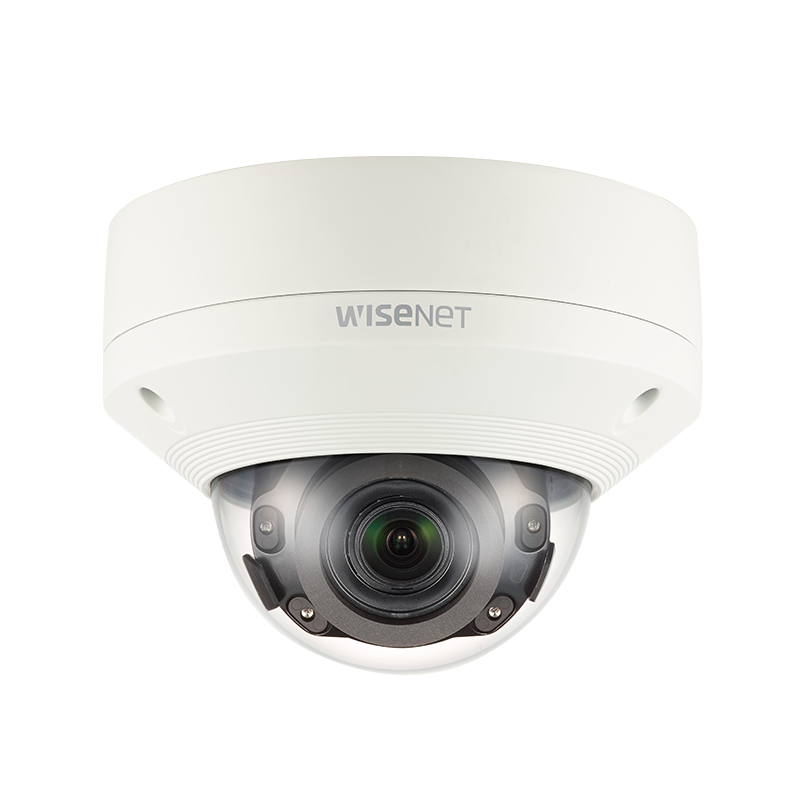

The XNV-8080R is an outdoor, vandal-resistant IR dome camera featuring a 1/1.8" CMOS sensor paired with a 3.9~9.4mm (2.4x) motorized varifocal lens. It delivers 5MP resolution at up to 30 fps, utilizing efficient H.265/H.264/MJPEG compression alongside WiseStream II bandwidth optimization.
Key Configuration
- • Imaging device: 1/1.8" 5MP CMOS; resolution: 2560×1920 (5MP) at up to 30 fps (H.265/H.264)
- • Lens: 3.9~9.4mm motorized varifocal (2.4x), F1.3; horizontal FOV: 92.1°(W)–38.7°(T); lens type: DC auto iris, P-iris
- • IR viewable length: 50m (164 ft); minimum illumination: color 0.07 lux (F1.3, 1/30 sec), 0 lux with IR
- • Video compression: H.265/H.264 (Main/Baseline/High), MJPEG; WiseStreamⅡ
- • Power: PoE (IEEE 802.3af/at – class not specified), 24V AC, or 12V DC
Key Features
Equipped with 120dB WDR, SSNR V noise reduction, and DIS, this camera features Lens Distortion Correction and a 90°/270° Hallway View. Its extensive analytics suite includes face and motion detection, digital auto-tracking, loitering, virtual line crossing, and sound classification. Onboard hardware includes two-way audio, 1 alarm I/O, and dual microSD slots (512GB max), while setup is simplified via CVBS and micro USB video outputs for ONVIF Profiles S/G/T compliance.
Technical Context
Featuring a 0.5m minimum object distance with simple focus and an electronic shutter 2 to 1/12,000 sec, this dome offers 32 privacy masks and 8 motion zones. Operating on a 10-profile architecture supporting 20 unicast and unlimited multicast users, its protocol suite covers secure networking alongside standard IT standards. Cyber protection includes HTTPS/SSL, digest login, IP filtering, and 802.1X authentication, all housed in a rugged IP66/IP67/IK10/NEMA4X certified casing.
Installation Notes
Measuring Ø160 × 118.5 mm and weighing 1010g, this ivory aluminum dome operates from -40°C to 55°C (under 90% RH). Powered via flexible PoE, 24VAC, or 12VDC. The unit includes dual microSD slots for edge storage, dedicated audio and alarm I/O, and dual CVBS/USB video outputs to simplify local installation alignment.
| Video | |
| Imaging Device | 1/1.8" 5MP CMOS |
| Min. Illumination | Color: 0.07Lux(F1.3, 1/30sec) B/W: 0Lux(IR LED on) |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P), for installation USB: Micro USB Type B, 1280x720, for installation |
| Lens |
| Focal Length (Zoom Ratio) | 3.9~9.4mm(2.4x) motorized varifocal |
| Max. Aperture Ratio | F1.3 |
| Angular Field of View | H: 92.1°(Wide)~38.7°(Tele), V: 67.2°(Wide)~29.0°(Tele), T: 119.9°(Wide)~48.6°(Tele) |
| Min. Object Distance | 0.5m(1.64ft) |
| Focus Control | Simple focus |
| Lens Type | DC auto iris, P iris |
| Pan / Tilt / Rotate |
| Pan / Tilt / Rotate Range | 0˚~354˚ / 0˚~67˚ / 0˚~355˚ |
| Operational |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR, DWDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNRⅤ |
| Digital Image Stabilization | Support |
| Defog | Support |
| Motion Detection | 8ea, 8point polygonal zones |
| Privacy Masking | 32ea, polygonal zones - Color: Grey/Green/Red/Blue/Black/White - Mosaic |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view(90˚/270˚) |
| Analytics | Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Digital auto tracking, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and E-Mail Notification via E-Mail SD/SDHC/SDXC or NAS recording at Event Triggers Alarm output Handover |
| Audio In | Selectable(Mic in/Line in), Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm |
| Audio Out | Line out, Max. output level: 1Vrms |
| IR Viewable Length | 50m(164.04ft) |
| Network |
| Ethernet | RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Smart Codec | Manual(5ea area) WiseStreamⅡ |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour , LLDP, SRTP |
| Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access Log 802.1X Authentication(EAP-TLS, EAP-LEAP) |
| Application Programming Interface | ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform |
| Environmental & Electrical |
| Operating Temperature / Humidity | -40°C ~ +55°C(-40°F ~ +131°F) / Less than 90% RH |
| Storage Temperature / Humidity | -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH |
| Certification | IP67/IP66/NEMA4X, IK10 |
| Mechanical |
| Color / Material | Ivory / Aluminum |
| Product dimensions / weight | Ø160xH118.5mm (Ø6.3x4.67"), 1010g(2.23 lb) |
